Periodic Interrupt

Periodic Interrupt Program

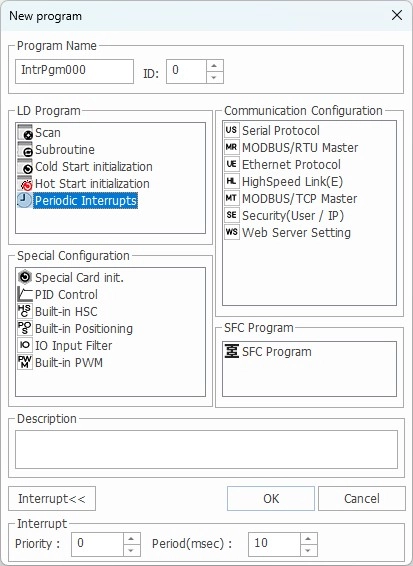

LD Program Periodic Interrupt Selection in MapleLogic

The periodic interrupt program is executed at intervals specified by the interrupt period.

Configuration

Step 1: To configure the periodic interrupt program, specify the interrupt ID.

  • The number must be unique between 1 ~ 15.
CPU Micro Analog Manual PLC Parameter in MapleLogic

Step 2: Periodic interrupt program will appear in the PLC parameter. To open, left-click Parameter and left-click PLC Parameter.

LD Program Periodic Interrupt PLC Parameter in MapleLogic

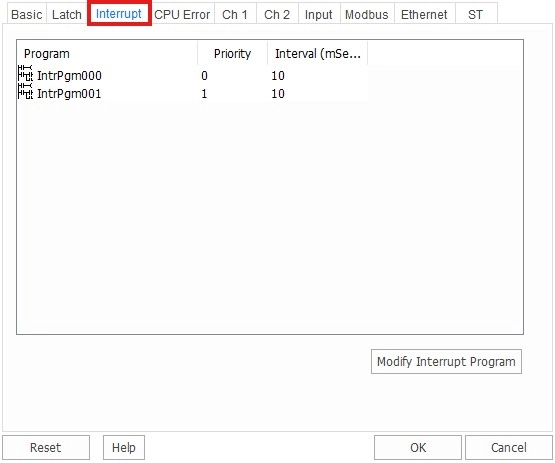

Step 3: Periodic interrupt programs can be configured under the Interrupt section.

  • The lowest priority number has the highest priority.

To run the periodic interrupt program, use the GEI instruction. To execute the periodic interrupt program, use the EI instruction.

LD Program Periodic Interrupt Instruction in MapleLogic
