UL Certified, Dual 4K Fanless Digital Signage Player

BPC5024A
— Leave a Review
$1,425.00
Configure

The BPC5024A is a compact, fanless digital signage player designed for reliable 24/7 operation in retail, transportation, corporate, and public environments. Powered by the latest Intel® Alder Lake-N Core™ i3-N305 up to 3.80GHz processor, it delivers smooth 4K multimedia playback with dual HDMI 2.0 outputs for independent dual-display support. With high-speed DDR5 memory, NVMe SSD storage, optional Wi-Fi and Bluetooth expansion, TPM 2.0 security, and advanced features like CEC, hardware EDID emulation, Peripheral Device Power Control (PDPC), Energy Saving Technology, and Observer Connect remote monitoring, the BPC5024A provides a powerful, efficient, and easy-to-manage solution for modern digital signage applications. Works with all cloud-based digital signage software platforms like Nimbus808, Yodeck, OptiSigns, and NoviSign.

Share the product:

Volume Pricing

Planning a larger order? Let's talk about your pricing.

Quantity orders are priced case by case, around the configuration, volume, and delivery schedule you need. Tell our sales team what you have in mind and they will put a quote together for it. It is the quickest way to know exactly what your order will cost.

Request a Quote

  • Intel® Alder Lake-N Core™ i3-N305 up to 3.80GHz processor
  • Intelligent Energy Saving Technology, CEC and EDID emulation built-in
  • Observer Remote Monitoring, Wake on LAN (WoL), and PDPC technologies included
  • High-Resolution Multi-Display Output
  • cULus Listed, Wi-Fi/Bluetooth 5.2 Options
View Datasheet

This product:
Total price: N/A

The base options are selected by default. Select the options to get the desired configuration.

Ubuntu® Linux® Desktop LTS

Supported Models: AEX-2410, IPC2330A, IPC2110A, IPC2210A, IPC2400A Series, IPC2550A, IPC2700A Series, OMI6800BPHEB Series, OMI6900BP Series, PC1200A Series, PC1300X Series, PCS6800A Series, PCS6800APHEB, PC8100 Series and Windows Rugged Tablets.

This powerful Operating System delivers enterprise manageability and security across a wide range of industries. Additionally, most features and functionality that customers expect to find on their desktop PCs are available in this Open-Source Operating System. The Long-Term Support (LTS) version ensures long-term stability with five years of free security and maintenance updates.

Included Apps:

  • Libre Office Suite
  • Mozilla Firefox Web Browser
  • Gnome Desktop
  • Rythm Box Media Player
  • VIM

Microsoft® Windows® 10 IoT Enterprise Embedded (EPKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

EPKEA Extended Denotation, “Embedded Product Key Entry Activation.”

The Product Key is embedded in the PC and activated by Maple Systems. If the OS needs to be reinstalled, it must come back to Maple Systems.

Microsoft® Windows® 10 IoT Enterprise Embedded LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft Edge Web Browser
  • Libre Office
  • Media Player

Microsoft® Windows® 10 IoT Enterprise (PKEA) LTSC

Supported Models: Windows® 10 Enterprise if currently supported by all current Maple Systems PC offerings.

PKEA Extended Denotation, “Product Key Entry Activation.”

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windows® before use by entering the Product Key into the Activation page while connected to the internet. For video instructions click on the link to View License Activation Tutorial.

Microsoft® Windows® 10 IoT Enterprise LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers comprehensive manageability to cyber security, organizational deployment, and device management.

The Long-Term Servicing Channel (LTSC) version ensures long-term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:

  • Microsoft® Edge Web Browser
  • Libre Office
  • Media Player

Microsoft® Windows® 11 IoT Enterprise LTSC 64-bit (EPKEA)

The Product Key is embedded in the PC and activated by Maple Systems. If the OS needs to be reinstalled, it must come back to Maple Systems.

Microsoft® Windows® 11 IoT Enterprise Embedded LTSC 2024 is a targeted use version of Windows® 11. This powerful Operating System delivers comprehensive manageability to cybersecurity, organizational deployment, and device management. Designed for environments requiring stability and reduced disruptions.

The Long-Term Servicing Channel (LTSC) version ensures stability and long-term consistency, differing from standard Windows 11 by offering security/quality updates without adding miscellaneous features and disruptions. With a 10-year support schedule to update the operating system components, LTSC is ideal for long-term controlled environments and fixed-function devices.

Included Apps:

  • Microsoft® Edge Web Browser
  • Libre Office
  • Media Player

Microsoft® Windows® 11 IoT Enterprise LTSC 64-bit (PKEA)

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windows® before use by entering the Product Key into the Activation page while connected to the internet.

For video instructions, click on the link to View License Activation Tutorial.

Microsoft® Windows® 11 IoT Enterprise Embedded LTSC 2024 is a targeted use version of Windows® 11. This powerful Operating System delivers comprehensive manageability to cybersecurity, organizational deployment, and device management. Designed for environments requiring stability and reduced disruptions.

The Long-Term Servicing Channel (LTSC) version ensures stability and long-term consistency, differing from standard Windows 11 by offering security/quality updates without adding miscellaneous features and disruptions. With a 10-year support schedule to update the operating system components, LTSC is ideal for long-term controlled environments and fixed-function devices.

Included Apps:

  • Microsoft® Edge Web Browser
  • Libre Office
  • Media Player

Microsoft® Windows® 11 Pro 64-bit

The Product Key is purchased by the end-user and is on a sticker attached to the PC. The end user must manually activate Windows® before use by entering the Product Key into the Activation page while connected to the internet.

For video instructions click on the link to View License Activation Tutorial.

Windows® 11 Pro is Microsoft’s current gold standard for PC computing. All the features and functionality that customers expect to find on their desktop PC are available in this version as well as the addition of Copilot, the Windows® AI companion for users. Windows® 11 Pro also features a new enhanced hardware security standard to help protect your PC.

Included Apps:

  • Microsoft® Edge Web Browser
  • Copilot Windows® AI
  • Libre Office
  • Media Player
Reset Configuration

Current Configuration

Base Price

BPC5024A

 $1425.00

Processor

 Included

System Memory

 Included

Storage

 Included

Operating System

 Included

Expansion Kit

 Included
Part Number

Datasheet2D CAD File3D CAD File

System

CPU
Intel® Atom® x7000E Series, N-series, and Core™ i3-N305 processors
Memory (RAM)
1 x DDR5 SO-DIMM RAM (8, 16 GB)
System Chipset
SoC
Solid State Drive Type
SATA3 3D TLC (64GB) / NVMe 3D TLC (All Others)

Solid State Drive Type: SATA3 3D TLC (64GB) / NVMe 3D TLC (All Others)

*Only the 64GB is configured with a SATA3 3D TLC SSD. 128GB, 256GB, 512GB, 1TB, 2TB are NVMe 3D TLC SSDs.
Solid State Drive Capacity
64, 128, 256, 512 GB, 1TB, 2TB SSD
CPU Graphics
Gen 12 UHD Graphics (up to 32EU)
TPM Module
Yes (TPM 2.0)

Storage

Solid State Drive
1 x M.2 2280 SATA3 3D TLC (64GB) / NVMe 3D TLC SSD (128GB, 256GB, 512GB, 1TB, 2TB)

Solid State Drive: 1 x M.2 2280 SATA3 3D TLC (64GB) / NVMe 3D TLC SSD (128GB, 256GB, 512GB, 1TB, 2TB)

*Only the 64GB is configured with a SATA3 3D TLC SSD. 128GB, 256GB, 512GB, 1TB, 2TB are NVMe 3D TLC SSDs.
SD Card Slot
N/A

Front I/O

Wireless LAN
2x Wireless LAN Antenna ports (covered unless optional Wi-Fi Expansion kit purchased)
Ethernet/LAN
1 x GbE RJ45
Audio Output
1 x 3.5 mm Line-out
Power
1 x DC Jack Input Connector
USB 2.0 Type A
1
USB 3.2 Type A
2
Power Switch
1 x Momentary Pushbutton
Serial
1 x RS-232 RJ45: COM 1
Display Interface
2 x HDMI 2.0b (max. 3840 x 2160 pixels @ 60Hz)
EDID
Yes

EDID: Yes

Extended Display Identification Data. EDID is the data a monitor sends to the PC telling it what its capabilities are. The emulator basically mimics that data so the IPC thinks the monitor is always connected and powered on, which prevents connection loss, even when changing out displays or providing maintenance, allowing for 24/7 operation.

Auto Control and Monitoring

Watchdog Timer
256 Segments, 0, 1, 2…255 (sec/min)

Watchdog Timer: 256 Segments, 0, 1, 2…255 (sec/min)

Acts as a fail-safe recovery mechanism that automatically resets the system if it becomes unresponsive.
Energy Saving Technology
Yes

Energy Saving Technology: Yes

This Energy Saving Technology automatically manages system power states based on usage, helping reduce power consumption during idle or low-load conditions. Allowing automatic, scheduled power on/shut down/ resume based on predefined schedules, saves cost, extends lifespan, and reduces cooling requirements.
Observer Monitoring Technology
Yes

Observer Monitoring Technology: Yes

Continuously monitors system health (temperature, voltage, hardware status) and provides visibility and alerts.
EDID HW
Yes

EDID HW: Yes

Extended Display Identification Data. EDID is the data a monitor sends to the PC telling it what its capabilities are. The emulator basically mimics that data so the IPC thinks the monitor is always connected and powered on, which prevents connection loss, even when changing out displays or providing maintenance, allowing for 24/7 operation.
PDPC Support
Yes

PDPC Support: Yes

Intelligently manages power to connected USB peripherals, reducing energy consumption and improving system reliability.
HDMI-CEC
Yes

HDMI-CEC: Yes

HDMI-CEC enables automatic control of connected displays, including powering the display on or off, switching inputs, and synchronizing operation without requiring additional control cables
Wake on LAN (WoL)
Yes

Wake on LAN (WoL): Yes

Wake on LAN (WoL) enables administrators to start, update, or troubleshoot signage systems without physical access, reducing maintenance time and improving operational efficiency.

Expansion I/O

Expansion Option
Optional Wi-Fi kit (IEEE802.11ax card and 2 x antenna, Bluetooth 5.2 Support

Electrical

Input Power
50 W
Input Voltage
12 VDC +/- 10%
Input Current
4.17A Max.
Power Supply
50W Power Adaptor with locking DC plug included (does not support Op. Temp -40°-158°F)

Mechanical

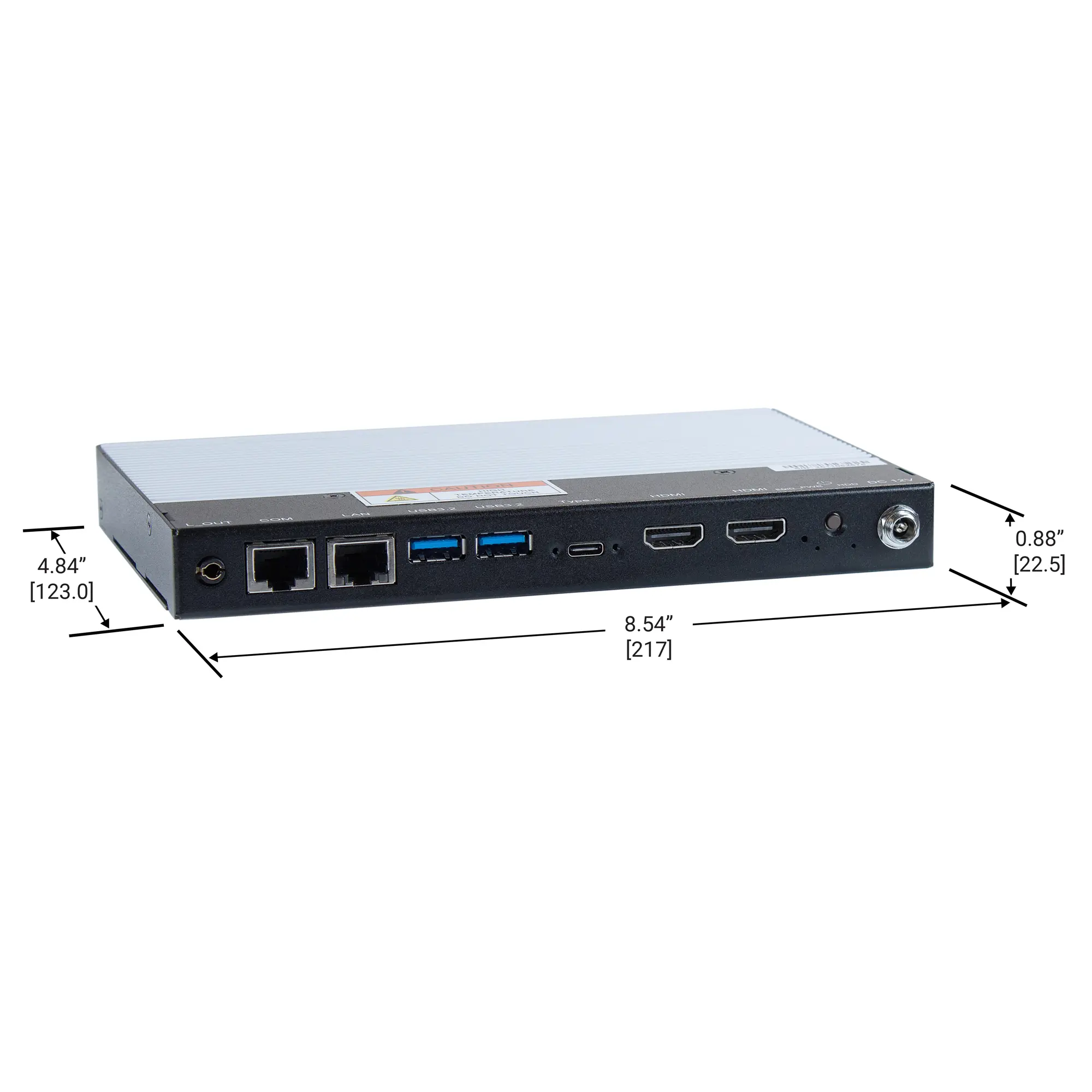

Dimensions WxHxD
8.54" x 0.88" x 4.84" [217 x 22.5 x 123 mm]
Weight
Approx. 2.2 lbs. [1.0 kg]
Mounting
Wall Mount kit included
Construction
Aluminum Heatsink, SGCC Chassis

Environmental

Operating Temperature
-40° – 158°F [-40° – 70°C] without the included power adapter
32° – 113°F [0° – 45°C] with the included power adapter
Storage Temperature
-40° – 185°F [-40° – 85°C] without the included power adapter
Storage Humidity
10% ~ 90% (non-condensing)

Certification

IP Rating
IP30
CE
Yes
UL
Yes
RoHS
Yes
FCC
Class B

Customers who bought this product also bought:

  • Windows

Why is Intelligent Energy Saving highlighted on some of your PC products?

Intelligent Energy Saving is a built-in power management feature that allows users to schedule when the PC automatically turns on and off.

This feature helps reduce energy consumption by ensuring the system only runs during required operating hours. For example, in digital signage, or kiosk applications, the PC can be set to power on before business hours and shut down after closing, eliminating unnecessary runtime.

In addition to energy savings, this technology also supports:

  • Improved system lifespan by reducing continuous usage
  • Consistent daily scheduling for reliable deployment

Overall, this technology is an intelligent power scheduling feature that allows the PC to automatically turn on and off at set times, helping to reduce energy use and enable dependable, unattended operations in industrial and commercial environments.

Products:

Manuals & Guides:

Technical Articles:

  • Digital Signages Articles
What is EDID Emulation?

Extended Display Identification Data. EDID is the data a monitor sends to the PC telling it what its capabilities are. The emulator basically mimics that data so the IPC thinks the monitor is always connected and powered on, which prevents connection loss, even when changing out displays or providing maintenance, allowing for 24/7 operation.

EDID Emulation provides several important advantages:

  • Prevents display resolution issues when monitors are disconnected
  • Maintains stable video output during power cycling or hot-swapping
  • Reduces system downtime in industrial environments
  • Ensures consistent display configuration across reboots
  • Improves reliability for remote or unattended systems

Without EDID Emulation:

  • The system may lose display signal when a monitor is disconnected
  • Resolution may default to a lower setting
  • Applications may resize or fail to display correctly
  • remote access sessions may be disrupted

Contact [email protected] today and learn more about how EDID Emulation can reduce your downtime and ensure dependable performance in all environments.

Products:

Manuals & Guides:

Technical Articles:

  • Digital Signages Articles

What is Observer Remote Monitoring on your IPCs?

Observer is a remote monitoring and system recovery technology built into select PCs that helps ensure reliable, continuous operation.

Allowing for users to monitor system status and automatically recover from unexpected issues, reducing the need for onsite maintenance. If the system encounters an error or becomes unresponsive, Observer can trigger a reboot or different recovery action to restore the system back to normal operations.

Observer is especially useful for remote or unattended systems such as digital signage and kiosks where uptime is critical.

Benefits include:

  • Remote system monitoring for improved visibility
  • Automatic recovery from system crashes or freezes
  • Reduced downtime in critical applications
  • Less need for onsite visits

In general, Observer helps maintain consistent reliability and performance, our PCs well suited for demanding, always-on environments.

Products:

Manuals & Guides:

Technical Articles:

  • Digital Signages Articles

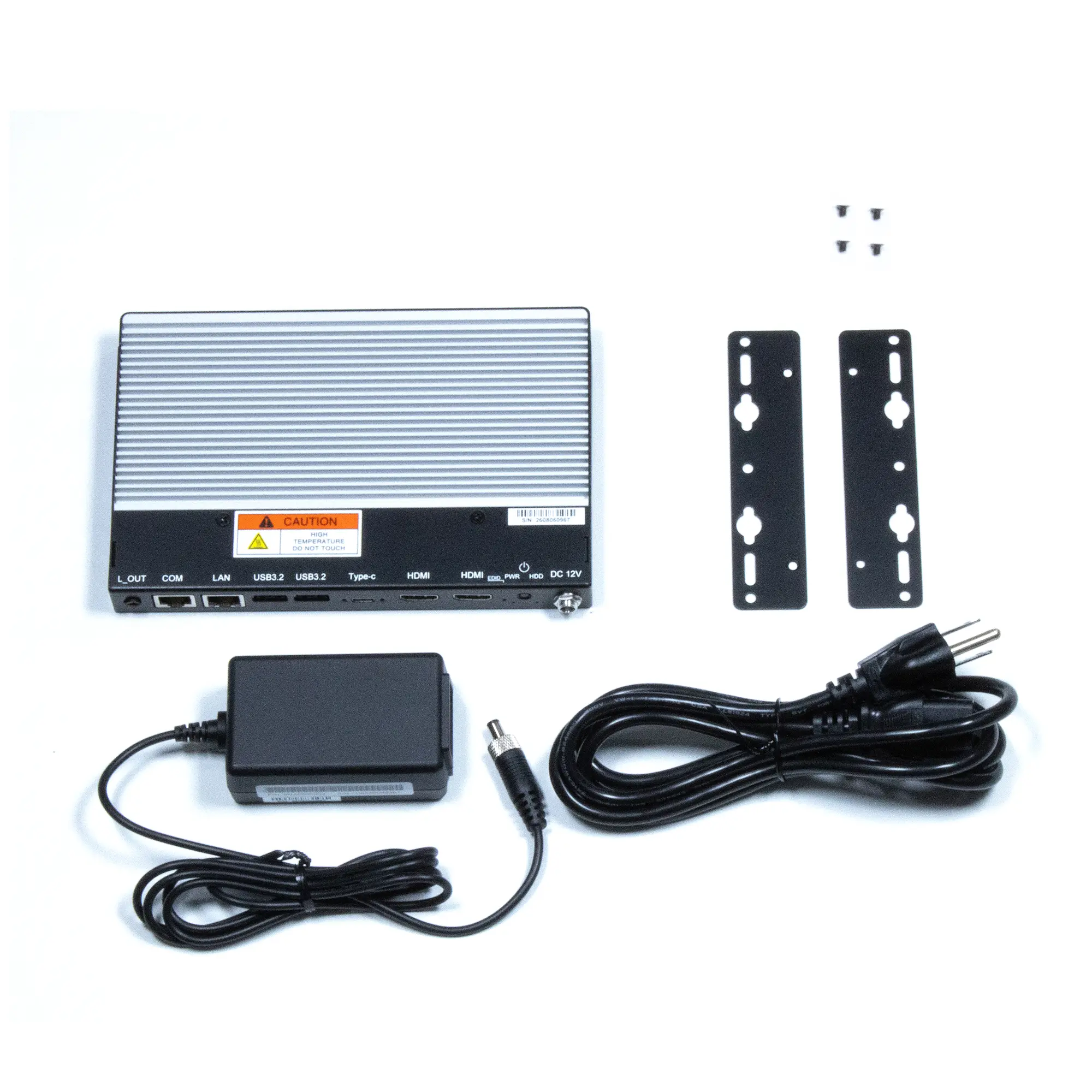

When you order the BPC5024A the following items are included in the box:

  • BPC5024A Series Box PC unit
  • Wall Mounting Kit
  • 3-Pin Terminal Block Power Connector
  • Warranty Statement Insert
