MOD-SENT01

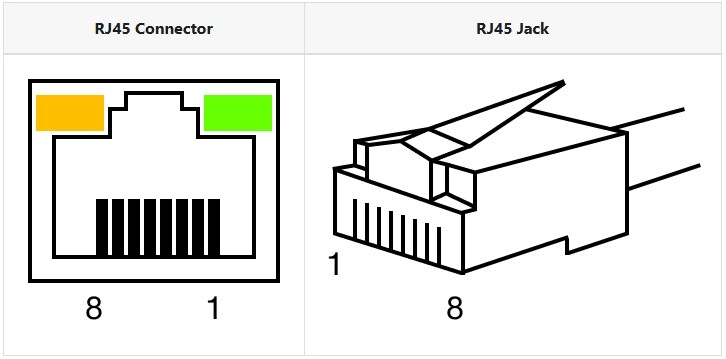

The MOD-SENT01 uses the IEEE802.3 standard for 10 Base-T/100 Base-TX communication.
Straight-Through
Use a straight-through Ethernet cable for Host ↔ Hub communication.
| Number | Color | Color | Number |
|---|---|---|---|
| 1 | Orange/White | Orange/White | 1 |
| 2 | Orange | Orange | 2 |
| 3 | Green/White | Green/White | 3 |
| 4 | Blue | Blue | 4 |
| 5 | Blue/White | Blue/White | 5 |
| 6 | Green | Green | 6 |
| 7 | Brown/White | Brown/White | 7 |
| 8 | Brown | Brown | 8 |
Crossover
Use a crossover Ethernet cable for Host ↔ Host communication.
| Number | Color | Color | Number |
|---|---|---|---|
| 1 | Orange/White | Green/White | 1 |
| 2 | Orange | Green | 2 |
| 3 | Green/White | Orange/White | 3 |
| 4 | Blue | Blue | 4 |
| 5 | Blue/White | Blue/White | 5 |
| 6 | Green | Orange | 6 |
| 7 | Brown/White | Brown/White | 7 |
| 8 | Brown | Brown | 8 |
