Instruction Parameters
Supported PLC Series
| PLC-AES | PLC-FB | PLC-ES |
|---|---|---|
| ✓ | ✓ | ✓ |
Supported Data Registers
| M | X | Y | K | L | F | T | C | S | Z | R | Q | D | @D | Constant | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | ✓ | – | ✓ | ✓ | ✓ | – | ✓ | ✓ | – | ✓ | ✓ | ✓ | ✓ | ✓ | – |
Supported Flags
| Flag | Bit | Support |
|---|---|---|
| Error | F11.0 | ✓ |
| Zero | F11.1 | – |
| Carry | F11.2 | – |
Number of Steps
| Steps |
|---|
| 2 |
Operands
| Operand | Description |
|---|---|
| D | The only operand. Entries are only DWORD data registers. This is the value to negate. This is where the negation is stored. The signed value range is -2,147,483,648 ~ 2,147,483,647 (232). The unsigned value range is 0 ~ 4,294,967,295 (232-1). The Hexadecimal value range is H00000000 ~ HFFFFFFFF. |
Notice
Error Flag (F11.0) Notice
The error flag, F11.0, will be ON for one scan when the address of the data register assigned by @D exceeds the range of the data register, D. The range of the data register, D, is dependent on the CPU type.
Signed Overflow
DWORD data register entry behaves as follows:
- If the value of S1 or S2 exceeds the smallest signed value -2,147,483,648, the value will be set to -2,147,483,648 with no warning.
- If the value of S1 or S2 exceeds the largest signed value 2,147,483,647, the value will be set to 2,147,483,647 with no warning.
Instruction Behavior
The DNEG and DNEGP instructions behave as follows:
- If the initial value for the data register, D, is positive and the DNEG or DNEGP instruction is executed, the resulting negation value D is negative.
- If the initial value for the data register, D, is negative and the DNEG or DNEGP instruction is executed, the resulting negation value D is positive.
- If the initial value for the data register, D, is signed and -2,147,483,648, negation will NOT occur, and the data register, D, will remain -2,147,483,648.
Execution Condition
It is recommended that the DNEG instructions be used with a pulse contact as an execution condition, or use the DNEGP instruction.
Ladder Diagram Examples
DNEG
The DNEG instruction negates a DWORD value, D, and saves the result in the same assigned DWORD data register, D.

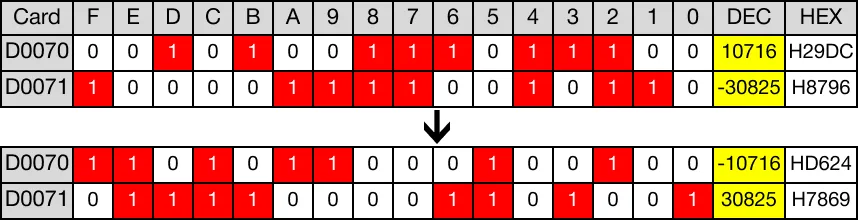

When the contact, M3.0, is powered ON (1), the value of the data register, D70, -2,020,202,020, is negated. The value of the negation, 2,020,202,020, is saved in the same data register, D70.
Memory Monitor
DNEGP
The DNEGP one-shot instruction negates a DWORD value, D, and saves the result in the same assigned DWORD data register, D. Every time this instruction executes, it energizes the output only once.

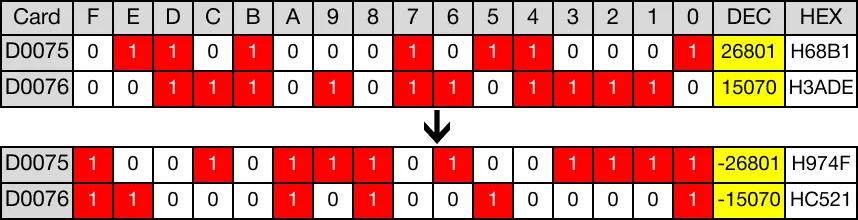

When the contact, M3.1, is powered ON (1), the value of the data register, D75, 987,654,321, is negated. The value of the negation, -987,654,321, is saved in the same data register, D75.
Memory Monitor
