Instruction Parameters
Supported PLC Series
| PLC-AES | PLC-FB | PLC-ES |
|---|---|---|
| ✓ | ✓ | ✓ |
Supported Data Registers
| M | X | Y | K | L | F | T | C | S | Z | R | Q | D | @D | Constant | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S1 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | – | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| S2 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | – | ✓ | ✓ | ✓ | ✓ | ✓ | – |
| D | ✓ | – | ✓ | ✓ | ✓ | – | ✓ | ✓ | – | ✓ | ✓ | ✓ | ✓ | ✓ | – |
| n | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | – | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Supported Flags
| Flag | Bit | Support |
|---|---|---|
| Error | F11.0 | ✓ |
| Zero | F11.1 | – |
| Carry | F11.2 | – |
Number of Steps
| Steps |
|---|
| 5 |
Operands
| Operand | Description |
|---|---|
| S1 | The first operand. Entries are WORD data registers or constants. This is the starting data register for the first range of n data registers to compare to S2. This requires n data registers. The unsigned value range is 0 ~ 65,535 (216). The Hexadecimal value range is H0000 ~ HFFFF. |
| S2 | The second operand. Entries are only WORD data registers. This is the starting data register for the second range of n data registers to compare to S1. This requires n data registers. The unsigned value range is 0 ~ 65,535 (216). The Hexadecimal value range is H0000 ~ HFFFF. |
| D | The third operand. Entries are only WORD data registers. This is where the comparison result is saved. This requires n data registers. |
| n | The fourth operand. Entries are WORD data registers or constants. This is the amount of data registers to compare starting at S1 and S2. |
Notice
Error Flag (F11.0) Notice
The error flag, F11.0, will be ON for one scan when the address of the data register assigned by @D exceeds the range of the data register, D. The range of the data register, D, is dependent on the CPU type.
Ladder Diagram Examples
BKCMP>=
= instruction compares n number of WORD data registers starting at S1 to n number of WORD data registers starting at S2.”/>The BKCMP>= instruction compares n number of WORD data registers starting at S1 to n number of WORD data registers starting at S2. For each data register in the range S1 ~ Sn that is greater than or equal to each data register in the range S2 ~ Sn, each data register in the range D ~ Dn will turn bit 0 to ON (1).

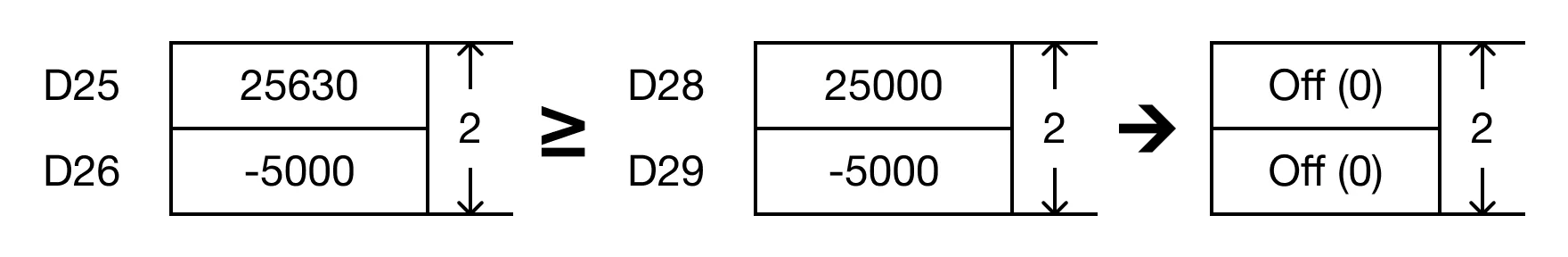

= instruction will compare the following expressions for a true or false value:”/>- The BKCMP>= instruction will compare the following expressions for a true or false value:
- D25 ≥ D18 → 25,630 ≥ 25,000
- D26 ≥ D29 → -5,000 ≥ -5,000

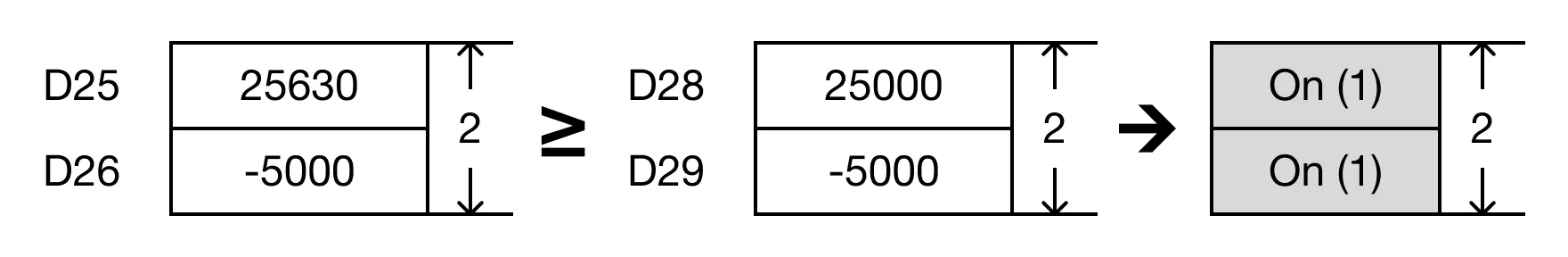

- When the open contact, M0.2, is powered ON (1), the values of the data registers are compared.
- D25 ≥ D18 → 25,630 ≥ 25,000 (TRUE → D31 = 1)
- D26 ≥ D29 → -5,000 ≥ -5,000 (TRUE → D32 = 1)

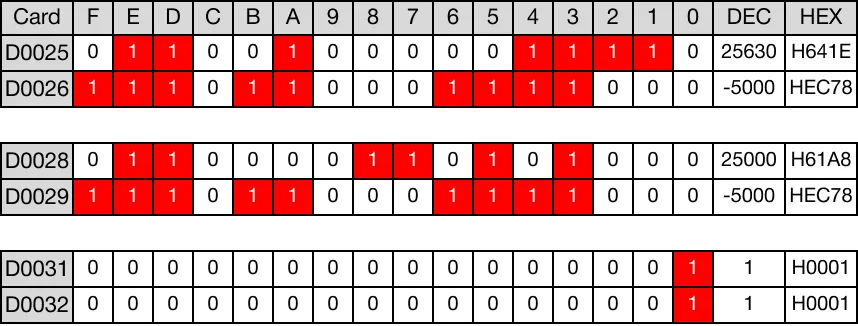

Memory Monitor
BKCMP>=P
=P one-shot instruction compares n number of WORD data registers starting at S1 to n number of WORD data registers starting at S2.”/>The BKCMP>=P one-shot instruction compares n number of WORD data registers starting at S1 to n number of WORD data registers starting at S2. For each data register in the range S1 ~ Sn that is greater than or equal to each data register in the range S2 ~ Sn, each data register in the range D ~ Dn will turn bit 0 to ON (1). Every time this instruction executes, it energizes the output only once.
=P instruction will compare the following expressions for a true or false value:”/>- The BKCMP>=P instruction will compare the following expressions for a true or false value:
- D35 ≥ D40 → 32,700 ≥ 32,700
- D36 ≥ D41 → -5,641 ≥ 5,641
- D37 ≥ D42 → 8,745 ≥ -6,542

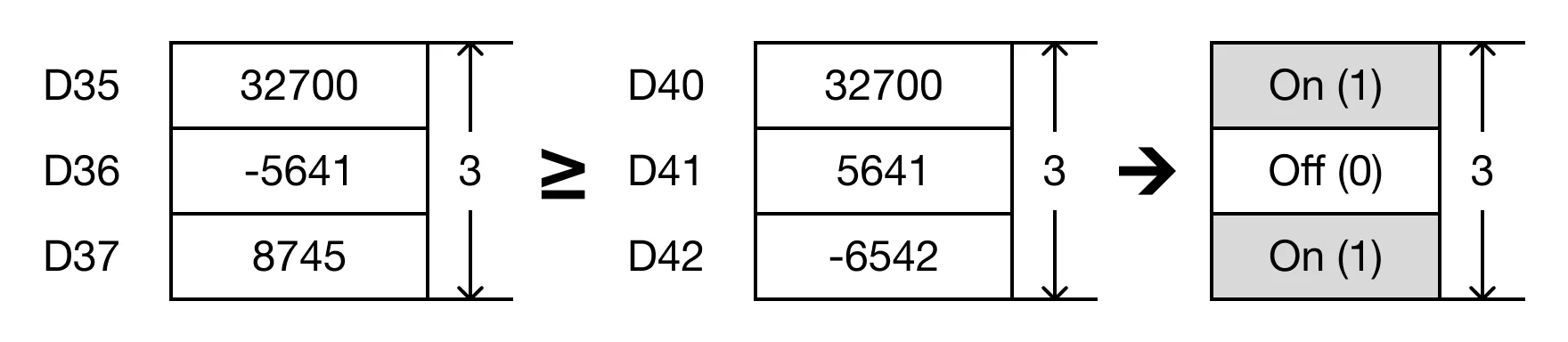

- When the open contact, M0.3, is powered ON (1), the values of the data registers are compared.
- D35 ≥ D40 → 32,700 ≥ 32,700 (TRUE → D45 = 1)
- D36 ≥ D41 → -5,641 ≥ 5,641 (FALSE → D46 = 0)
- D37 ≥ D42 → 8,745 ≥ -6,542 (TRUE → D47 = 1)

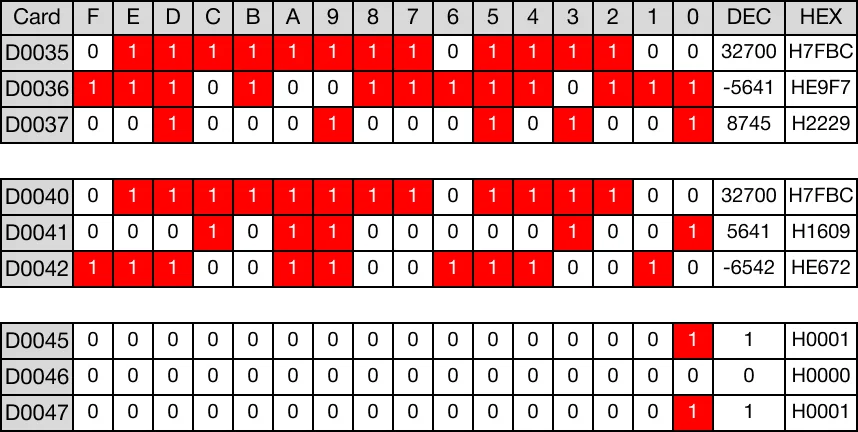

Memory Monitor
