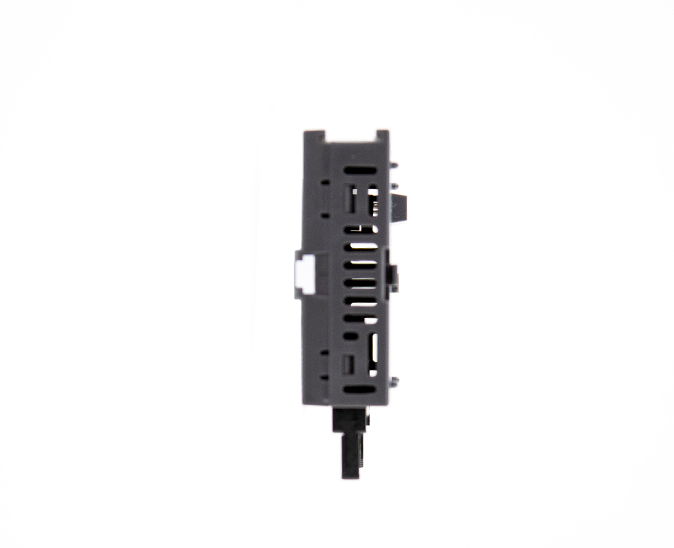

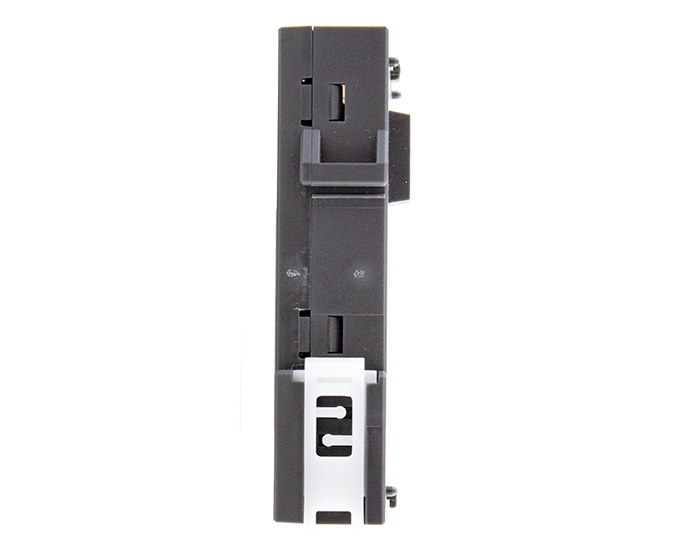

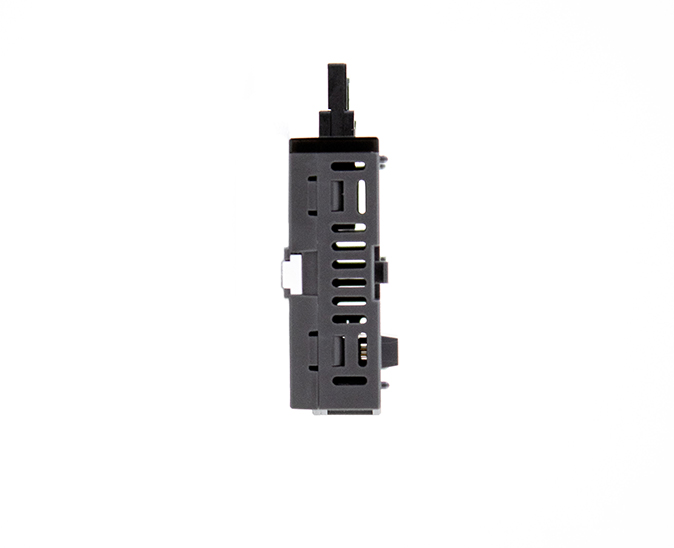

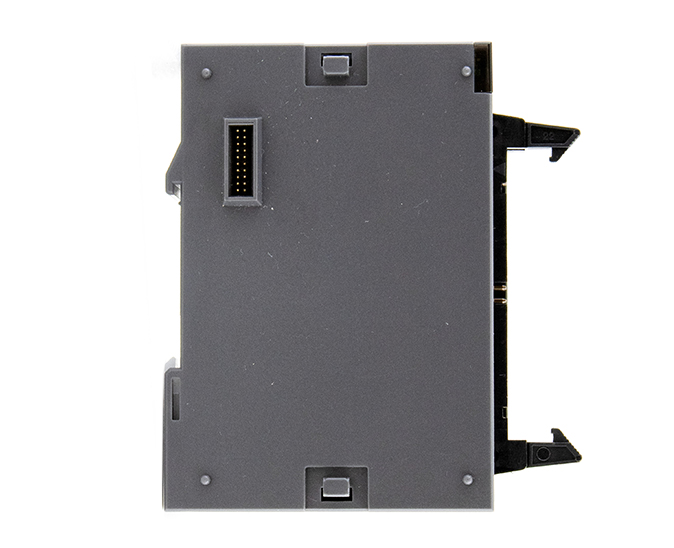

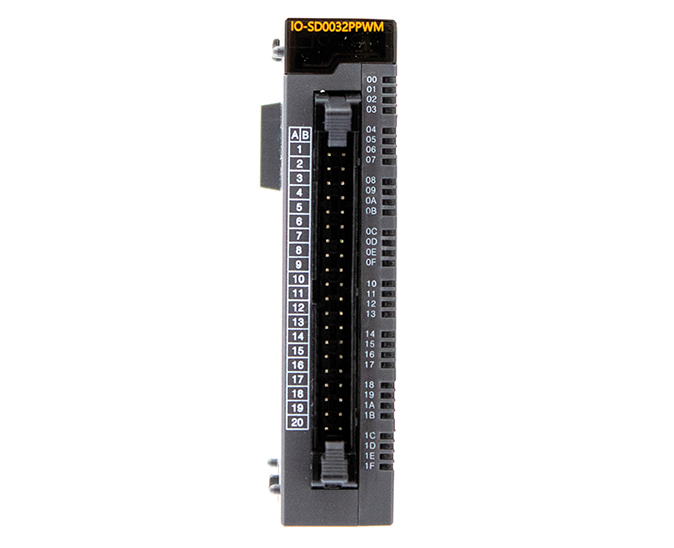

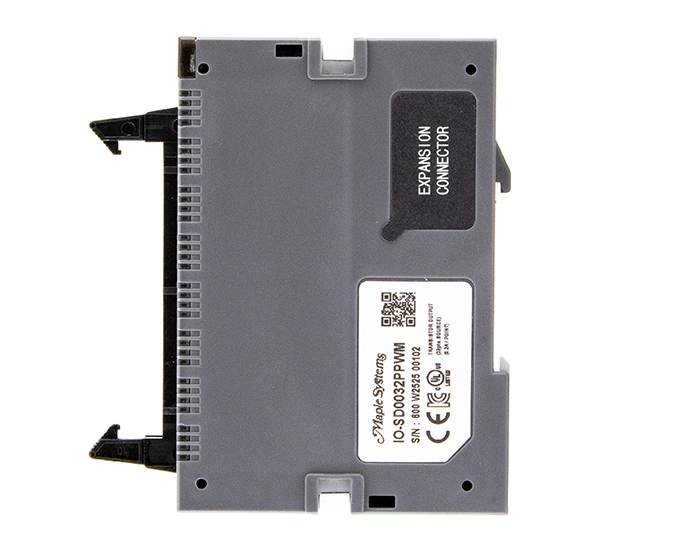

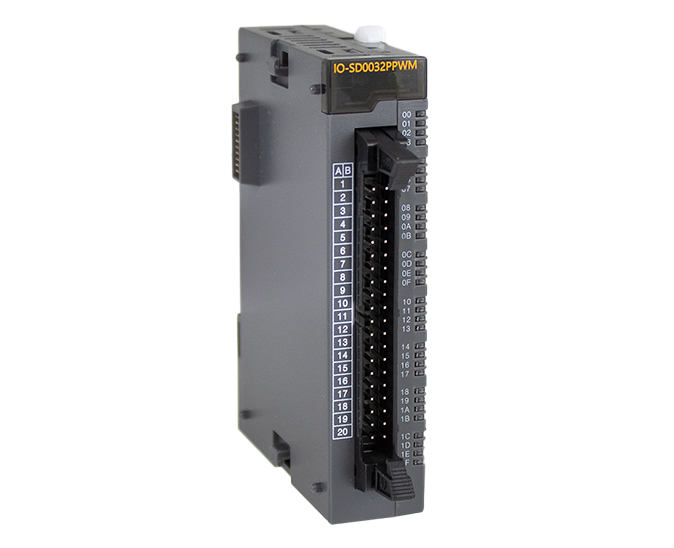

Pulse Width Module (PWM) Kit
$380.00
Compact Pulse Width Module (PWM) Kit. Module that will convert a digital signal into an analog signal by varying the width of the pulses while keeping the frequency constant. Kit includes PWM, terminal block and I/O cable.
- US-based technical support.
Share the product:
Compare to Similar Models
Compare IO-SD0032PPWM-KIT with 1 other product
Digital Output
| Output Type | Source |
| Number of Digital Output Points | 32 (12 PWM) |
| Rated Digital Output Voltage | 12/24 VDC |
| Rated Digital Output Current | 1 point = 0.2 A, 1 COM = 2 A |
| Response Time: Off -> On | 1 ms or less |
| Response Time: On -> Off | 1 ms or less |
| Insulation Method | Photocoupler |
| Operation Indication | LED will be ON when the input is ON |
| Frequency Range (Guarantee Duty Cycle) | 1-4000 Hz (pps) |
| Duty Cycle Resolution | 0.0 – 100.0% (1/1000) |
| RAMP Control | Frequency RAMP, Duty Cycle RAMP Control |
Mechanical
| Terminal Connector Type | External Terminal Block |
| Dimensions WxHxD | 90 x 20 x 63 mm (3.5 x 0.8 x 2.5 in) |
| Weight | 74 g (0.16 lb) |
| Mounting | 35mm DIN Rail Mounting |
| Shock | 15G |
| Vibration | 0.5G – Continuous, 1G – Discontinuous |
| Square Wave Impulse Noise | ±2 kV |
| ESD Immunity | ±4 kV – Contact Discharges, ±8 kV – Air Discharges |
| Radiated Electromagnetic Immunity | 80–1000 MHz, 10 V/m |
| Surge Transient Immunity | 2 kV – CPU, Power; 2 kV – Digital I/O (VAC), 1 kV – Digital I/O (VDC), 1 kV – Communication |
Environmental
| Operating Temperature | -10 – 65 °C (14 – 149 °F) |
| Storage Temperature | -25 – 80 °C (-13 – 176 °F) |
| Operating/Storage Relative Humidity | 5 – 95% Non-condensing |
Certification
| CE | Yes |
| UL | Yes |
| RoHS | Yes |
Connect a Maple Systems HMI to a Maple Systems PLC
Whether you are new to Maple Systems or know our HMIs well, pairing one of our powerful HMIs with a low-cost PLC is easy.
PLC with Expansion Module
Unbox a PLC, add expansion modules, download a project, and show automatic I/O module detection
FREE User Friendly PLC Software
Download our free, powerful PLC configuration software. Using your preferred programming language—Ladder Diagram, Instruction List, Sequential Function Chart, or Function Block—you can create your project, your way, for a one-of-a-kind control solution.
Documents
Manuals
- PWM Output Module User Manual
- Digital IO Module User Manual
- MapleLogic User Manual
- Maple Modular PLC CPU Modules User Manual
- PLC Terminal Block & Cables User Manual
Certifications
- RoHS Declaration of Conformity (all series)
- CE-Declaration of Conformity – PLC & IO Modules
- UL Certification Declaration – PLC & IO Modules
- Country of Origin Certification
CAD Files

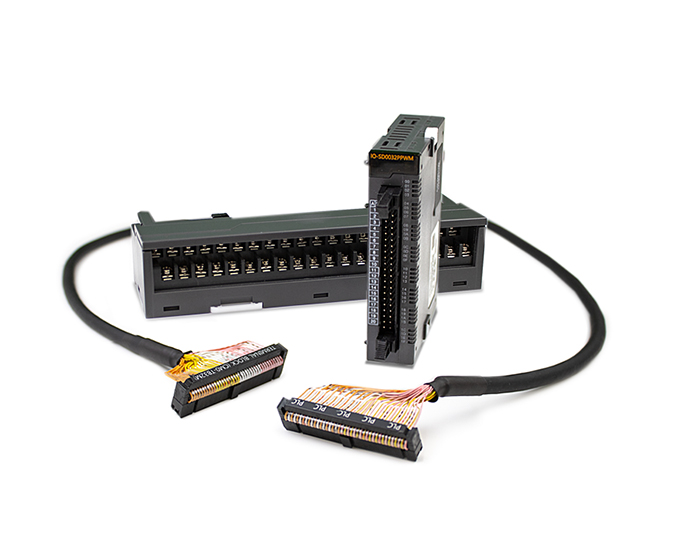

When you order the IO-SD0032PPWM-KIT the following items are included in the box:
- IO-SD0032PPWM
- Terminal Block (ACC-TB32M)
- Cable (ACC-SBC15E)
- Product Manual
|
