HMC3043A-M
- Support for 1 I/O Expansion Module
- Choose Native Ladder or IEC 61131-3 Logic
- High-Speed Counters and PWM I/O Modules
- Class I, Division 2 Rated
- Send files via FTP
- Web Server
I/O Modules for Additional Connectivity
-
HMC3-M1616P-V2$180.00 -
HMC3-M1614Y-V2$180.00
-
HMC3-M1212P0200-V2$155.00
-
HMC3-M1212Y0200-V2$155.00 -
HMC3-M1210P0201-V2$170.00
-
HMC3-M1210Y0201-V2$170.00
4.3″ HMI + PLC, Expandable, 1 Ethernet Port, 1 USB Port, 1 Serial Port, Supports 1 I/O Module, FTP, Web Server, SD Card
HMC3043A-M
This is a legacy product and is no longer available for purchase. Please call (425)-745-3229 or email: sales@maplesystems.com for a recommended upgrade path.
The HMC3000 Series combines the ease of a graphic HMI with PLC functionality. With additional I/O modules available, this powerful HMI + PLC is scalable and customizable. Paired with free configuration software, the HMC3000 series is our best performing HMI + PLC.
Customer Review
I have worked with Maple Systems across other industries. We enjoy technical support when needed, the response is timely and thorough. The Maple Systems website is well designed, helpful, and includes many resources. The hardware is sound and I look forward to continuing our relationship.Specifications
System
| Memory (RAM) | 128 MB |
| Memory (Flash) | 45 MB |
| RTC | Built-in |
| Application Memory | 45 MB |
| Programming Software | MAPware V2.36 or later versions |
| PLC Ladder Memory | 2 MB |
| PLC Ladder Logic | Yes |

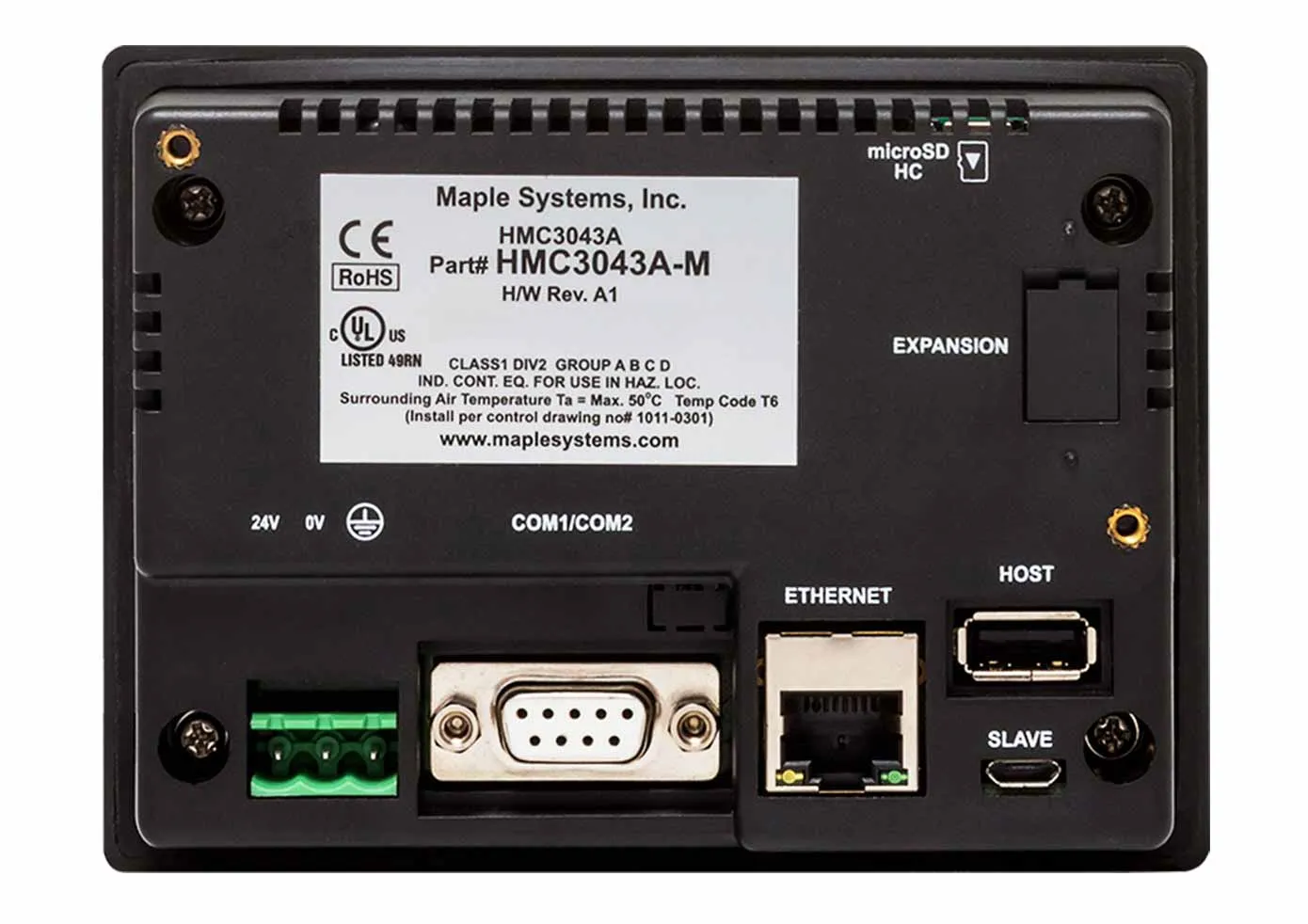

I/O Ports
| Serial Ports | 1 |
| Ethernet/LAN | 10/100 Base-T x 1 |
| CANbus | N/A |
| Audio Output | N/A |
| SD Card Slot | SD/SDHC (32GB capacity) |
| USB Host Ports | USB 2.0 x 1 |
| USB Client Ports | USB 2.0 x 1 |
| Wi-Fi | N/A |
| COM Port | COM1: RS-232, COM2: RS-485 2W/4W |
| RS-485 Dual Isolation | N/A |
| Local bus | N/A |
| HDMI Port | N/A |
| Video Input | N/A |
| Siemens MPI | N/A |
| I/O | Expandable |
| I/O Slots | 1 |
| Max I/O Points (Digital) | 32 |
| Max Digital In | 16 |
| Max Digital Out | 16 |
| Max I/O Points (Analog) | 5 |
| Max Analog In | 4 |
| Max Analog Out | 1 |

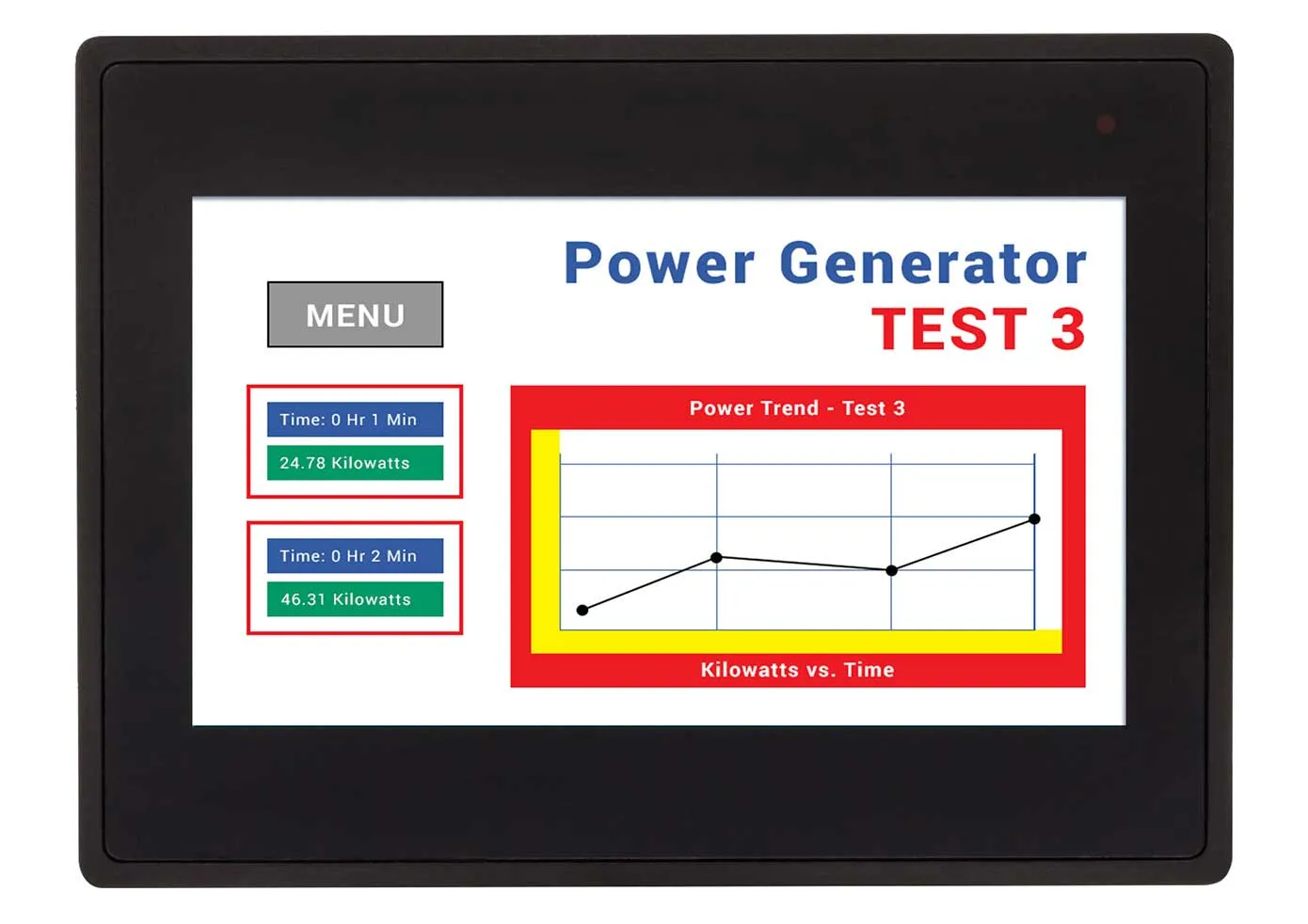

Display
| Display Size | 4.3" TFT |
| Resolution | 480 x 272 |
| Luminance (cd/m^2) | 450 400 350 300 425 |
| Contrast Ratio | 500:1 |
| Backlight Type | LED |
| Backlight Lifetime (hrs) | >20000 hrs. |
| Colors | 32 K |
| LCD Viewing Angle (T/B/L/R) | 70/70/80/80 |
Touch Screen
| Type | TFT Resistive |
| Accuracy | N/A |
| Touch Panel Hardness Scale | N/A |
Electrical
| Power Isolation | Built-in |
| Power Dissipation | N/A |
| Current for Internal Bus | N/A |
| Current Consumption | N/A |
| Voltage Resistance | N/A |
| Isolation Resistance | N/A |
Mechanical
| Vibration Endurance | 5 to 150Hz (X, Y, Z direction 3G peak) |
| Enclosure Material | Black Plastic |
| PCB Coating | N/A |
| Dimensions WxHxD | 4.72 x 3.50 x 1.26 [120mm x 89mm x 32mm] |
| Panel Cutout (inches) [mm] | 4.37 x 3.14 [111 x 80] |
| Weight | Approx. 0.44 lbs. [0.2 Kg] |
| Mounting | Panel mount |
| Shock (Operation) | 25 g acceleration for 11 ms |
Environmental
| Storage Temperature | -4° ~ 185°F (-20° ~ 85°C) |
| Operating Temperature | 32° ~ 122°F (0° ~ 50°C) |
| Relative Humidity | 10% ~ 95% (non-condensing) |
Certification
| UL Type Rating | UL Class 1 Div 2 |
| NEMA Rating | N/A |
| IP Rating | IP66 Compliant Front Panel |
| CE | Yes |
| UL | cULus Listed |
| Class 1 Div 2 | Yes |
| ATEX | N/A |
| RoHS | Yes |
