High Speed Counter (HSC) Kit
$460.00

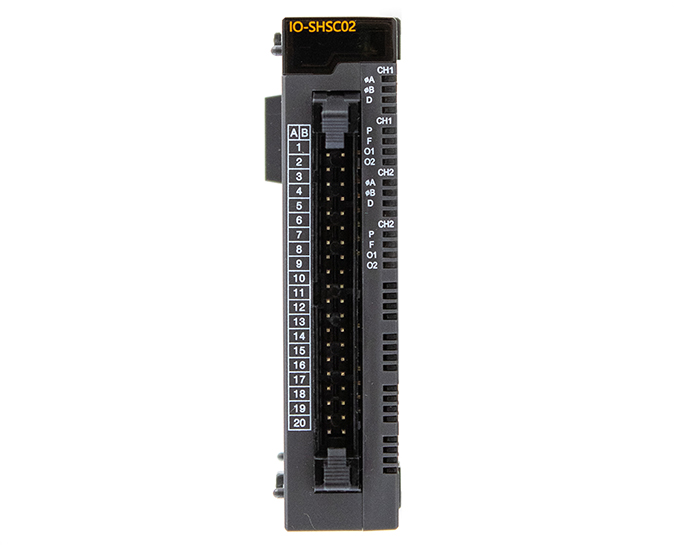

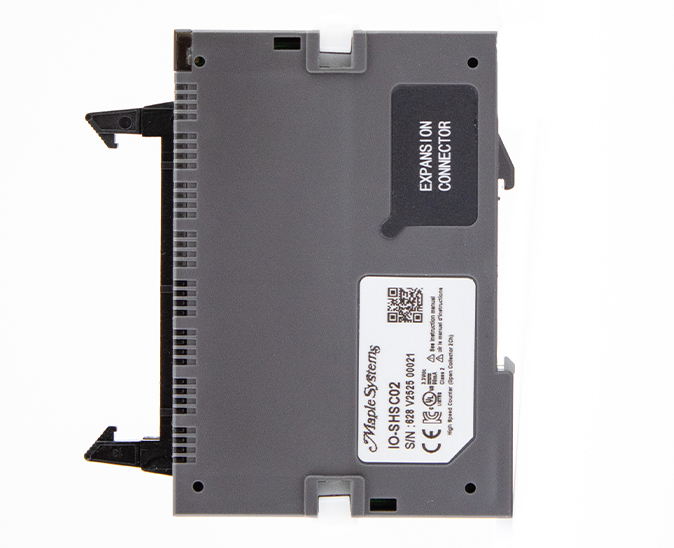

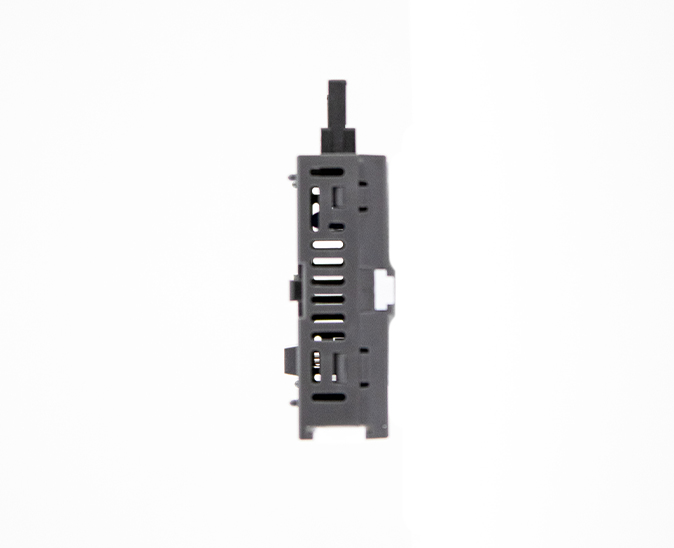

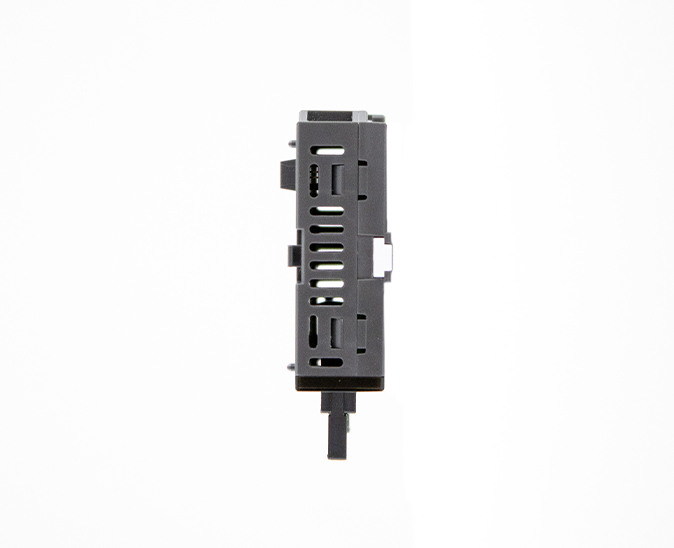

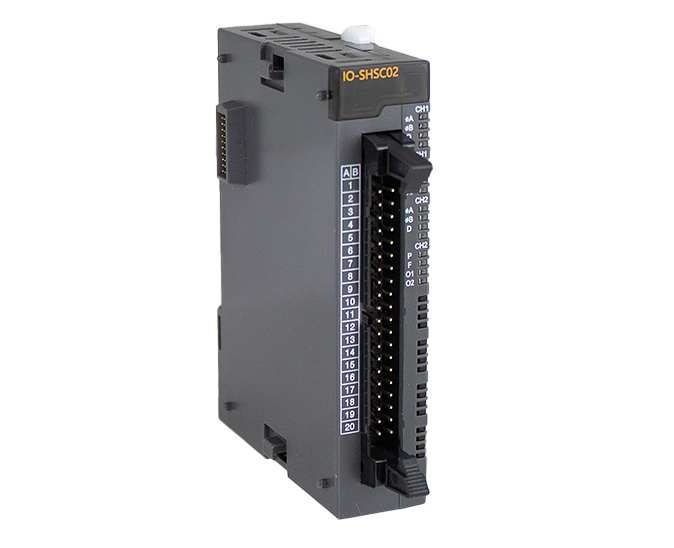

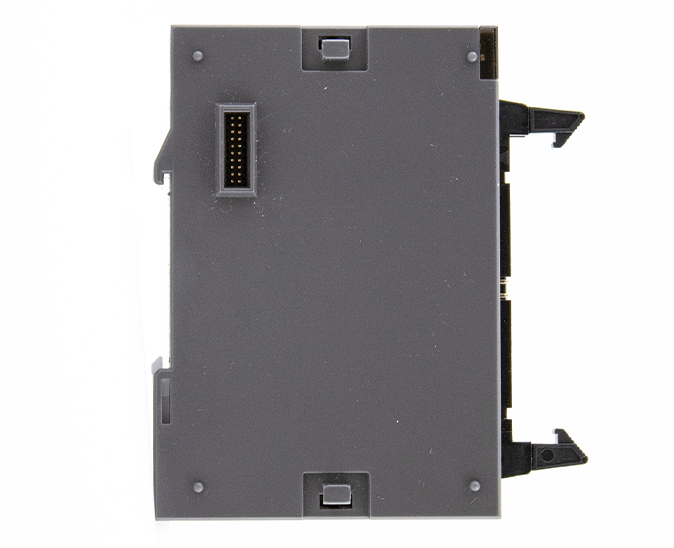

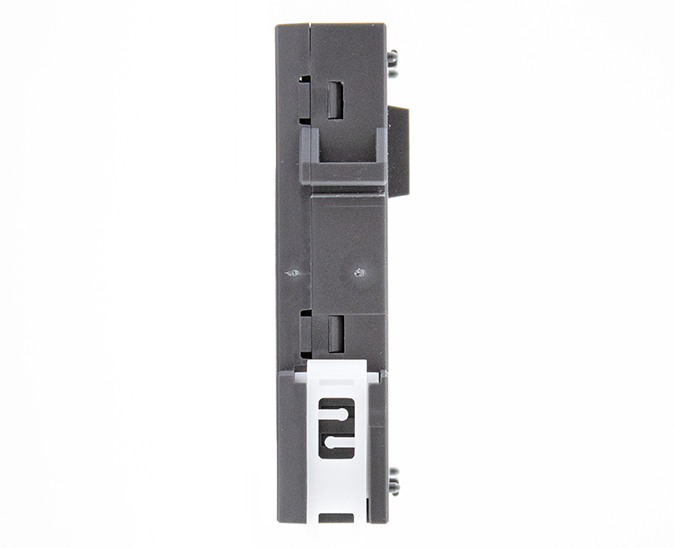

High Speed Counter (HSC) Kit. Module that will count pulses, monitor fast events, and control processes where precise and rapid counting is required. Kit includes HSC, terminal block and I/O cable.
- Support for the quadrature types open-collector and line-drive.
- Linear/Ring counter modes are supported.
- US-based technical support.
Share the product:
Compare to Similar Models
Compare IO-SHSC02-KIT with 1 other product
Functional
| Power Consumption | 90 mA |
| I/O Points | 16 points |
| Sensor | 2 Channels |
| Count Input Signal Phase | 1 Phase input/2 Phase input |
| Count Input Signal Level (фA,фB) | 5/12/24 V DC 2—5 mA |
| Count Input Signal Types | PNP Encoder (-Common) |
| Count Speed | 200kHz (kpps) |
| Count Range | 32-bit signed binary values (-2147483648 — 2147483647) |
| Count Mode | Up/Down Preset Counter + Ring Counter |
| Count Min. Count Pulse Period (µs) (Duty ratio 50%) | 5 µs |
| Maximum Input Frequency | 200 kHz |
| Compared Range | 32-bit signed binary values |
| Output Comparison | Compared value (less than, equal to, greater than) Present value |
| External Input | 5/12/24 V DC 2—5 mA |
| External Output | TR (SINK Type) Output 12—24 V |
Mechanical
| Terminal Connector Type | External Terminal Block |
| Dimensions WxHxD | 90 x 20 x 60 mm (3.5 x 0.8 x 2.4 in) |
| Weight | 68.5 g (0.15 lb) |
| Shock | 15G |
| Vibration | 0.5G – Continuous, 1G – Discontinuous |
| Square Wave Impulse Noise | ±2 kV |
| ESD Immunity | ±4 kV – Contact Discharges, ±8 kV – Air Discharges |
| Radiated Electromagnetic Immunity | 80–1000 MHz, 10 V/m |
| Surge Transient Immunity | 2 kV – CPU, Power; 2 kV – Digital I/O (VAC), 1 kV – Digital I/O (VDC), 1 kV – Communication |
Environmental
| Operating Temperature | -10 – 60 °C (14 – 140 °F) |
| Storage Temperature | -25 – 80 °C (-13 – 176 °F) |
| Operating/Storage Relative Humidity | 5 – 95% Non-condensing |
Certification
| CE | Yes |
| UL | Yes |
| RoHS | Yes |
Connect a Maple Systems HMI to a Maple Systems PLC
Whether you are new to Maple Systems or know our HMIs well, pairing one of our powerful HMIs with a low-cost PLC is easy.
PLC with Expansion Module
Unbox a PLC, add expansion modules, download a project, and show automatic I/O module detection
FREE User Friendly PLC Software
Download our free, powerful PLC configuration software. Using your preferred programming language—Ladder Diagram, Instruction List, Sequential Function Chart, or Function Block—you can create your project, your way, for a one-of-a-kind control solution.
When you order the IO-SHSC02-KIT the following items are included in the box:
- IO-SHSC02
- Terminal Block (ACC-TB32M)
- Cable (ACC-SBC15E)
- Product Manual
|
