Instruction Parameters
Supported PLC Series
| PLC-AES | PLC-FB | PLC-ES |
|---|---|---|
| ✓ | ✓ | ✓ |
Supported Data Registers
| M | X | Y | K | L | F | T | C | S | Z | R | Q | D | @D | Constant | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S1 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | – | ✓ | – | ✓ | ✓ | ✓ | – |
| S2 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | – | ✓ | – | ✓ | ✓ | ✓ | ✓ |
| D | ✓ | – | ✓ | ✓ | ✓ | – | ✓ | ✓ | – | ✓ | – | ✓ | ✓ | ✓ | – |
| n | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | – | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Supported Flags
| Flag | Bit | Support |
|---|---|---|
| Error | F11.0 | ✓ |
| Zero | F11.1 | – |
| Carry | F11.2 | – |
Number of Steps
| Steps |
|---|
| 5 |
Operands
| Operand | Description |
|---|---|
| S1 | The first operand. Entries are only WORD data registers. The signed value range is for each data register -32,768 ~ 32,767 (216). The unsigned value range for each data register is 0 ~ 65,535 (216-1). The Hexadecimal value range for each data register is H0000 ~ HFFFF. |
| S2 | The second operand. Entries are WORD data registers or constants. The signed value range for each data register is -32,768 ~ 32,767 (216). The unsigned value for each data register range is 0 ~ 65,535 (216-1). The Hexadecimal value for each data register range is H0000 ~ HFFFF. |
| D | The third operand. Entries are only WORD data registers. This is where the result of a logical S1 OR S2 is saved. |
| n | The fourth operand. Entries are WORD data registers or constants. This is the amount of words for a logical S1 ~ Sn OR S2 ~ Sn. |
Notice
Error Flag (F11.0) Notice
The error flag, F11.0, will be ON for one scan when the address of the data register assigned by @D exceeds the range of the data register, D. The range of the data register, D, is dependent on the CPU type. F11.0 turns ON when the value of the data for a logical OR exceeds the data register assigned to S1 or S2.
Logical Operation
The BKOR and BKORP instructions will perform a logical OR on each bit of the data registers between S1 ~ Sn and S2 ~ Sn.
Ladder Diagram Examples
BKOR
The BKOR instruction performs a logical OR on n number of WORD data registers starting at S1 and n number of data registers starting at S2 and saves the result in an assigned WORD data register, D.
When the contact, M0.8, is powered ON (1), logical OR operations are performed on 2 WORD data registers, D1, and D2, with another 2 WORD data registers, D4, and D5. The results of the logical OR operations are saved in 2 WORD data registers, D7, and D8.
Memory Monitor

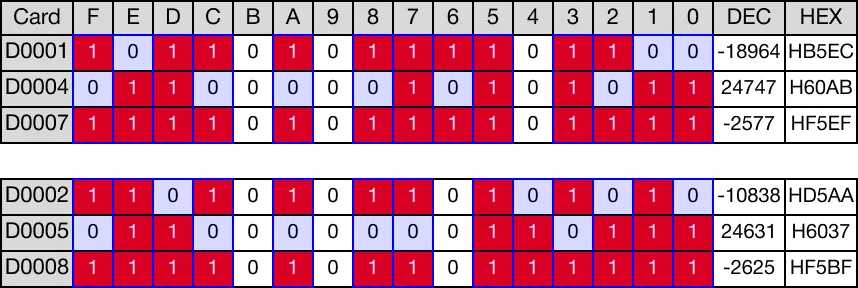

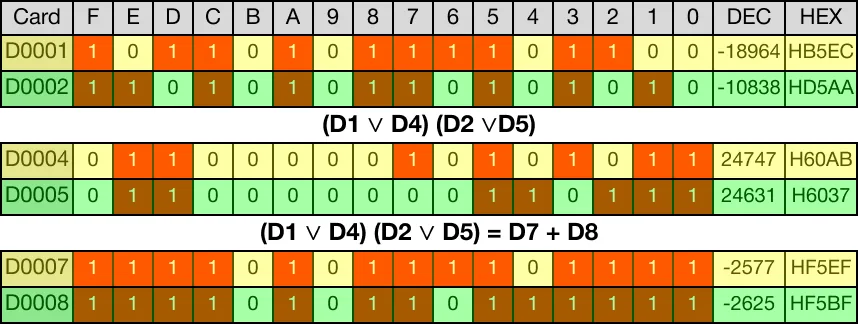

The below image shows the direct logical OR operations for each data register.
BKORP
The BKORP one-shot instruction performs a logical OR on n number of WORD data registers starting at S1 and n number of data registers starting at S2 and saves the result in an assigned WORD data register, D. Every time this instruction energizes, it executes only once.
When the contact, M0.9, is powered ON (1), logical OR operations are performed on 3 WORD data registers, D11, D12, and D13, with another 3 WORD data registers, D15, D16, and D17. The results of the logical OR operations are saved in 3 WORD data registers, D19, D20, and D21.
Memory Monitor

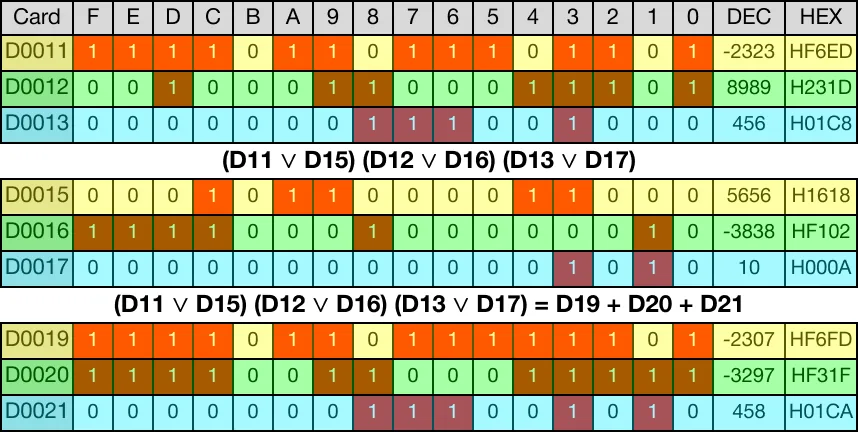

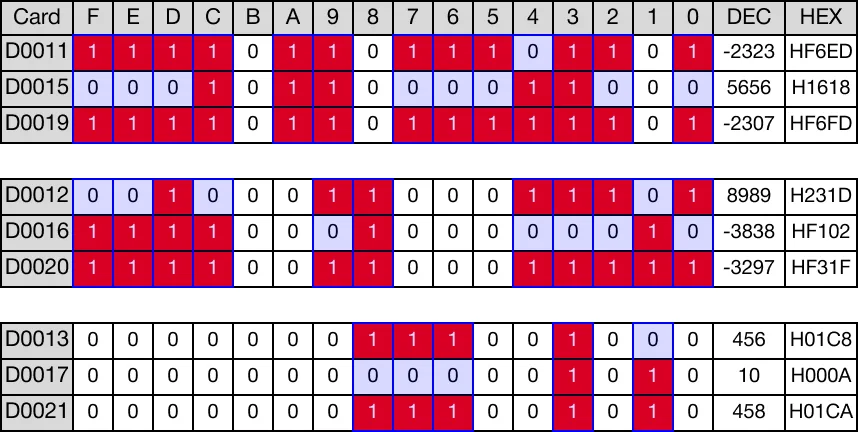

The below image shows the direct logical OR operations for each data register.
