Instruction Parameters

Supported PLC Series

PLC-AESPLC-FBPLC-ES

Supported Data Registers

MXYKLFTCSZRQD@DConstant
S
D

Supported Flags

FlagBitSupport
ErrorF11.0
ZeroF11.1
CarryF11.2

Number of Steps

Steps
3

Operands

OperandDescription
SThe first operand.
Entries are DWORD data registers or constants.
This is the value to invert all bits.

The signed value range is -2,147,483,648 ~ 2,147,483,647 (232).
The unsigned value range is 0 ~ 4,294,967,295 (232-1).
The Hexadecimal value range is H00000000 ~ HFFFFFFFF.
DThe second operand.
Entries are only DWORD data registers.
This is where the inverted bits of S are stored.

Notice

Error Flag (F11.0) Notice

The error flag, F11.0, will be ON for one scan when the address of the data register assigned by @D exceeds the range of the data register, D. The range of the data register, D, is dependent on the CPU type. F11.0 turns ON when the value of the data for inverting S exceeds the value range of the data register D.

Ladder Diagram Examples

DCML

The DCML instruction inverts every bit in the DWORD value, S, and saves the inversion in an assigned DWORD data register, D.

The DCML instruction inverts every bit in the DWORD value, S, and saves the inversion in an assigned DWORD data register, D.

When the contact, M0.0, is powered ON (1), the instruction inverts the bits in the DWORD data register, D8, and saves the result in the data register,

When the contact, M0.0, is powered ON (1), the instruction inverts the bits in the DWORD data register, D8, and saves the result in the data register, D11.

Ladder Diagram Example for MapleLogic DCML/DCMLP instruction.

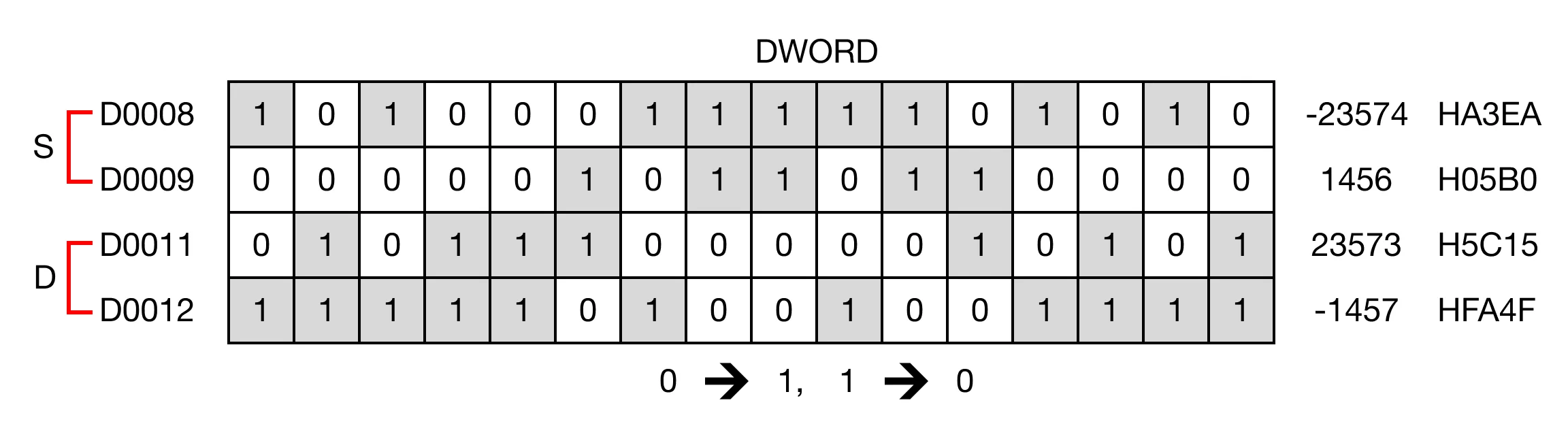

Memory Monitor

Memory Monitor for MapleLogic DCML/DCMLP instruction.

DCMLP

The DCMLP one-shot instruction inverts every bit in the DWORD value, S, and saves the inversion in an assigned DWORD data register, D.

The DCMLP one-shot instruction inverts every bit in the DWORD value, S, and saves the inversion in an assigned DWORD data register, D. Every time this instruction executes, it energizes the output only once.

When the contact, M0.1, is powered ON (1), the instruction inverts the bits in the DWORD data register, D15, and saves the result in the data register

When the contact, M0.1, is powered ON (1), the instruction inverts the bits in the DWORD data register, D15, and saves the result in the data register, D18.

Ladder Diagram Example for MapleLogic DCML/DCMLP instruction.

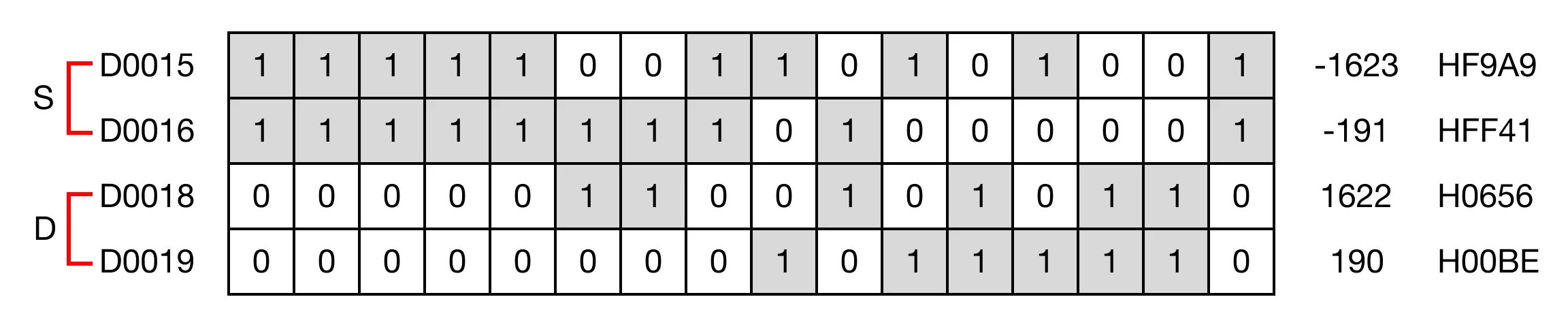

Memory Monitor

Memory Monitor for MapleLogic DCML/DCMLP instruction.
