Instruction Parameters
Error Flag (F11.0) Notice
The error flag, F11.0, will be ON for one scan when the address of the data register assigned by @D exceeds the range of the data register, D. The range of the data register, D, is dependent on the CPU type. F11.0 turns ON when the value of the data for the calculation exceeds the data register assigned to S or D.
Ladder Diagram Examples
TAN
The TAN instruction calculates the tangent of the REAL operand, S, and saves the result in an assigned REAL data register, D.

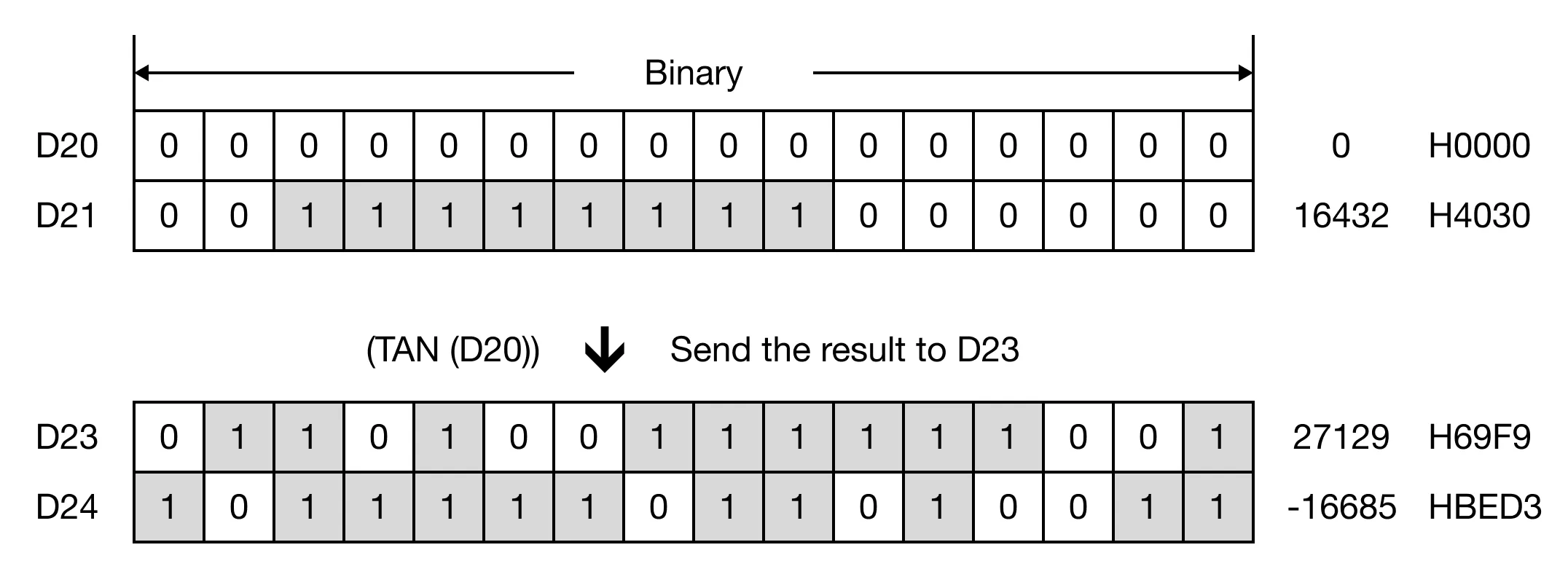

Memory Monitor
TANP
The TANP one-shot instruction calculates the tangent of the REAL operand, S, and saves the result in an assigned REAL data register, D. Every time this instruction executes, it energizes the output only once.

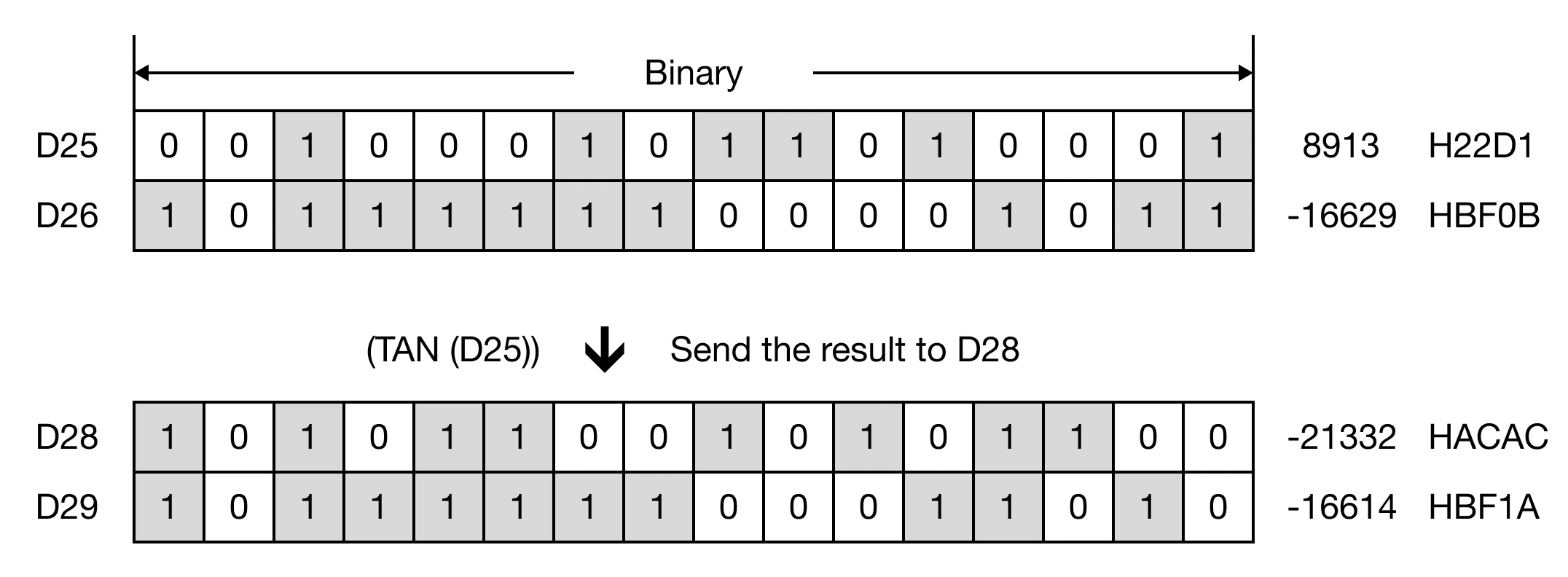

Memory Monitor
