Instruction Parameters
Supported PLC Series
| PLC-AES | PLC-FB | PLC-ES |
|---|---|---|
| ✓ | ✓ | ✓ |
Supported Data Registers
| M | X | Y | K | L | F | T | C | S | Z | R | Q | D | @D | Constant | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | ✓ | ✓ | ✓ | ✓ | ✓ | – | – | – | – | ✓ | – | ✓ | ✓ | ✓ | ✓ |
| D | ✓ | – | ✓ | ✓ | ✓ | – | – | – | – | ✓ | – | ✓ | ✓ | ✓ | – |
Notice
Error Flag (F11.0) Notice
The error flag, F11.0, will be ON for one scan when the address of the data register assigned by @D exceeds the range of the data register, D. The range of the data register, D, is dependent on the CPU type. F11.0 turns ON when the value assigned to S exceeds its range.
Ladder Diagram Examples
ASIN
The ASIN instruction calculates the arcsine, or inverse sine, of the SINE operand, S, and saves the result in an assigned REAL data register, D.

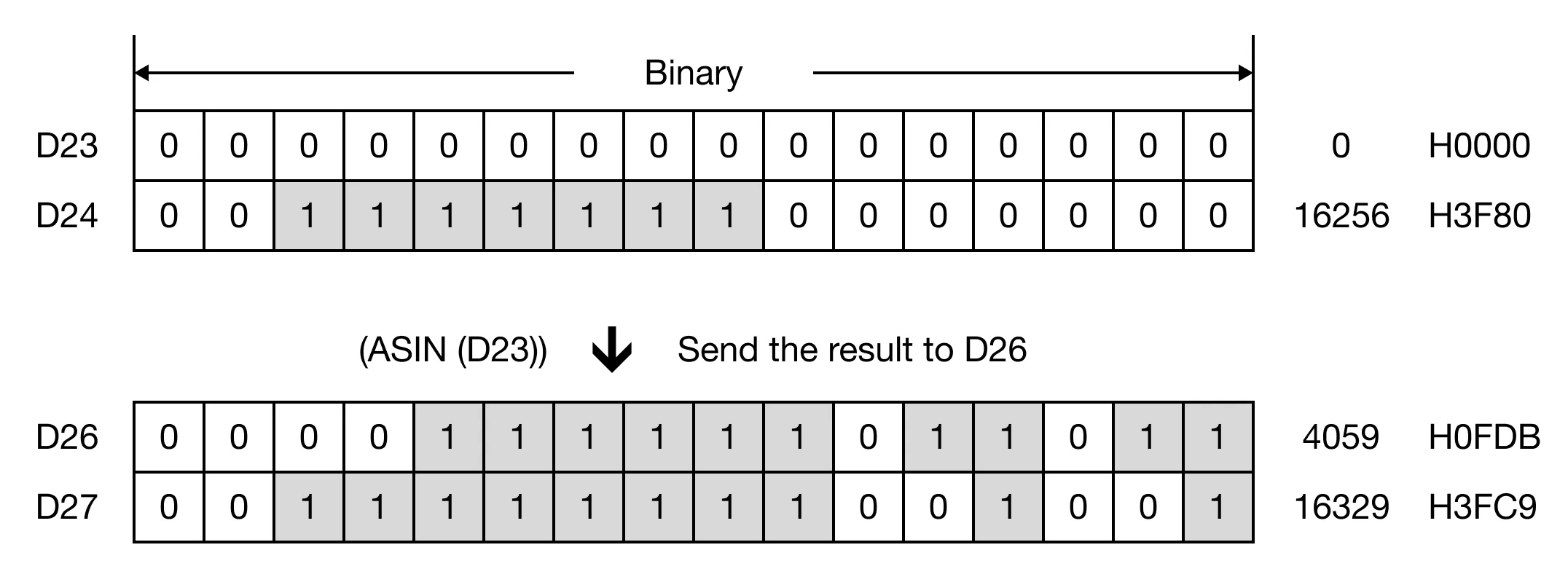

Memory Monitor
ASINP
The ASINP one-shot instruction calculates the arcsine, or inverse sine, of the SINE operand, S, and saves the result in an assigned REAL data register, D. Every time this instruction executes, it energizes the output only once.

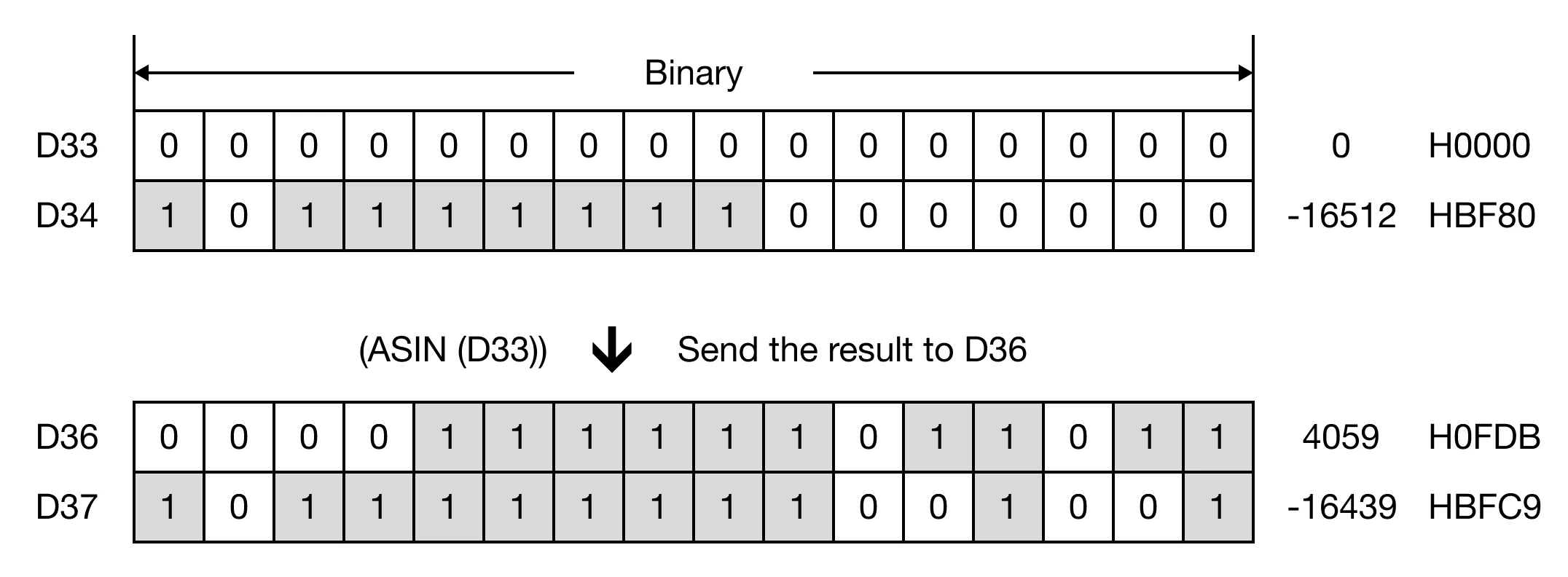

Memory Monitor
