Stainless Steel Industrial PCs

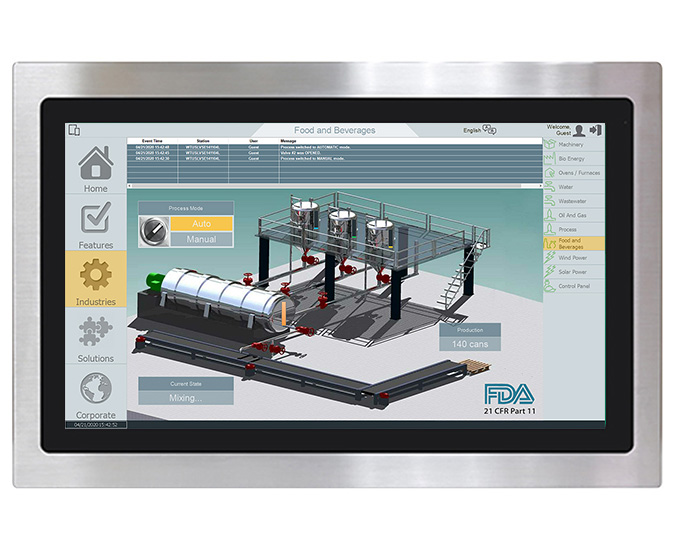

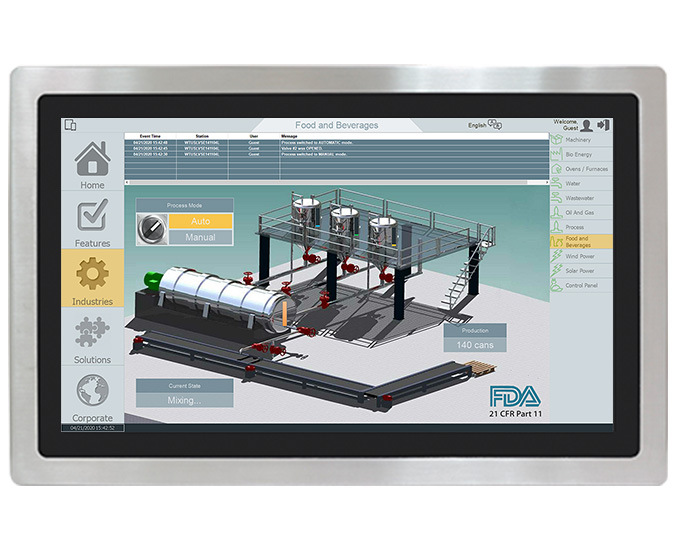

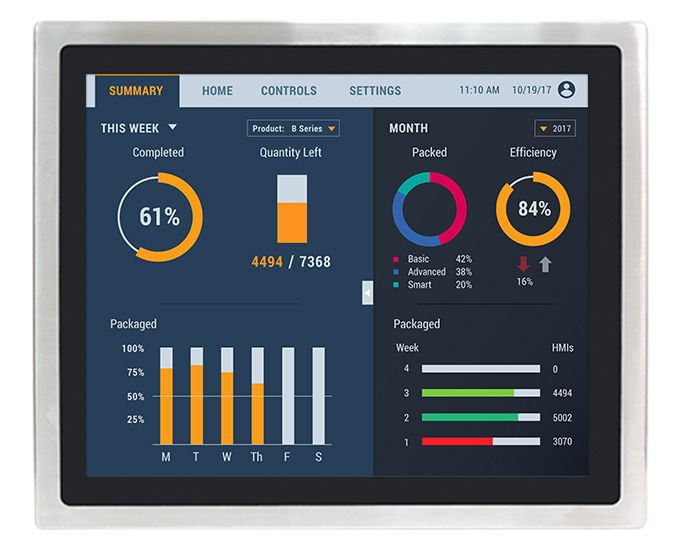

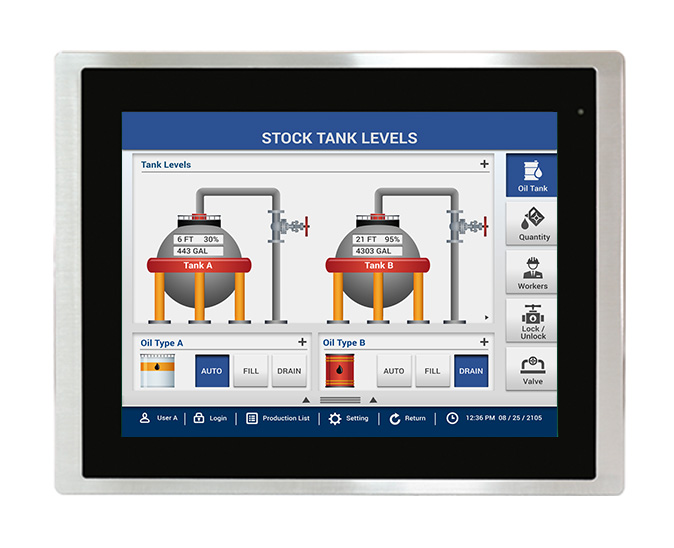

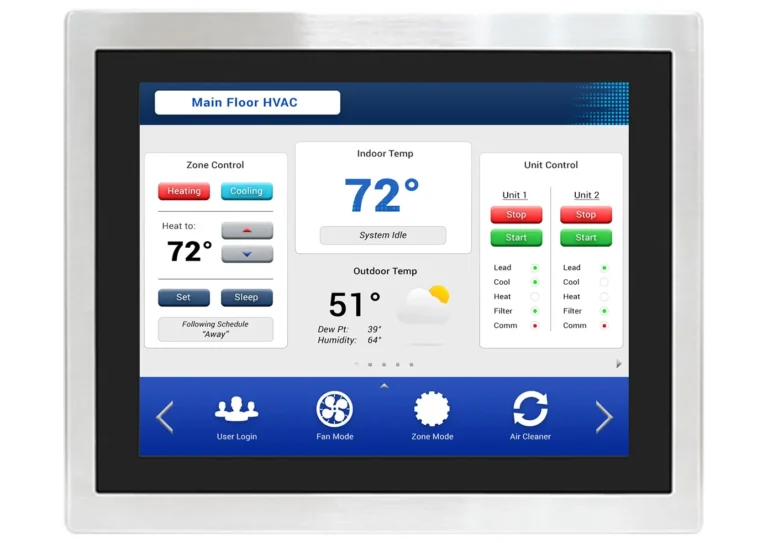

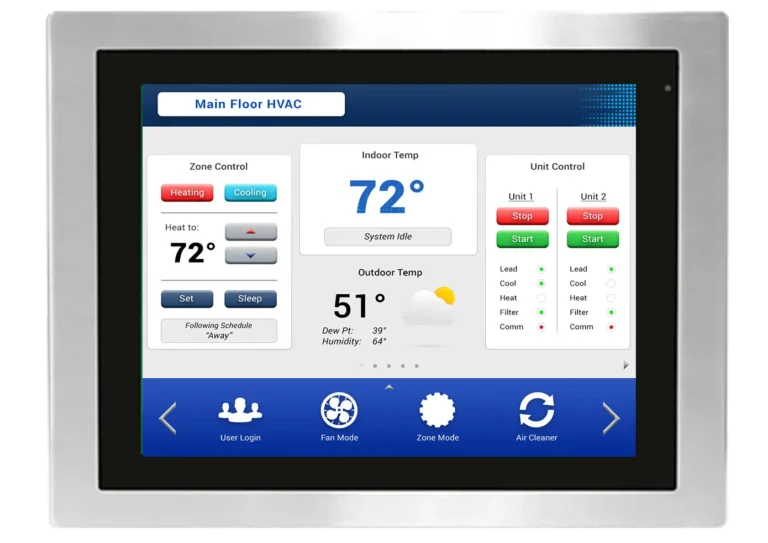

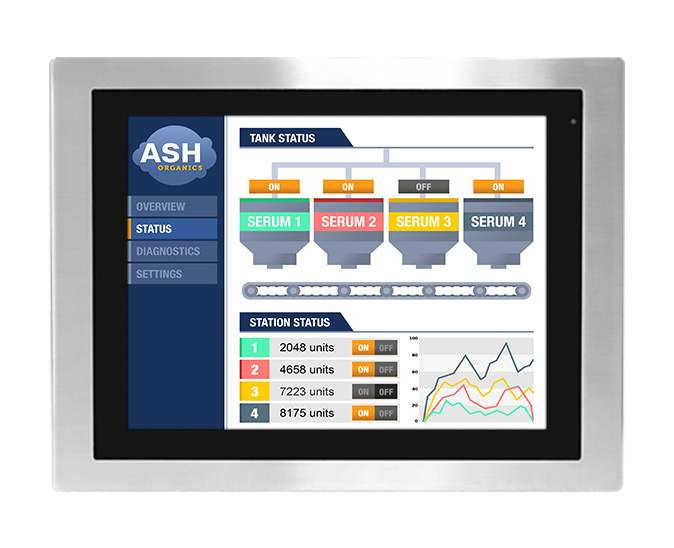

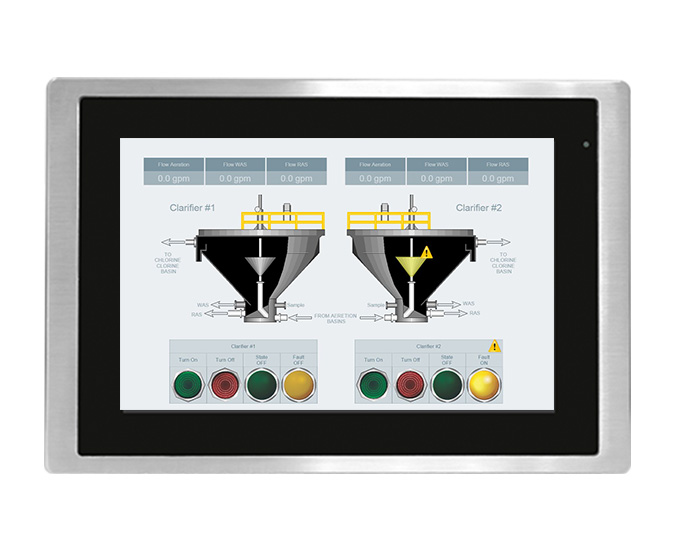

Industrial PCs with a stainless-steel enclosure, and stainless-steel front bezel on our touchscreen models, may be customizable. Our Touchscreen Industrial PCs can be IP66 when panel mounted into an enclosure. The rugged 10.1”, 12.1”, 15.0”, 19.0”, and 21.5” Stainless Steel Panel PCs feature capacitive touchscreens that withstand even the toughest environments and are ready for high-pressure, high-temperature regular washdowns. Ideal for food & beverage, pharmaceutical, chemical industries, and consumer packaged goods processing operations. Our Class 1, Div 2 Industrial Panel and Box PCs feature either a SUS304 front Bezel with a IP66K/IP69K or 316 Stainless Steel Chassis with an IP66 rating on all sides. Extended temperature, high brightness, with optical bonded touchscreen options are available.
With a Windows® Operating System, these PCs are powerful computers that support any Windows® Software, powerful SCADA software such as Allen-Bradley’s FactoryTalk® View, Ignition™, AVEVA™ Edge and Wonderware®, or configure them using programming languages such as Visual Basic, Python and C++, providing you with flexible options.
-
- Intel Celeron N2930 Quad-core 1.83GHz, Windows®10 Operating System, Fanless
- 316 Stainless Steel Chassis, Class1 Div2, Class2 Div2, M12 connectors, -20 ~ 60C Operating Temperature
- 1000 nit High Brightness, Extended Temperature Capacitive Touchscreen, 1280 x 1024 Resolution
- VESA mount
-
- Intel®Celeron N2930 Quad-Core 1.83 GHz Processor, 4 GB 1600 MHz, Windows® or Linux® Operating System, Optional Wi-Fi upgrade
- 304 Stainless Steel Front Bezel, IP66K/IP69K protection for dust and water resistance, EN-1672-2 Certified
- Capacitive Touchscreen, 1280 x 800 Resolution
- Fanless, VESA or Panel Mount
-
- Intel®Celeron N2930 Quad-Core 1.83 GHz Processor, Windows® or Linux® Operating System, Fanless, Optional Wi-Fi upgrade
- 304 Stainless Steel Front Bezel, IP66K/IP69K Rating, EN-1672-2 Certified, -20 ~ 60C Operating Temperature
- 1000 nit High Brightness, Extended Temperature Capacitive Touchscreen, 1280 x 800 Resolution
- VESA or Panel Mount
-
- Intel®Celeron N2930 Quad-Core 1.83 GHz Processor, 4 GB 1600 MHz, Windows® or Linux® Operating System, Optional Wi-Fi upgrade
- 304 Stainless Steel Front Bezel, IP66K/IP69K protection for dust and water resistance, EN-1672-2 Certified
- Capacitive Touchscreen, 800 x 600 Resolution
- Fanless, VESA or Panel Mount
-
- Intel®Celeron N2930 Quad-Core 1.83 GHz Processor, Windows® or Linux® Operating System, Fanless, Optional Wi-Fi upgrade
- 304 Stainless Steel Front Bezel, IP66K/IP69K Rating, EN-1672-2 Certified, -20 ~ 60C Operating Temperature
- 1000 nit High Brightness, Extended Temperature Capacitive Touchscreen, 800 x 600 Resolution
- VESA or Panel Mount
-
- Intel Celeron N2930 Quad-core 1.83GHz, Windows®10 Operating System, Fanless
- 316 Stainless Steel Chassis, Class I Div 2, Class 2 Div 2, M12 connectors, -20 ~ 60C Operating Temperature
- 1000 nit High Brightness, Extended Temperature Capacitive Touchscreen, 1024 x 768 Resolution
- VESA mount
-
- Intel Skylake Core i5-6300U 2.4GHz, Windows®10 Operating System, Fanless
- 316 Stainless Steel Chassis, Class1 Div2, Class2 Div2, M12 connectors, -20 ~ 60C Operating Temperature
- 1000 nit High Brightness, Extended Temperature Capacitive Touchscreen, 1024 x 768 Resolution
- VESA mount
-
- Intel®Celeron N2930 Quad-Core 1.83 GHz Processor, 4 GB 1600 MHz, Windows® or Linux® Operating System, Optional Wi-Fi upgrade
- 304 Stainless Steel Front Bezel, IP66K/IP69K protection for dust and water resistance, EN-1672-2 Certified
- Capacitive Touchscreen, 1024 x 768 Resolution
- Fanless, VESA or Panel Mount
-
- Intel®Celeron N2930 Quad-Core 1.83 GHz Processor, Windows® or Linux® Operating System, Fanless, Optional Wi-Fi upgrade
- 304 Stainless Steel Front Bezel, IP66K/IP69K Rating, EN-1672-2 Certified, -20 ~ 60C Operating Temperature
- 1000 nit High Brightness, Extended Temperature Capacitive Touchscreen, 1024 x 768 Resolution
- VESA or Panel Mount
-
- Intel Skylake Core i5-6300U 2.4GHz, Windows®10 Operating System, Fanless
- 316 Stainless Steel Chassis, Class1 Div2, Class2 Div2, M12 connectors, -20 ~ 60C Operating Temperature
- 1000 nit High Brightness, Extended Temperature Capacitive Touchscreen, 1280 x 1024 Resolution
- VESA mount
-
- Intel Skylake Core i5-6300U 2.4GHz, Windows®10 Operating System, Fanless
- 316 Stainless Steel Chassis, Class1 Div2, Class2 Div2, M12 connectors, -20 ~ 60C Operating Temperature
- Extended Temperature Capacitive Touchscreen, 1920 x 1080 Resolution
- VESA mount
-
- Intel®Celeron N2930 Quad-Core 1.83 GHz Processor, 4 GB 1600 MHz, Windows® or Linux® Operating System, Optional Wi-Fi upgrade
- 304 Stainless Steel Front Bezel, IP66K/IP69K protection for dust and water resistance, EN-1672-2 Certified
- Capacitive Touchscreen, 1920 x 1080 Resolution
- Fanless, VESA or Panel Mount
Industrial PC Accessories
ACC-SCB15E
Cable, I/O 32pts, 5 ft. For PLC Products. Cable Guide
ACC-SCB15M
Cable, Main CPU, 5 ft. For PLC Products. Cable Guide
2140-0309
Input power connector for all IPC24xxA Series & IPC2610A. This input power connector has three…
7431-0127
Remote power switch cable assembly. This cable is designed with a 2-Pin male connector, 6…
2511-0215
Screen protectors will provide an additional level of protection from scratches and impact marks on…
2140-0308
Input power connector for MON6xxxAP Series, OMI68xx Series, OMI69xx Series, PCS68xxAP Series, PC23xxB Series, and…
Why Stainless Steel?
Stainless Steel Industrial Panel PCs are ideal for applications in Food & Beverage, Pharmaceutical, & Consumer Packed Goods due to their anti-corrosion properties, resistance to high-pressure & high-temperature regular washdowns and low maintenance costs.
Rugged IP66/69K Capacitive Touchscreen

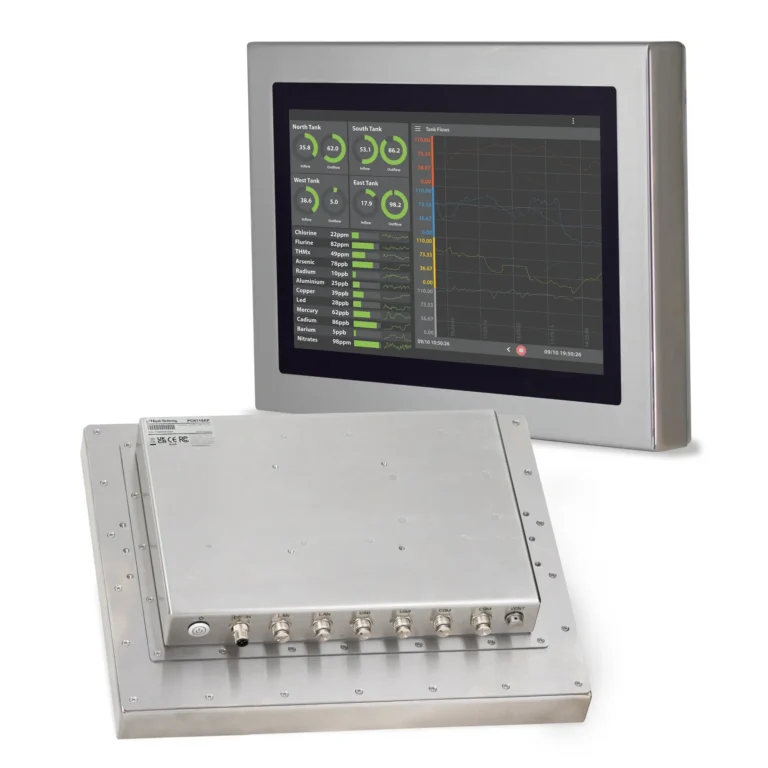

Our rugged PCs feature either a SUS304 front Bezel with a IP66K/IP69K rating or 316 Stainless Steel Chassis with an IP66 rating on all sides, making them the preferred choice in environments requiring frequent high pressure and high temperature washdowns.
Maple Systems stainless steel PCs meet the international food safety grade requirement, EN 1672-2 certification for optional, and DIN 42115 Part 2 for the durability of chemical substances and the sealing material meet FDA 21CFR 177.2600.
Why Class 1, Division 2
Class 1 Division 2, or C1D2, is one of the most important factors to consider when looking for rugged industrial PC to use in hazardous industries. Any electronics being used in a potentially dangerous environment, or around flammable hazards must be C1D2 certified to prevent dangerous explosions and ensure worker safety.
The Classes define the type of explosive or ignitable substances which are present in the atmosphere such as:
- Class I locations are those in which flammable vapors and gases may be present.
- Class II locations are those in which combustible dust may be found.
SCADA Software
AVEVA Edge, formerly known as Indusoft Web Studio, is a powerful HMI/SCADA software package for a wide range of industrial applications. With easy-to-use commands/tool bars and a Microsoft Windows™ environment, Aveva™Edge’s feature-rich application puts you in the driver’s seat of creating your industrial process.
Industries We Serve
Our products operate in some very tough environments and industries
If your goal is to enhance efficiency, optimize operations, avoid unplanned downtime, or lower total cost of ownership, we can help. Today’s technology offers innovative industrial process control solutions. Whether it’s integrating process control, motor control, safety, and information solutions, our products can help you address your unique challenges head on. Learn more about the industries we serve and discover why more and more companies are choosing Maple Systems.
Read our Case Studies
The Stainless-Steel enclosure makes this Industrial Panel PC the right choice for the food and beverage industry
Our customer is a leading OEM manufacturer of custom stainless steel processing equipment and a preferred provider of quality products and services to the cheese, dairy, food, beverage, and other sanitary industries. Our Stainless-Steel PCs meet the international food safety grade requirement, EN 1672-2 certification; DIN 42115 Part 2 for the durability of chemical substances; and FDA 21CFR 177.2600.
Read how choosing a Maple Systems Stainless Steel Industrial PC with capacitive touch screen and a Windows OS met their requirements.
Supervisory Control and Data Acquisition (SCADA)

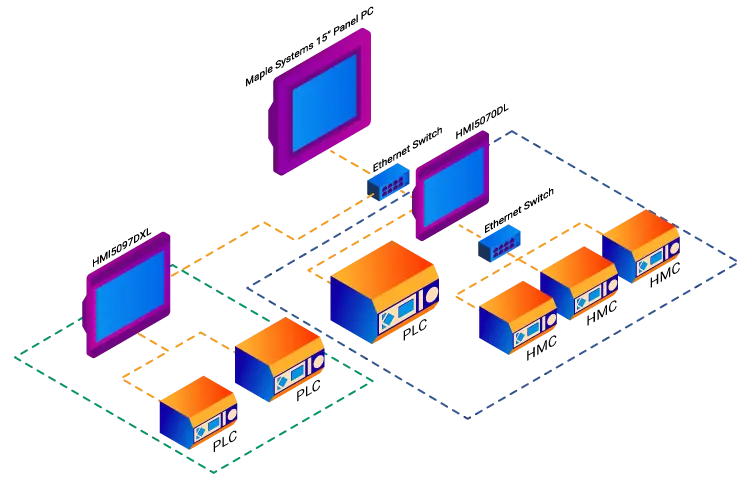

Supervisory control and data acquisition (SCADA) is a control system architecture that uses computers (PCs), networked data communications, and human machine interfaces (HMI) for high-level process supervisory management but uses other peripheral devices such as programmable logic controllers (PLC). As you can imagine, this can take on a wide range of functionality, complexity, hardware, and software solutions.
We offer all the elements you need to create your own level of supervisory data acquisition and control, from the simplest stand-alone machine to sophisticated multi-device networked production line(s), all the way to enterprise-level operations and IIoT functionalities leveraging cloud connectivity.
To learn more about how our products work together to create scalable SCADA solutions, visit our SCADA solutions page.
Customize Your HMI, HMI+PLC, or PC
Highlight your brand and differentiate your machine with a custom label
Company branding is a significant aspect of business marketing. By using custom labels on your products, you can create an identity to gain recognition from customers and potential buyers. It helps consumers recognize that the product was made by your company. Having this type of brand recognition can help your business stand out from competitors. Our Custom Labels:
- Fit Your Product Perfectly
- Offer Professional-Looking Packaging
- Strengthens Your Marketing Efforts
- Provides an Identity to Your Business
Manuals and documentation for products supported by Maple Systems Industrial Panel PC products.
- PC1000 Operations Manual
- PC2300 Operations Manual
- OMI6900 Operations Manual
- PCS6800 Operations Manual
- BPC2300 Operations Manual
- AEX Series Operations Manual
