Expansion Module Setup

Ethernet

Navigate to Online → Special Module Setup → Ethernet Module or click on the Ethernet module within the Card Properties.

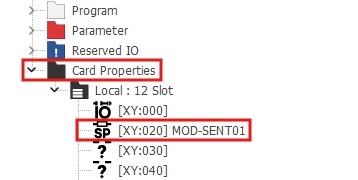

Modbus TCP Master Ethernet Card Properties in MapleLogic

Applied Modules

  • MOD-SENT01

Ethernet Module

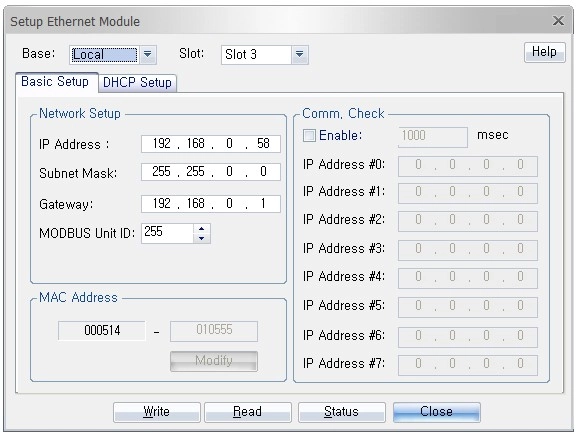

Ethernet Communication Expansion Module Setup Ethernet Module in MapleLogic

Step 1: Configure the module IP address, subnet mask, gateway, and Modbus Unit ID.

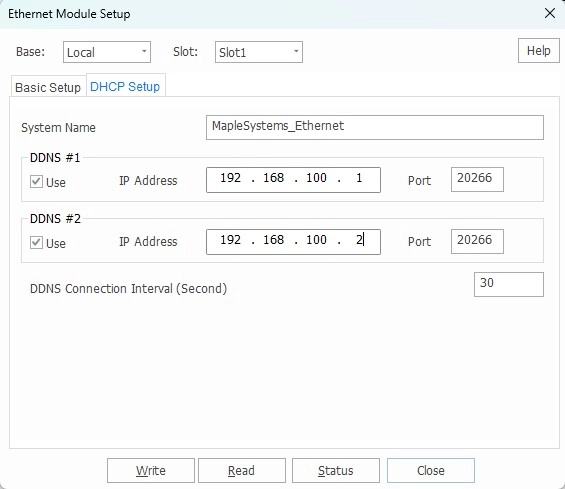

Ethernet Communication Expansion Module Setup DHCP Setup in MapleLogic

Step 2: Configure DHCP for the MOD-SENT01

Step 3: Once the settings are configured, click OK to confirm and apply the changes.

Step 4: To save the configured parameters to the PLC, click Write.

Step 5: Click Read to check the parameters.

Step 6: For real-time monitoring and module diagnostics, click Status. This displays the current value, minimum and maximum values, firmware version of the module, and any error codes.
