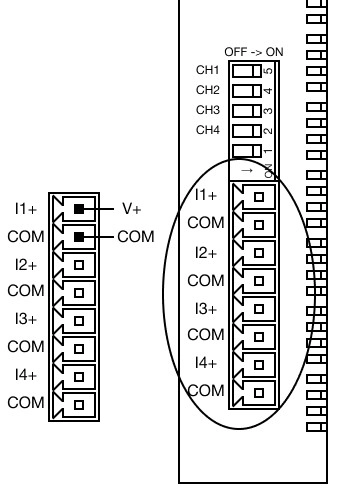

IO-SA0004C Current Wiring
| Channel | Positive (+) Terminal | Negative (-) Terminal | Additional Connections |
|---|---|---|---|
| Channel 1 | Terminal 1 | Terminal 2 | – |
| Channel 2 | Terminal 3 | Terminal 4 | – |
| Channel 3 | Terminal 5 | Terminal 6 | – |
| Channel 4 | Terminal 7 | Terminal 8 | – |
The 24V External is connected on the bottom of the module.

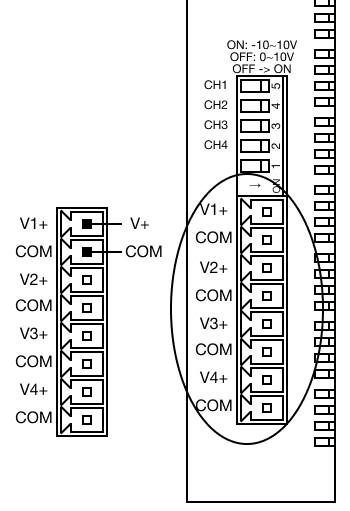

IO-SA0004V Voltage Wiring
| Channel | Positive (+) Terminal | Negative (-) Terminal | Additional Connections |
|---|---|---|---|
| Channel 1 | Terminal 1 | Terminal 2 | – |
| Channel 2 | Terminal 3 | Terminal 4 | – |
| Channel 3 | Terminal 5 | Terminal 6 | – |
| Channel 4 | Terminal 7 | Terminal 8 | – |
The 24V External is connected on the bottom of the module.
