Instruction Parameters
Supported PLC Series
| PLC-AES | PLC-FB | PLC-ES |
|---|---|---|
| ✓ | ✓ | ✓ |
Supported Data Registers
| M | X | Y | K | L | F | T | C | S | Z | R | Q | D | @D | Constant | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S1 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | – | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| S2 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | – | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| D | ✓ | – | ✓ | ✓ | ✓ | – | ✓ | ✓ | – | ✓ | ✓ | ✓ | ✓ | ✓ | – |
Supported Flags
| Flag | Bit | Support |
|---|---|---|
| Error | F11.0 | ✓ |
| Zero | F11.1 | – |
| Carry | F11.2 | – |
Number of Steps
| Steps |
|---|
| 4 |
Operands
| Operand | Description |
|---|---|
| S1 | The first operand. Entries are DWORD data registers or constants. This is the dividend. The signed value range is -2,147,483,648 ~ 2,147,483,647 (232). The unsigned value range is 0 ~ 4,294,967,295 (232-1). The Hexadecimal value range is H00000000 ~ HFFFFFFFF. |
| S2 | The second operand. Entries are DWORD data registers or constants. This is the divisor. The signed value range is -2,147,483,648 ~ 2,147,483,647 (232). The unsigned value range is 0 ~ 4,294,967,295 (232-1). The Hexadecimal value range is H00000000 ~ HFFFFFFFF. |
| D | The third operand. Entries are only LWORD data registers. D ~ D+1 is where the quotient is saved. D+2 ~ D+3 is where the remainder is saved. |
Notice
Error Flag (F11.0) Notice
The error flag, F11.0, will be ON for one scan when the address of the data register assigned by @D exceeds the range of the data register, D. The range of the data register, D, is dependent on the CPU type. F11.0 turns ON when the value of the data for dividing exceeds the data register assigned to S1 or S2. F11.0 turns ON when the value of the divisor, S2, is 0.
Signed Overflow
DWORD data register entry behaves as follows:
- If the value of S1 or S2 exceeds the smallest signed value -2,147,483,648, the value will be set to -2,147,483,648 with no warning.
- If the value of S1 or S2 exceeds the largest signed value 2,147,483,647, the value will be set to 2,147,483,647 with no warning.
Tip: Operand Division Format
S1 is divided by S2. (S1 ÷ S2)
Ladder Diagram Examples
DDIV
The DDIV instruction divides a DWORD dividend value, S1, by a DWORD divisor value, S2, and saves the result in an assigned LWORD data register, D. The quotient is saved in the data register, D ~ D+1, and the remainder is saved in the data register, D+2 ~ D+3.
When the contact, M0.0, is powered ON, the DWORD data register, D7, is divided by the DWORD data register, D9, and the result saved in the LWORD data register, D11. The quotient is saved in data registers, D11 and D12, and the remainder is saved in data registers, D13 and D14.

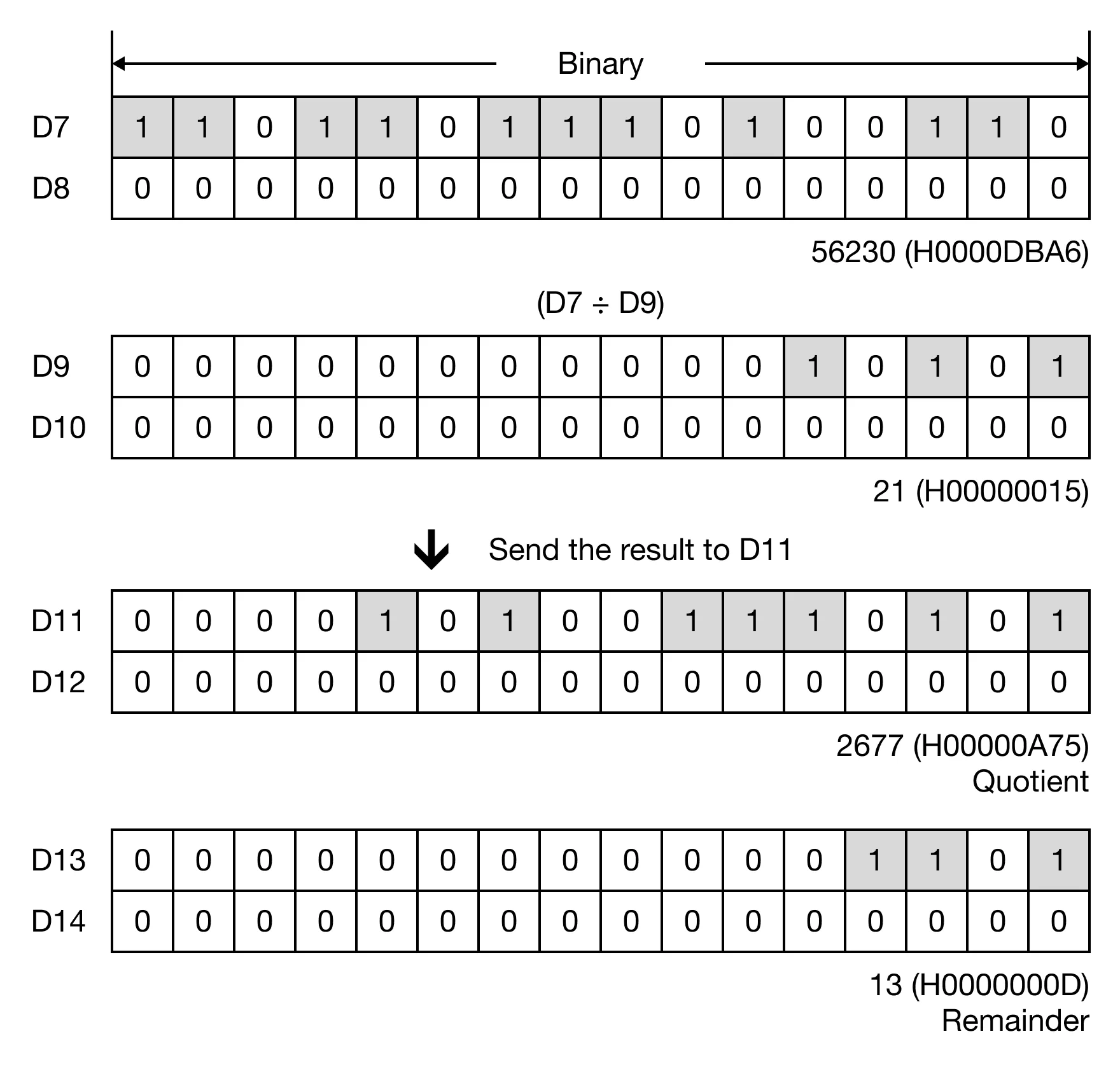

Memory Monitor
DDIVP
The DDIVP one-shot instruction divides a DWORD dividend value, S1, by a DWORD divisor value, S2, and saves the result in an assigned LWORD data register, D. The quotient is saved in the data register, D ~ D+1, and the remainder is saved in the data register, D+2 ~ D+3. Every time this instruction executes, it energizes the output only once.
When the contact, M0.0, is powered ON, the DWORD data register, D7, is divided by the DWORD data register, D9, and the result saved in the LWORD data register, D11. The quotient is saved in data registers, D11 and D12, and the remainder is saved in data registers, D13 and D14.

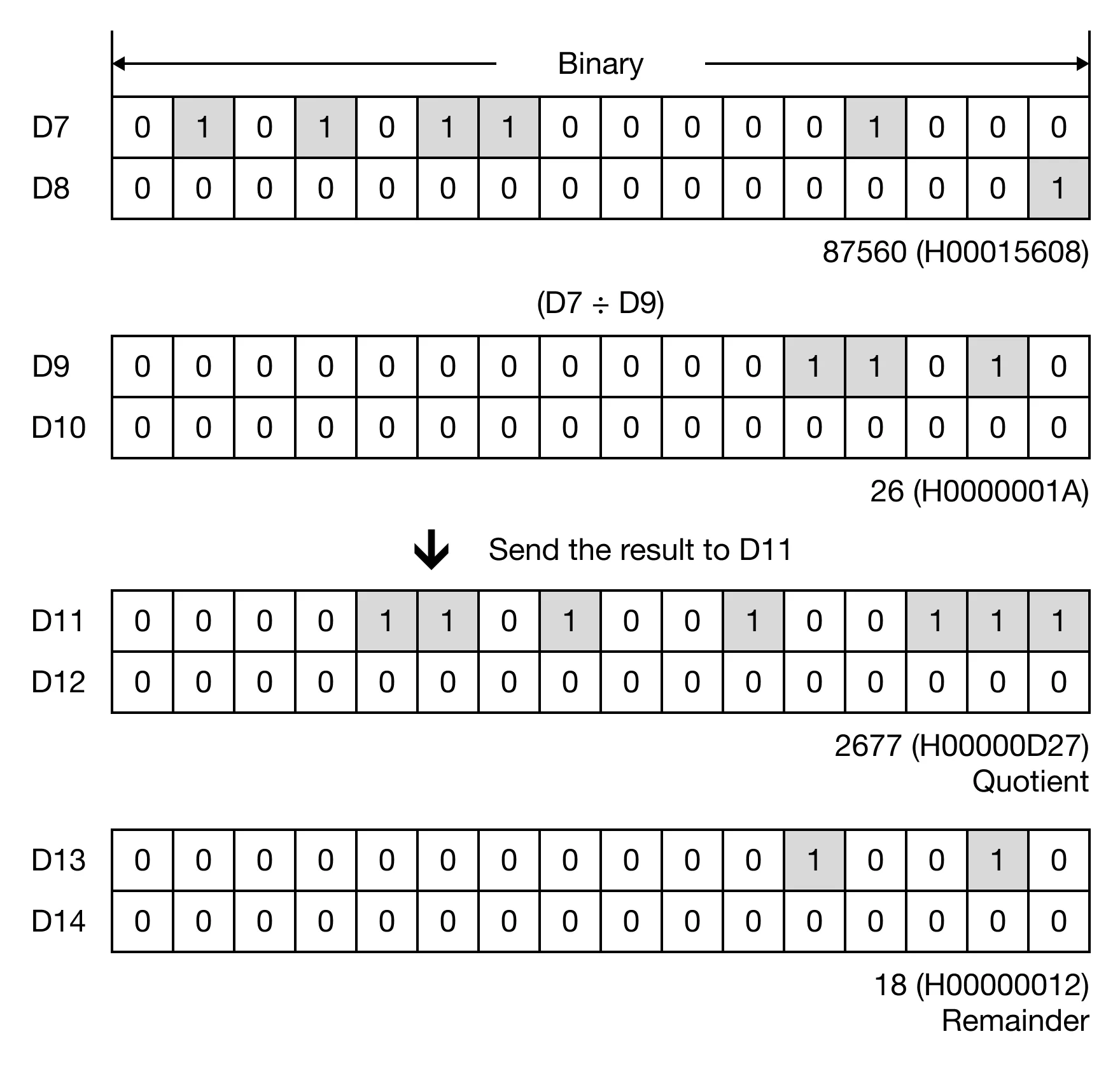

Memory Monitor
