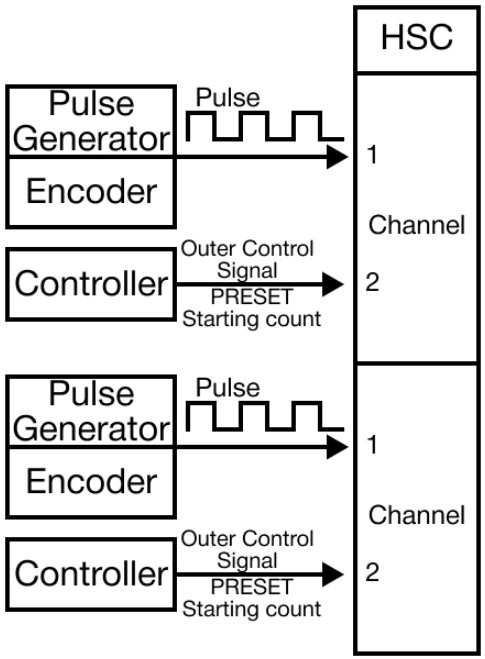

High-Speed Counter Module Concept
Step 1: Count the incoming pulse.
Step 2: The preset and enable count operation can be operated by the external signal.
Step 3: Compare the current count value with the compared value.
- Turn Output Compare ON or OFF.
- 2 points per channel.
Step 4: By using the scan program, it is possible to check the input and output signal and buffer memory.
