Class I, Division 2 Products
Maple Systems offers many Class I, Division 2 certified solutions designed to keep operators and their environment safe. These products are used in industries including: oil and gas, mining, painting, chemical processing, pharmaceutical, food processing, and more. Trust Maple’s Class I, Division 2 products for your hazardous locations today.
Maple Systems Class I, Division 2 Products
Web HMI
Web HMIs provide a streamlined alternative to the traditional operator interface. As client-only devices, Web HMIs are designed to connect and interact with web-based applications running on a server. No program installations and reduced wiring requirements mean that Web HMIs can be easily added into an existing Class I, Division 2 control system without the need for extensive programming or configuration.

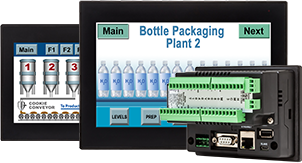

HMIs + PLCs
Our HMI + PLCs lower costs, save space, and feature options including: Serial and Ethernet communication, support for Class I, Division 2 installations, and numerous I/O configurations. What’s more, our HMI + PLCs provide an affordable combination of display and control in a single package and are all programmed using our free configuration software, allowing you to have web server functionality, data logging, recipes, graphs, alarms, trending, create objects with multiple tasks, and more.
Industrial PCs
Our CID2 Industrial PCs come with a Windows®10 Operating System installed that can operate any Windows® Software, powerful SCADA software such as Allen-Bradley’s FactoryTalk® View, Ignition™, AVEVA™ Edge and Wonderware®, or configure them using programming languages such as Visual Basic, Python and C++, providing you with flexible options. Choose from a 15”, 19” or 21” display, or no display at all, to meet your environment and application needs.

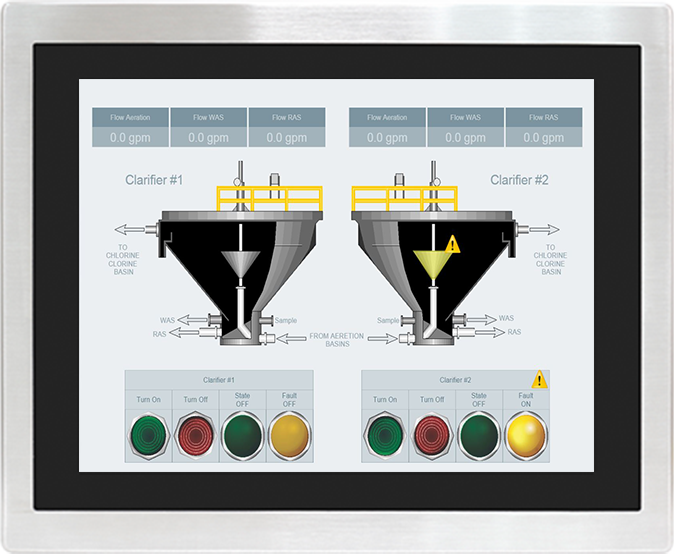

Industrial Monitors
Our C1D2 Monitors are designed to withstand prolonged shock & vibration, a wide temperature range, and protection from water and dust. With a stainless steel enclosure and high-brightness/sunlight readable 1000 nit projected capacitive touchscreen, this extended temperature, Class 1, Division 2 Industrial Monitor is a great value. ATEX rated. Pair with our C1D2 Box PC.
Alphanumeric OITs
Our OITs are powerful, affordable operator interface terminals. These units offer best-in-class features including 2 and 4-line LCD and VFD Displays,16 and 24-key keypads, unique user-definable keypads, and slide-in legends. All our OITs operate in temperature extremes ranging from -10˚C up to 65˚C and meets strict Class 1, Division 2 requirements. Made with a rugged aluminum enclosure in the USA, our LCD and VFD OITs are ideal for harsh environments.
How Maple Systems Customers are using our Class I, Division 2 Products
With the ABB TotalFlow Drivers already built in to our free programming software, EBPro, a systems integrator in Midland, Texas used our CID2 certified, HMI5070LB on his TotalFlow Meter Run applications.
An integrator in Pecos, Texas uses our 10.1″ Advanced HMI paired with our EasyAccess2.0 license to remotely monitor and control their equipment from anywhere in the world while still preserving the core functions of a fixed operator terminal.
A Controls Engineer in Erie, PA selected our CID2 HMI to manage Plant Nursery Irrigation Systems, control pump VFDs, PID loops and monitor pressure/PH levels.
A Systems Integrator in Michigan has been using Maple Systems HMI5070L model HMIs for years in various process control applications and reports that end-users find them to be reliable and easy to operate.
An OEM in New Jersey incorporates the HMI5070L into their CID2 Specialty Gas Handling Systems.
An OEM in Missouri uses the HMI5070LB as the interface for their precision Commercial Food Ovens.
An OEM in Wisconsin uses the HMI5070L to oversee multiple Allen-Bradley Micrologix 1400 PLCs in their Water Softening, Filtration, and Ion Exchange Systems.
Engineers at an OEM in Ohio chose a Maple unit to allow operators of their Dancer Tension Control Systems to select setpoints, monitor, and collect data from an integrated Modbus TCP/IP Slave controller.
In Connecticut, a Maple Systems OEM customer uses our products to control their high-performance Ultrasonic Metal Welding Machines. The HMI interfaces with a Galil DMC motion controller, performs data collection, and allows for on-demand, inline job-switching using our Enhanced Recipes feature.
What makes a Class I, Division 2 Location
If the location of your HMI installation fits the below criteria, take a look at our Class I, Division 2 options.
A Class I, Division 2 location is:
A location in which volatile flammable gases, flammable liquid-produced vapors, or combustible liquid-produced vapors are handled, processed, or used, but in which the liquids, vapors, or gases will normally be confined within closed containers or closed systems from which they can escape only in case of accidental rupture or breakdown of such containers or systems or in case of abnormal operation of equipment.*
A location in which ignitable concentrations of flammable gases, flammable liquid-produced vapors, or combustible liquid-produced vapors are normally prevented by positive mechanical ventilation, and which might become hazardous through failure or abnormal operation of the ventilating equipment.*
A location that is adjacent to a Class I, Division 1 location, and to which ignitable concentrations of flammable gases, flammable liquid-produced vapors, or combustible liquid-produced vapors above their flash points might occasionally be communicated unless such communication is prevented by adequate positive-pressure ventilation from a source of clean air and effective safeguards against ventilation failure are provided.*
*www.termwiki.com
