HMI5102L

  • 1024 x 600 Resolution
  • 32-Bit RISC Cortex-A8, 600 MHz CPU
  • 1 Ethernet Port, 1 USB Port, 2 Serial Ports
  • 2 Year Warranty
  • Support for over 300 protocols

10.1" High-Resolution Standard HMI

HMI5102L

This is a legacy product and is no longer available for purchase. Please call (425)-745-3229 or email: sales@maplesystems.com for a recommended upgrade path.

cMT2108X2v2 replaces the HMI5102L



The HMI5102L HIGH-RESOLUTION operator interface takes advantage of the wide feature set in our free HMI software and proves it is an excellent value. Because our software supports Modbus and over 300 different PLC and controllers, pairing this touch panel with your Allen-Bradley, Seimens, Omron, and/or Mitsubishi PLC is easy.

Corey Bodily

CFO

Silverstone Automation

Customer Review

With the 10" easy-to-read Maple touchscreen and separate screens for operators and technicians, the operator's interactions were simplified, and unintended interactions were mitigated. In addition, using pre-programmed recipes meant operators had less information to enter for each patient, reducing changeover time and minimizing errors.

Specifications

System

Memory (RAM)

128 MB

Memory (Flash)

128 MB

RTC

Built-in

Programming Software

EasyBuilder Pro V5.03.02 or later versions

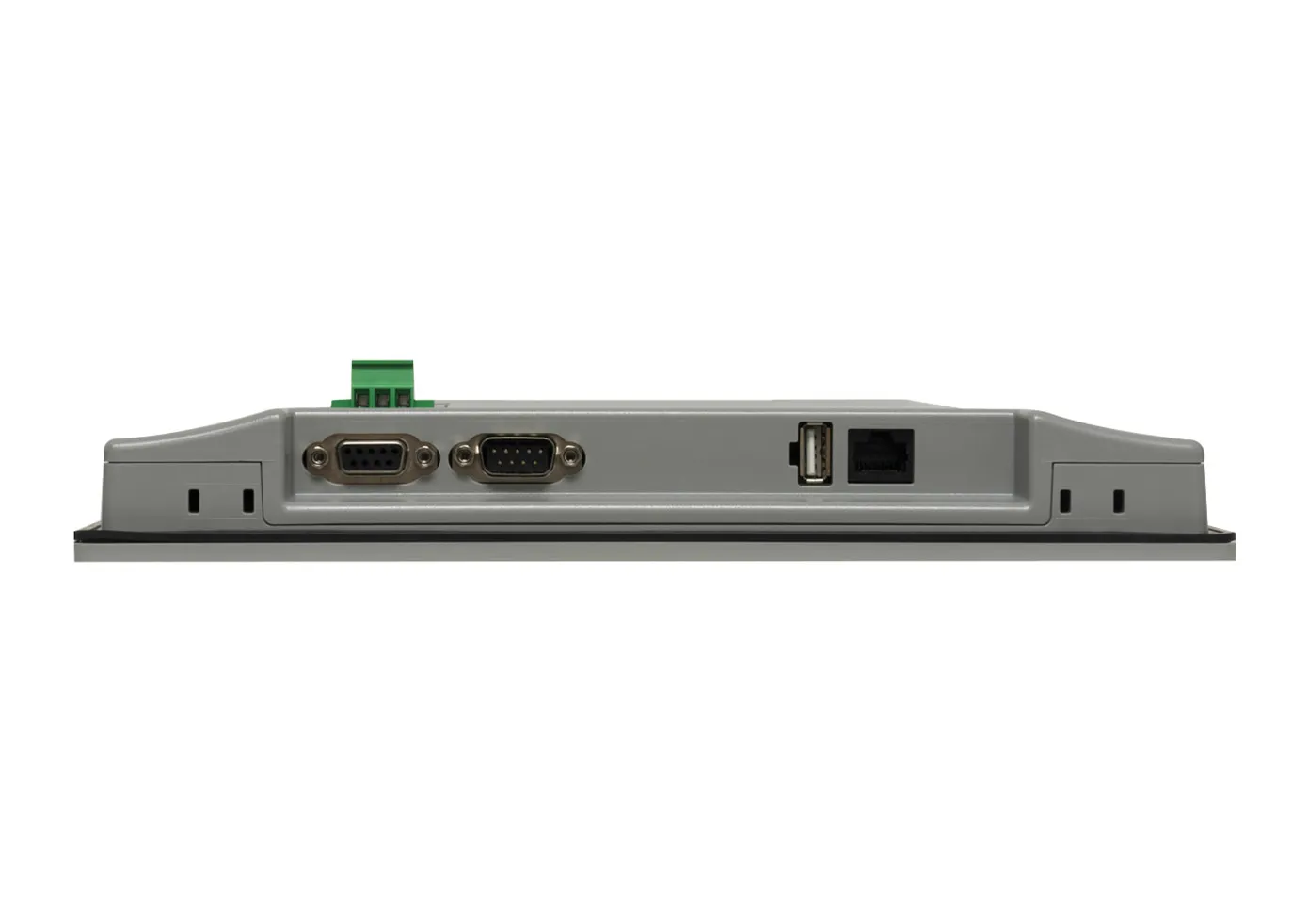

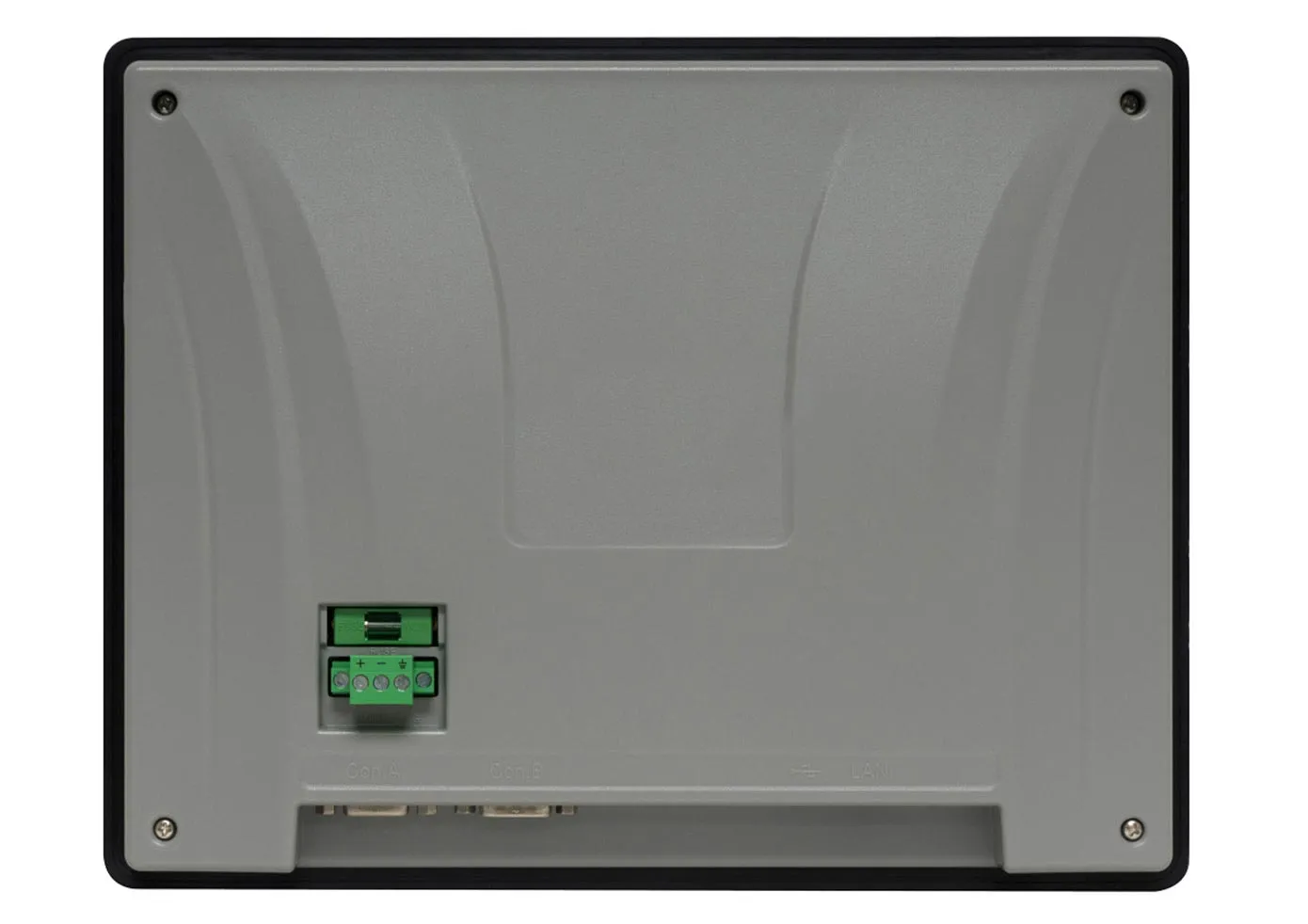

I/O Ports

Serial Ports

2

Ethernet/LAN

10/100 Base-T x 1

CANbus

N/A

Audio Output

N/A

SD Card Slot

N/A

USB Host Ports

USB 2.0 x 1

USB Client Ports

N/A

Wi-Fi

N/A

RS-485 Dual Isolation

N/A

Local bus

N/A

HDMI Port

N/A

Video Input

N/A

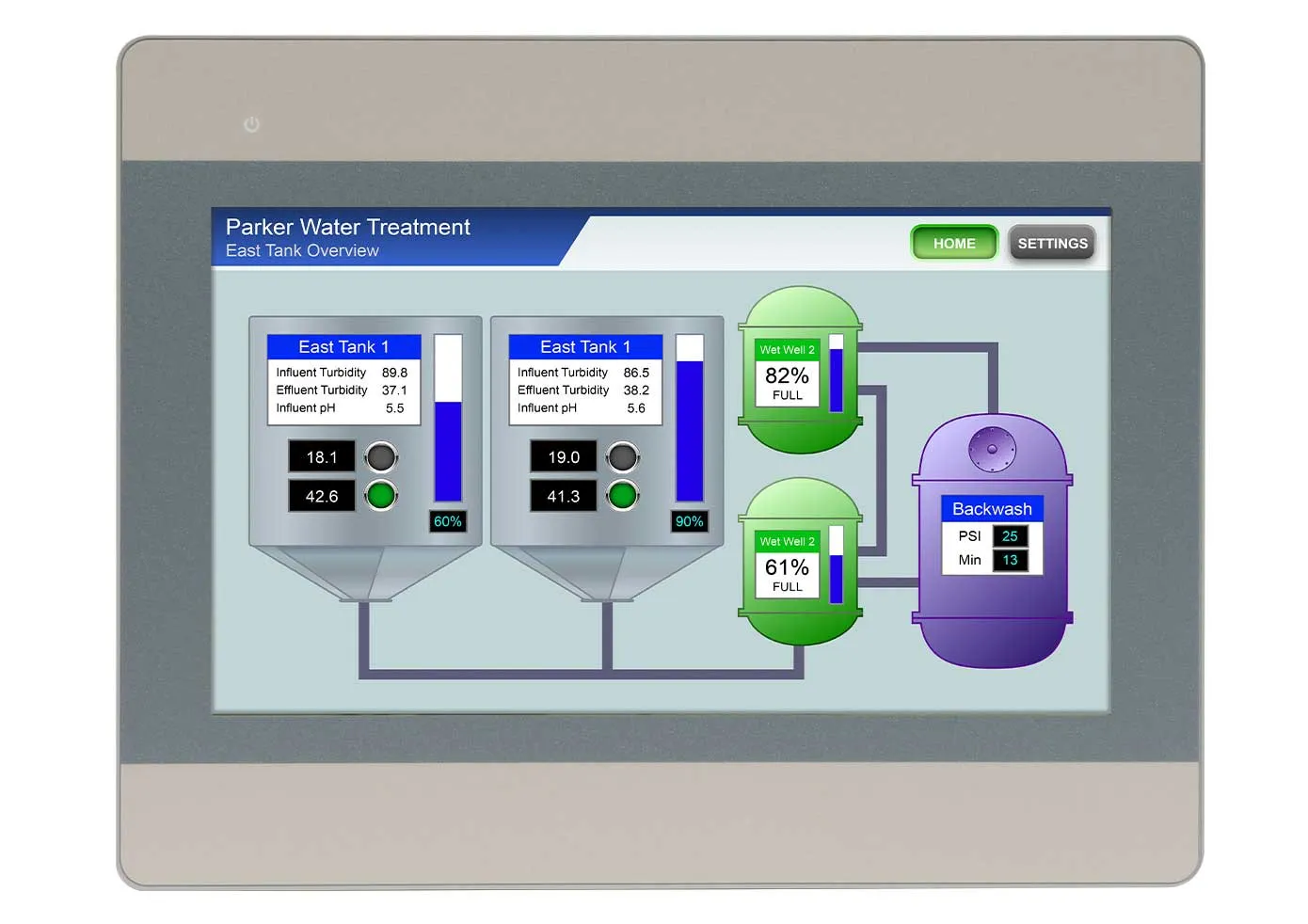

Display

Display Size

10.1" TFT

Resolution

1024 x 600

Luminance (cd/m^2)

400

350

300

Contrast Ratio

500:1

Backlight Type

LED

Backlight Lifetime (hrs)

50,000+

Colors

16.7 M

LCD Viewing Angle (T/B/L/R)

70/70/80/80

Display Type

10.1" TFT

Viewing Angle (H°/V°)

120/140

Size (W x H)

8.66 x 5.24 inches [220 x 133 mm]

Touch Screen

Type

4-wire resistive touch

Electrical

Input Power

15.6 W

Power Isolation

Built-in

Power Dissipation

N/A

Current for Internal Bus

N/A

Current Consumption

N/A

Isolation Resistance

Exceed 50 MO - @ 500 VDC

Input Voltage

24 ± 20% VDC

Input Current

650 mA @ 24 VDC

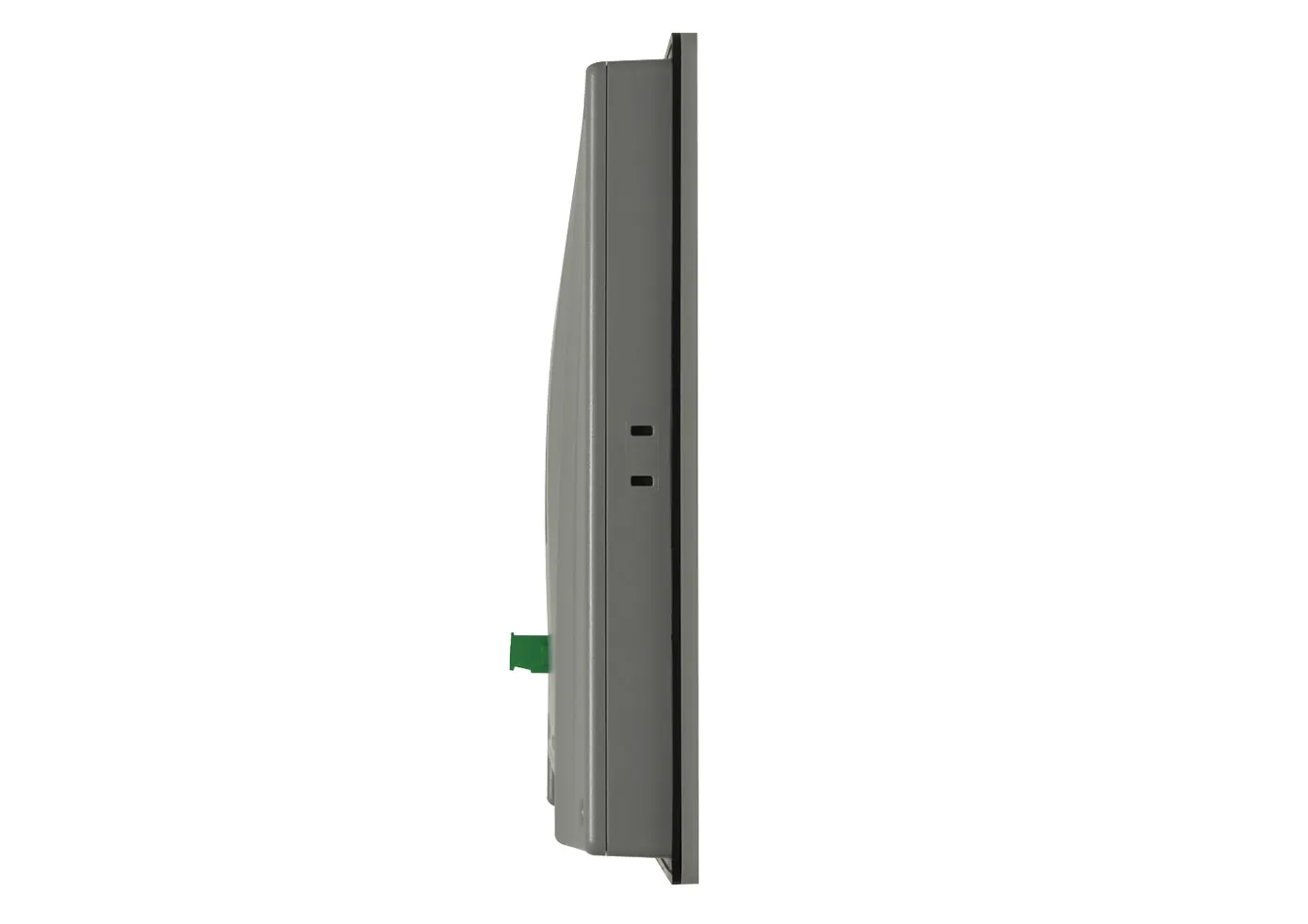

Mechanical

Vibration Endurance

10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Enclosure Material

Plastic, light grey

PCB Coating

Yes

Dimensions WxHxD

10.67 x 8.39 x 1.42 inches [271 x 213 x 36.5 mm]

Panel Cutout (inches) [mm]

10.24 x 7.95 [260 x 202]

Weight

Approx. 2.2 lbs. [1.0 kg]

Mounting

Panel mount

Environmental

Storage Temperature

-4° ~ 140°F (-20° ~ 60°C)

Operating Temperature

32° ~ 122°F (0° ~ 50°C)

Relative Humidity

10% ~ 90% (non-condensing)

Certification

UL Type Rating

UL Type 4X (indoor use only)

NEMA Rating

NEMA4

IP Rating

IP65 compliant front panel

CE

Yes

UL

cULus Listed

Class 1 Div 2

N/A

ATEX

N/A

RoHS

Yes

Available Software

Documentation & Resources

Need Additional Support?

Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204

Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com

Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)

What's Included

When you order the HMI5102L the following items are included in the box:

  • 1 x HMI5102L
  • 1 x Warranty Statement
  • 1 x Installation Instruction
  • 1 x Product Flyer
  • 1 x Power Connector
  • 7 x Panel Mounting Clips
  • 1 x USB Stick Clamp & Tying Strap
