Thermocouple (TC)
Navigate to Online → Special Module Setup → TC Module or click on the TC module within the Card Properties.
Applied Modules
- IO-SA0400T
TC Module
Step 1: Hold CTRL to configure all channels at once.

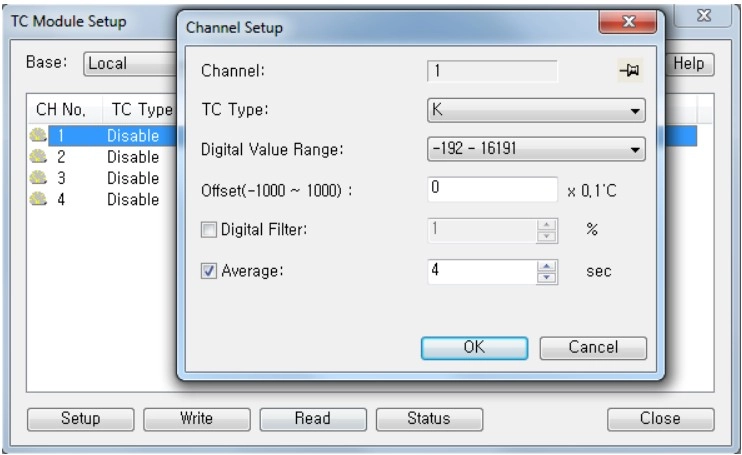

Step 2: Click Setup to configure the TC type, digital value range, offset, digital filter constant, or average time.
TC Type
- K
- J
- E
- T
- B
- R
- S
- N
Digital Value Range
- -192 ~ 16,191
- -8,192 ~ 8,191
Offset
- Offset value of the measured temperature
Digital Filter Constant
- Percentage value
Average Time
- Second value
Step 3: Once the settings are configured, click OK to confirm and apply the changes.
Step 4: To save the configured parameters to the PLC, click Write.
Step 5: Click Read to check the parameters.
Step 6: For real-time monitoring and module diagnostics, click Status. This displays the current value, minimum and maximum values, firmware version of the module, and any error codes.
