Instruction Parameters

Supported PLC Series

PLC-AESPLC-FBPLC-ES

Supported Data Registers

MXYKLFTCSZRQD@DConstant
S

Supported Flags

FlagBitSupport
ErrorF11.0
ZeroF11.1
CarryF11.2

Number of Steps

Steps
3

Operands

OperandDescription
SThe first operand.
Entries are only WORD data registers.
This is where the values written to the real time clock (RTC) device are stored.
This requires 7 data registers.

Notice

Error Flag (F11.0) Notice

The error flag, F11.0, will be ON for one scan when the address of the data register assigned by @D exceeds the range of the data register, D. The range of the data register, D, is dependent on the CPU type.

RTC Data Storage

The data read from a real time clock (RTC) device are stored in the data register, S, as follows:

Data RegisterValueDate Range
DYear2000 ~ 2099
D+1Month1 ~ 12
D+2Day1 ~ 31
D+3Hour0 ~ 23
D+4Minute0 ~ 59
D+5Second0 ~ 59
D+6Day of the Week0 ~ 6
Sunday ~ Saturday

Instruction Behavior

The DATEWR and DATEWRP instructions behave as follows:

  • The day of the week is defined by 0 ~ 6.
    • Day 0 is Sunday, day 6 is Saturday.
  • Compensation is made automatically for leap years.

Ladder Diagram Examples

DATEWR

The DATEWR instruction writes the WORD data from the data register S to a real time clock (RTC) device.

The DATEWR instruction writes the WORD data from the data register S to a real time clock (RTC) device.

Ladder Diagram Example for MapleLogic DATEWR/DATEWRP instruction.
When the contact, M2.0, is powered ON (1), the instruction writes the block of time data, starting at the data register, D10, to the real time clock (

When the contact, M2.0, is powered ON (1), the instruction writes the block of time data, starting at the data register, D10, to the real time clock (RTC) device.

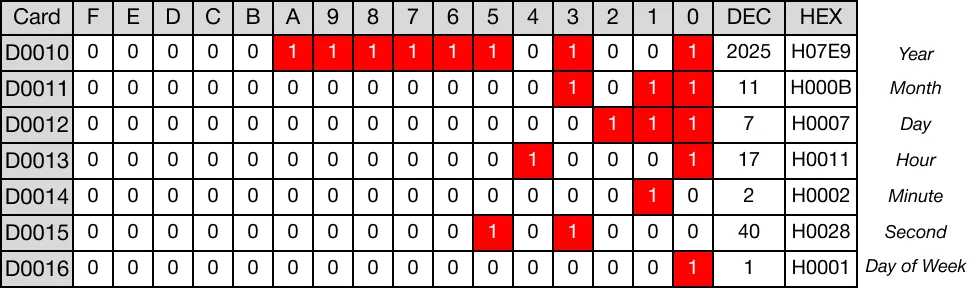

Memory Monitor

The following data is written to the real time clock device:
  • The following data is written to the real time clock device:
    • D10: 2025 (Year)
    • D11: 11 (Month, November)
    • D12: 7 (Day)
    • D13: 17 (Hour)
    • D14: 2 (Minute)
    • D15: 40 (Second)
    • D16: 1 (Day of the week, Monday)

The clock time is set to: 5:02:40 P.M., Monday, November 7, 2025.

DATEWRP

The DATEWRP one-shot instruction writes the WORD data from the data register S to a real time clock (RTC) device.

The DATEWRP one-shot instruction writes the WORD data from the data register S to a real time clock (RTC) device. Every time this instruction executes, it energizes the output only once.

Ladder Diagram Example for MapleLogic DATEWR/DATEWRP instruction.
When the contact, M3.0, is powered ON (1), the instruction writes the block of time data, starting at the data register, D20, to the real time clock (

When the contact, M3.0, is powered ON (1), the instruction writes the block of time data, starting at the data register, D20, to the real time clock (RTC) device.

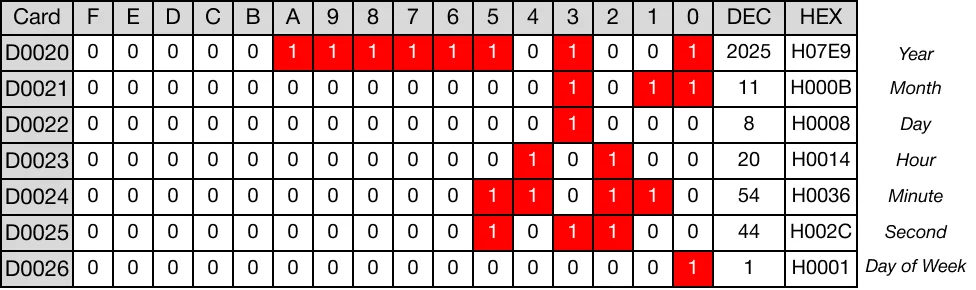

Memory Monitor

The following data is written to the real time clock device:
  • The following data is written to the real time clock device:
    • D20: 2025 (Year)
    • D21: 11 (Month, November)
    • D22: 8 (Day)
    • D23: 20 (Hour)
    • D24: 54 (Minute)
    • D25: 44 (Second)
    • D26: 1 (Day of the week, Monday)

The clock time is set to: 8:54:44 P.M., Monday, November 8, 2025.
