2-Position Selector Switch – Illuminated and Non-Illuminated
$17.50
PBS114 2-position selector switches turn between two positions to choose a mode or switch a circuit on and off. They fit a standard 22 mm panel hole and come with a short knob, a long knob or a key, maintained or spring return, illuminated (24 V LED) or not, each with one NO contact. IP65, CE and cURus.
- 10+ units = 10% OFF
- 20+ units = 20% OFF
- Typically ships in 2 days.
- US-based technical support.
Share the product:
- Short Knob, Long Knob, Keyed
- CE Certified, IP65 Rated, cURus Listed
- Rated for 600,000 Operations (Contact Block 1 Million)
- 22mm Mounting Hole for Panels

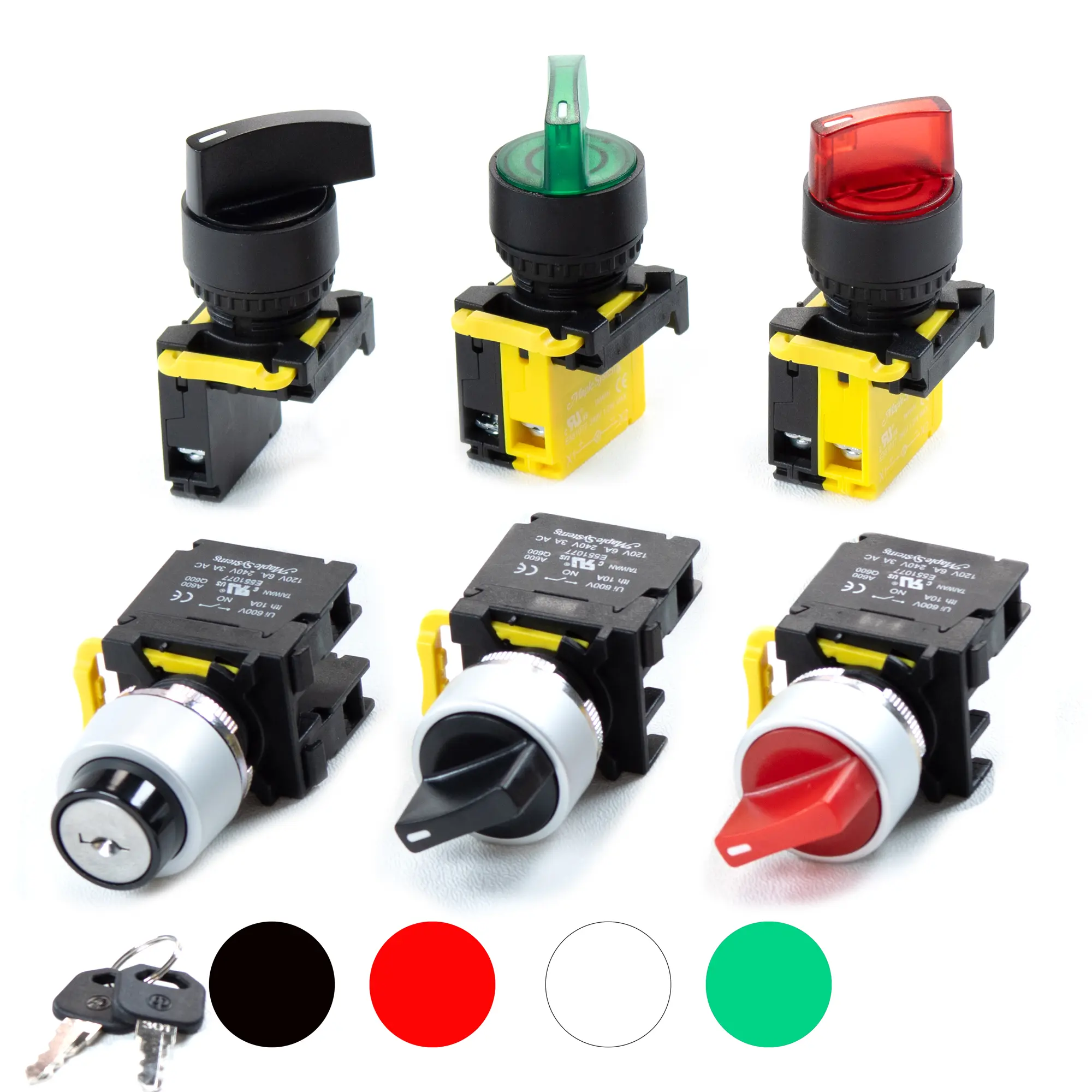

PBS114 2-position selector switches are built for machine control panels, in illuminated and non-illuminated versions. They fit a standard 22 mm panel hole and suit choices such as Auto/Manual, On/Off, Forward/Reverse, Jog/Run and Local/Remote.
- Standard 22mm mounting hole
- Maintained or spring return operation

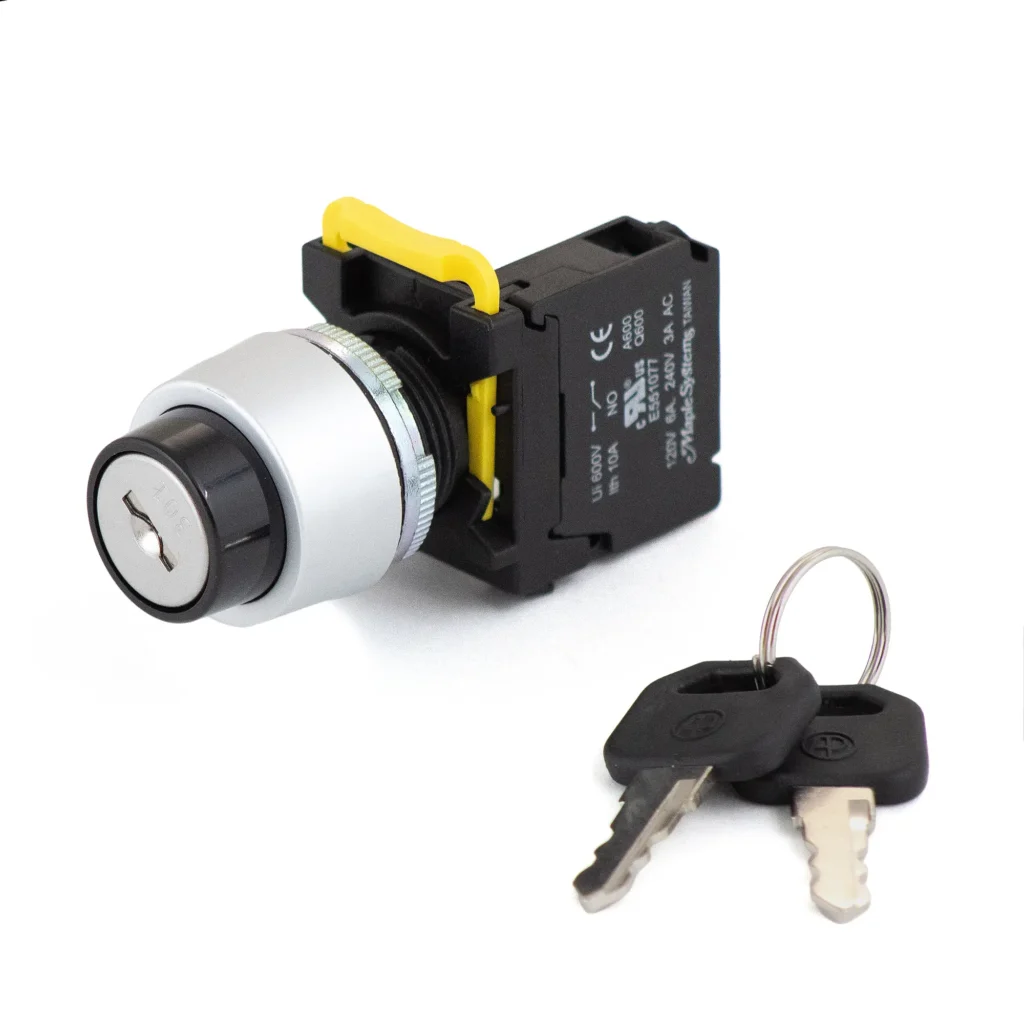

- Short knob, long knob or keyed operators
- Non-illuminated, or illuminated with a 24 V LED in a red or green knob, lamp holder included
- 1 NO contact assembled; one more contact block can be added, and NO and NC contact blocks are sold separately
- Plastic or metal border and ring
- IP65 rated; CE, RoHS and cURus (UL Recognized Component)
- Actuator rated for 600,000 operations, contact block for 1 million
Selector switches give operators a simple way to choose machine functions or operating modes.
*Volume discounts apply to identical product configurations only. Discounts cannot be combined across different models or configurations.
Rating
| Thermal Current lth | 10A 50/60HZ |
|---|---|
| Isolation Voltage | Ui 600V |
| Enclosed Thermal Current lth | 10A |
| Short Circuit Current | 1000A |
| AC-15 | 120V 6A, 240V 3A |
| AC-12 | 480V 1.5A, 600V 1.2A |
| DC-12 | 120V 2.2A, 240V 0.6A, 480V 0.4A |
| Ambient Temperature | -4°F-140°F (-20°C-60°C) |
| Contact Resistance | 50mΩ Max (Initial) |
| IP Rating | IP65 |
| Certifications | CE cURus
RoHS |
Mechanical
| Contacts | 1x Normally Open |
|---|---|
| Mounting Hole | 22mm |
| Actuator Lifespan | 600,000 Operations |
| Contact Block Lifespan | 1 Million Operations |
| Switch Type | 2 Position 2 Position, Spring Return |
Physical
| Border Material | Plastic Metal |
|---|---|
| Ring Material | Plastic Metal |
| Switch Head Color | Non-Illuminated: Red, Black, Silver (Keyed) Illuminated: Red, Green |
| Switch Style | Short Knob Long Knob Keyed |
| Bulb Type | LED |
| Lamp Voltage | 24V |
Are quantity discounts available on your Pushbuttons and Selector Switches?
Yes, quantity discounts are available starting at qty 10. Contact our sales team for more information.
Related Links
Maple Systems Product Brochure
Related Articles
Are replacement parts available for your pushbuttons and selector switches?
Yes! We offer replacement LEDs, Contact Blocks, Metal Rings, Legend Plate Frames and more! Need a button cover? We have those. Switch Guard? Yep, we have those too. How about a Control Box? Several!
Related Links
Maple Systems Product Brochure
Related Articles
Are your pushbuttons illuminated?
Yes, we have illuminated Momentary and Toggle options as well as illuminated E-Stop, 2 Position and 3 Position Selector Switches. LED Illuminated colors vary from different product lines, available in Red, Green, Blue, Yellow, and White, as well as Double Touch Red/Green Combo buttons with Yellow LED Illumination.
Non-Illuminated buttons and switches are also available in similar colors, including Black, and Drawable and Non-Drawable Keyed Switches and E-Stops
Related Links
Maple Systems Product Brochure
Related Articles
Do you offer warranty on your Indicator Lights, Pushbuttons, and Selector Switches?
Yes, we off a one year, limited warranty on our Indicator Lights, Pushbuttons and Selector Switches. This warranty covers manufacturing defects only. It does not cover damage caused by improper installation, misuse, normal wear and tear, product modification, or any operation outside of the products rated specs. Contact our sales team if you need more information regarding limitations.
Related Links
Maple Systems Product Brochure
Related Articles
What is the difference between a pushbutton and a selector switch?
A pushbutton is operated by pressing it and is usually used for starting and stopping, or resetting a machine. A Selector Switch is turned to different positions, generally for choosing between operating modes or functions such as Forward, Reverse, or Off.
Related Links
Maple Systems Product Brochure
Related Articles
What is the mounting hole size for your pushbuttons and selector switches?
Currently, our pushbuttons and selector switches come in the standard 22 mm diameter only.
Related Links
Maple Systems Product Brochure
Related Articles
Do you sell replacement keys for your Keyed Selector Switches?
No, we recommend making a copy yourself once they’re received. You can also buy a new Keyed Switch with keys to replace the switch with missing keys.
Related Links
Maple Systems Product Brochure
Related Articles
What does cURus mean?
Any product with a cURus Logo means that it has been evaluated by UL Solutions and is a UL recognized component, intended to be installed on a larger piece of equipment, that meets applicable safety requirements for Canada and the U.S.
Related Links
Maple Systems Product Brochure
Related Articles
