Installing EasyAccess 2.0 Application on PC

Download the EasyAccess 2.0 installer from our website (maplesystems.com) and open it. Select the language for the installation process, and then click [Next]. If there are any previous version of EasyAccess 2.0 installed on your PC, please uninstall these before proceeding.

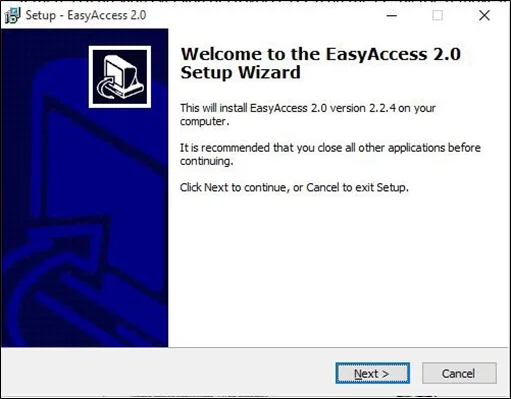

EasyAccess 2.0 Setup Wizard. Once the EasyAccess 2.0 installation file is downloaded from the Maple Systems website, double-click the installation application and the Setup Wizard will begin the EA2.0 installation process.

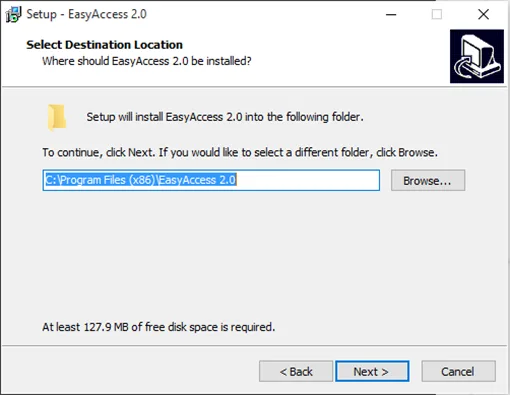

Select a folder for EasyAccess 2.0 installation or use the default folder. Click [Next].

Choose an installation directory. You can use the default folder, or can create a different folder.

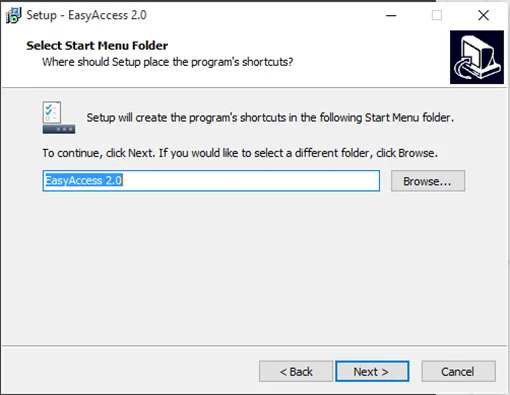

Select a start menu folder or use the default folder. Click [Next].

Select additional tasks, for example: [Create a desktop icon]. Click [Next].

You can instruct the Setup Wizard to create a desktop shortcut for the EasyAccess 2.0 program, or not.

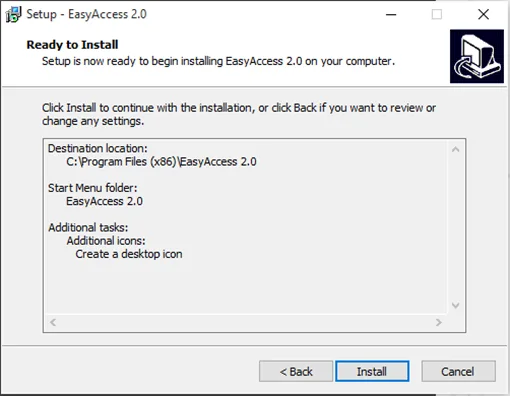

Confirm all settings. To change the settings, click [Back]. To start installation, click [Install].

Confirm the settings chosen earlier. Once the Install button is clicked, the installation will begin.

Installation in progress:

The Setup Wizard now begins the installation. During the installation process, the progress bar will update. You do not need to do anything at this time.

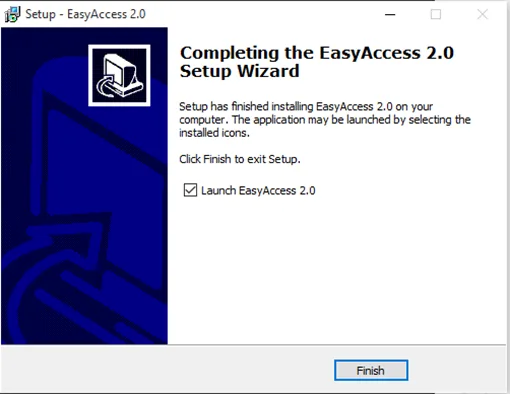

Click [Finish] to complete the installation.

Installation Complete message. Click the [Finish] button to finish the installation and close the Setup Wizard. You can also immediately launch the EasyAccess 2.0 program at this time.

Here is a list of notable files you will see in the installation folder:

File Name	Description
cMT Viewer	The PC application which enables monitoring of remote cMT Series devices (also available for mobile platforms)
EasyAccess 2.0	The main program used to establish a remote connection to an HMI
gui_30	Helper utility which enables monitoring of remote HMIs using HMI Viewer
PC Activator	Application that can be used to activate EasyAccess 2.0 for any HMIs on the local area network
EasyAccess 2_ReleaseNotes	Release notes documenting important changes and updates to EasyAccess 2.0 over time
