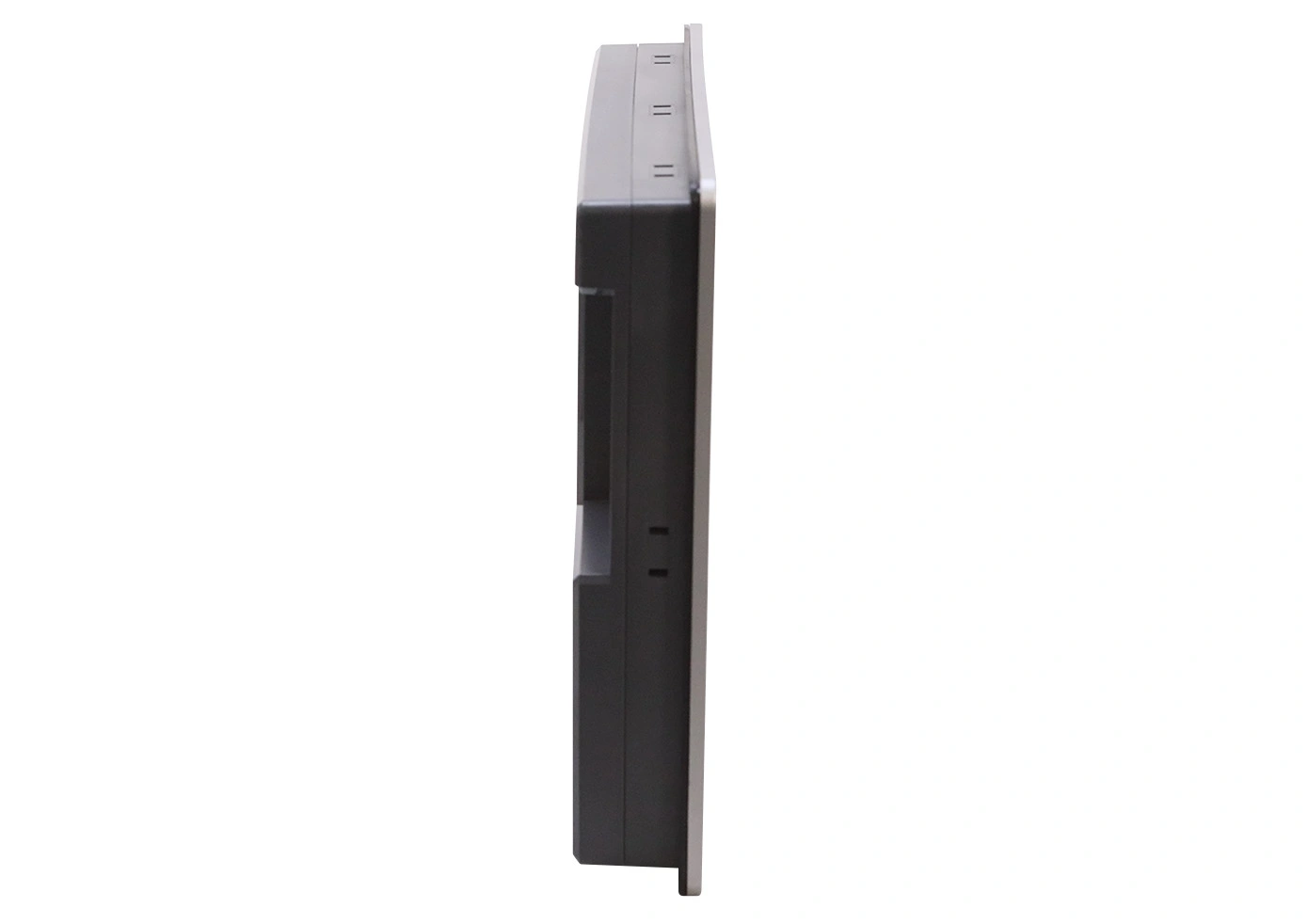

cMT3108XH
-
- Resistive Touch 1280 x 800 Resolution, 2 Ethernet Ports, 1 USB Port, 2 Serial Ports
- WiFi capable with addition of Wi-Fi Expansion Module*
- Supports CODESYS with Soft PLC Functionality, Web Browser, Email, and more
- IIoT, Remote Access, MQTT, OPCUA Client/Server, SQL Database
- cULus, CE, RoHS, IP66, NEMA4

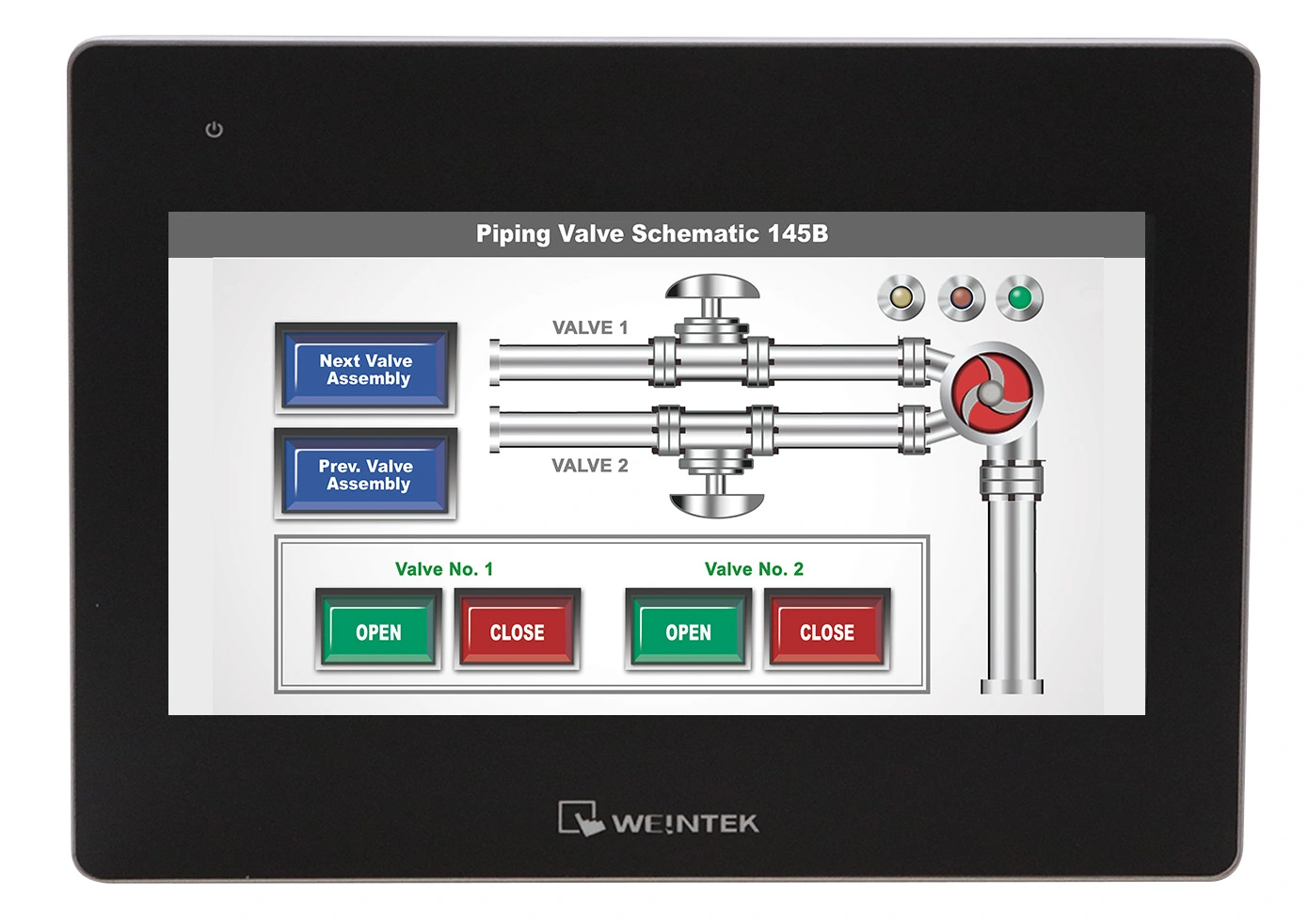

10.1" WiFi Capable High-Resolution High Performance HMI
cMT3108XH
Our cMT3108XH is a innovative, High-Performance interface ideal for applications requiring a high-resolution display, an enhanced feature set, remote access, and IIoT functionality. A quad-core CPU which allows 2 cores to run a CODESYS application for soft PLC functionality, and the other 2 cores to run your HMI application.
Try Before You Buy: Follow along to learn how EBPro, our 100% free HMI configuration software, allows you to develop and simulate your HMI program entirely free of charge.
- Compare cMT3108XH and other models.
- Volume Discounts available. Contact Sales for more details.
- Customize your product with your company logo. Minimum quantities apply.
- Learn More about how our products interface with over 300+ PLCs and Controllers.
- US Based Technical Support
System
| Memory (RAM) | 1 GB |
| Memory (Flash) | 4 GB |
| RTC | Built-in |
| Programming Software | EBPro (Latest Version) |

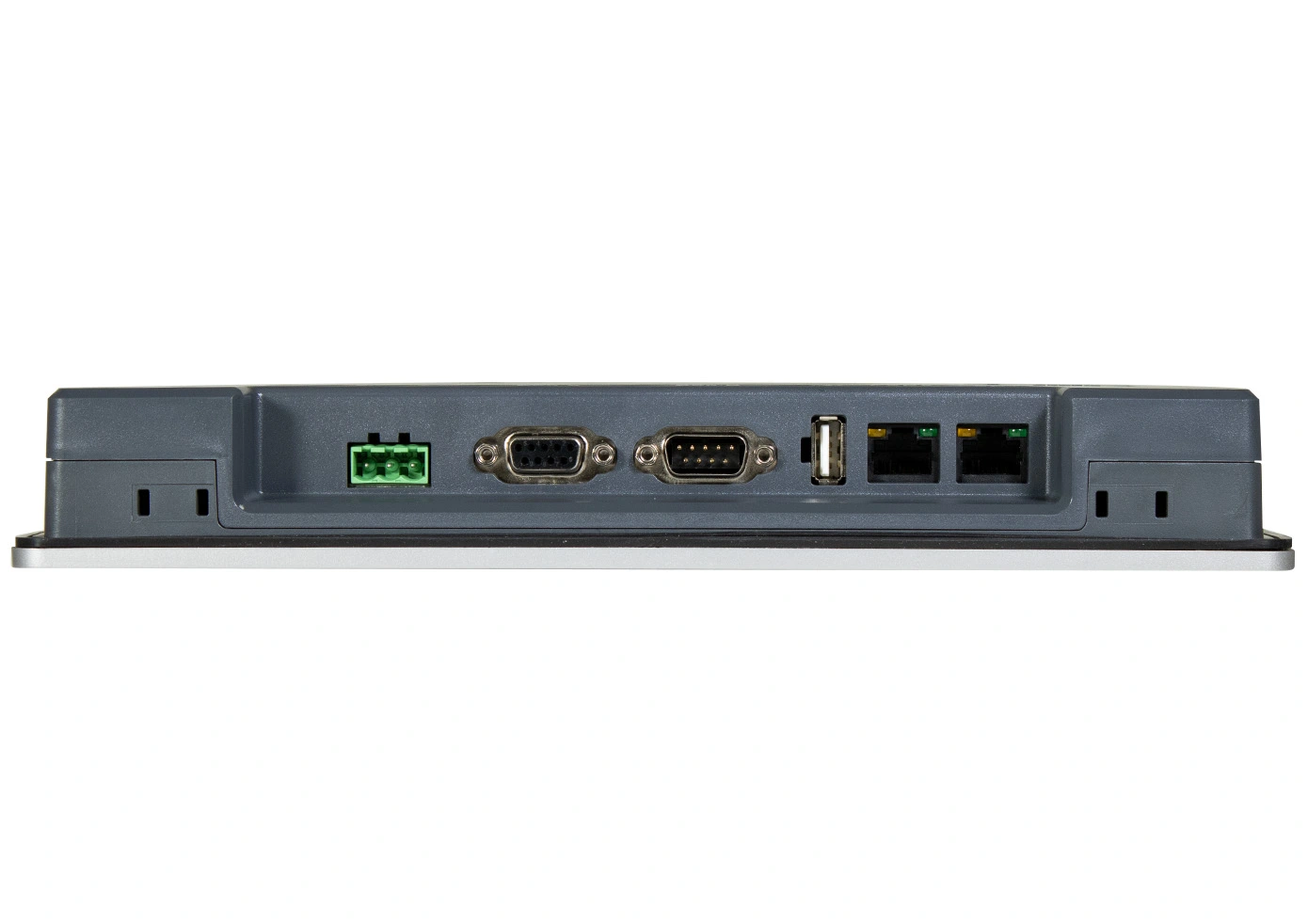

I/O Ports
| Serial Ports | 2 |
| Ethernet/LAN | LAN 1: 10/100 Base-T RJ-45 LAN 2: GbE RJ-45 |
| CANbus | Yes |
| Audio Output | Built-in Mono Speaker |
| SD Card Slot | N/A |
| USB Host Ports | USB 2.0 x 1 |
| USB Client Ports | N/A |
| Wi-Fi | MO2 Wifi - Expansion Module (Optional) |
| COM Port | CANbus 1 x DE9S COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wires 1 x DE9P COM1: RS-232, COM3: RS-232 |
| RS-485 Dual Isolation | Yes |
| HDMI Port | N/A |
| Video Input | N/A |
Display
| Display Size | 10.1" WVA LCD |
| Resolution | 1280 x 800 |
| Luminance (cd/m^2) | 500 |
| Contrast Ratio | 800:1 |
| Backlight Type | LED |
| Backlight Lifetime (hrs) | 50,000+ |
| Colors | 16.7 M |
| Display Type | 10.1” WVA LCD |
| Viewing Angle (H°/V°) | 180/180 |
| Size (W x H) | 8.58 x 5.38 inches [218 x 137 mm] |
Touch Screen
| Type | 4-wire resistive touch |
| Accuracy | Length (X) ±2%, width (Y) ±2% |
Electrical
| Input Power | 17 W |
| Power Isolation | Built-in |
| Isolation Resistance | Exceed 50 MO - @ 500 VDC |
| Input Voltage | 24 ± 20% VDC |
| Input Current | 700 mA @ 24 VDC |
Mechanical
| Vibration Endurance | 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes) |
| Enclosure Material | Plastic, charcoal grey |
| PCB Coating | Yes |
| Dimensions WxHxD | 10.47 x 7.72 x 1.68 inches [266 x 196 x 43 mm] |
| Panel Cutout (inches) [mm] | 10.04 x 7.28 [255 x 185] |
| Weight | Approx. 2.43 lbs. [1.1 Kg] |

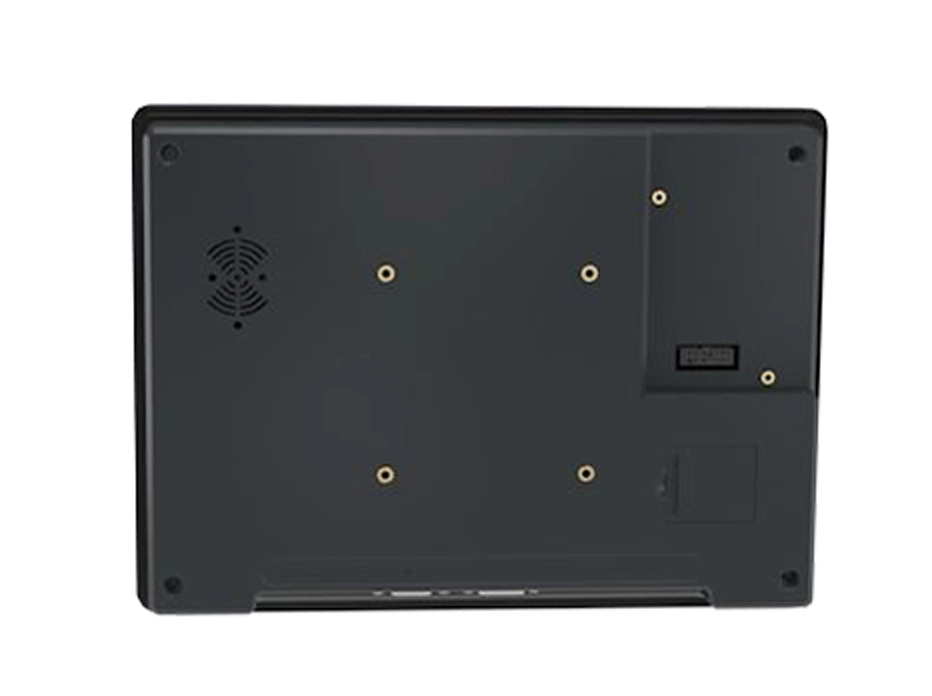

| Mounting | Panel mount, VESA 75 x 75 mm |
Environmental
| Storage Temperature | -4° ~ 140°F (-20° ~ 60°C) |
| Operating Temperature | 32° ~ 131°F (0° ~ 55°C) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| CE UKCA | Yes |
| UL Type Rating | UL Type 4X (indoor use only) |
| NEMA Rating | NEMA4 |
| IP Rating | IP66 Compliant Front Panel |
| CE | Yes |
| UL | cULus Listed |
| Class 1 Div 2 | N/A |
| ATEX | N/A |
| RoHS | Yes |
Connect a Maple Systems HMI to a Maple Systems PLC
Whether you are new to Maple Systems or know our HMIs well, pairing one of our powerful HMIs with a low-cost PLC is easy.
Customers who bought this product also bought:
-
Wi-Fi Expansion Module.$90.00 -
EasyAccess 2.0 Activation Card. Remote Access$99.00 -
Screen Protector, 10.1” (222mm x 125mm) 1 each.$25.00 -
Power Supply, Single Output, DIN Rail, 24VDC, 2.5A.$50.00
-
Cable, CAT5E Ethernet, 5′$15.00 -
Cable, CAT5E Ethernet, Crossover, 5′$15.00
-
Mounting Clips Kit for HMI Ver. 2 (4 per set).$12.00
-
Input power connector$7.00
FREE User Friendly HMI Software
Download our free, full-featured HMI configuration software to create custom control applications for your industrial process. EBPro supports over 300 PLC & controller protocols, ensuring seamless integration with new or existing systems. No license or key required.
Documents
Manuals
- EBPro Programming Manual
- EBPro Quick Start Guide
- cMT Quick Start Guide
- Installation Guide
- cMT/HMI MQTT User Manual
- cMT OPC UA Server Setup Overview
- cMT MS SQL Quick Start Guide
- cMT MySQL Quick Start Guide
- CODESYS Activation instructions
- CODESYS / cMT Quick Start Guide
- EasyWeb 2.0-Operations-Manual
Certifications
- UL certification
- RoHS Certification
- EU Declaration of Conformity
- REACH Certification
- Trade Agreement Act
- Russian Iron and Steel Declaration
Need Additional Support?
Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204
Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com
Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)
When you order the cMT3108XH the following items are included in the box:
- cMT3108XH Touchscreen HMI
- Warranty Statement
- Installation Instruction
- Product Flyer
- Power Connector
- Protective Screen Cover
- Mounting Clips
- USB Stick Clamp & Tying Strap
