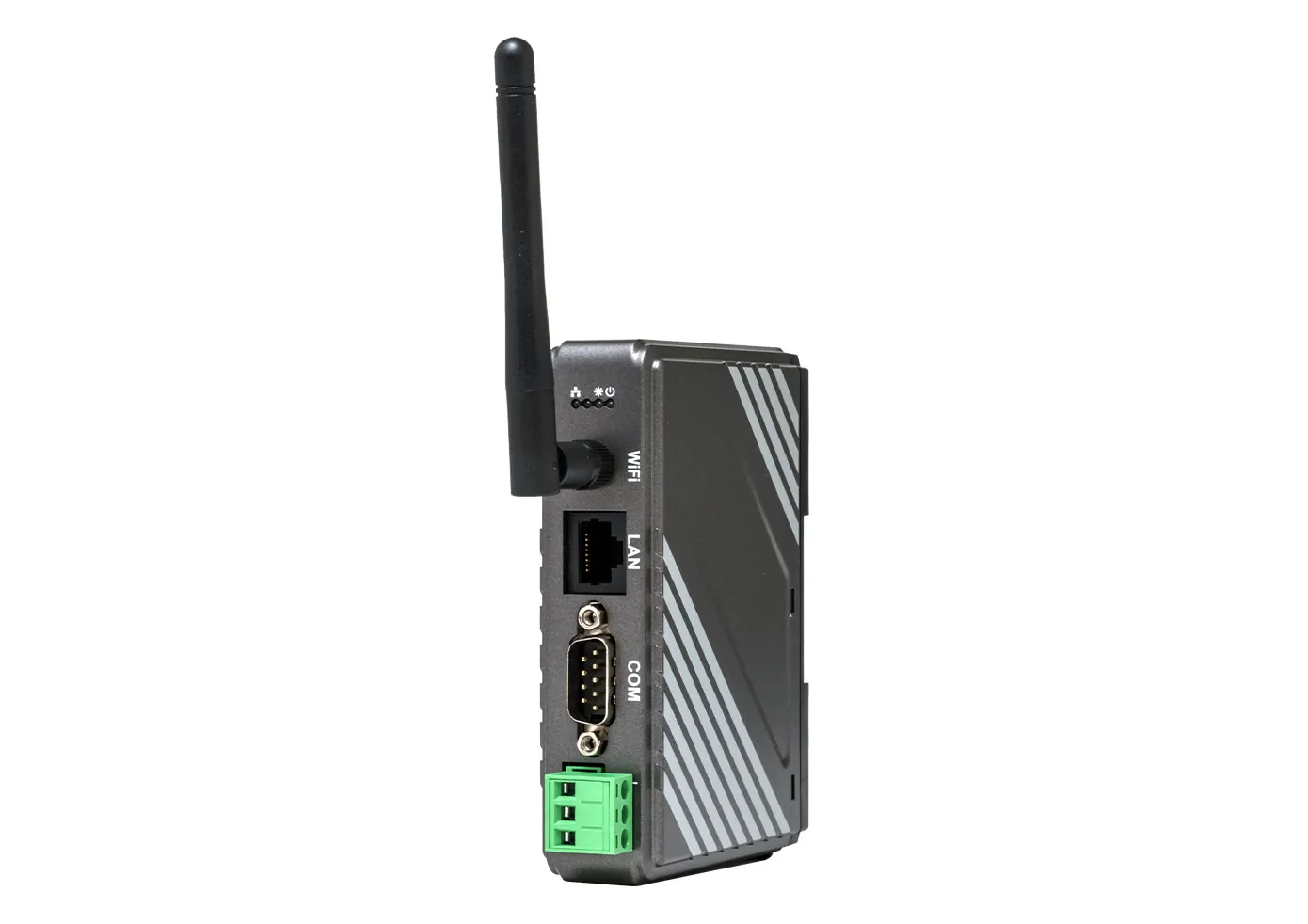

G02 Front View
G02 Back View
G02 side View

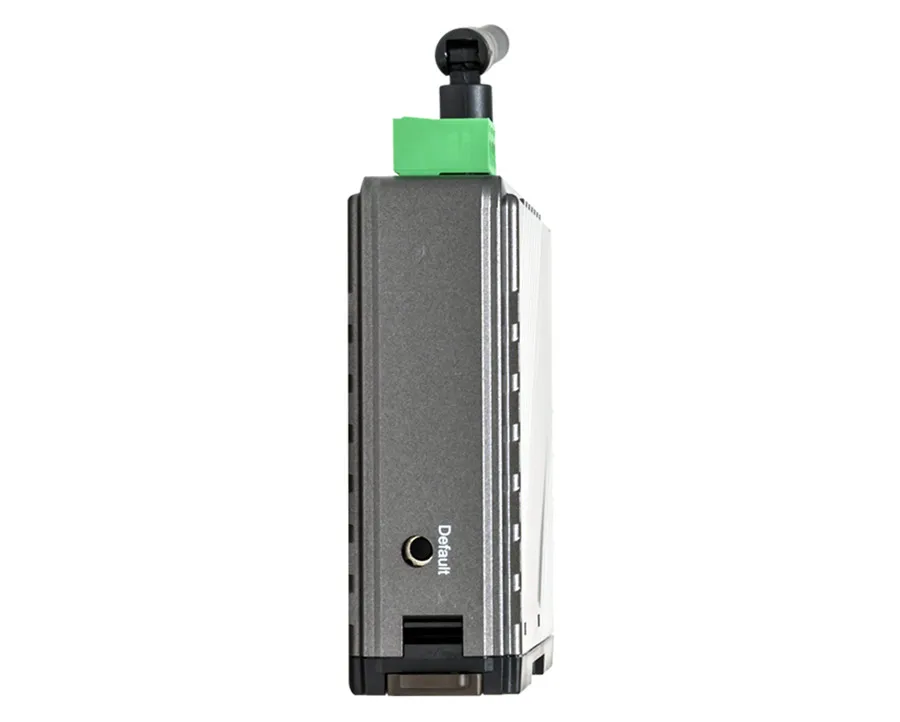

G02 Bottom View

cMT-G02

    • 32-Bit RISC Cortex-A8 600 MHz CPU
    • 256 MB Flash, 256 MB RAM
    • Supports OPC UA
    • Supports MQTT
    • Supports MODBUS TCP/IP Gateway
    • Wi-Fi Functionality
    • DIN Rail Mount
View Datasheet Download Software

cMT-G02 - Communication Protocol Gateway

cMT-G02

$425.00

This Smart Communication Gateway with HMI data processing capabilities can communicate with more than 300 different controllers and then transmit all the data from the controllers to the SCADA or ERP system. Unique to the cMT-G02 is built in Wi-Fi 802.11b/g/n support with strong resistance to interference. The detachable antenna can be replaced with third party antennas suitable for the environment. Wi-Fi settings can be quickly configured using the web interface.

Download 3D CAD file
Datasheet

System

Memory (RAM)

256 MB

Memory (Flash)

256 MB

RTC

Built-in

Programming Software

EasyBuilder Pro V6.00.01 or later versions

I/O Ports

Serial Ports

1

Ethernet/LAN

10/100 Base-T x 1

CANbus

N/A

Audio Output

N/A

SD Card Slot

N/A

USB Host Ports

N/A

USB Client Ports

N/A

Wi-Fi

Yes

RS-485 Dual Isolation

N/A

Local bus

N/A

HDMI Port

N/A

Video Input

N/A

Electrical

Input Power

2.76 W

Power Isolation

Built-in

Power Dissipation

N/A

Current for Internal Bus

N/A

Current Consumption

N/A

Isolation Resistance

Exceed 50 MO - @ 500 VDC

Input Voltage

10.5 ~ 28 VDC

Input Current

230 mA @ 12 VDC;115 mA @ 24 VDC

Mechanical

Vibration Endurance

10 to 25Hz(X, Y, Z direction 2G 30 minutes)

Enclosure Material

Plastic

PCB Coating

Yes

Dimensions WxHxD

4.29 x 3.19 x 1.06 inches [109 x 81 x 27 mm]

Panel Cutout (inches) [mm]

N/A

Weight

Approx. 0.31 lbs. [0.14 kg]

Mounting

35 mm DIN rail

Environmental

Storage Temperature

-4° ~ 140°F (-20° ~ 60°C)

Operating Temperature

32° ~ 122°F (0° ~ 50°C)

Relative Humidity

10% ~ 90% (non-condensing)

Certification

UL Type Rating

N/A

NEMA Rating

N/A

IP Rating

IP20

CE

Yes

UL

cULus Listed

Class 1 Div 2

N/A

ATEX

N/A

RoHS

Yes
