cMT3162Xv2

15.6" High Performance Wide-Screen HMI with Capacitive Touch

cMT3162Xv2

$1,609.00

Buy Now

Our cMT3162Xv2 is a innovative, High-Performance operator interface ideal for applications requiring a high-resolution capacitive touch panel, an enhanced feature set, remote access, and IIoT functionality. Pair this operator interface with our remote IO and CODESYS license for soft PLC functionality. Our free HMI software supports Modbus and over 300 different PLC and controllers, pairing one of our HMIs with your Allen-Bradley, Seimens, Omron, and/or GE PLC is easy.

Specifications

System

Memory (RAM)

1 GB

Memory (Flash)

4 GB

RTC

Built-in

Programming Software

EasyBuilder Pro V6.07.02 or later versions

I/O Ports

Serial Ports

2

Ethernet/LAN

LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1

CANbus

Yes

Audio Output

Built-in Mono Speaker

SD Card Slot

N/A

USB Host Ports

USB 2.0 x 1

USB Client Ports

N/A

Wi-Fi

N/A

RS-485 Dual Isolation

N/A

Local bus

N/A

HDMI Port

N/A

Video Input

N/A

Siemens MPI

N/A

Display

Resolution

1920 x 1080

Luminance (cd/m^2)

300

Contrast Ratio

800:1

Backlight Type

LED

Backlight Lifetime (hrs)

30,000+

Colors

16.2 M

Display Type

15.6" WVA LCD

Viewing Angle (H°/V°)

178/178

Size (W x H)

13.60 x 7.68 inches [345.6 x 195 mm]

Touch Screen

Type

Tempered Glass, Projected Capacitive, Vibrational Feedback

Electrical

Input Power

31.2 W

Power Isolation

Built-in

Power Dissipation

N/A

Current for Internal Bus

N/A

Current Consumption

N/A

Isolation Resistance

Exceed 50 MO - @ 500 VDC

Input Voltage

24 ± 20% VDC

Input Current

1.3 A @ 24 VDC

Mechanical

Vibration Endurance

10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Enclosure Material

Front bezel: Plastic, Rear Enclosure: Aluminum

PCB Coating

Yes

Dimensions WxHxD

15.75 x 10.35 x 1.03 inches [400 x 263 x 26.1 mm]

Panel Cutout (inches) [mm]

15.12 x 9.72 [384 x 247]

Weight

Approx. 3.53 lbs. [1.6 kg]

Mounting

Panel mount, VESA 100 x 100 mm

Environmental

Storage Temperature

-4° ~ 140°F (-20° ~ 60°C)

Operating Temperature

32° ~ 122°F (0° ~ 50°C)

Relative Humidity

10% ~ 90% (non-condensing)

Certification

UL Type Rating

UL Type 4X (indoor use only)

NEMA Rating

NEMA4

IP Rating

IP66 Compliant Front Panel

CE

Yes

UL

cULus Listed

Class 1 Div 2

N/A

ATEX

N/A

RoHS

Yes

What's Included

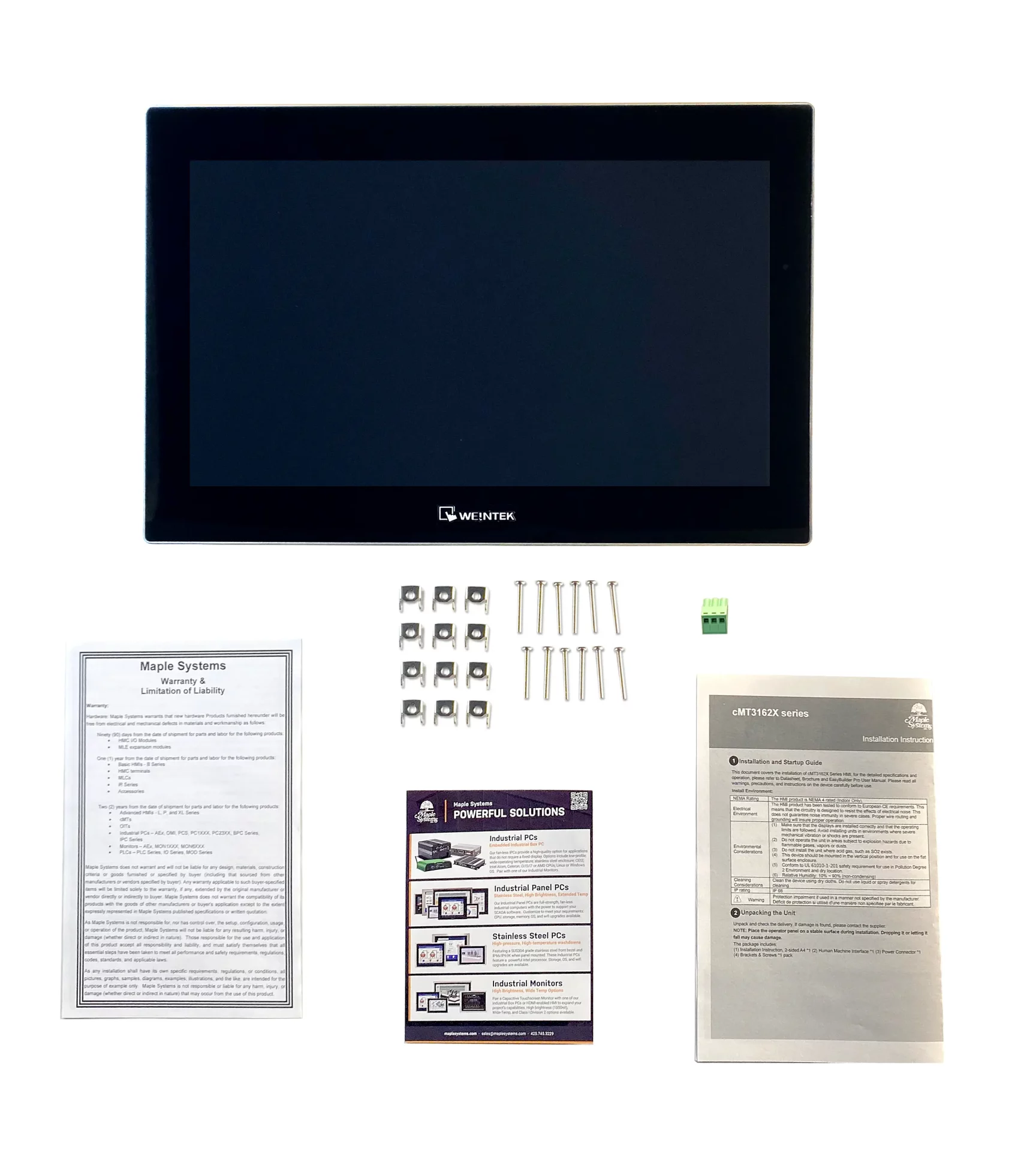

When you order the cMT3162Xv2 the following items are included in the box:

  • cMT3162Xv2 Touchscreen HMI
  • Warranty Statement
  • Installation Instruction
  • Product Flyer
  • Power Connector
  • Mounting Clips
