cMT2166X
- 1920 x 1080 Resolution
- 32-bit RISC Quad-Core Cortex-A17, 1.6 GHz CPU
- 1 Ethernet, 1 USB, 2 Serial Ports
- Projected Capacitive Touchscreen
- MQTT, Sparkplug B, WebView, VNC
- Add an EasyAccess 2.0 license for remote access

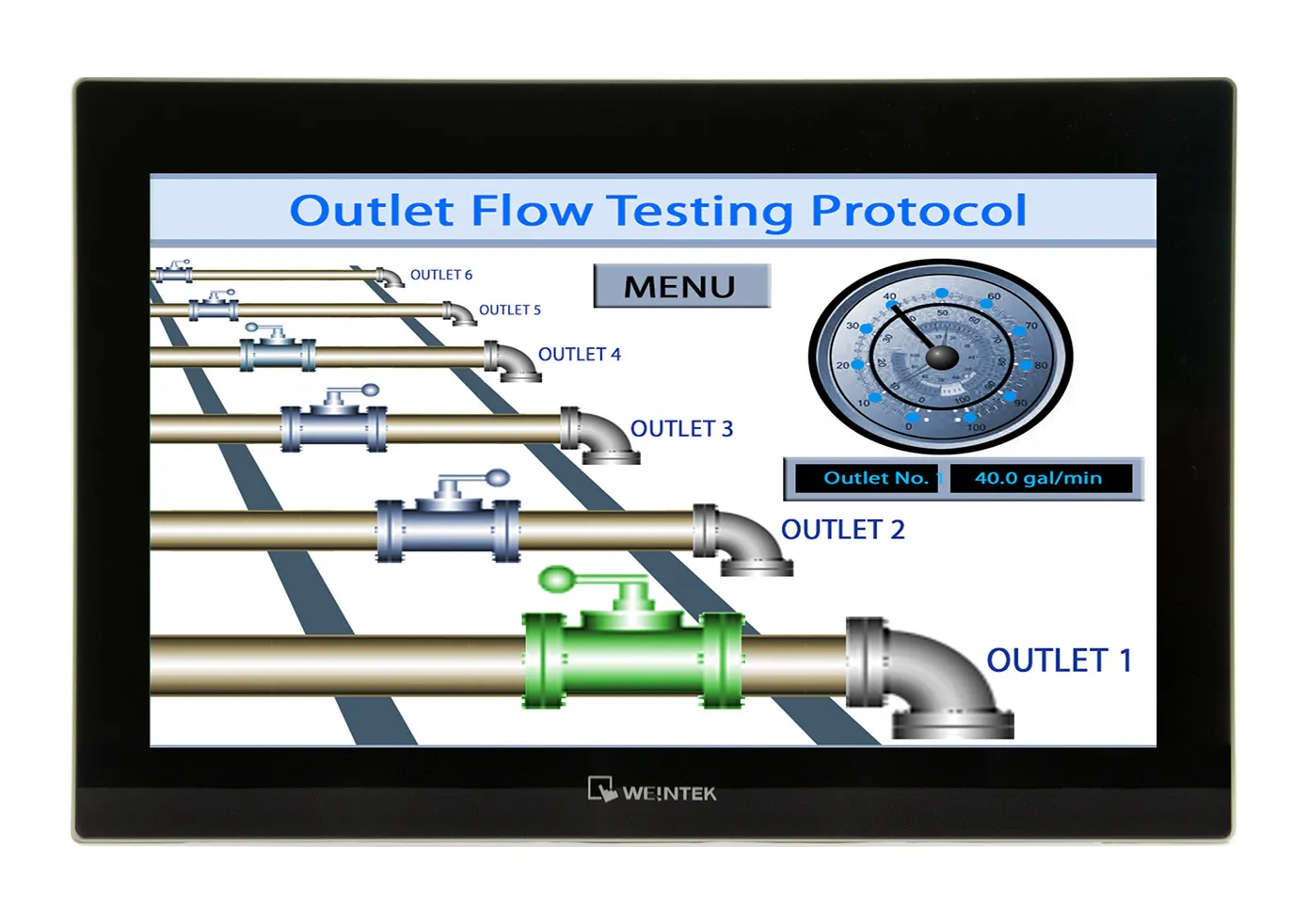

cMT2166X - 15.6" Advanced HMI with Capacitive Touch
cMT2166X
Our cMT2166X is a innovative, advanced operator interface ideal for applications requiring a more advanced feature set, remote access, and IIoT functionality.
Try Before You Buy: Follow along to learn how EBPro, our 100% free HMI configuration software, allows you to develop and simulate your HMI program entirely free of charge.
- Compare cMT2166X and other models.
- Volume Discounts available. Contact Sales for more details.
- Customize your product with your company logo. Minimum quantities apply.
- Learn More about how our products interface with over 300+ PLCs and Controllers.
- US Based Technical Support
System
| Memory (RAM) | 1 GB |
| Memory (Flash) | 4 GB |
| RTC | Built-in |
| Programming Software | EBPro (Latest Version) |
I/O Ports
| Serial Ports | 2 |
| Ethernet/LAN | 10/100 Base-T x 1 |
| CANbus | N/A |
| Audio Output | Built-in Mono Speaker |
| SD Card Slot | N/A |
| USB Host Ports | USB 2.0 x 1 |
| USB Client Ports | N/A |
| Wi-Fi | N/A |
| HDMI Port | N/A |
| Video Input | N/A |
Display
| Display Size | 15.6" IPS LCD |
| Resolution | 1920 x 1080 |
| Luminance (cd/m^2) | 300 |
| Contrast Ratio | 800:1 |
| Backlight Type | LED |
| Backlight Lifetime (hrs) | 30,000+ |
| Colors | 16.2 M |
| Display Type | 15.6" IPS |
| Viewing Angle (H°/V°) | 178/178 |
| Size (W x H) | 13.60 x 7.68 inches [345.6 x 195 mm] |
Touch Screen
| Type | Tempered Glass, Projected Capacitive |
| Touch Panel Hardness Scale | 7H |
Electrical
| Input Power | 21.6 W |
| Power Isolation | Built-in |
| Isolation Resistance | Exceed 50 MO - @ 500 VDC |
| Input Voltage | 24 ± 20% VDC |
| Input Current | 0.9 A @ 24 VDC |
Mechanical
| Vibration Endurance | 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes) |
| Enclosure Material | Front bezel: Plastic, Rear Enclosure: Aluminum |
| PCB Coating | Yes |
| Dimensions WxHxD | 15.75 x 10.35 x 0.98 inches [400 x 263 x 24.9 mm] |
| Panel Cutout (inches) [mm] | 15.12 x 9.72 [384 x 247] |
| Weight | Approx. 3.53 lbs. [1.6 kg] |
| Mounting | Panel mount, VESA 100 x 100 mm |
Environmental
| Storage Temperature | -4° ~ 140°F (-20° ~ 60°C) |
| Operating Temperature | 32° ~ 122°F (0° ~ 50°C) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| CE UKCA | Yes |
| UL Type Rating | N/A |
| NEMA Rating | NEMA4 |
| IP Rating | IP66 Compliant Front Panel |
| CE | Yes |
| UL | N/A |
| Class 1 Div 2 | N/A |
| ATEX | N/A |
| RoHS | Yes |
