MON1015AP

  • High-Resolution Projected Capacitive Touch Screen
  • Steel Chassis
  • HDMI, VGA, DVI-D, Display Port Inputs
  • Panel or VESA mount

15.0" Industrial Touchscreen/Monitor

MON1015AP

$915.00

Buy Now

This Projected Capacitive Touchscreen Monitor has a black steel chassis making it extremely durable. It can be used in an extended temperature range, and with the projected capacitive technology, can be used with any type of gloves. Option of panel or VESA mount.
What comes in the box: Monitor, Mounting Clips, Input Power Cable. Does not include power supply – see recommended power supply 4010-0015 if required.

Pair your Monitor with one of our Embedded Box PCs
Pair your Monitor with our HDMI enabled Headless HMI

Specifications

System

Input Current

0.42~0.83 A

I/O Ports

Audio Output

N/A

Power

DC power input jack, thumbscrew secured.

USB 2.0 Type A

N/A

Connector Type

N/A

Power Switch

1 x Momentary Pushbutton with Integrated LED

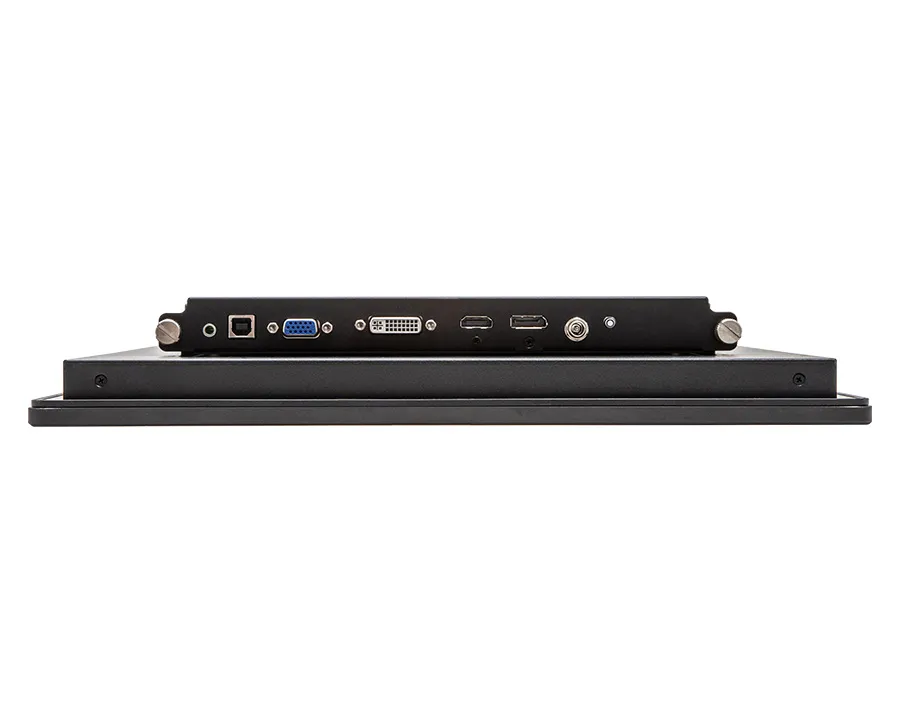

Display Interface Options

1 x VGA 1 x DVI-D 1 x DisplayPort 1.2 1 x HDMI® 1.4a

On-Screen Display

N/A

USB 2.0 Type B

1

Display

Resolution

1024 X 768

Luminance (cd/m^2)

300

Contrast Ratio

2000:1

Backlight Lifetime (hrs)

50000

Colors

16.2 M

Display Type

15” TFT XGA LCD

Viewing Angle (H°/V°)

170/160

Touch Screen

Light Transmission

N/A

Touch Screen Type

Projected Capacitive Touch

Interface

USB

Electrical

Input Power

10 W

Input Voltage

12~24 VDC

Mechanical

Dimensions WxHxD

13.98 x 11.42 x 2.16” [355 x 290 x 54.9 mm]

Panel Cutout (inches) [mm]

13.03 x 10.47 [331 x 266 ]

Weight

9.04 lbs [4.1 kg]

Mounting

Panel mounting, VESA 100 x 100

Construction

Black Steel Chassis

Environmental

Storage Temperature

-22~175°F [-30~80°C]

Operating Temperature

32~140°F [0~60°C]

Storage Humidity

10 to 90% @ 40°C, non-condensing

Certification

NEMA Rating

NEMA 4 when panel mounted

IP Rating

IP65 compliant front panel

CE

Yes

ATEX

N/A

RoHS

Yes

FCC

FCC Class B

UL Class 2 Div 2

N/A

UL Class 3

N/A

Documentation & Resources

Need Additional Support?

Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204

Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com

Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)

What's Included

When you order the MON1015AP the following items are included in the box:

  • MON1015AP Industrial Monitor
  • Warranty Statement
  • Installation Instruction
  • Product Flyer
  • Input Power Cable
  • Mounting Kit (Quantity determined by screen size)
  • 4 x VESA Mounting Screws
  • HDMI Cable
  • USB Cable
  • Does not include power supply – see recommended power supply 4010-0015 if required.
