19.0" C1D2, Stainless Steel, Wide-Temp, 1000nit Industrial Monitor
$4,550.00
With a 316 Stainless Steel enclosure and high-brightness/sunlight readable, 1000 nit projected capacitive touchscreen, this extended temperature ( -20~60°C ), Class I, Division 2 Industrial Monitor is a great value. Also with an Optically Bonded TFT LCD, IP66 rating for all sides, and ATEX rating, its perfect for all harsh environments.
- Volume discounts available.
- Customize product with your company logo. Minimum quantities apply.
- US-based technical support.
Share the product:
Compare to Similar Models
Compare AEx-119PH with 1 other product
I/O Ports
| Connector Type | M12, with waterproof cover and tether chain |
| Power | 1 x M12 3-pin for DC power input (leads) |
| USB 2.0 Type A | 2 |
| Display Interface Options | 1 x VGA 1 x DVI-D 1 x DisplayPort 1.2 1 x HDMI® 1.4a 1 x M12 12-pin for VGA |
| On-Screen Display | 1 x M12 8-pin for External OSD Controller Box |
| USB 2.0 Type B | N/A |
Display
| Resolution | 1280 x 1024 |
| Luminance (cd/m^2) | 1000 |
| Contrast Ratio | 1000:1 |
| Backlight Lifetime (hrs) | 50,000+ |
| Colors | 16.7 M |
| Display Type | 19.0” SXGA TFT LCD |
| Viewing Angle (H°/V°) | 170/160 |
Touch Screen
| Light Transmission | 90+% |
| Optical Bonding | Yes |
| Touch Screen Type | Projected Capacitive |
| Interface | USB |
Electrical
| Input Power | 48.3 W |
| Input Voltage | 9-36 VDC |
| Input Current | 1.34~5.37 A |
Mechanical
| Dimensions WxHxD | 18.50 x 15.30 x 2.95 inches [470 x 388.6 x 75 mm] |
| Panel Cutout (inches) [mm] | N/A |
| Weight | Approx. 25.35 lbs [11.5 kg] |
| Mounting | VESA 100 x 100 mm |
| Construction | 316 Stainless Steel Chassis |
Environmental
| Operating Temperature | -4~140°F [-20~60°C] |
| Storage Temperature | -22~158°F [-30~70°C] |
| Storage Humidity | 10 to 95% @ 40°C, non-condensing |
Certification
| NEMA Rating | N/A |
| IP Rating | IP66 |
| CE | Yes |
| ATEX | ATEX / IECEx Zone 2 Ex ec ic IIC T4 Gc ATEX / IECEx Zone 22 Ex tc IIIC T135°C Dc |
| RoHS | Yes |
| FCC | FCC Class A |
| UL Class 2 Div 2 | Class II Division 2 Group F, G, T135°C |
| UL Class 3 | Class III |
AEx-100 Series Unboxing
We'll show what comes in the box, all the I/O ports, connect it to a headless HMI and power it up
What are Industrial Monitors?
Industrial Monitors are rugged, high performance displays designed for machine control applications in industrial automation, manufacturing, and transportation systems. They are engineered for continuous, reliable operations in harsh environments, functioning as Human Machine Interfaces (HMIs) with 24/7 operation.
Compared to commercial monitors, Maple Systems Industrial Monitors offer:
- Rugged construction
- Higher reliability
- ATEx rated options
- Wide operating temperature ratings
- Industrial grade connectors
- High brightness/Sunlight readable options
- Higher Reliablity
- Compliance with industry standards
Our Monitors are designed to work seamlessly with our Industrial/Embedded PCs, Headless HMIs, and Industrial Panel PCs.
Products:
Manuals & Guides:
Technical Articles:
Need more support: Contact Sales
Contact Us
Can’t find what you’re looking for in our Tech Support Library? Send us a message.
Are there any high brightness options for your industrial monitors?
Yes, we have several different 1000nit high bright options ranging from 10″ up to 21.5″! ideal for applications in Industrial Automation, Healthcare, Banking, Retail and Transportation, and environments with heavy ambient light.
Our Monitors are designed to work seamlessly with our Industrial/Embedded PCs, Headless HMIs, and Industrial Panel PCs.
Products:
Manuals & Guides:
Technical Articles:
Need more support: Contact Sales
Contact Us
Can’t find what you’re looking for in our Tech Support Library? Send us a message.
Are your Industrial Monitors dust and water resistant?
Maple Systems Industrial Monitors feature IP65 and IP66 ratings, depending on which series you choose, making them suitable for harsh, dirty, or challenging environments where daily washdown is needed.
Our Monitors are designed to work seamlessly with our Industrial/Embedded PCs, Headless HMIs, and Industrial Panel PCs.
Products:
Manuals & Guides:
Technical Articles:
Need more support: Contact Sales
Contact Us
Can’t find what you’re looking for in our Tech Support Library? Send us a message.
What does ATEX zone 2 mean?
ATEX Zone 2 is an industrial classification for areas where explosive gas/vapor atmospheres are unlikely during normal operation but might occur for short periods due to accidental releases, requiring equipment with lower, but still significant, ignition protection (like Category 3G equipment) for safety in hazardous environments. It’s a step down in risk from Zone 1 (likely during normal operation) and Zone 0 (continuous presence), but still needs certified equipment to prevent sparks or heat from causing an explosion.
| Explosive Material | ATEX Zone | Frequency of Explosive Atmosphere | Required ATEX Equipment Category |
|---|---|---|---|
| Gas, Vapour, or Mist | Zone 0 | Continuously, for long periods, or frequently | Category 1G |
| Gas, Vapour, or Mist | Zone 1 | Likely to occur occasionally in normal operation | Category 2G (Minimum) |
| Gas, Vapour, or Mist | Zone 2 | Not likely to occur in normal operation, and if it does, only for a short period | Category 3G (Minimum) |
| Combustible Dust | Zone 20 | Continuously, for long periods, or frequently | Category 1D |
| Combustible Dust | Zone 21 | Likely to occur occasionally in normal operation | Category 2D (Minimum) |
| Combustible Dust | Zone 22 | Not likely to occur in normal operation, and if it does, only for a short period | Category 3D (Minimum) |
Maple Systems offers ATEX Zone 2 certified panel PC computer systems for oil rig operations in hazardous locations.
What does ATEX stand for?
Abbreviation for Atmosphere Explosible, ATEX refers to the risk of explosion that can occur in environments when flammable gasses or dust are present. Used by the EU Directives meant to regulate devices used in explosive atmospheres.
What is the lead time on your Industrial Monitors?
We typically have all necessary parts in stock and can ship within 2 days after purchase.
Our Monitors are designed to work seamlessly with our Industrial/Embedded PCs, Headless HMIs, and Industrial Panel PCs.
Products:
Manuals & Guides:
Technical Articles:
Need more support: Contact Sales
Can’t find what you’re looking for in our Tech Support Library? Send us a message.
Do Maple Systems Industrial Monitors have touch functionality?
Yes, we offer industrial monitors with projected capacitive (PCAP) touchscreen technology which offers responsive, multi-touch and glove compatible operations for machine control, industrial automation and HMI applications.
Our Monitors are designed to work seamlessly with our Industrial/Embedded PCs, Headless HMIs, and Industrial Panel PCs.
Products:
Manuals & Guides:
Technical Articles:
Need more support: Contact Sales
Contact Us
Can’t find what you’re looking for in our Tech Support Library? Send us a message.
Does Maple Systems offer technical support?
Yes. Maple Systems provides 100% free, US-based technical support for all customers. Our Support Center includes extensive documentation, tutorials, and resources. However, if you’re unable to find what you need, our technical support team is ready to assist. You can reach our technicians by phone at (425) 745-3229 or by email at [email protected].
Do you offer quantity discounts on your products?
Yes, we do offer quantity discounts. Contact sales today for more info.
Call us at 425-745-3229 M-F 6:30am to 4:30pm Pacific Time
Email us at [email protected]
Documents
Manuals
Certifications
- CE Declaration of Conformity – AEx-Series
- CSA Hazardous Locations -Declaration of Conformity – AEX-Series
- Ex ATEX Declaration of Conformity – AEx-Series
- FCC Declaration of Conformity – PCS6800_AEx_MON6000-Series
- RoHS Declaration of Conformity (all series)
- Trade Agreement Act Declaration of Conformity
- Country of Origin Certification
CAD Files

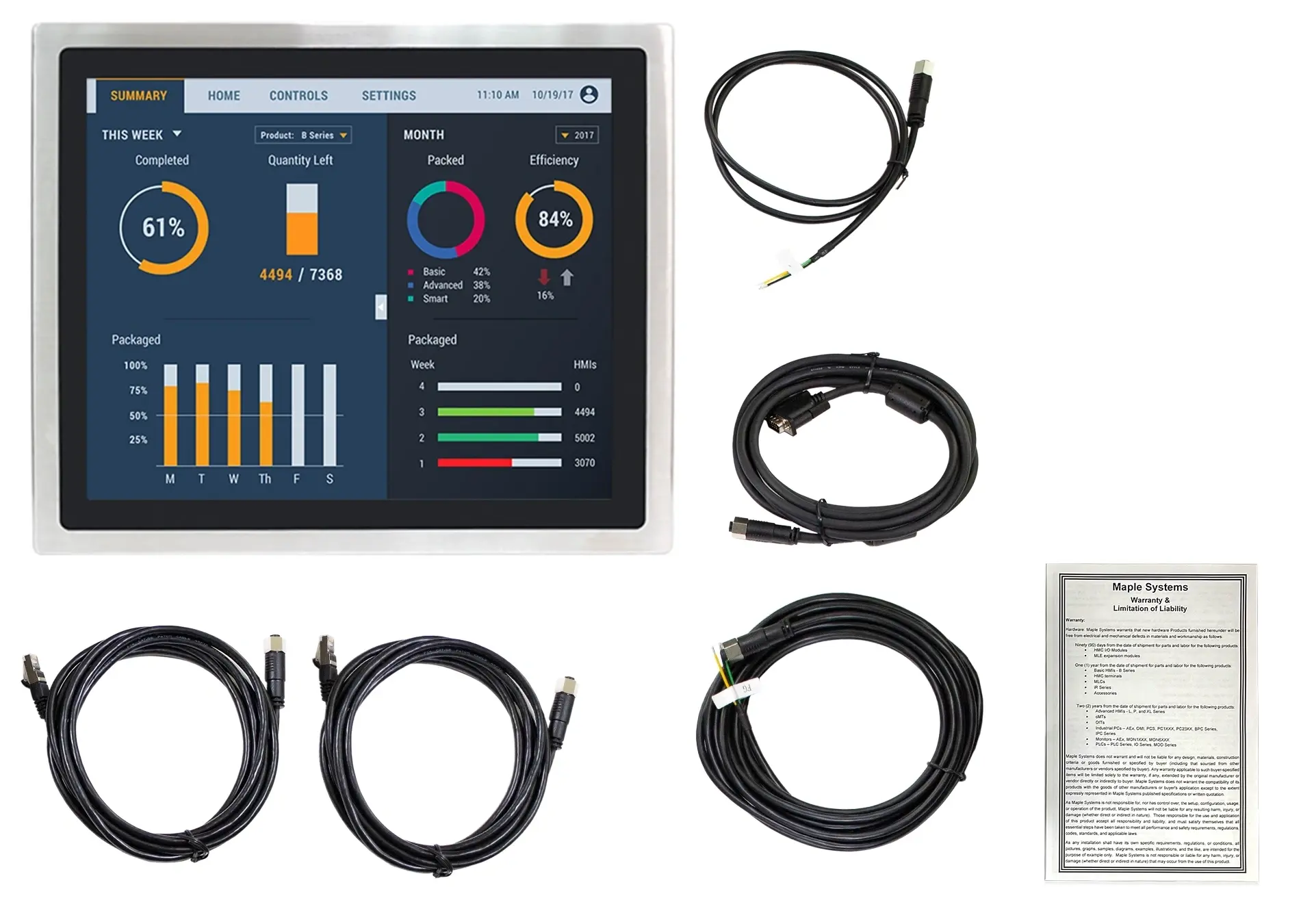

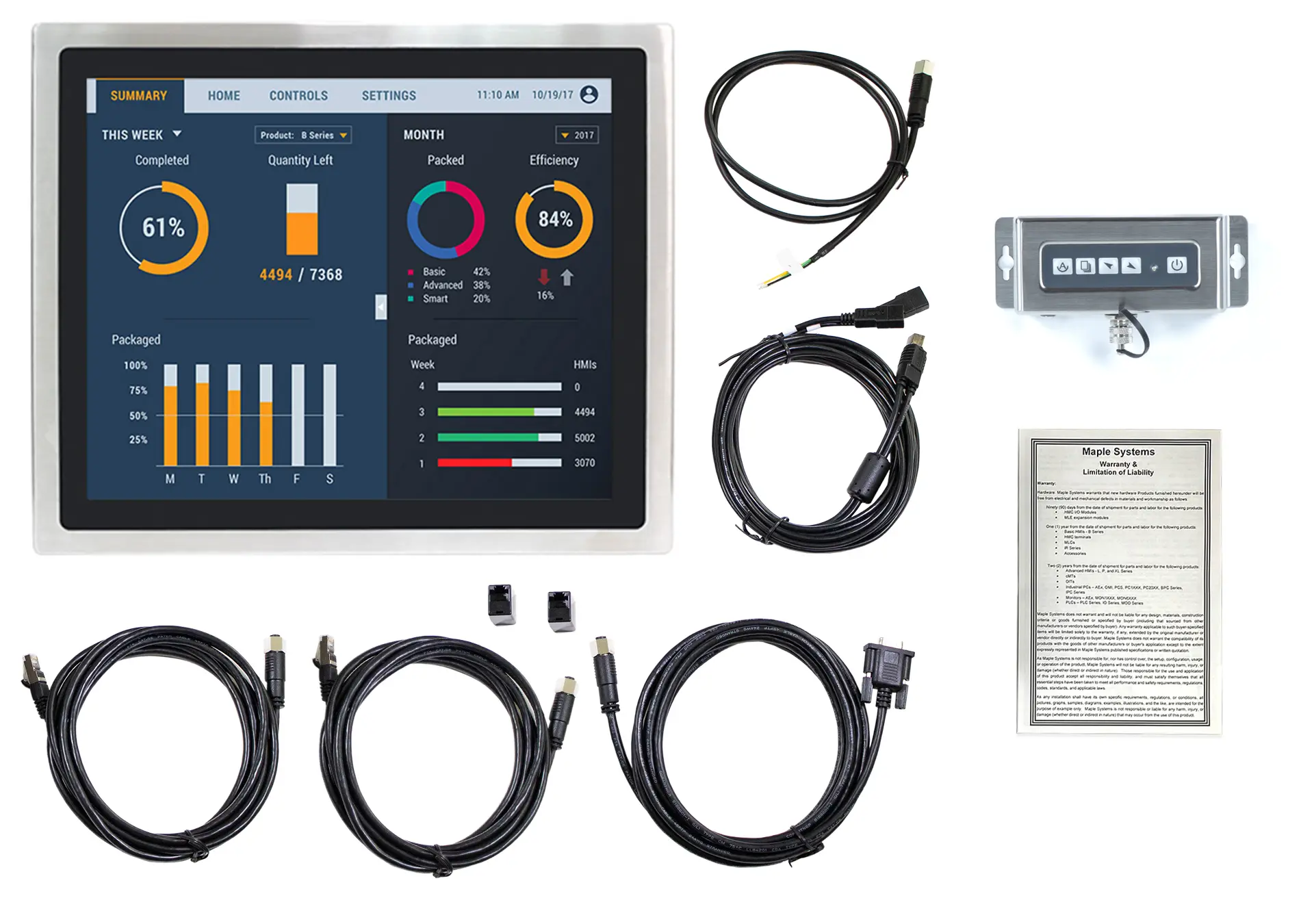

When you order the AEx-119PH the following items are included in the box:
- AEx-119PH Industrial Monitor
- Warranty Statement
- Installation Instruction
- Product Flyer
- 2 x DC Power Cable (M12 to leads)
- OSD Controller
- USB 2.0 Cable (M12 to 2x USB 2.0 Type A)
- VGA Cable (M12 to VGA)
Note: Cables are for testing and/or inside a cabinet installation. Cables and Accessories are not CID2 rated
|
