MON1019APH

    • High-Resolution Projected Capacitive Touch Screen
    • 1000 nits, 1280 x 1024 Resolution
    • Black Steel Chassis
    • HDMI, VGA, DVI-D, DisplayPort Inputs
    • Works with Gloves

19” High Brightness/Sunlight Readable Capacitive Industrial Touch Monitor

MON1019APH

$1,200.00

Buy Now

This High Brightness/Sunlight Readable Projected Capacitive Touchscreen Monitor has a durable black steel chassis that can be used in an extended temperature range environments and applications. The projected capacitive technology, can be used with any type of gloves. Option of panel or VESA mount.

What comes in the box: Monitor, Mounting Clips, Input Power Cable. Does not include power supply – see recommended power supply 4010-0016 if required.

Pair your Monitor with one of our Embedded Box PCs
Pair your Monitor with our HDMI enabled Headless HMI

Specifications

System

Input Current

0.96~1.92 A

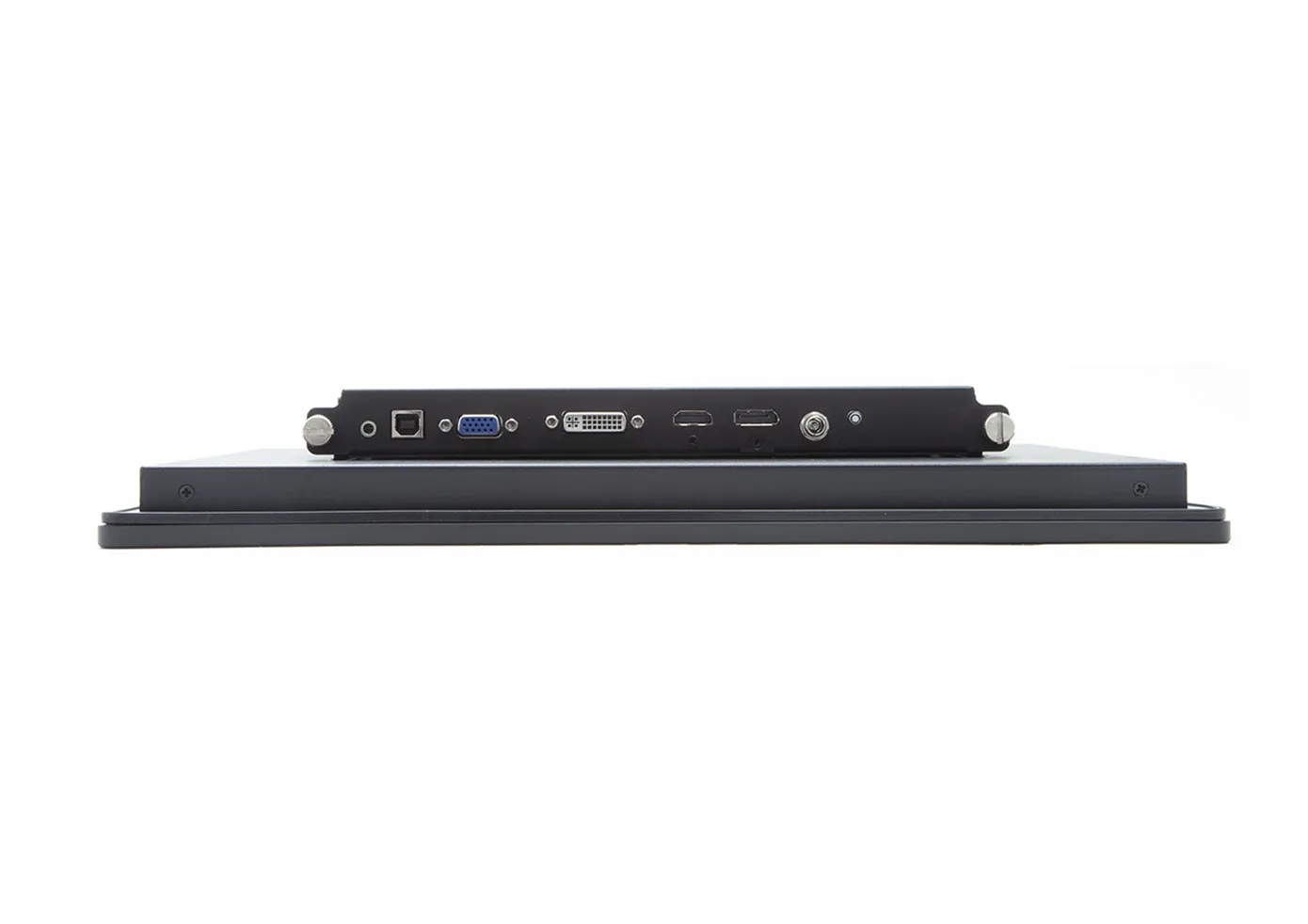

I/O Ports

Power

DC power input jack, thumbscrew secured.

USB 2.0 Type A

N/A

Connector Type

N/A

Power Switch

1 x Momentary Pushbutton with Integrated LED

Display Interface Options

1 x VGA 1 x DVI-D 1 x DisplayPort 1.2 1 x HDMI® 1.4a

On-Screen Display

N/A

USB 2.0 Type B

1

Display

Resolution

1280 x 1024

Luminance (cd/m^2)

1000

Contrast Ratio

1000:1

Backlight Lifetime (hrs)

30000

Colors

16.2 M

Display Type

19” TFT SXGA LCD

Viewing Angle (H°/V°)

160/160

Touch Screen

Light Transmission

N/A

Touch Screen Type

Projected Capacitive Touch

Interface

USB

Electrical

Input Power

23 W

Input Voltage

12~24 VDC

Mechanical

Dimensions WxHxD

17.44 x 14.49 x 1.98” [443 x 368 x 50.3 mm]

Panel Cutout (inches) [mm]

16.69 x 13.82 [424 x 351 ]

Weight

15.65 lbs [7.1 kg]

Mounting

Panel mounting, VESA 100 x 100

Construction

Black Steel Chassis

Environmental

Storage Temperature

-22~175°F [-30~80°C]

Operating Temperature

32~140°F [0~60°C]

Storage Humidity

10 to 90% @ 40°C, non-condensing

Certification

NEMA Rating

NEMA 4 when panel mounted

IP Rating

IP65 compliant front panel

CE

Yes

ATEX

N/A

RoHS

Yes

FCC

FCC Class B

UL Class 2 Div 2

N/A

UL Class 3

N/A

Documentation & Resources

Need Additional Support?

Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204

Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com

Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)

What's Included

When you order the MON1019APH the following items are included in the box:

  • MON1019APH Industrial Monitor
  • Warranty Statement
  • Installation Instructions
  • Product Flyer
  • Input Power Cable
  • Mounting Kit (Quantity determined by screen size)
  • 4 x VESA Mounting Screws
  • HDMI Cable
  • USB Cable
  • Does not include power supply – see recommended power supply 4010-0016 if required.
