MON1010APHv2
- High-Resolution Projected Capacitive Touch Screen
- 1000 nits, 1024 x 768 Resolution
- Black Steel Chassis
- HDMI, VGA, DVI-D, DisplayPort Inputs
- Works with Gloves
10.4" High Brightness/Sunlight Readable Industrial Touchscreen/Monitor
MON1010APHv2
This High Brightness/Sunlight Readable Projected Capacitive Touchscreen Monitor has a black steel chassis making it extremely durable. It can be used in an extended temperature range, and with the projected capacitive technology, can be used with any type of gloves. Option of panel or VESA mount.
What comes in the box: Monitor, Mounting Clips, Input Power Cable. Does not include power supply – see recommended power supply 4010-0016 if required.
Pair your Monitor with one of our Embedded Box PCs
Pair your Monitor with our HDMI enabled Headless HMI
- Volume Discounts available. Contact Sales for more details.
- Customize your product with your company logo. Minimum quantities apply.
- US Based Technical Support
System
Input Current | 0.48~0.96 A |

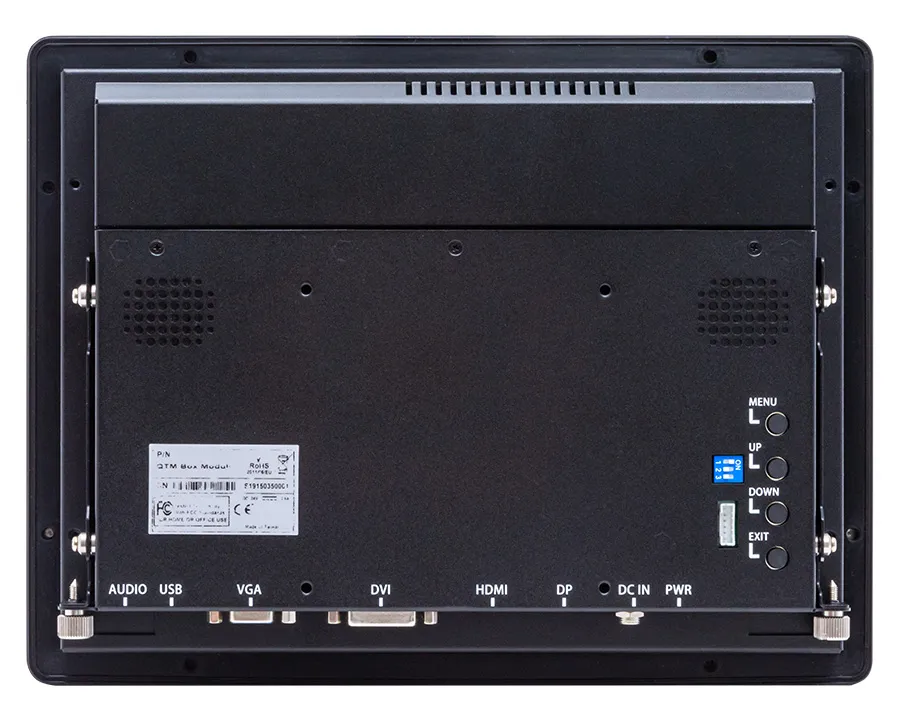

I/O Ports
Power | DC power input jack, thumbscrew secured. |
USB 2.0 Type A | N/A |
Connector Type | N/A |
Power Switch | 1 x Momentary Pushbutton with Integrated LED |

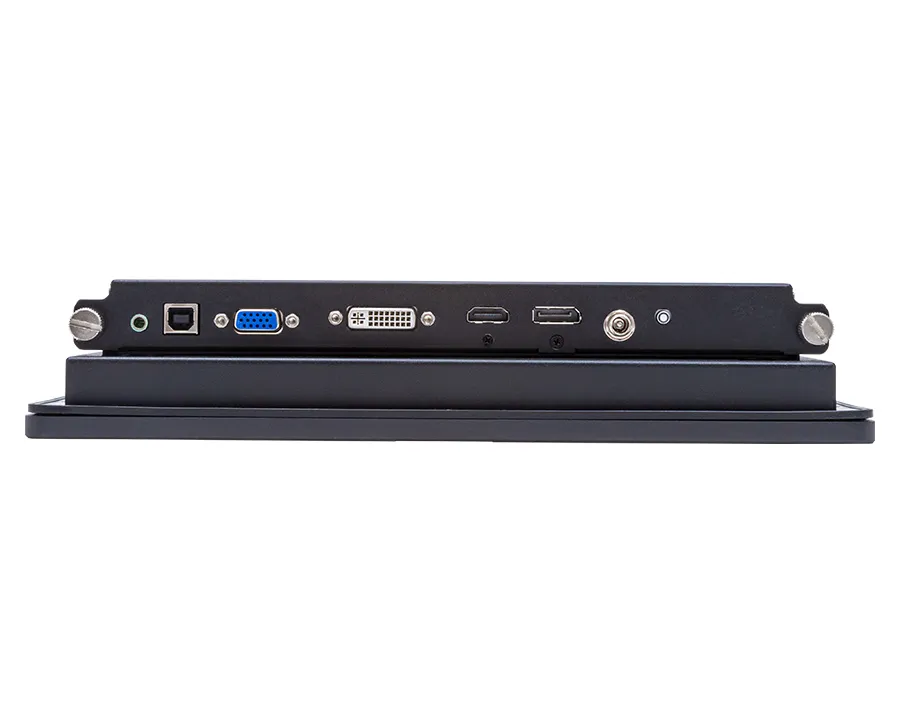

Display Interface Options | 1 x VGA 1 x DVI-D 1 x DisplayPort 1.2 1 x HDMI® 1.4a |
On-Screen Display | N/A |
USB 2.0 Type B | 1 |
Display
Resolution | 1024 X 768 |
Luminance (cd/m^2) | 1000 |
Contrast Ratio | 1000:1 |
Backlight Lifetime (hrs) | 30000 |
Colors | 16.2 M |
Display Type | 10.4” TFT XGA LCD |
Viewing Angle (H°/V°) | 160/160 |
Touch Screen
Light Transmission | N/A |
Touch Screen Type | Projected Capacitive Touch |
Interface | USB |
Electrical
Input Power | 11.5 W |
Input Voltage | 12~24 VDC |
Mechanical
Dimensions WxHxD | 11.58 x 8.90 x 2.16” [294 x 226 x 54.9 mm] |
Panel Cutout (inches) [mm] | 10.63 x 7.95 [270 x 202 ] |
Weight | 6.17 lbs [2.8 kg] |
Mounting | Panel mounting, VESA 100 x 100 |
Construction | Black Steel Chassis |
Environmental
Storage Temperature | -22~175°F [-30~80°C] |
Operating Temperature | 32~140°F [0~60°C] |
Storage Humidity | 10 to 90% @ 40°C, non-condensing |
Certification
NEMA Rating | NEMA 4 when panel mounted |
IP Rating | IP65 compliant front panel |
CE | Yes |
ATEX | N/A |
RoHS | Yes |
FCC | FCC Class B |
UL Class 2 Div 2 | N/A |
UL Class 3 | N/A |
Customers who bought this product also bought:
-
Screen Protector, 10.4” (221mm x 160mm) 1 each.$25.00
-
Power Supply & Cord, Desktop, 24VDC, 2.71A Power Brick with AC Cable.$45.00
-
Input Power Connector$17.00
-
Mounting Clips Kit.$17.00
-
Cable, HDMI ® to HDMI ®, 6 ft.$25.00
-
Cable, HDMI ® to DVI, 6 ft.$25.00
Documents
Manuals
Certifications
- CE Certification
- RoHS Certification
- Trade Agreement Act
- Conflict Minerals
- FCC Certificate
- Russian Iron and Steel Declaration
- Belarusian Iron and Steel Declaration
Need Additional Support?
Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204
Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com
Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)
When you order the MON1010APHv2 the following items are included in the box:
- MON1010APH Industrial Monitor
- Warranty Statement
- Installation Instruction
- Product Flyer
- Input Power Cable
- Mounting Kit (Quantity determined by screen size)
- 4 x VESA Mounting Screws
- HDMI Cable
- USB Cable
- Does not include power supply – see recommended power supply 4010-0016 if required.
