MON6010APHEB

  • Optically Bonded, Projected Capacitive Touchscreen
  • 1280 x 800 Resolution, 1000nits High Brightness
  • -20 ~ 60 C Extended Operating Temperature
  • VGA, DVI-D, DisplayPort, HDMI Inputs
  • Fanless, IP66, Panel or VESA mount

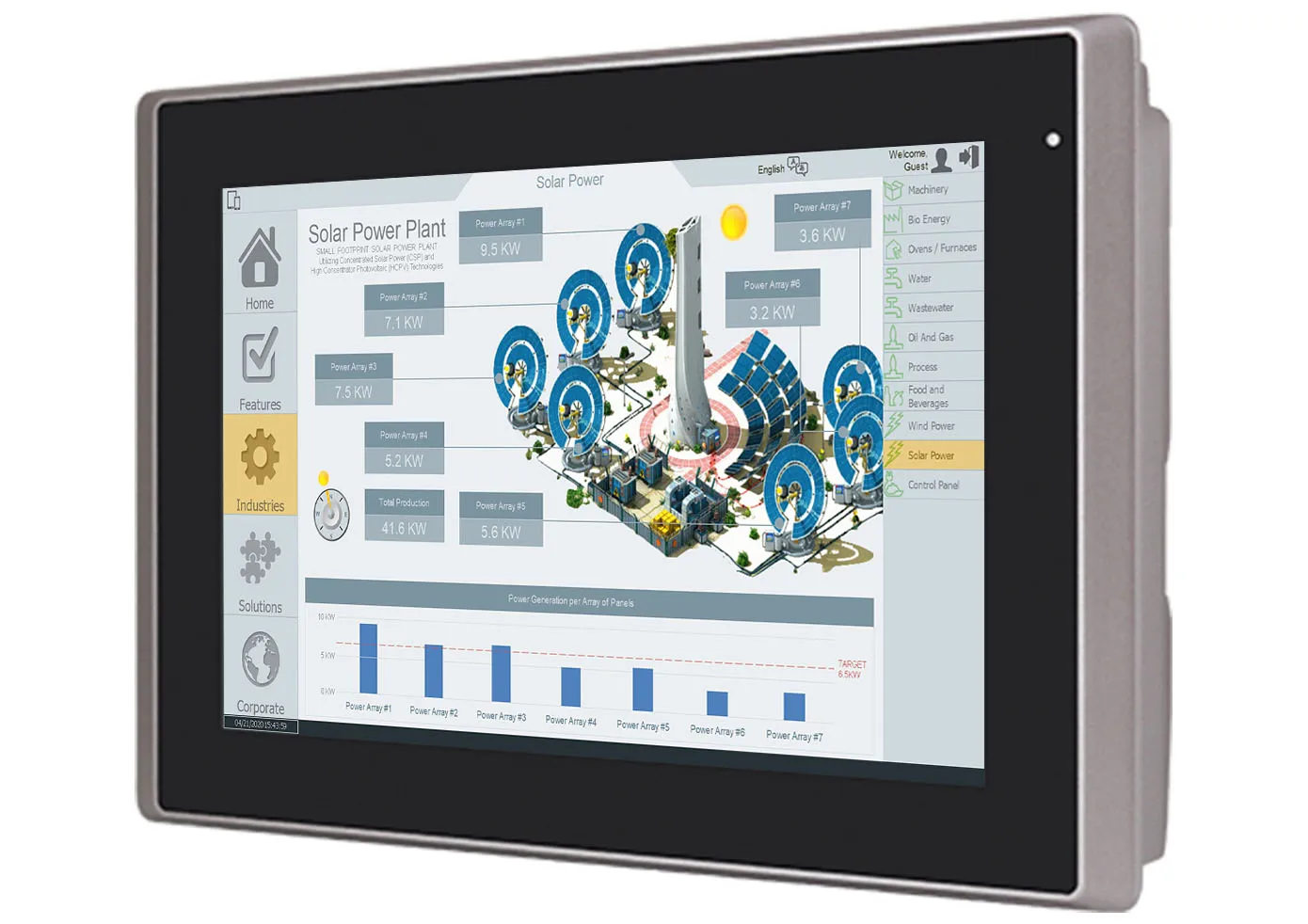

10.1" Wide-Temp, 1000nit Industrial Monitor

MON6010APHEB

$1,375.00

Buy Now

With a high-brightness/sunlight readable 1000 nit optically bonded, projected capacitive touchscreen, this fanless extended temperature industrial monitor is a great value. Requiring no calibrating this plug and play touch screen monitor can be paired with a Box PC or create an Andon Display with our HDMI-Enabled HMI. VESA or Panel Mount.

Specifications

System

Input Current

0.27-1.09 A

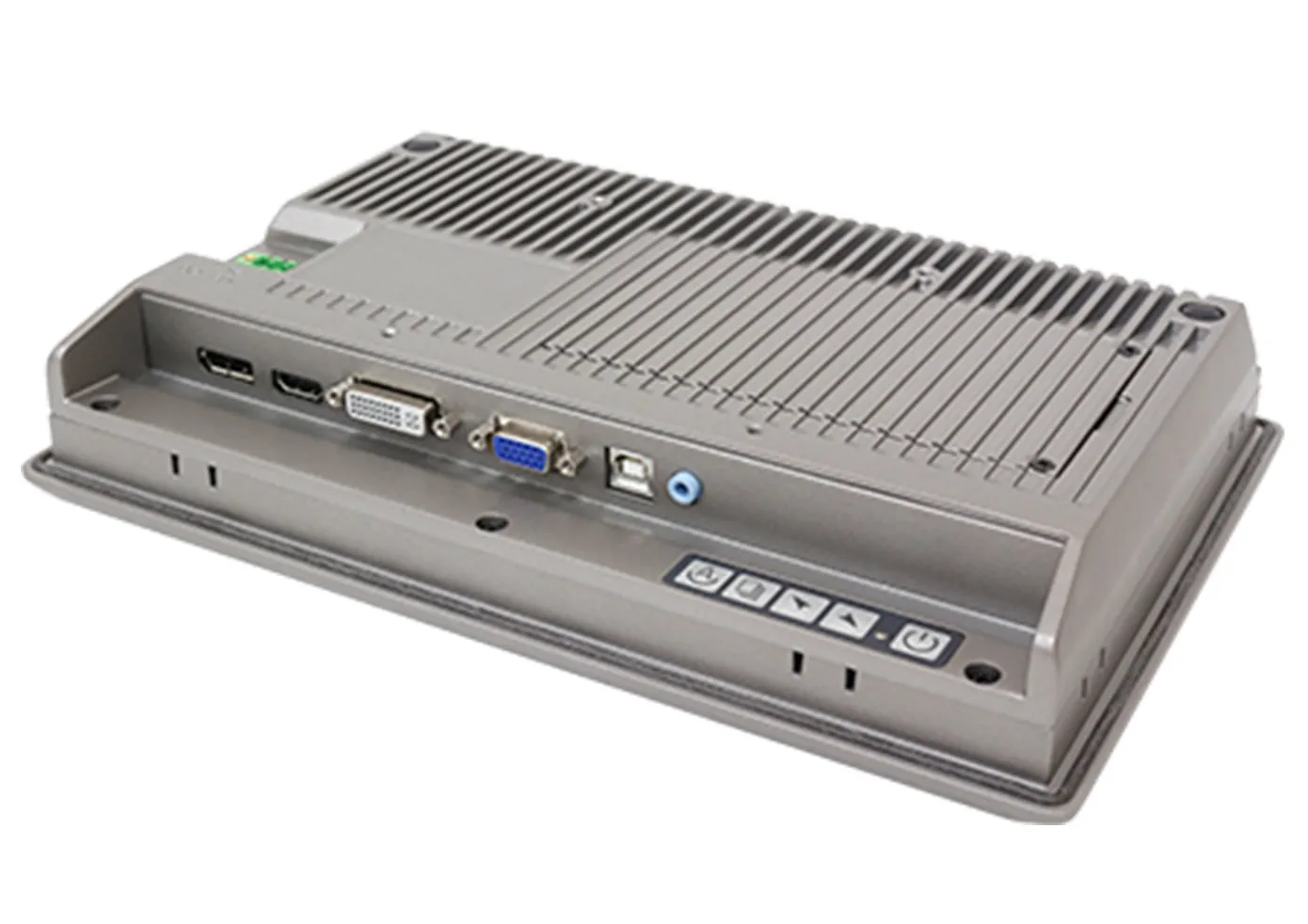

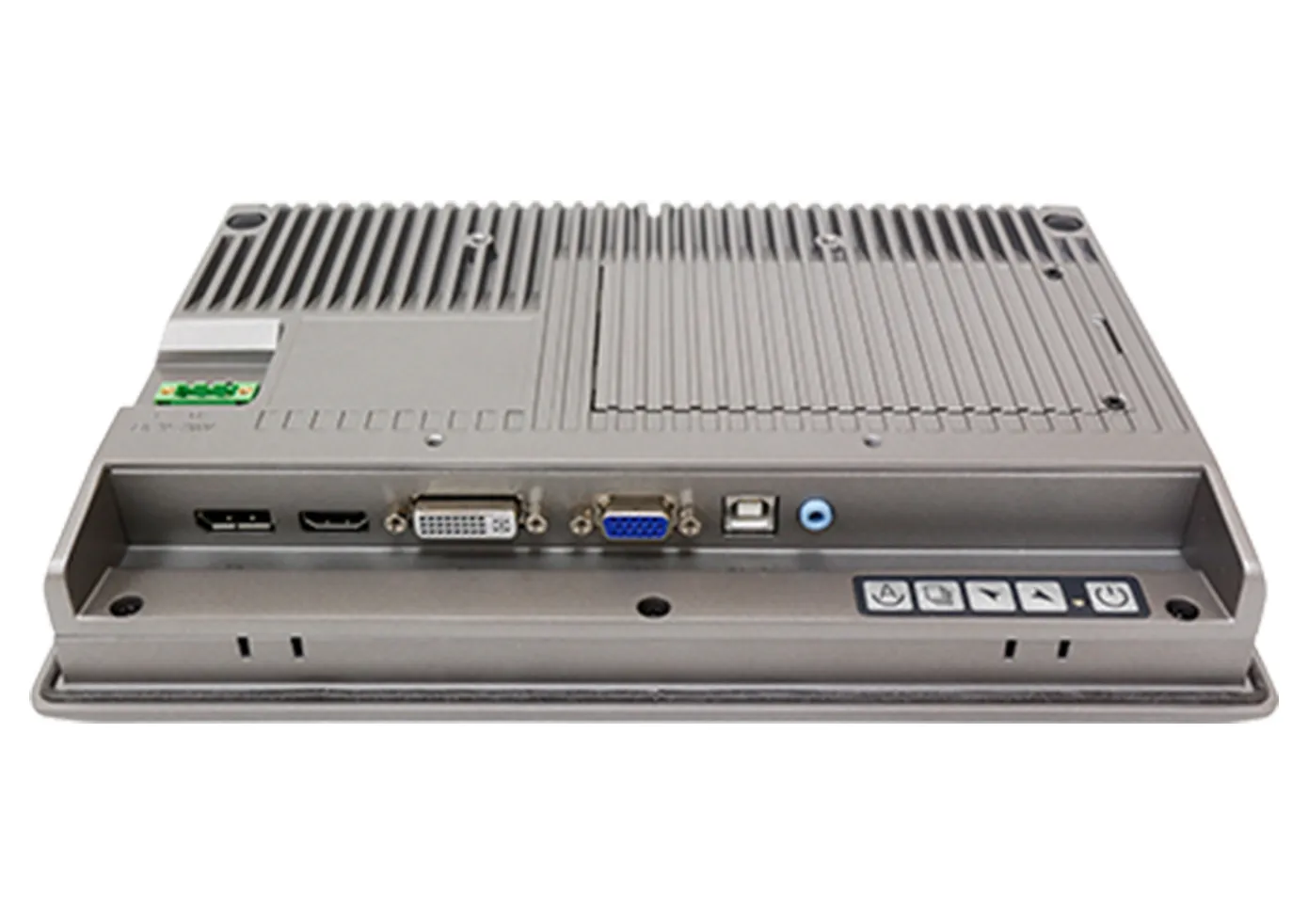

I/O Ports

Power

3-pin connector header, DC power input

USB 2.0 Type A

N/A

Connector Type

N/A

Power Switch

1 x Momentary Pushbutton with Integrated LED

Display Interface Options

1 x VGA 1 x DVI-D 1 x DisplayPort 1.2 1 x HDMI® 1.4a

On-Screen Display

OSD Control Panel at Rear of Chassis

USB 2.0 Type B

1

Display

Resolution

1280 x 800

Luminance (cd/m^2)

1000

Contrast Ratio

1000:1

Backlight Lifetime (hrs)

50000

Colors

16.7 M

Display Type

10.1” WXGA TFT LCD

Viewing Angle (H°/V°)

170/170

Touch Screen

Light Transmission

90+%

Touch Screen Type

Projected Capacitive Touch

Interface

USB

Electrical

Input Power

9.8 W

Input Voltage

9-36 VDC

Mechanical

Dimensions WxHxD

11.22 x 7.44 x 1.93” [285 x 189 x 48.9 mm]

Panel Cutout (inches) [mm]

10.71 x 6.93 [272 x 176 ]

Weight

~ 4.19 lbs [1.9 kg]

Mounting

Panel mounting, VESA 100 x 100 mm

Construction

Silver die-cast aluminum chassis

Environmental

Storage Temperature

-22~158°F [-30~70°C]

Operating Temperature

-4~140°F [-20~60°C]

Storage Humidity

10 to 95% @ 40°C, non-condensing

Certification

NEMA Rating

NEMA 4 when panel mounted

IP Rating

IP66

CE

Yes

ATEX

N/A

RoHS

Yes

FCC

FCC Class A

UL Class 2 Div 2

N/A

UL Class 3

N/A

Documentation & Resources

Need Additional Support?

Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204

Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com

Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)

What's Included

When you order the MON6010APHEB the following items are included in the box:

  • MON6010APHEB Industrial Monitor
  • Warranty Statement
  • Installation Instruction
  • Product Flyer
  • DC Power Connector
  • DC Power Adapter with cord
  • Mounting Kit (Quantity determined by screen size)
  • VGA Cable
  • USB Cable
