12.1" High Brightness/Sunlight Readable Projected Industrial Touchscreen/Monitor
$1,000.00
This 1000nit, High Brightness/Sunlight Readable Projected Capacitive Touchscreen Monitor has a black steel chassis making it extremely durable. With the projected capacitive technology, can be used with any type of gloves and paired with a Box PC or create an Andon Display with our HDMI-Enabled HMI. VESA or Panel Mount.
Does not include power supply. See recommended power supply 4010-0015 if required.
- Volume discounts available.
- Customize product with your company logo. Minimum quantities apply.
- US-based technical support.
Share the product:
Compare to Similar Models
Compare MON1012APHv2 with 2 other products

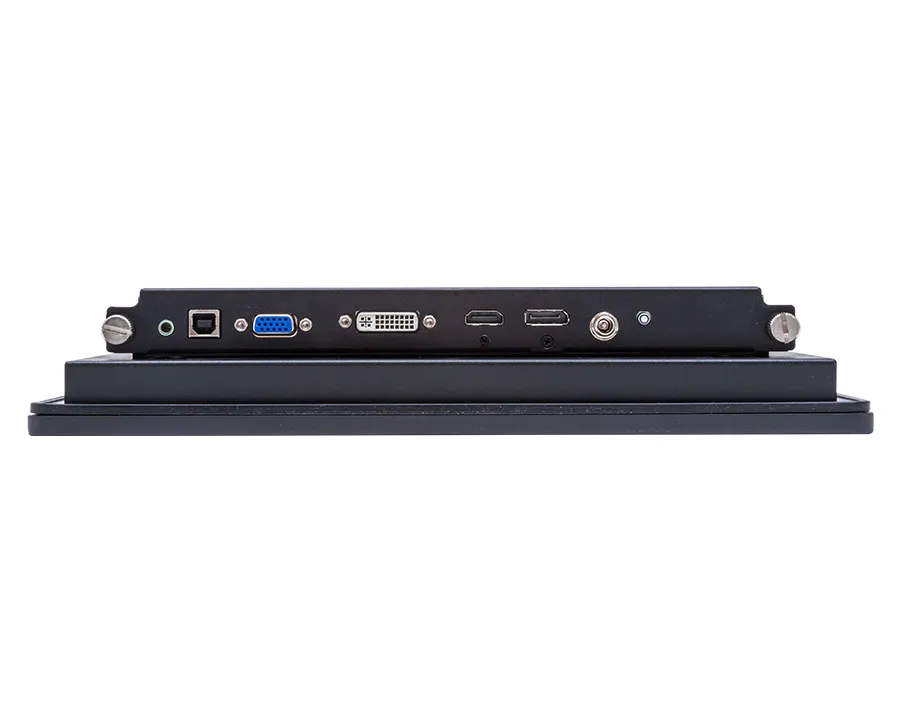

I/O Ports
| Power | DC power input jack, thumbscrew secured. |
| Power Switch | 1 x Momentary Pushbutton with Integrated LED |
| Display Interface Options | 1 x VGA 1 x DVI-D 1 x DisplayPort 1.2 1 x HDMI® 1.4a |
| On-Screen Display | OSD Control Panel at Rear of Chassis |
| USB 2.0 Type B | 1 |
Display
| Resolution | 1024 X 768 |
| Luminance (cd/m^2) | 1000 |
| Contrast Ratio | 700:1 |
| Backlight Lifetime (hrs) | 30,000+ |
| Colors | 16.2 M |
| Display Type | 12.1” TFT XGA LCD |
| Viewing Angle (H°/V°) | 170/170 |
Touch Screen
| Light Transmission | N/A |
| Touch Screen Type | Projected Capacitive Touch |
| Interface | USB |
Electrical
| Input Power | 12 W |
| Input Voltage | 12~24 VDC |
| Input Current | 0.50~1.00 A |
Mechanical
| Dimensions WxHxD | 12.48 x 9.65 x 2.16” [317 x 245 x 54.9 mm] |
| Panel Cutout (inches) [mm] | 11.54 x 8.70 [293 x 221 ] |
| Weight | 6.61 lbs [3.0 kg] |
| Mounting | Panel mounting, VESA 100 x 100 |
| Construction | Black Steel Chassis |
Environmental
| Operating Temperature | 32~104°F [0~40°C] |
| Storage Temperature | -22~175°F [-30~80°C] |
| Storage Humidity | 10 to 90% @ 40°C, non-condensing |
Certification
| NEMA Rating | NEMA 4 when panel mounted |
| IP Rating | IP65 compliant front panel |
| CE | Yes |
| RoHS | Yes |
| FCC | FCC Class B |
MON1000 Series Unboxing
We'll show what comes in the box, all the I/O ports, connect it to a headless HMI and power it up
Documents
Manuals
Certifications
- CE Declaration of Conformity – MON1000 Series
- RoHS Declaration of Conformity (all series)
- Trade Agreement Act Declaration of Conformity
- FCC Declaration of Conformity – MON1000 Series
- Russian Iron and Steel Declaration
- Belarusian Iron and Steel Declaration
- Country of Origin Certification
CAD Files
When you order the MON1012APHv2 the following items are included in the box:
- MON1012APH Industrial Monitor
- Warranty Statement
- Installation Instruction
- Product Flyer
- Input Power Cable
- Mounting Kit (one set shown, 3 sets included)
- 4 x VESA Mounting Screws
- HDMI Cable
- USB Cable
- Does not include power supply – see recommended power supply 4010-0015 if required.
|
