MON6021APHEB
- Optically Bonded, Projected Capacitive Touchscreen
- 1920 x 1080 Resolution, 1000nits High Brightness
- -20 ~ 60 C Extended Operating Temperature
- VGA, DVI-D, DisplayPort, HDMI Inputs
- Fanless, IP66, Panel or VESA mount

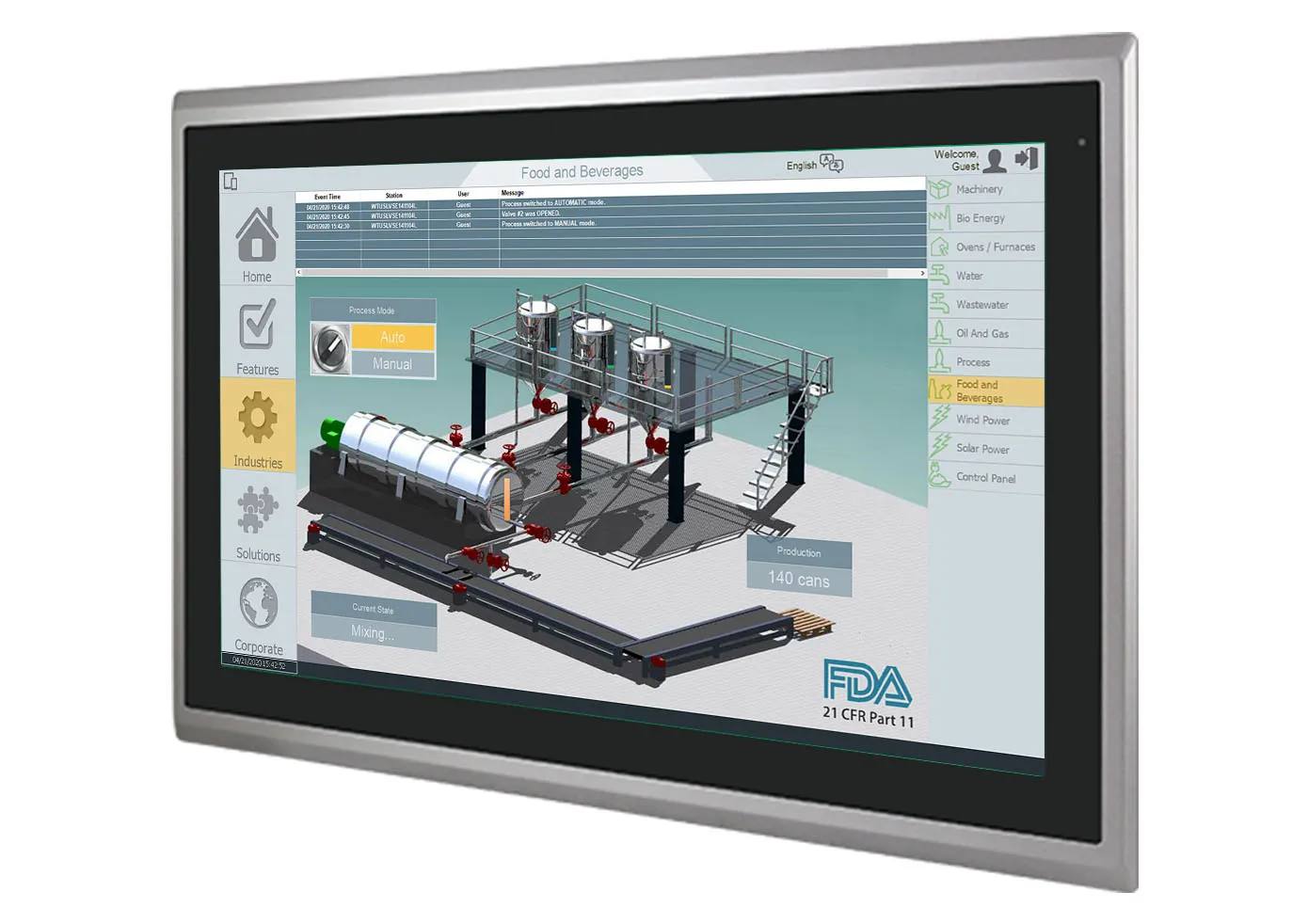

21.5" Wide-Temp, 1000nit Industrial Monitor
MON6021APHEB
This fanless extended temperature Industrial Monitor features a high-brightness/sunlight readable (1000 nits) optically bonded, projected capacitive touchscreen and is a great value. Requiring no calibrating this plug and play monitor can be paired with a Box PC or create an Andon Display with our HDMI-Enabled HMI. VESA or Panel Mount.
- Volume Discounts available. Contact Sales for more details.
- Customize your product with your company logo. Minimum quantities apply.
- US Based Technical Support
System
| Input Current | 1.06-4.24 A |
I/O Ports
| Power | 3-pin connector header, DC power input |
| USB 2.0 Type A | N/A |
| Connector Type | N/A |
| Power Switch | 1 x Momentary Pushbutton with Integrated LED |
| Display Interface Options | 1 x VGA 1 x DVI-D 1 x DisplayPort 1.2 1 x HDMI® 1.4a |
| On-Screen Display | OSD Control Panel at Rear of Chassis |
| USB 2.0 Type B | 1 |
Display
| Resolution | 1920 x 1080 |
| Luminance (cd/m^2) | 1000 |
| Contrast Ratio | 3000:1 |
| Backlight Lifetime (hrs) | 50000 |
| Colors | 16.7 M |
| Display Type | 21.5” FHD TFT LCD |
| Viewing Angle (H°/V°) | 178/178 |
Touch Screen
| Light Transmission | 90+% |
| Touch Screen Type | Projected Capacitive Touch |
| Interface | USB |
Electrical
| Input Power | 38.2 W |
| Input Voltage | 9-36 VDC |
Mechanical
| Dimensions WxHxD | 21.94 x 14.26 x 2.56” [557.3 x 362.3 x 64.8 mm] |
| Panel Cutout (inches) [mm] | 21.22 x 13.54 [539 x 344 ] |
| Weight | ~ 16.53 lbs [7.5 kg] |
| Mounting | Panel mounting, VESA 100 x 100 mm |
| Construction | Silver die-cast aluminum chassis |
Environmental
| Storage Temperature | -22~158°F [-30~70°C] |
| Operating Temperature | -4~140°F [-20~60°C] |
| Storage Humidity | 10 to 95% @ 40°C, non-condensing |
Certification
| NEMA Rating | NEMA 4 when panel mounted |
| IP Rating | IP66 |
| CE | Yes |
| ATEX | N/A |
| RoHS | Yes |
| FCC | FCC Class A |
| UL Class 2 Div 2 | N/A |
| UL Class 3 | N/A |
Customers who bought this product also bought:
Documents
Manuals
Certifications
Need Additional Support?
Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204
Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com
Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)
When you order the MON6021APHEB the following items are included in the box:
- MON6021APHEB Industrial Monitor
- Warranty Statement
- Installation Instruction
- Product Flyer
- DC Power Connector
- DC Power Adapter with cord
- Mounting Kit (Quantity determined by screen size)
- VGA Cable
- USB Cable
