MON1016APHv2
-
- High-Resolution Projected Capacitive Touch Screen
- 1000 nits, 1920 x 1080 Resolution
- Black Steel Chassis
- HDMI, VGA, DVI-D, DisplayPort Inputs
- Works with Gloves
15.6" High Brightness/Sunlight Readable Industrial Touchscreen/Monitor
MON1016APHv2
This High Brightness/Sunlight Readable Projected Capacitive Touchscreen Monitor has a durable black steel chassis that can be used in an extended temperature range environments and applications. The projected capacitive technology, can be used with any type of gloves. Option of panel or VESA mount.
What comes in the box: Monitor, Mounting Clips, Input Power Cable. Does not include power supply – see recommended power supply 4010-0016 if required.
Pair your Monitor with one of our Embedded Box PCs
Pair your Monitor with our HDMI enabled Headless HMI
- Volume Discounts available. Contact Sales for more details.
- Customize your product with your company logo. Minimum quantities apply.
- US Based Technical Support
System
| Input Current | 1.00~2.00 A |
I/O Ports

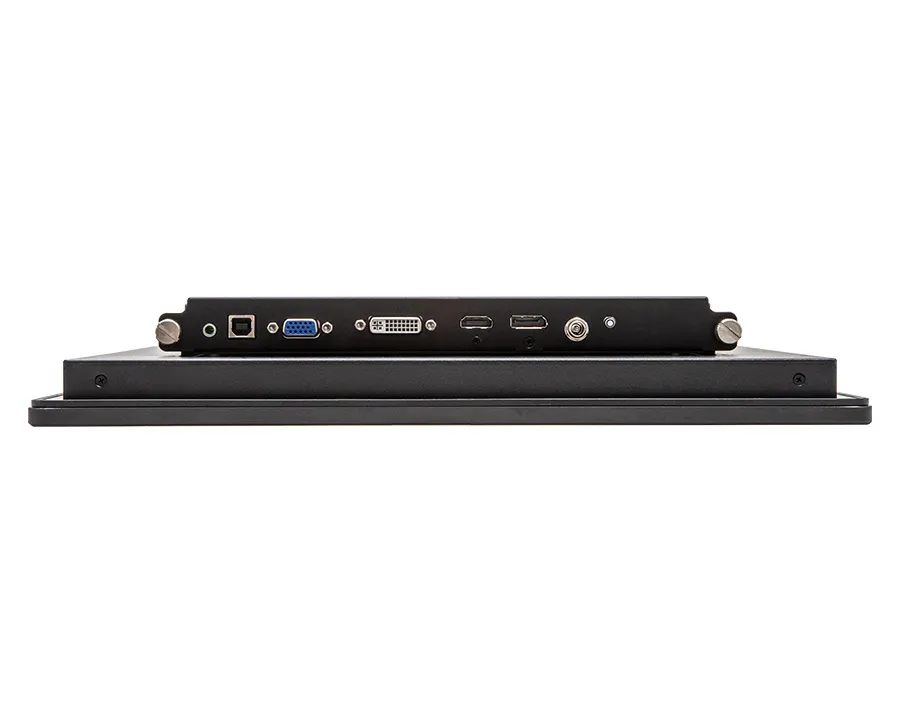

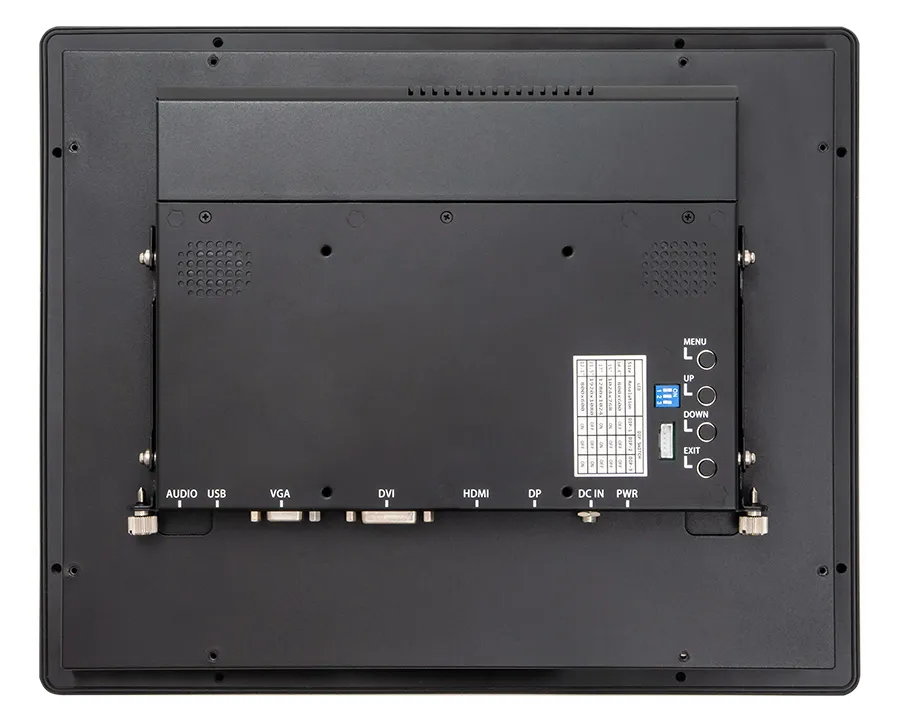

| Power | DC power input jack, thumbscrew secured. |
| USB 2.0 Type A | N/A |
| Connector Type | N/A |
| Power Switch | 1 x Momentary Pushbutton with Integrated LED |
| Display Interface Options | 1 x VGA 1 x DVI-D 1 x DisplayPort 1.2 1 x HDMI® 1.4a |
| On-Screen Display | N/A |
| USB 2.0 Type B | 1 |
Display
| Resolution | 1920 x 1080 |
| Luminance (cd/m^2) | 1000 |
| Contrast Ratio | 500:1 |
| Backlight Lifetime (hrs) | 50000 |
| Colors | 16.2 M |
| Display Type | 15.6” Widescreen TFT FHD LCD |
| Viewing Angle (H°/V°) | 170/170 |
Touch Screen
| Light Transmission | N/A |
| Touch Screen Type | Projected Capacitive Touch |
| Interface | USB |
Electrical
| Input Power | 24 W |
| Input Voltage | 12~24 VDC |
Mechanical
| Dimensions WxHxD | 15.75 x 9.84 x 1.90” [400 x 250 x 48.3 mm] |
| Panel Cutout (inches) [mm] | 14.57 x 8.90 [370 x 226 ] |
| Weight | 9.04 lbs [4.1 kg] |
| Mounting | Panel mounting, VESA 100 x 100 |
| Construction | Black Steel Chassis |
Environmental
| Storage Temperature | -22~175°F [-30~80°C] |
| Operating Temperature | 32~140°F [0~60°C] |
| Storage Humidity | 10 to 90% @ 40°C, non-condensing |
Certification
| NEMA Rating | NEMA 4 when panel mounted |
| IP Rating | IP65 compliant front panel |
| CE | Yes |
| ATEX | N/A |
| RoHS | Yes |
| FCC | FCC Class B |
| UL Class 2 Div 2 | N/A |
| UL Class 3 | N/A |
Customers who bought this product also bought:
-
Screen Protector, 15.6” (343mm x 193mm) 1 each.$35.00 -
Power Supply & Cord, Desktop, 24VDC, 2.71A Power Brick with AC Cable.$45.00 -
Input Power Connector$17.00
-
Mounting Clips Kit.$17.00
-
Cable, HDMI ® to HDMI ®, 6 ft.$25.00
-
Cable, HDMI ® to DVI, 6 ft.$25.00
Documents
Manuals
Certifications
- CE Certification
- RoHS Certification
- Trade Agreement Act
- FCC Certificate
- Conflict Minerals
- Russian Iron and Steel Declaration
- Belarusian Iron and Steel Declaration
Need Additional Support?
Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204
Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com
Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)
When you order the MON1016APHv2 the following items are included in the box:
- MON1016APH Industrial Monitor
- Warranty Statement
- Installation Instructions
- Product Flyer
- Input Power Cable
- Mounting Kit (Quantity determined by screen size)
- 4 x VESA Mounting Screws
- HDMI Cable
- USB Cable
- Does not include power supply – see recommended power supply 4010-0016 if required.
