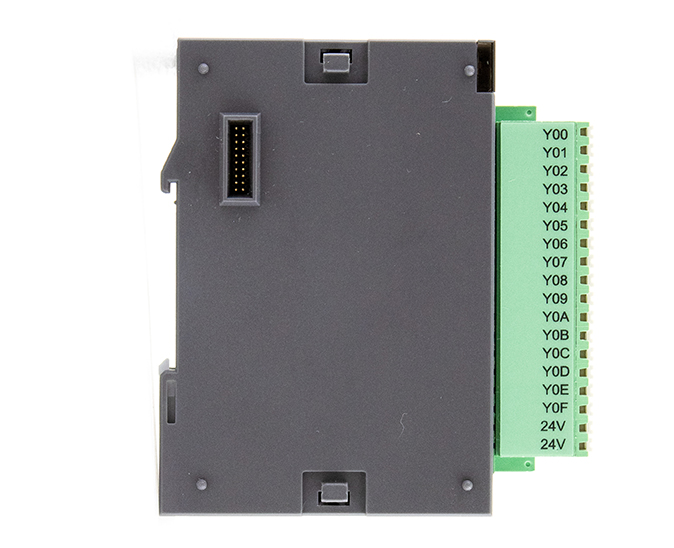

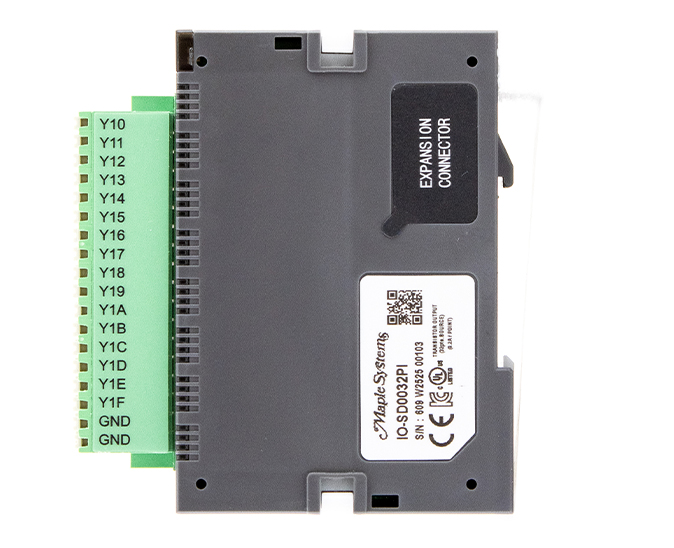

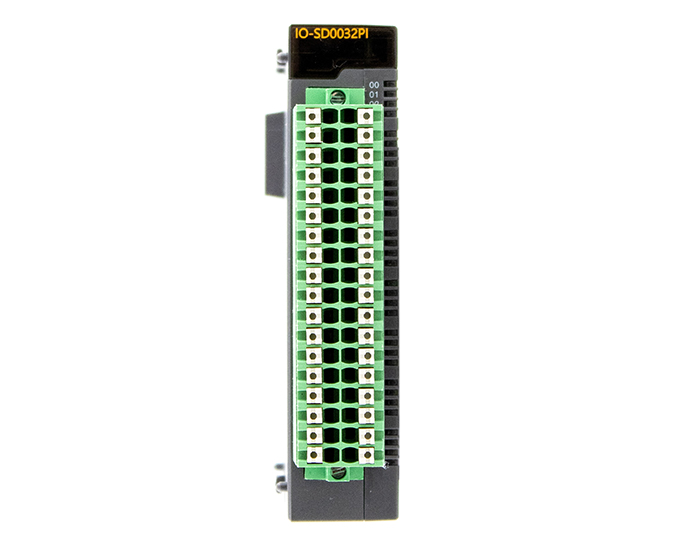

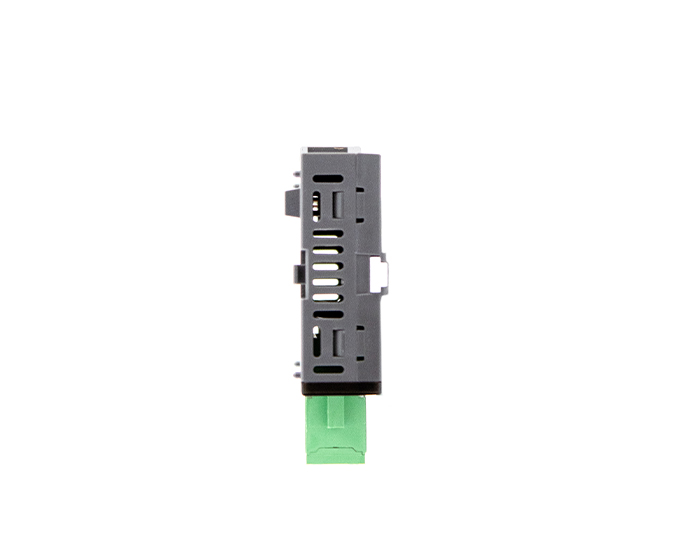

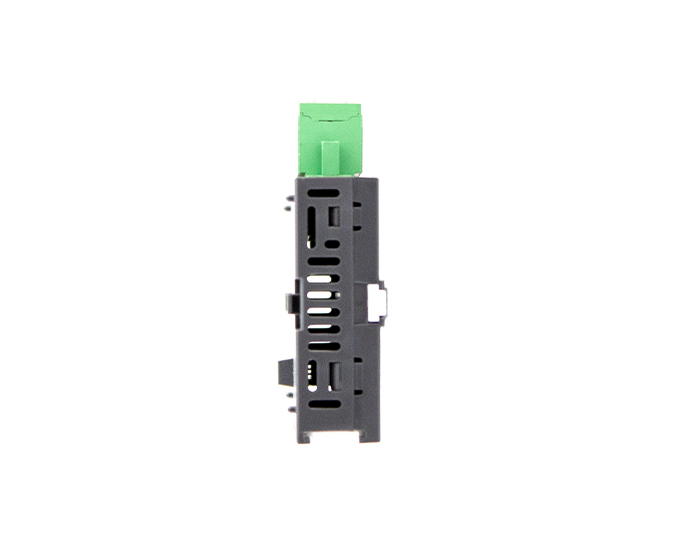

Digital Output Module – 32 TR Source Outputs

IO-SD0032PI
— Leave a Review
$215.00

PLC I/O Module with 32 TR Source Outputs – 24 VDC Push-in Terminal Connector

Share the product:

Volume Pricing

Planning a larger order? Let's talk about your pricing.

Quantity orders are priced case by case, around the configuration, volume, and delivery schedule you need. Tell our sales team what you have in mind and they will put a quote together for it. It is the quickest way to know exactly what your order will cost.

Request a Quote
Similar Models
Compare IO-SD0032PI with 2 Other Products Find the right fit for your application. Compare key specifications, features and capabilities side by side.
HMI + PLC Integration Guide
Connect a Maple Systems HMI to a Maple Systems PLC Our integration guide walks you through pairing an HMI with a low-cost PLC, whether you are new to Maple Systems or know our products well.
Knowledge Base
Find Setup, Programming and Troubleshooting Guides Hundreds of articles on communication, networking, remote access and configuration, organized by product family.
Control Panel Components
Browse Pushbuttons & Switches, 10-20% Off at Volume Indicator lights, momentary and latching pushbuttons, 2 and 3-position selector switches and E-stops. Select from over 250 variations.

  • 32 TR Source Outputs
  • Compatible expansion with any Maple modular PLC CPU
  • Group-isolated
View DatasheetDownload Software

Datasheet3D CAD File

Digital Output

Output Type
Source
Number of Digital Output Points
32
Rated Digital Output Voltage
12/24 VDC
Rated Digital Output Current
1 point = 0.2 A, 1 COM = 2 A
Response Time: Off -> On
1 ms or less
Response Time: On -> Off
1 ms or less
Insulation Method
Photocoupler
Operation Indication
LED will be ON when the input is ON

Mechanical

Terminal Connector Type
Push-in Terminal Connector
Dimensions WxHxD
90 x 30 x 63 mm (3.5 x 1.2 x 2.5 in)
Weight
71 g (0.16 lb)
Mounting
35mm DIN Rail Mounting
Shock
15G
Vibration
0.5G – Continuous, 1G – Discontinuous
Square Wave Impulse Noise
±2 kV
ESD Immunity
±4 kV – Contact Discharges, ±8 kV – Air Discharges
Radiated Electromagnetic Immunity
80–1000 MHz, 10 V/m
Surge Transient Immunity
2 kV – CPU, Power; 2 kV – Digital I/O (VAC), 1 kV – Digital I/O (VDC), 1 kV – Communication

Environmental

Operating Temperature
-10 – 65 °C (14 – 149 °F)
Storage Temperature
-25 – 80 °C (-13 – 176 °F)
Operating/Storage Relative Humidity
5 – 95% Non-condensing

Certification

CE
Yes
UL
Yes
RoHS
Yes

PLC with Expansion Module

Unbox a PLC, add expansion modules, download a project, and show automatic I/O module detection

Watch on YouTube

FREE User Friendly PLC Software

Download our free, powerful PLC configuration software. Using your preferred programming language—Ladder Diagram, Instruction List, Sequential Function Chart, or Function Block—you can create your project, your way, for a one-of-a-kind control solution.

Download MapleLogic Software
Learn More About PLC Software

Documents

Manuals

Certifications

CAD Files

View All Tutorials

When you order the IO-SD0032PI the following items are included in the box:

  • IO-SD0032PI
  • Product Manual
