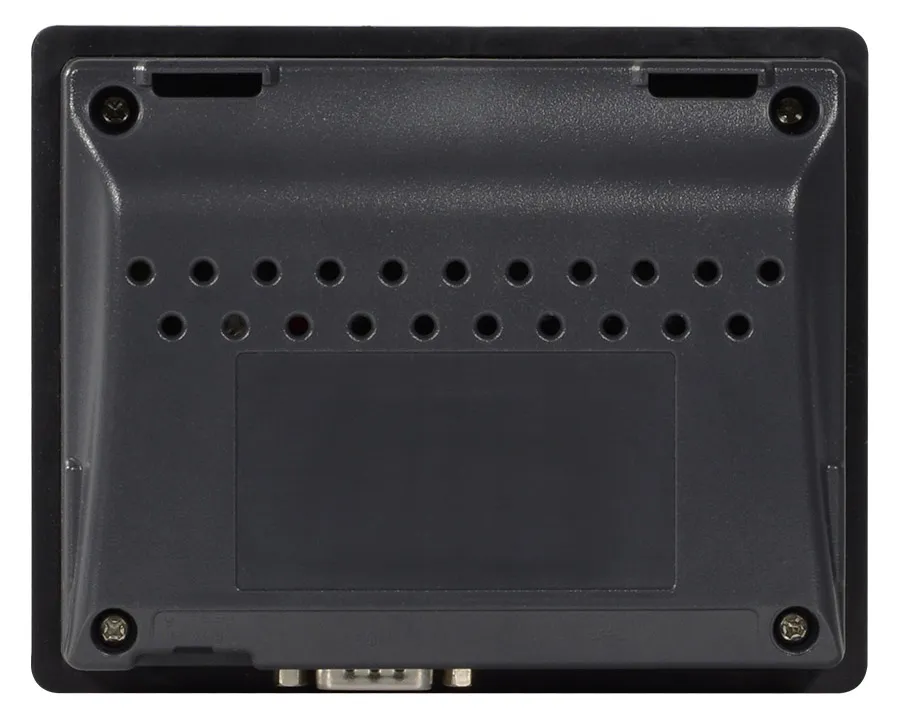

HMI5040B
-
- 480 x 272 Resolution
- Dual Core-RISC CPU
- Non-UL Certified
- 1 Year Warranty
- Support for over 300 protocols

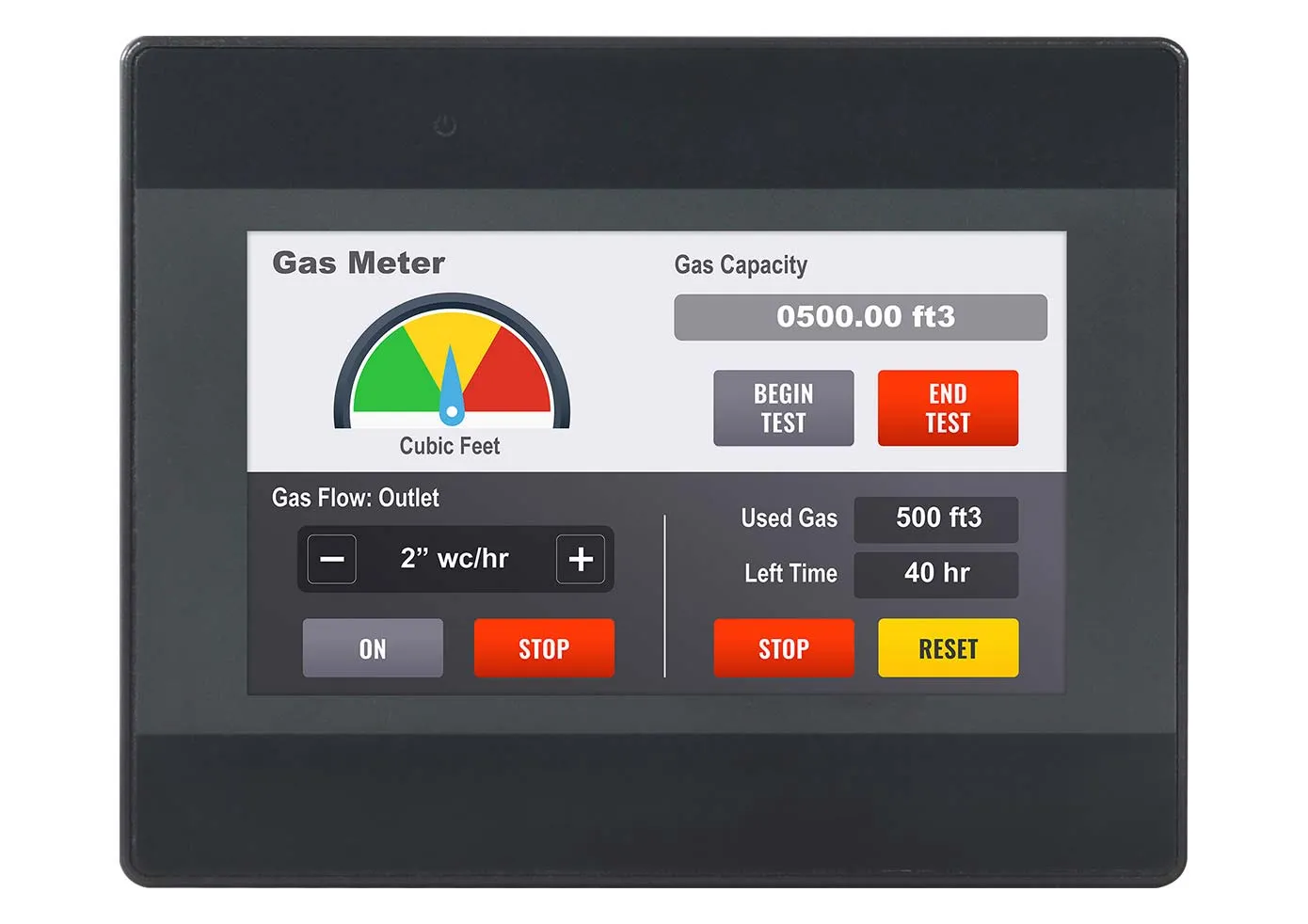

4.3" Low-Cost HMI
HMI5040B
This is a legacy product and is no longer available for purchase. Please call (425)-745-3229 or email: sales@maplesystems.com for a recommended upgrade path.
The HMI5040Bv2 directly replaces the HMI5040B.
If you would like more features like CODESYS, Media Player, PDF Reader, or the ability to pair with an IP Camera, consider the cMT2058XH as a replacement option. Both options will fit in the same panel cutout. For more information on upgraded features, see our Compare Models tool with all 3 items listed.
System
| Memory (RAM) | 128 MB |
| Memory (Flash) | 128 MB |
| RTC | Built-in |
| Programming Software | EasyBuilder Pro |

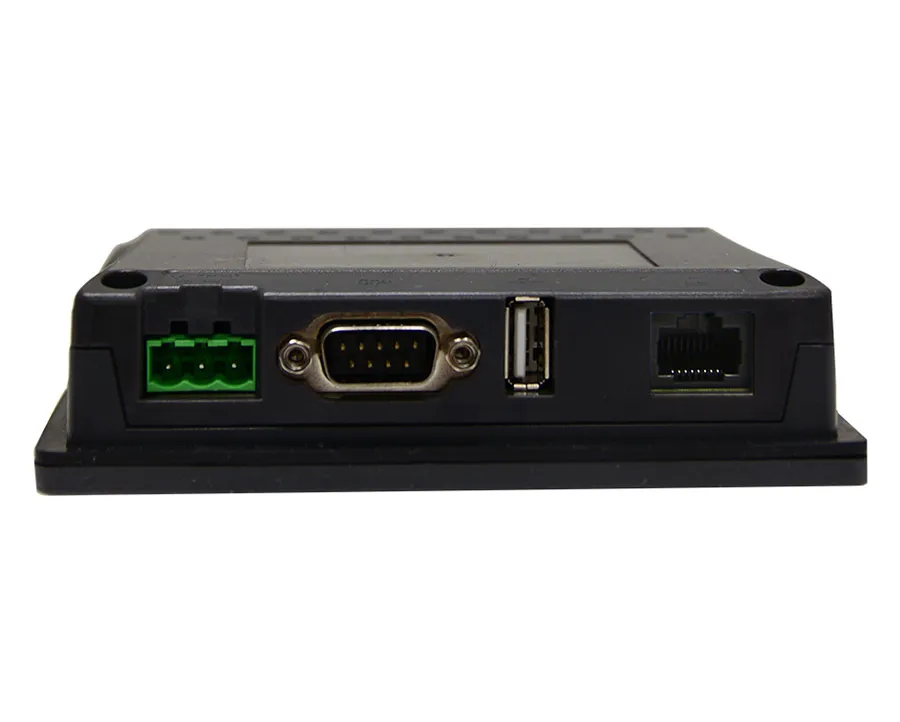

I/O Ports
| Serial Ports | 1 |
| Ethernet/LAN | 10/100 Base-T x 1 |
| CANbus | N/A |
| Audio Output | N/A |
| SD Card Slot | N/A |
| USB Host Ports | USB 2.0 x 1 |
| USB Client Ports | N/A |
| Wi-Fi | N/A |
| COM Port | 1 x DE9P COM1: RS-232/RS-485 2 or 4 wire, COM 3: RS-485 2 wires |
| HDMI Port | N/A |
| Video Input | N/A |
Display
| Display Size | 4.3" TFT |
| Resolution | 480 x 272 |
| Luminance (cd/m^2) | 400 |
| Contrast Ratio | 500:1 |
| Backlight Type | LED |
| Backlight Lifetime (hrs) | 30,000+ |
| Colors | 16.7 M |
| Display Type | 4.3" TFT |
| Viewing Angle (H°/V°) | 140/120 |
| Size (W x H) | 3.74 x 2.13 inches [95 x 54 mm] |
Touch Screen
| Type | 4-wire resistive touch |
| Accuracy | Length (X) ±2%, width (Y) ±2% |
| Touch Panel Hardness Scale | N/A |
Electrical
| Input Power | 9.6 W |
| Power Isolation | Built-in |
| Isolation Resistance | Exceed 50 MO - @ 500 VDC |
| Input Voltage | 10.5 ~ 28 VDC |
| Input Current | 800 mA @ 12 VDC ; 400 mA @ 24 VDC |
Mechanical
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| Enclosure Material | Plastic, charcoal grey |
| PCB Coating | N/A |
| Dimensions WxHxD | 5.04 x 4.02 x 1.26 inches [128 x 102 x 32 mm] |
| Panel Cutout (inches) [mm] | 4.69 x 3.66 [119 x 93] |
| Weight | Approx. 0.55 lbs. [0.25 Kg] |
| Mounting | Panel mount |
Environmental
| Storage Temperature | -4° ~ 140°F (-20° ~ 60°C) |
| Operating Temperature | 32° ~ 122°F (0° ~ 50°C) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| UL Type Rating | N/A |
| NEMA Rating | NEMA4 |
| IP Rating | IP65 compliant front panel |
| CE | Yes |
| UL | N/A |
| Class 1 Div 2 | N/A |
| ATEX | N/A |
| RoHS | Yes |
