HMI5043LB

  • 480 x 272 Resolution Touchscreen
  • 600MHz RISC Cortex-A8 CPU

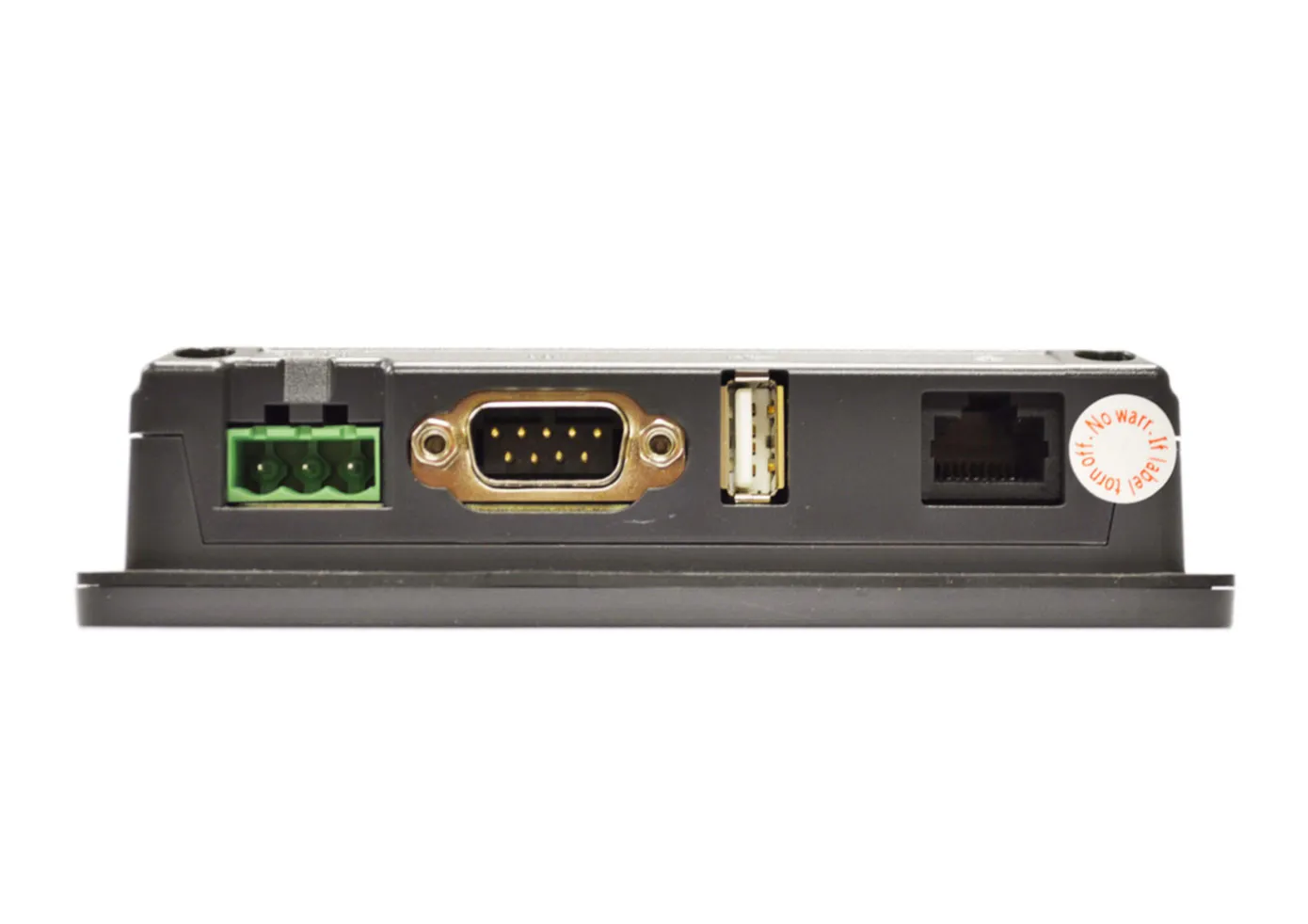

  • 1 Ethernet Port, 1 USB Port, 1 Serial Port
  • 2 Year Warranty
  • Support for over 300 protocols
  • </ul >

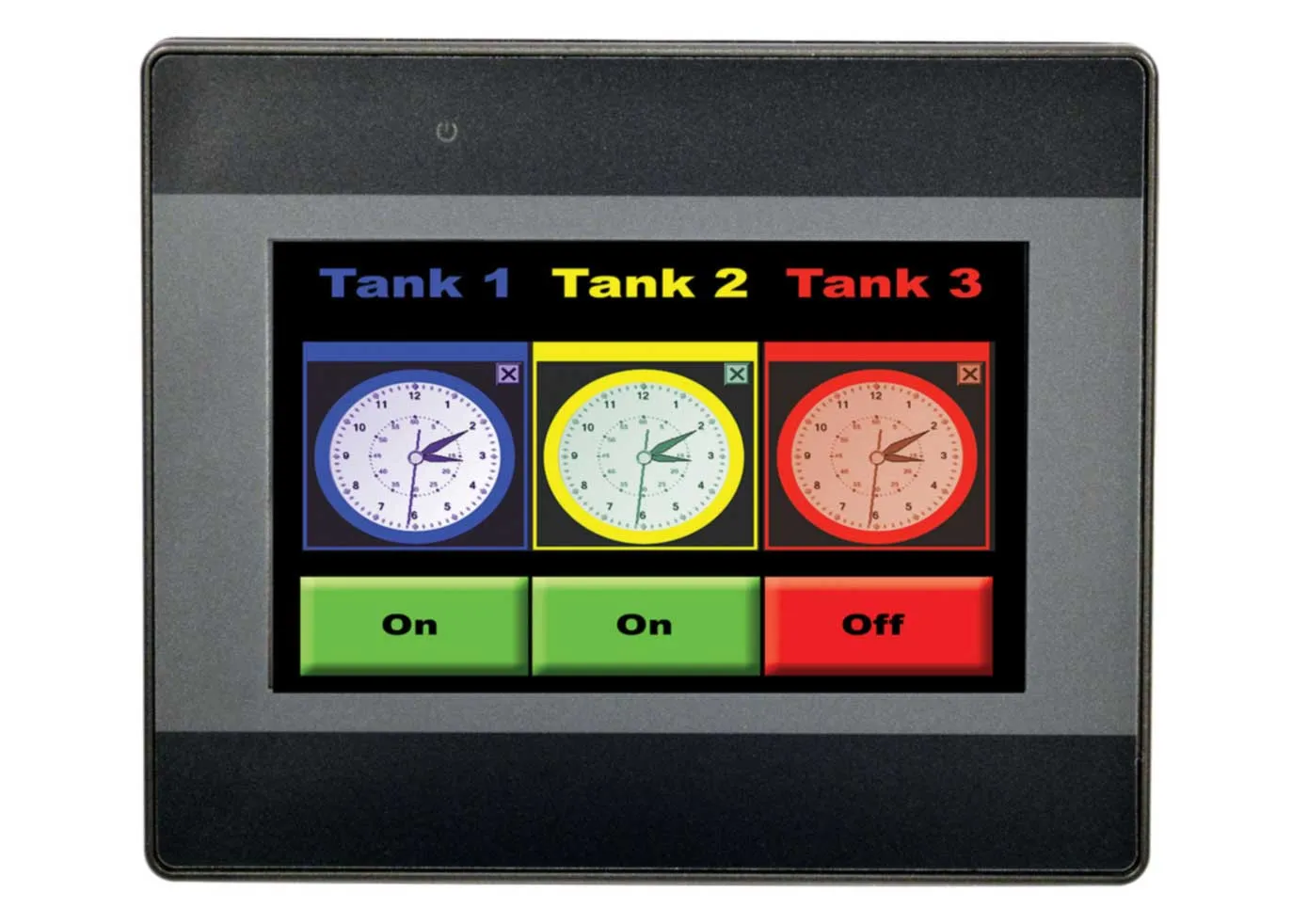

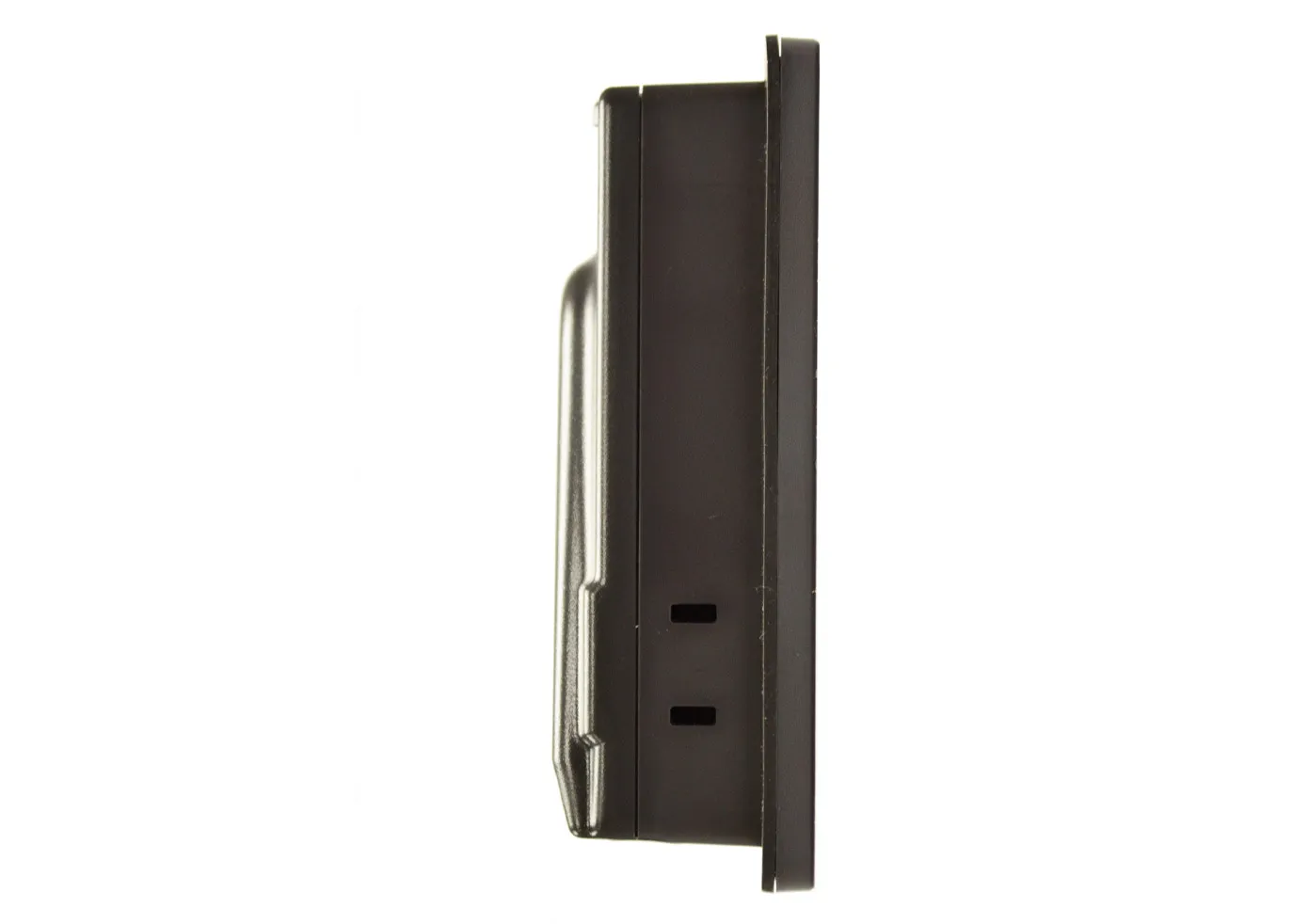

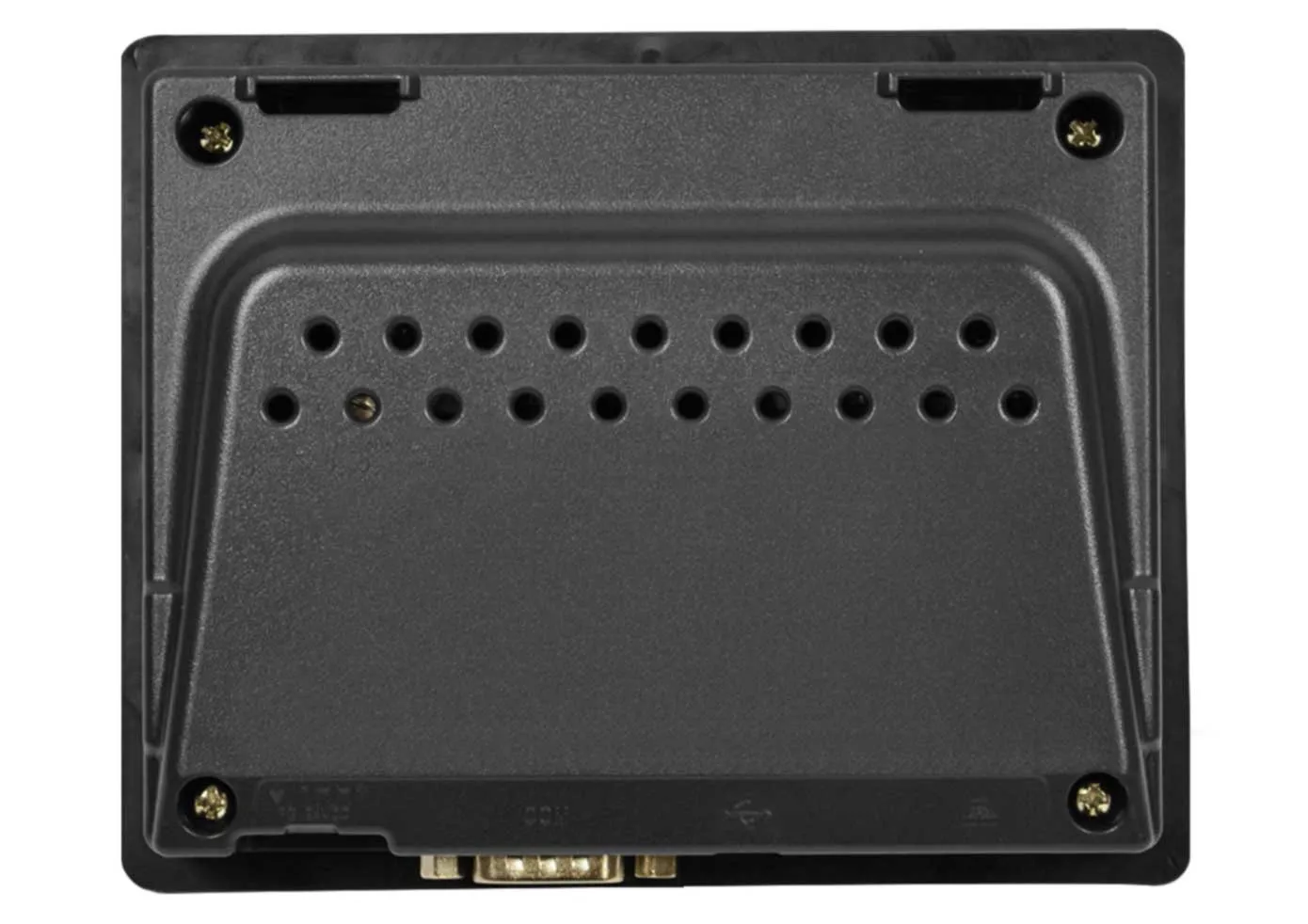

4.3" Standard Touch Panel HMI

HMI5043LB

This is a legacy product and is no longer available for purchase. Please call (425)-745-3229 or email: sales@maplesystems.com for a recommended upgrade path.

HMI5043LBv2 replaces the HMI5043LB

This 4.3″ Human Machine Interface is perfect for small spaces and can function in portrait or landscape mode. The HMI5043LB powerful features come standard in our free programming software and proves an excellent value for its functionality. Because our software supports Modbus and over 300 different PLC and controllers, pairing this operator panel with your Allen-Bradley, Seimens, Omron, and/or Mitsubishi PLC is easy.

Specifications

System

Memory (RAM)

128 MB

Memory (Flash)

128 MB

RTC

Built-in

Programming Software

EasyBuilder Pro V4.00.01 or later versions

I/O Ports

Serial Ports

1

Ethernet/LAN

10/100 Base-T x 1

CANbus

N/A

Audio Output

N/A

SD Card Slot

N/A

USB Host Ports

USB 2.0 x 1

USB Client Ports

N/A

Wi-Fi

N/A

RS-485 Dual Isolation

N/A

Local bus

N/A

HDMI Port

N/A

Video Input

N/A

Siemens MPI

Display

Display Size

N/A

Resolution

480 x 272

Luminance (cd/m^2)

400

350

300

Contrast Ratio

500:1

Backlight Type

LED

Backlight Lifetime (hrs)

30,000+

Colors

16.7 M

Display Type

4.3" TFT

Viewing Angle (H°/V°)

140/120

Size (W x H)

3.70 x 2.10 inches [95 x 54 mm]

Touch Screen

Type

4-wire resistive touch

Electrical

Input Power

9.6 W

Power Isolation

Built-in

Power Dissipation

N/A

Current for Internal Bus

N/A

Current Consumption

N/A

Isolation Resistance

Exceed 50 MO - @ 500 VDC

Input Voltage

24 ± 20% VDC

Input Current

400 mA @ 24 VDC

Mechanical

Vibration Endurance

10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Enclosure Material

Plastic, charcoal grey

PCB Coating

Yes

Dimensions WxHxD

5.04 x 4.02 x 1.26 inches [128 x 102 x 32 mm]

Panel Cutout (inches) [mm]

4.69 x 3.66 [119 x 93]

Weight

Approx. 0.55 lbs. [0.25 Kg]

Mounting

Panel mount

Environmental

Storage Temperature

-4° ~ 140°F (-20° ~ 60°C)

Operating Temperature

32° ~ 122°F (0° ~ 50°C)

Relative Humidity

10% ~ 90% (non-condensing)

Certification

UL Type Rating

UL Type 4X (indoor use only)

NEMA Rating

NEMA4

IP Rating

IP65 compliant front panel

CE

Yes

UL

cULus Listed

Class 1 Div 2

N/A

ATEX

N/A

RoHS

Yes

Available Software

Documentation & Resources

Need Additional Support?

Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204

Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com

Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)

What's Included

When you order the HMI5043LB the following items are included in the box:

  • 1 x HMI5043LB
  • 1 x Warranty Statement
  • 1 x Installation Instruction
  • 1 x Product Flyer
  • 1 x Power Connector
  • 4 x Panel Mounting Clips
