cMT3152Xv2
- 1024 x 768 Resolution, Capacitive Touchscreen
- Quad-Core RISC
- Supports CANbus, Web Browser
- Panel or VESA mount. Aluminum Enclosure
- MQTT, OPC UA, SQL Database Integration
- Capable of Running CODESYS
15.0" High Performance HMI with Capacitive Touch
cMT3152Xv2
The cMT3152Xv2 features a powerful CPU, remote access capabilities, IIoT functionality, and our most advanced feature set, making this capacitive touch panel a powerful solution for your application. Pair this operator interface with our remote IO and CODESYS license for soft PLC functionality.
Try Before You Buy: Follow along to learn how EBPro, our 100% free HMI configuration software, allows you to develop and simulate your HMI program entirely free of charge.
- Compare cMT3152Xv2 and other models.
- Volume Discounts available. Contact Sales for more details.
- Customize your product with your company logo. Minimum quantities apply.
- Learn More about how our products interface with over 300+ PLCs and Controllers.
- US Based Technical Support
System
| Memory (RAM) | 1 GB |
| Memory (Flash) | 4 GB |
| RTC | Built-in |
| Programming Software | EBPro (Latest Version) |

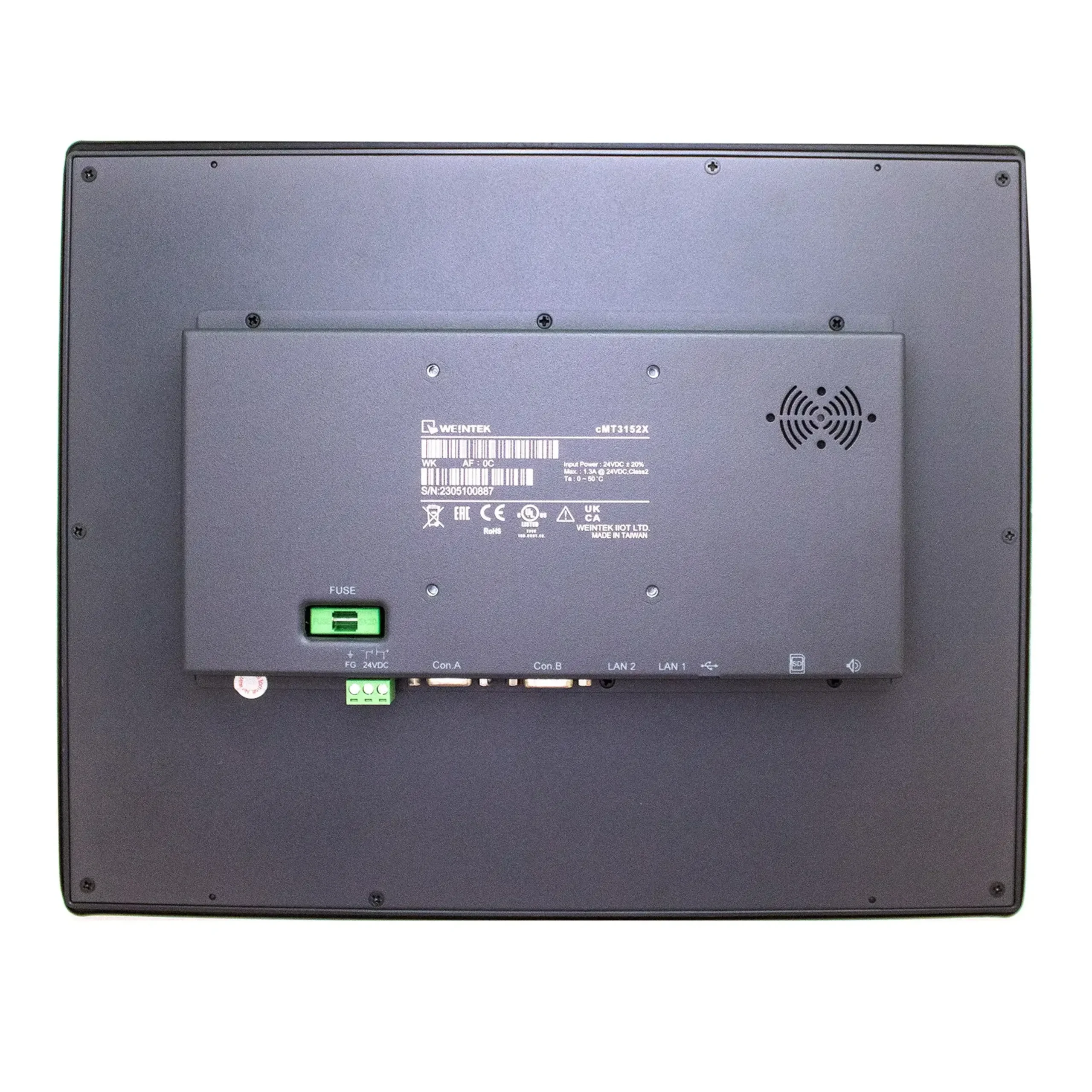

I/O Ports
| Serial Ports | 2 |
| Ethernet/LAN | LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1 |
| CANbus | Yes |
| Audio Output | 1x Line Out / Built-in Mono Speaker |
| SD Card Slot | SD/SDHC (32GB capacity) |
| USB Host Ports | USB 2.0 x 1 |
| USB Client Ports | N/A |
| Wi-Fi | N/A |
| COM Port | 1 x DE9S COM1: RS-485 2 or 4 wire, COM3: RS-485 2 wires CANbus 1 x DE9P COM1: RS-232, COM3: RS-232 |
| HDMI Port | N/A |
| Video Input | N/A |
Display
| Display Size | 15" WVA LCD |
| Resolution | 1024 X 768 |
| Luminance (cd/m^2) | 350 |
| Contrast Ratio | 2500:1 |
| Backlight Type | LED |
| Backlight Lifetime (hrs) | 70,000+ |
| Colors | 16.2 M |
| Display Type | 15" WVA LCD |
| Viewing Angle (H°/V°) | 176/176 |
| Size (W x H) | 12.05 x 9.06 inches [306 x 230 mm] |
Touch Screen
| Type | Tempered Glass, Projected Capacitive |
| Accuracy | N/A |
| Touch Panel Hardness Scale | 7H |
Electrical
| Input Power | 31.2 W |
| Power Isolation | Built-in |
| Isolation Resistance | Exceed 50 MO - @ 500 VDC |
| Input Voltage | 24 ± 20% VDC |
| Input Current | 1.3 A @ 24 VDC |
Mechanical
| Vibration Endurance | 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes) |
| Enclosure Material | Aluminum, charcoal grey |
| PCB Coating | Yes |
| Dimensions WxHxD | 14.41 x 11.54 x 2.03 inches [366 x 293 x 51.5 mm] |
| Panel Cutout (inches) [mm] | 13.86 x 10.98 [352 x 279] |
| Weight | Approx. 6.06 lbs. [2.75 kg] |
| Mounting | Panel mount, VESA 75 x 75 mm |
Environmental
| Storage Temperature | -4° ~ 140°F (-20° ~ 60°C) |
| Operating Temperature | 32° ~ 122°F (0° ~ 50°C) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| CE UKCA | Yes |
| UL Type Rating | UL Type 4X (indoor use only) |
| NEMA Rating | NEMA4 |
| IP Rating | IP66 Compliant Front Panel |
| CE | Yes |
| UL | cULus Listed |
| Class 1 Div 2 | N/A |
| ATEX | N/A |
| RoHS | Yes |
Connect a Maple Systems HMI to a Maple Systems PLC
Whether you are new to Maple Systems or know our HMIs well, pairing one of our powerful HMIs with a low-cost PLC is easy.
Customers who bought this product also bought:
-
EasyAccess 2.0 Activation Card. Remote Access$99.00 -
Screen Protector, 15.0” (303mm x 228mm) 1 each.$35.00 -
Power Supply, Single Output, DIN Rail, 24VDC, 2.5A.$50.00
-
Cable, CAT5E Ethernet, 5′$15.00 -
Cable, CAT5E Ethernet, Crossover, 5′$15.00
-
Mounting Clips Kit for HMI Ver. 2 (4 per set).$12.00
-
4 GB SD Card.$20.00
-
Input Power Connector$7.00
FREE User Friendly HMI Software
Download our free, full-featured HMI configuration software to create custom control applications for your industrial process. EBPro supports over 300 PLC & controller protocols, ensuring seamless integration with new or existing systems. No license or key required.
Documents
Manuals
- EBPro Programming Manual
- EBPro Quick Start Guide
- cMT Quick Start Guide
- Installation Guide
- cMT OPC UA Server Setup Overview
- cMT/HMI MQTT User Manual
- cMT MS SQL Quick Start Guide
- cMT MySQL Quick Start Guide
- CODESYS Activation instructions
- CODESYS / cMT Quick Start Guide
- EasyWeb 2.0-Operations-Manual
Certifications
- RoHS Certification
- UL Certification
- CE UK Declaration of Conformity
- EU Declaration of Conformity
- REACH Certification
- Trade Agreement Act
- Russian Iron and Steel Declaration
Need Additional Support?
Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204
Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com
Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)
When you order the cMT3152Xv2 the following items are included in the box:
- cMT3152Xv2 Touchscreen HMI
- Warranty Statement
- Installation Instruction
- Product Flyer
- Spare Fuse
- Power Connector
- Mounting Clips
