cMT2158Xv2

15.0" Dual-Ethernet Advanced HMI

cMT2158Xv2

$1,759.00

Buy Now

The cMT2158Xv2 features an aluminum enclosure, powerful CPU, remote access capabilities, IIoT functionality, and an advanced feature set, making this touch panel a powerful solution for your application. Pair this operator interface with our remote IO and CODESYS license for soft PLC functionality. Because our free HMI software supports Modbus and over 300 different PLC and controllers, pairing one of our HMIs with your Allen-Bradley, Seimens, Omron, and/or Emerson PLC is easy.

Specifications

System

Memory (RAM)

1 GB

Memory (Flash)

4 GB

RTC

Built-in

Programming Software

EBPro (v6.08.01 or later)

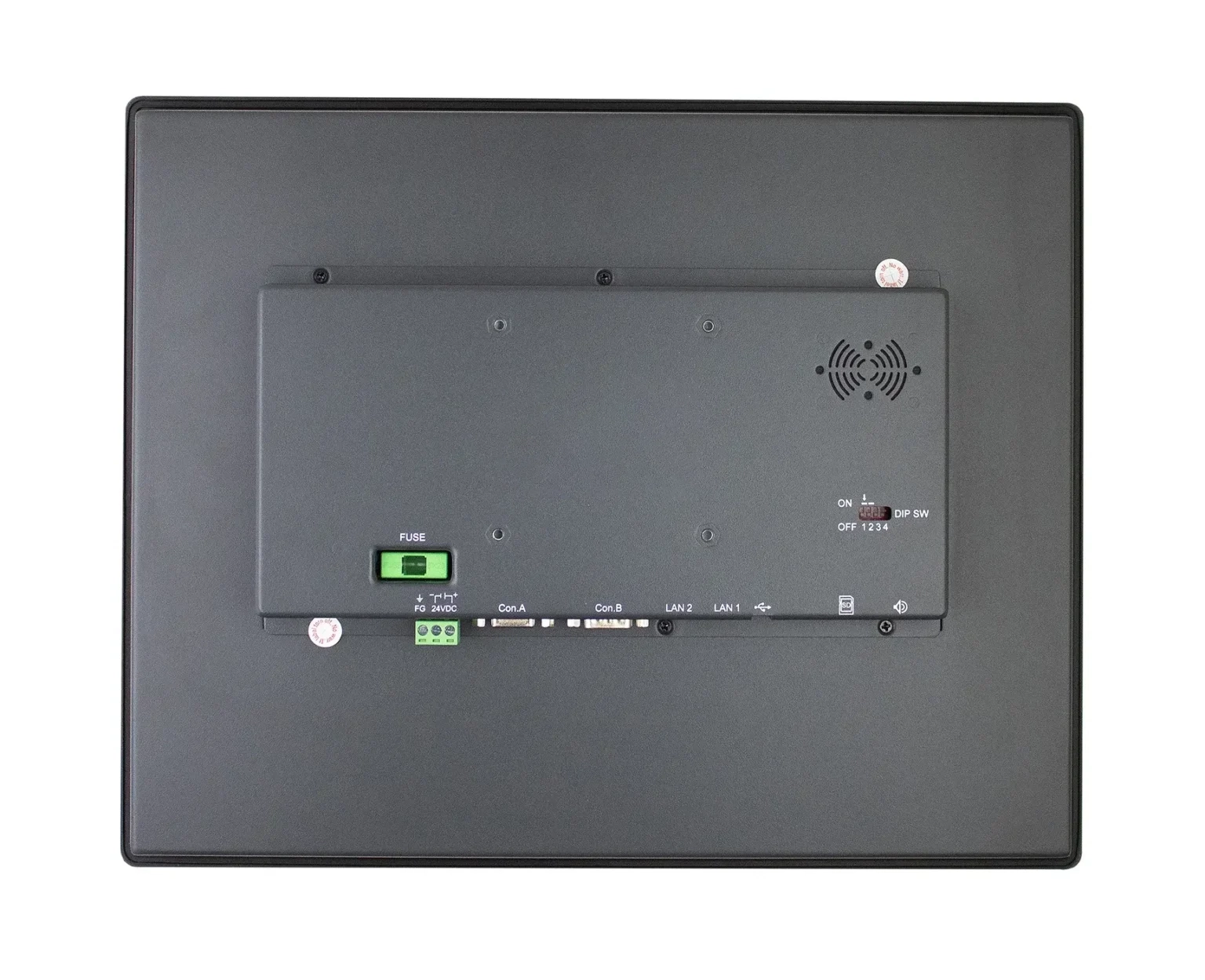

I/O Ports

Serial Ports

2

Ethernet/LAN

LAN 1: 10/100 Base-T RJ-45; LAN 2: GbE RJ-45

CANbus

N/A

Audio Output

1x Line Out / Built-in Mono Speaker

SD Card Slot

SD/SDHC (32GB capacity)

USB Host Ports

USB 2.0 x 1

USB Client Ports

N/A

Wi-Fi

N/A

COM Port

COM1: RS-232 COM2: RS-485 2W/4W COM3: RS-232/RS-485 2W*2

RS-485 Dual Isolation

N/A

Local bus

N/A

HDMI Port

N/A

Video Input

N/A

Display

Resolution

1024 X 768

Luminance (cd/m^2)

350

Contrast Ratio

2500:1

Backlight Type

LED

Backlight Lifetime (hrs)

70,000+

Colors

16.2 M

Display Type

15" WVA LCD

Viewing Angle (H°/V°)

176/176

Size (W x H)

12.00 x 9.00 inches [304.7 x 228.5 mm]

Touch Screen

Type

4-wire resistive touch

Accuracy

Length (x)±2%, Width(y)±2%

Touch Panel Hardness Scale

N/A

Electrical

Power Isolation

Built-in

Power Dissipation

N/A

Current for Internal Bus

N/A

Current Consumption

N/A

Isolation Resistance

Exceed 50 MO - @ 500 VDC

Input Voltage

24 ± 20% VDC

Input Current

1.3 A @ 24 VDC

Mechanical

Vibration Endurance

10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Enclosure Material

Black Aluminum

PCB Coating

Yes

Dimensions WxHxD

14.41 x 11.54 x 1.9 inches [366 x 293 x 48.2 mm]

Panel Cutout (inches) [mm]

13.86 x 10.98 [352 x 279]

Weight

Approx. 5.73 lbs. [2.6 kg]

Mounting

Panel mount, VESA 75 x 75 mm

Environmental

Storage Temperature

-4° ~ 140°F (-20° ~ 60°C)

Operating Temperature

32° ~ 122°F (0° ~ 50°C)

Relative Humidity

10% ~ 90% (non-condensing)

Certification

UL Type Rating

UL Type 4X (indoor use only)

NEMA Rating

NEMA4

IP Rating

IP66 Compliant Front Panel

CE

Yes

UL

cULus Listed

Class 1 Div 2

N/A

ATEX

N/A

RoHS

Yes

What's Included

When you order the cMT2158Xv2 the following items are included in the box:

  • cMT2158Xv2 Touchscreen HMI
  • Warranty Statement
  • Installation Instruction
  • Product Flyer
  • Power Connector
  • Mounting Clips
  • Spare Fuse
