cMT3102Xv2
- 1024 x 600 Resolution, 2 Ethernet Ports, 1 USB Port, 2 Serial Ports, CANbus
- Wifi Capable via Expansion Module*
- Supports CODESYS with Soft PLC Functionality, Web Browser, Email, and more
- IIoT, Remote Access, MQTT, OPCUA Client/Server, SQL Database
- cULus, CE, RoHS, IP66, NEMA4, ATEX

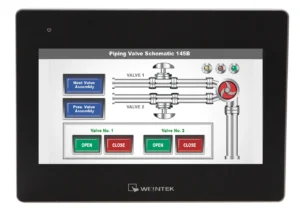

10.1" WiFi Capable High Performance HMI
cMT3102Xv2
$1,100.00
The cMT3102Xv2 features a powerful CPU, remote access capabilities, IIoT functionality, and our most advanced feature set, making this ATEX Certified touch panel a powerful solution for your application. Pair this operator interface with our remote IO and CODESYS license for soft PLC functionality.
Try Before You Buy: Follow along to learn how EBPro, our 100% free HMI configuration software, allows you to develop and simulate your HMI program entirely free of charge.
- Compare cMT3102Xv2 and other models.
- Volume discounts available. Contact sales for more details.
- Customize your product with your company logo. Minimum quantities apply.
- Connects to +400 PLCs and Controllers.
- US Based Technical Support
Share the product:
Review this product
Share your thoughts with other customers about this product
System
| Memory (RAM) | 1 GB |
| Memory (Flash) | 4 GB |
| RTC | Built-in |
| Programming Software | EBPro (Latest Version) |
I/O Ports
| Serial Ports | 2 |
| Ethernet/LAN | LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1 |
| CANbus | Yes |
| Audio Output | N/A |
| SD Card Slot | N/A |
| USB Host Ports | USB 2.0 x 1 |
| USB Client Ports | N/A |
| Wi-Fi | MO2 Wifi – Expansion Module (Optional) |
| COM Port | CANbus 1 x DE9S COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wires 1 x DE9P COM1: RS-232, COM3: RS-232 |
| RS-485 Dual Isolation | Yes |
| HDMI Port | N/A |
| Video Input | N/A |
Display
| Display Size | 10.1" TFT |
| Resolution | 1024 x 600 |
| Luminance (cd/m^2) | 350 |
| Contrast Ratio | 500:1 |
| Backlight Type | LED |
| Backlight Lifetime (hrs) | 50,000+ |
| Colors | 16.7 M |
| Display Type | 10.1" TFT |
| Viewing Angle (H°/V°) | 160/140 |
| Size (W x H) | 8.82 x 4.96 inches [224 x 126 mm] |
Touch Screen
| Type | 4-wire resistive touch |
| Accuracy | Length (X) ±2%, width (Y) ±2% |
Electrical
| Input Power | 24 W |
| Power Isolation | Built-in |
| Isolation Resistance | Exceed 50 MO – @ 500 VDC |
| Input Voltage | 24 ± 20% VDC |
| Input Current | 1 A @ 24 VDC |
Mechanical
| Vibration Endurance | 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes) |
| Enclosure Material | Plastic, charcoal grey |
| PCB Coating | Yes |
| Dimensions WxHxD | 10.67 x 8.39 x 1.50 inches [271 x 213 x 38 mm] |
| Panel Cutout (inches) [mm] | 10.24 x 7.95 [260 x 202] |
| Weight | Approx. 2.65 lbs. [1.2 Kg] |
| Mounting | Panel mount, VESA 75 x 75 mm |
Environmental
| Storage Temperature | -4° ~ 140°F (-20° ~ 60°C) |
| Operating Temperature | 32° ~ 122°F (0° ~ 50°C) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
Certification
| UL Type Rating | UL Type 4X (indoor use only) |
| NEMA Rating | NEMA4 |
| IP Rating | IP66 Compliant Front Panel |
| CE | Yes |
| UL | cULus Listed |
| Class 1 Div 2 | N/A |
| ATEX | Ex ec IIC T6 Gc/Ex tc IIB T80°C Dc/Ex II 3 GD |
| RoHS | Yes |
