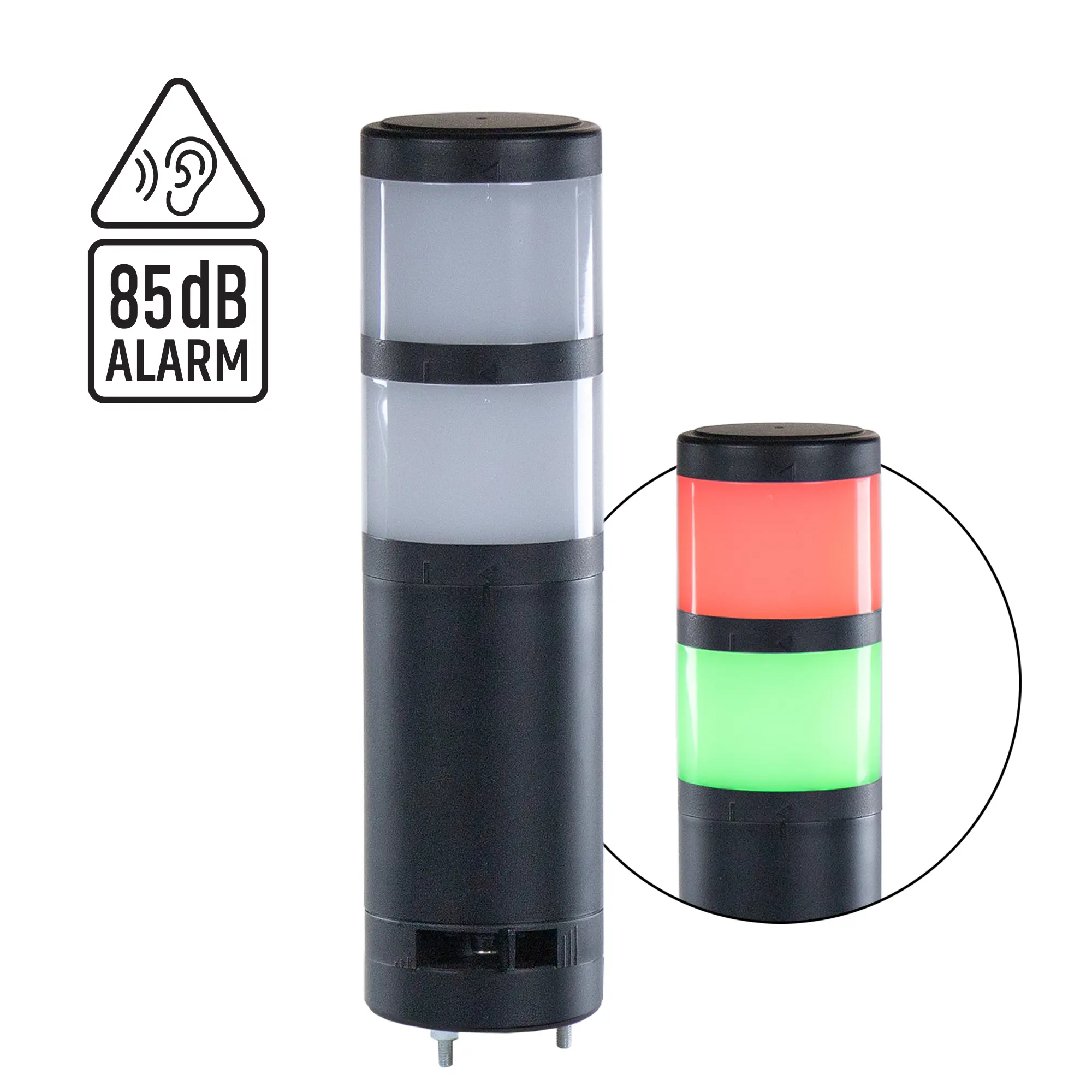

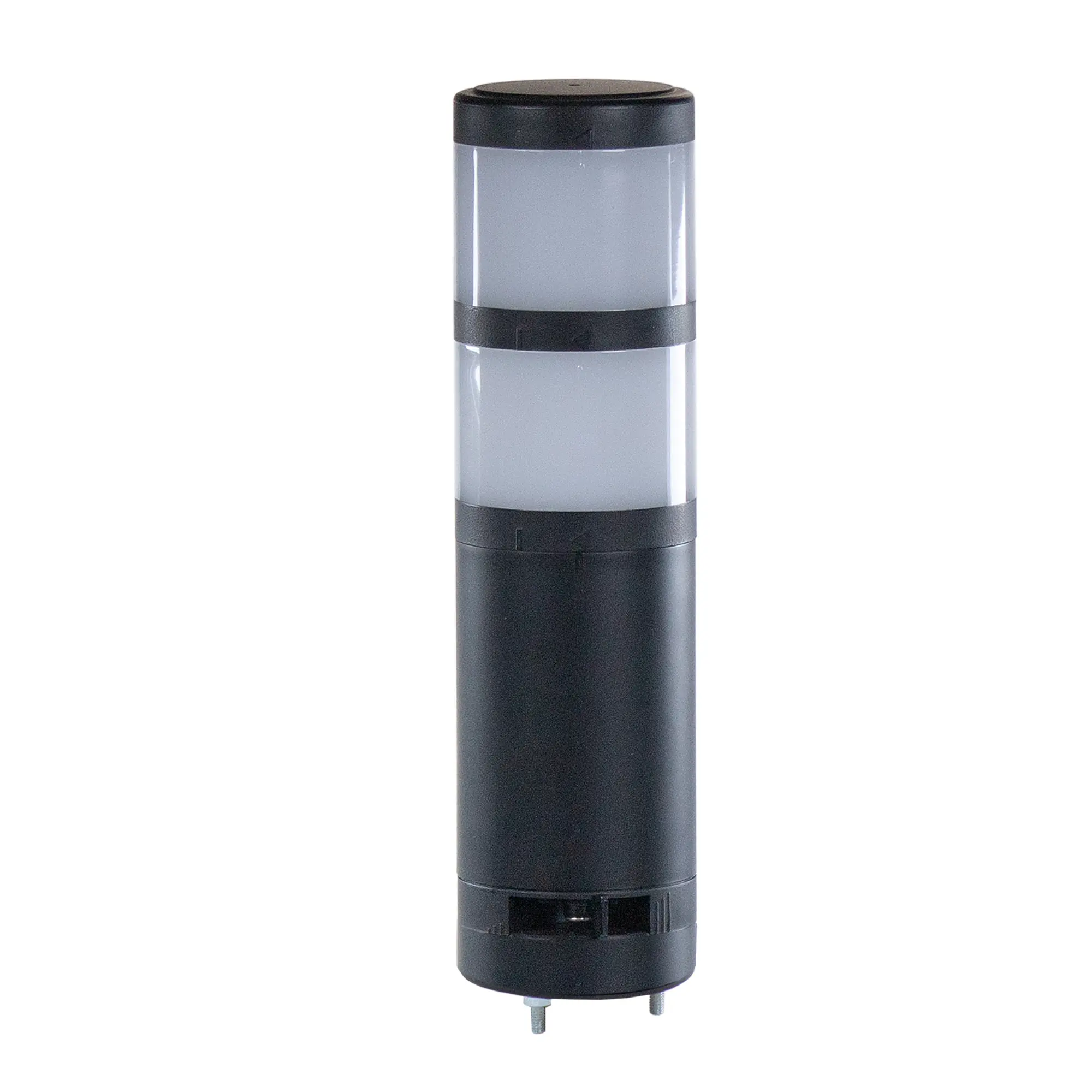

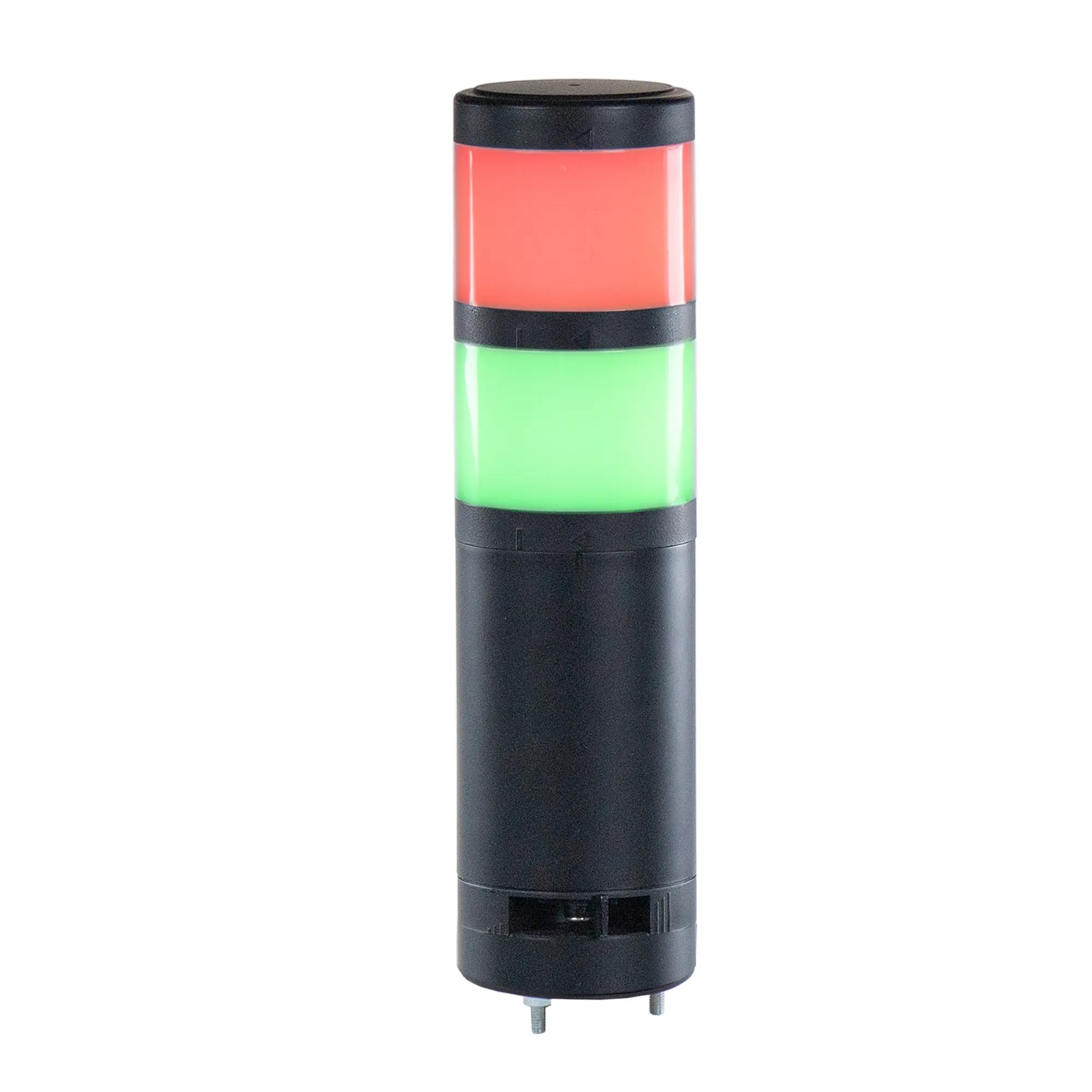

2-Tier LED Tower Signal Light, Direct Mount, Red/Green with Buzzer
$105.00
Improve visibility and response times on the factory floor with this 2-tier red/green, direct-mounted tower light with an integrated audible alarm for enhanced signaling. Engineered for harsh environments, this ruggedly built tower light operates reliably across a wide temperature range. The modular LED design incorporates a diffused (opal) lens that delivers smooth 360°, glare-free visibility. The built-in buzzer with adjustable volume adds an extra layer of alerting, helping operators quickly respond to critical machine states or process changes.
- US-based technical support.
Share the product:
Optical
| Light Source | LED |
| Lens | Opal Polycarbonate |
| Layers | 2 |
| Light Color | Red, Green |
Signaling
| Steady Light | Steady/Solid |
| Flashing Light | 60-80/min |
| Sound – Buzzer | Buzzer with volume control (Max 85dB @3ft) |
Electrical
| Input Voltage | 24 VDC |
| Input Current w/ Buzzer | 215mA |
| Connection | Flying Leads: 15.75" [400mm] |
Mechanical
| Weight | ~ 0.75 lbs [0.34 kg] |
| Mounting | 3 x M4 Flange Nuts |
| Construction | ABS Housing, Polycarbonate Lens |
| Dimensions w/ Buzzer | Ø2.36 x 8.31" [Ø60 x 211mm] |
Environmental
| Operating Temperature | -22° ~ 122°F (-30° ~ 50°C) |
| Rating w/ Buzzer | IP54 |
| Certifications | CE/ RoHS/ cULus |
When you order the TL160D2BF-2 the following items are included in the box:
1 x 2-Tier Red/Green Tower Light with Buzzer
3 x M4 Flange Nuts (pre-installed)
1 x Warranty Statement
1 x TL1 Quick Start Guide
