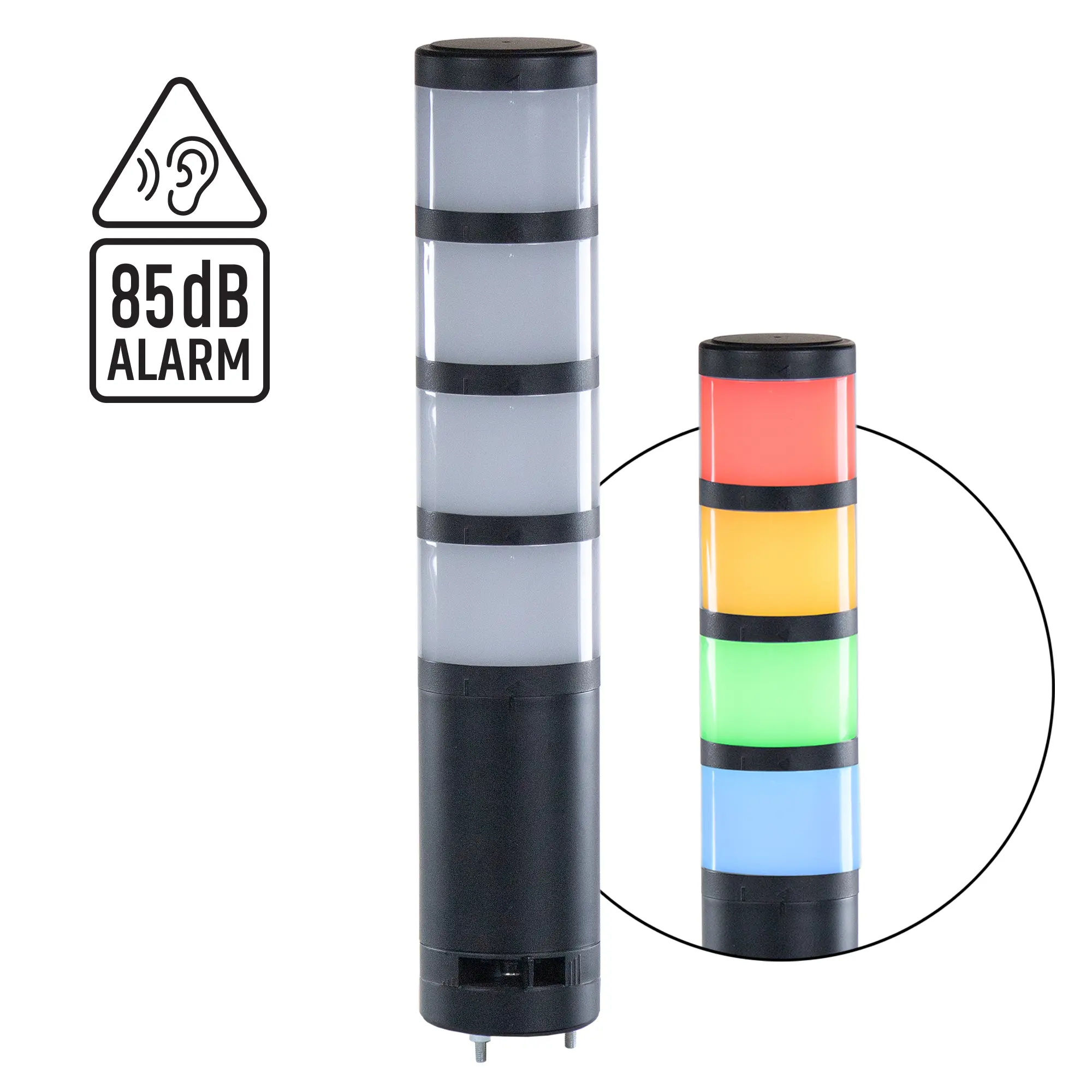

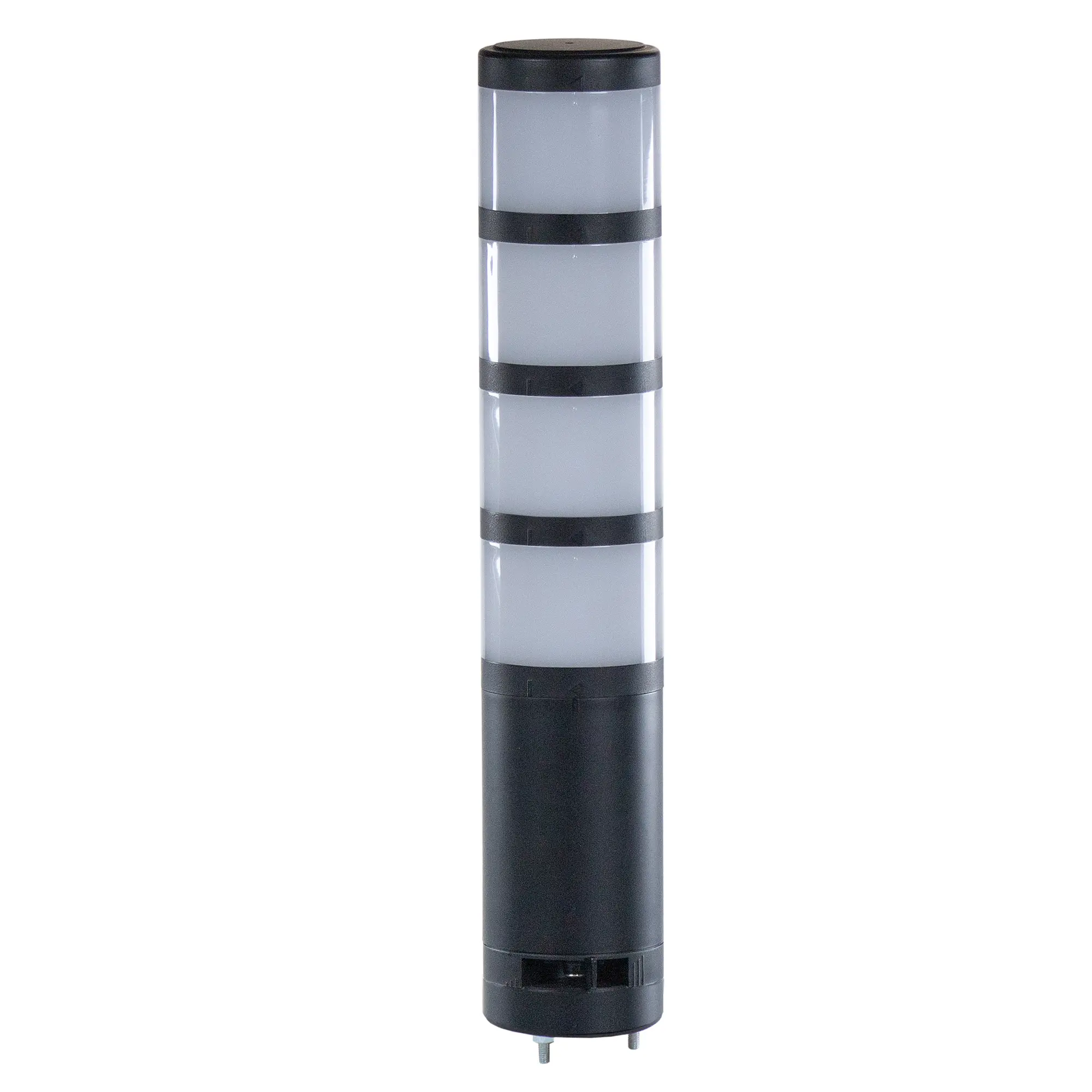

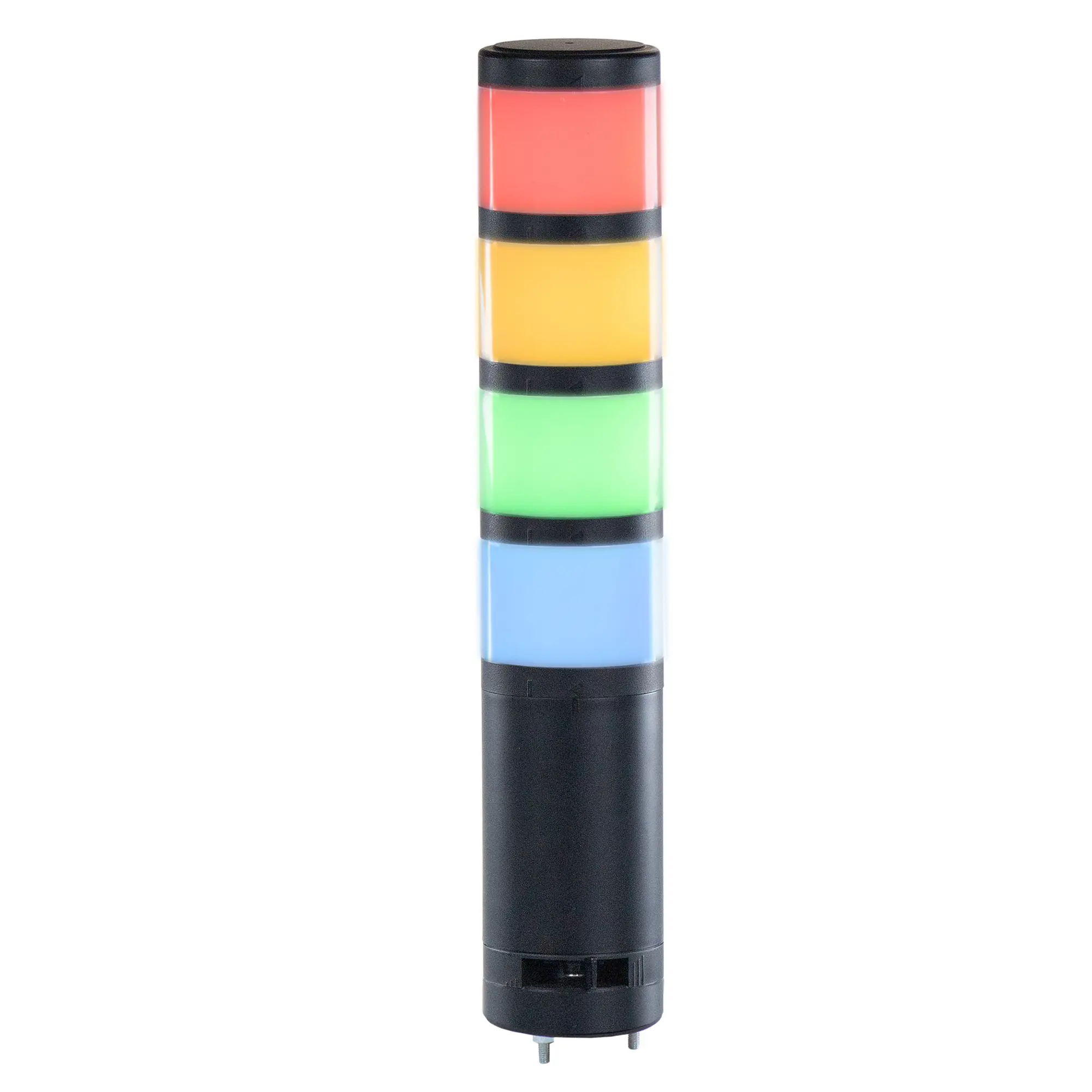

4-Tier LED Tower Signal Light, Direct Mount, Red/Amber/Green/Blue with Buzzer
$145.00
Improve visibility and response times on the factory floor with this 4-tier red/amber/green/blue, direct-mounted tower light with an integrated audible alarm for enhanced signaling. Engineered for harsh environments, this ruggedly built tower light operates reliably across a wide temperature range. The modular LED design incorporates a diffused (opal) lens that delivers smooth 360°, glare-free visibility. The built-in buzzer with adjustable volume adds an extra layer of alerting, helping operators quickly respond to critical machine states or process changes.
- US-based technical support.
Share the product:
Optical
| Light Source | LED |
| Lens | Opal Polycarbonate |
| Layers | 4 |
| Light Color | Red, Amber, Green, Blue |
Signaling
| Steady Light | Steady/Solid |
| Flashing Light | 60-80/min |
| Sound – Buzzer | Buzzer with volume control (Max 85dB @3ft) |
Electrical
| Input Voltage | 24 VDC |
| Input Current w/ Buzzer | 355mA |
| Connection | Flying Leads: 15.75" [400mm] |
Mechanical
| Weight | ~ 1.13 lbs [0.51 kg] |
| Mounting | 3 x M4 Flange Nuts |
| Construction | ABS Housing, Polycarbonate Lens |
| Dimensions w/ Buzzer | Ø2.36 x 12.24" [Ø60 x 311mm] |
Environmental
| Operating Temperature | -22° ~ 122°F (-30° ~ 50°C) |
| Rating w/ Buzzer | IP54 |
| Certifications | CE/ RoHS/ cULus |
Tower Stack Light Unboxing
We'll show what comes in the box, pole mount and direct mount options, show mounting accessories, and a live demo.
Should the stack light be steady or flashing?
These lights have functionality for both. Generally a Steady light is used for normal operation (e.g., steady green). While a Flashing light is used to denote a higher urgency or specific state, such as a machine warning or emergency situation.
Tower Stack Light with a buzzer: When Is Sound Necessary?
In loud production environments, a visual signal alone may not be enough. Operators may be away from the line, looking in another direction, or wearing hearing protection. In such cases, a Tower Stack Light With Buzzer can dramatically improve reaction times.
A typical stack light with buzzer integrates an acoustic module (often around 80–90 dB at 1 meter) into the tower. When a critical alarm is active, the corresponding color segment illuminates and the buzzer sounds with a continuous or pulsed pattern. This double indication reduces the risk of missed alarms and helps maintain safety and productivity.
What mounting options are available for the stack lights?
We have a variety of mounting options. They can be directly mounted to a control cabinet or chose a variety of bases that various length poles can be attached.
What is the standard Tower Stack Light?
A typical tower light has three to five colored segments. Each color should represent a distinct machine status (e.g., Red = Fault, Amber = Warning, Green = Running, Blue = Maintenance, White = Custom).
It is tempting to select the tallest tower with the most colors “just in case”. But the best installations are usually simple and clear.
- 1 layer: Perfect for compact machines where only one critical state is indicated – typically red for alarm or stop.
- 2 layers: A common combination is red (fault) + green (run). Many small machines and workstations use this configuration.
- 3 layers: Red (fault), amber (warning), green (normal). This is very popular on automated lines and CNC machines.
- 4 layers: Adds blue (operator call) or white (special mode) to the standard three-color set.
- 5 layers: Maximum flexibility for complex processes with multiple sub-states.
Are the tower lights LED or incandescent?
LED, LEDs provide higher brightness, lower power consumption, and a significantly longer lifespan than incandescent bulbs. They also perform better in high shock and vibration environments, making LED stack lights ideal for demanding manufacturing, automation, and machine status indication applications.
What happens if one of the lights burn out on my Tower Stack Light?
We do not sell replacements, you’ll need to purchase a new stack.
Products
Manuals and Guides
Technical Articles and Case Studies
Integrations
Support
- [email protected]
- 425.745.3229
- maplesystems.com
Can I change the order of the lights on my Stack Lights?
Yes, our tower stack lights are a modular design which allows you to easily take apart the lights and rearrange as needed. Simply twist, remove, reattach as desired.
Products
Manuals and Guides
Technical Articles and Case Studies
Integrations
Support
- [email protected]
- 425.745.3229
- maplesystems.com
How do I ensure a watertight seal when mounting a tower light to my cabinet.
Our BR0218SA, is our Silver Aluminum Pole Mount Bracket. This bracket comes with a gasket, so when its installed properly, you’ll have a water tight seal for outdoor and washdown applications.
Products
Manuals and Guides
Technical Articles and Case Studies
Integrations
Support
- [email protected]
- 425.745.3229
- maplesystems.com
I need a longer pole for my Tower Stack Light, do I have options?
Yes! All our pole mounted stack lights come with the TP180250, a 9.84″ (Ø18mm x 250mm) pole, already attached to the stack, with the wiring fed through and bundled at the bottom.
Additionally, we offer pole lengths from 3.94 to 39.37″ that can be purchased separately.
Products
Manuals and Guides
Technical Articles and Case Studies
Integrations
Support
- [email protected]
- 425.745.3229
- maplesystems.com
Is the buzzer volume adjustable on your Tower Stack Lights?
Yes, on the buzzer base, there is a volume control switch. This allows you to change the volume on the buzzer with ease.
Products
Manuals and Guides
Technical Articles and Case Studies
Integrations
Support
- [email protected]
- 425.745.3229
- maplesystems.com

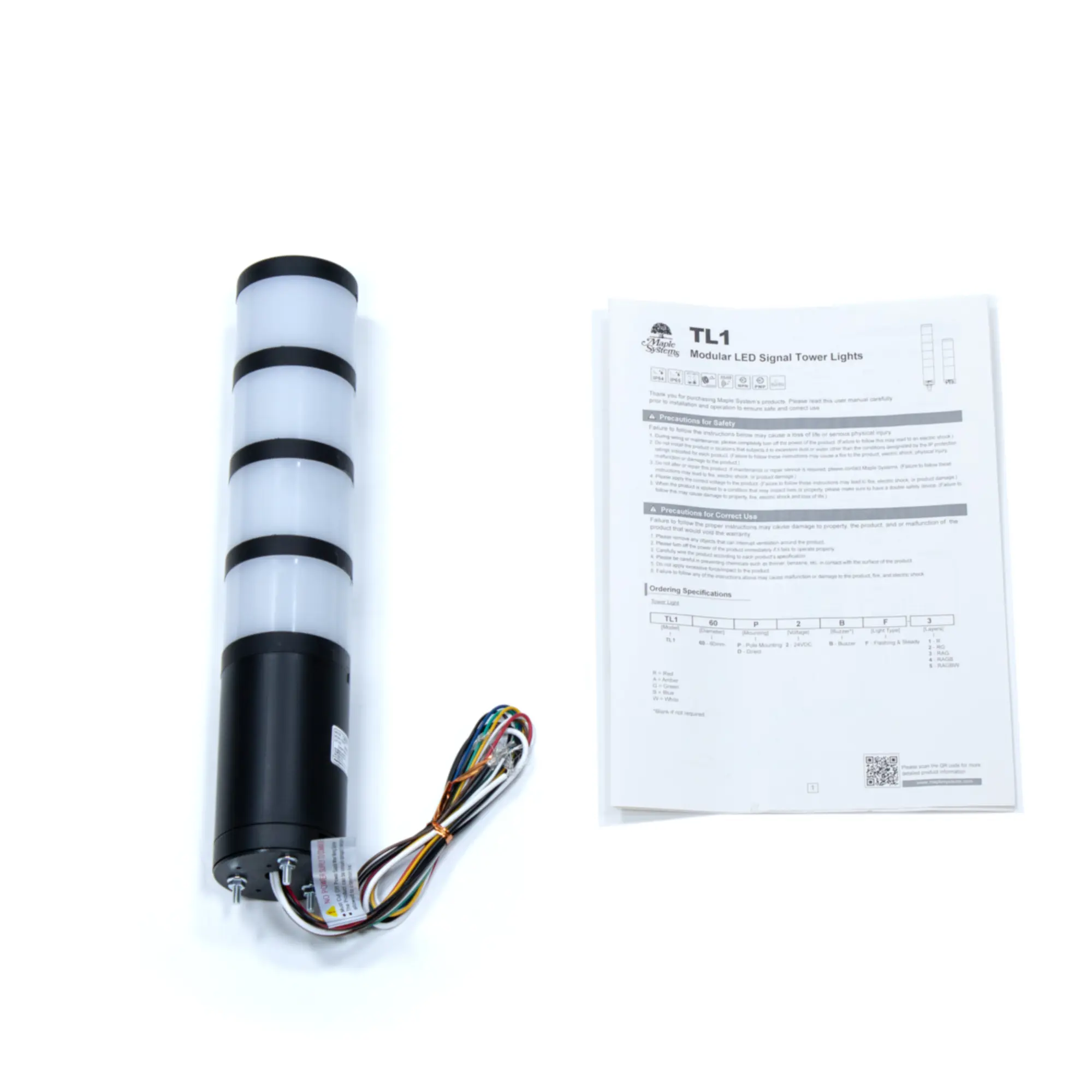

When you order the TL160D2BF-4 the following items are included in the box:
1 x 4-Tier Red/Amber/Green/Blue Tower Light with Buzzer
3 x M4 Flange Nuts (pre-installed)
1 x Warranty Statement
1 x TL1 Quick Start Guide
