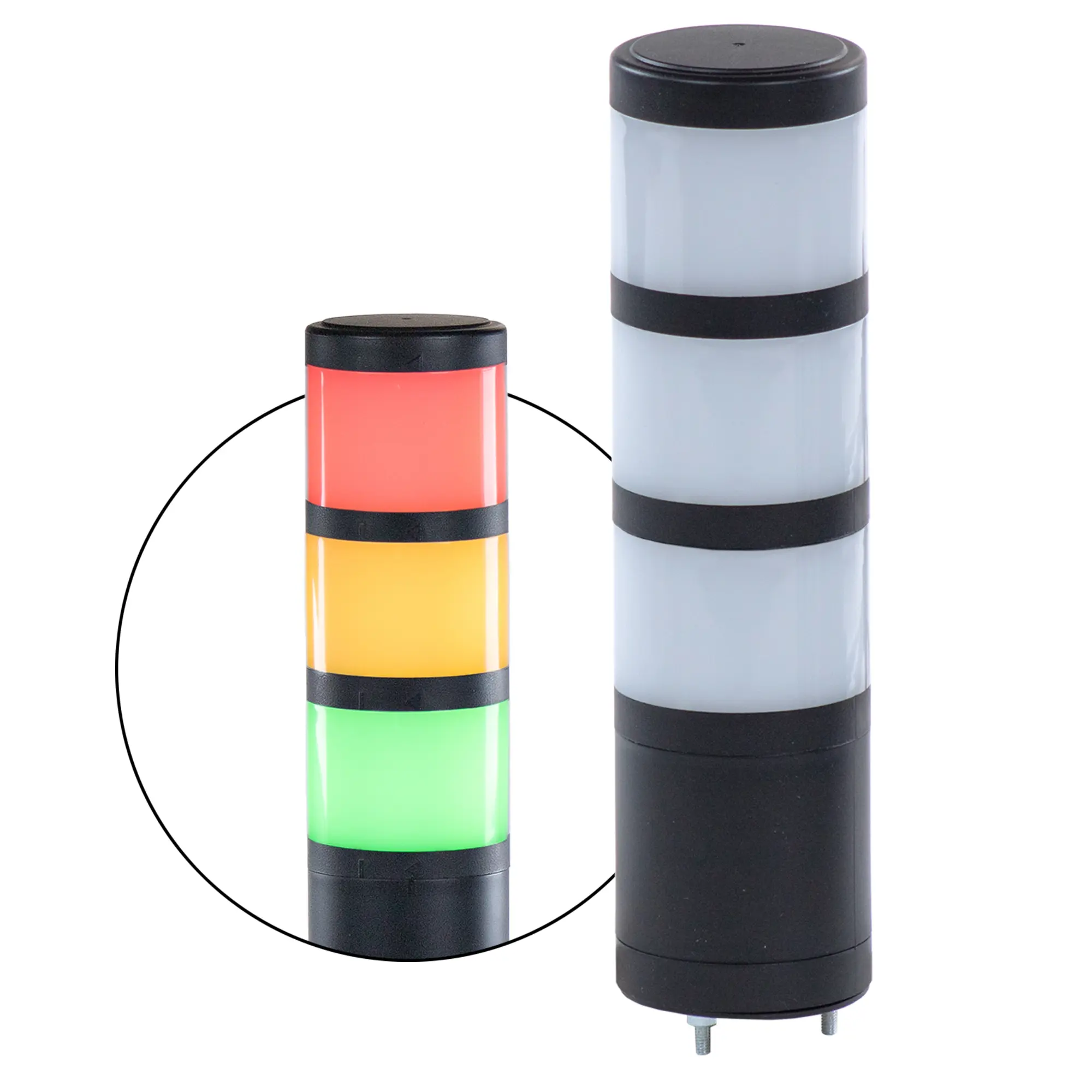

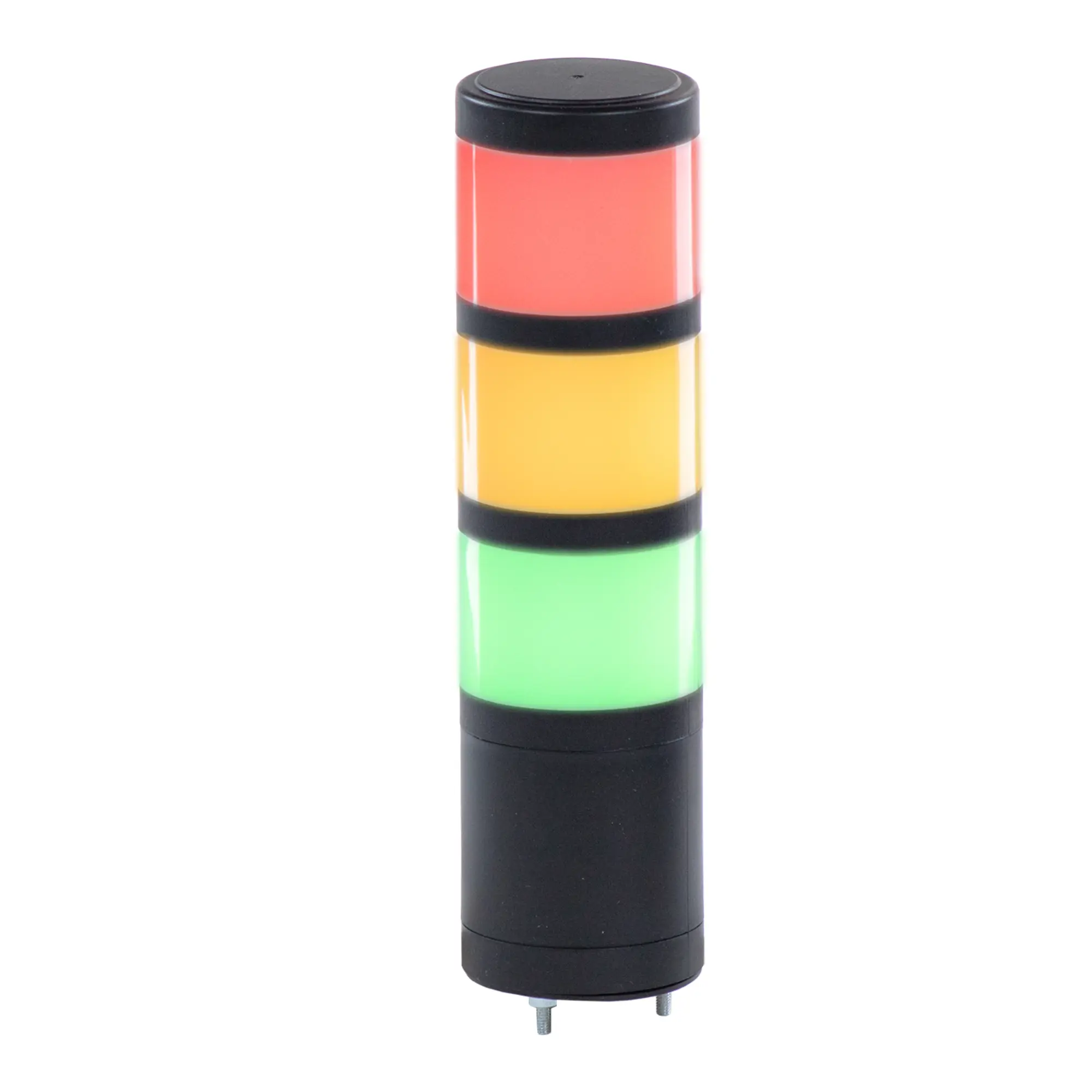

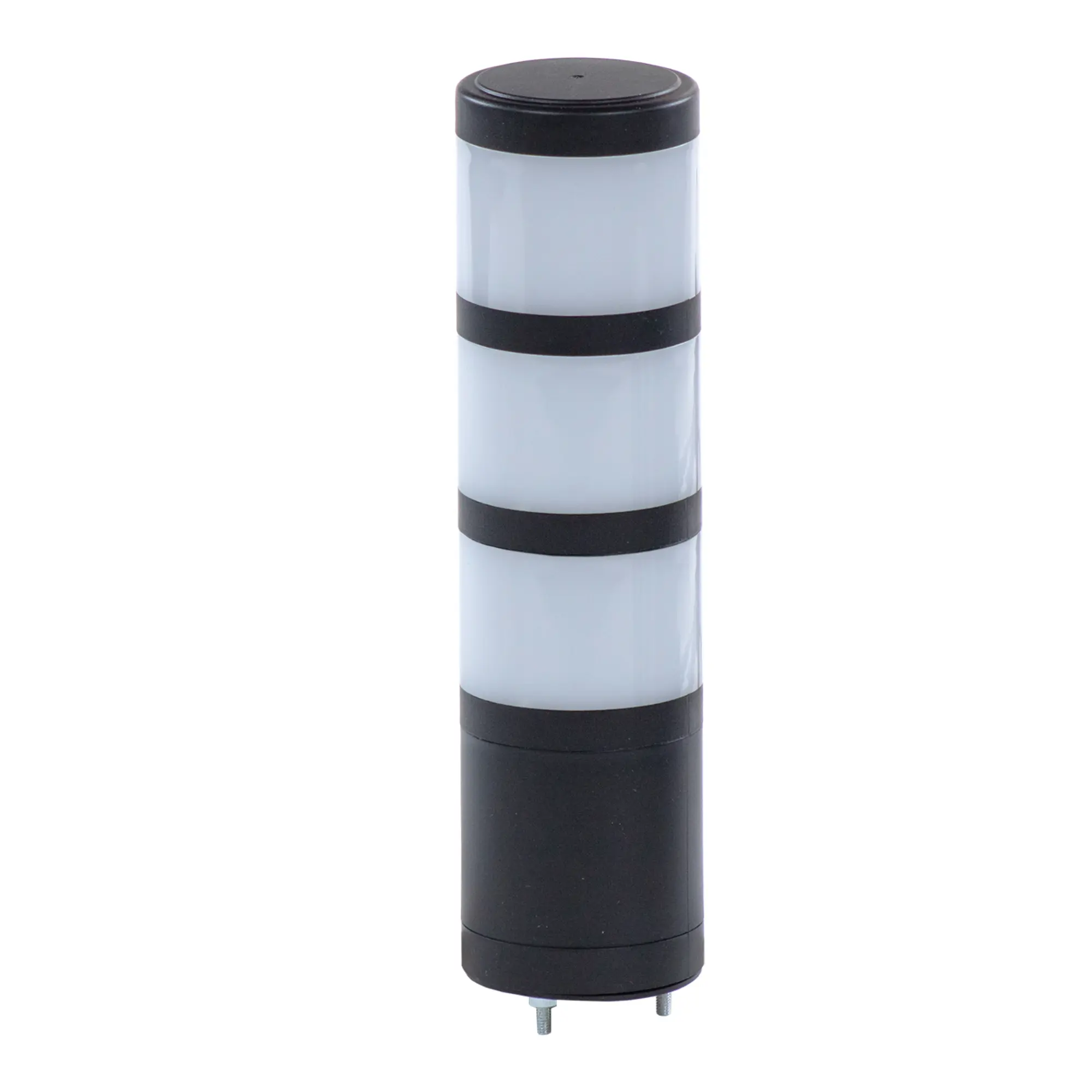

3-Tier LED Tower Signal Light, Direct Mount, Red/Amber/Green
$115.00
Designed for reliability and flexibility in demanding industrial environments, this 3-tier red/amber/green combo, direct-mounted tower light delivers clear, highly visible signaling in a compact, modular form. Built with durable industrial grade materials, it performs consistently across a wide temperature range, making it ideal for factory floors, automation systems, and even outdoor applications. The modular LED design features diffused (opal) lenses that provides smooth, 360° illumination for a comfortable, glare-free view from any angle.
- US-based technical support.
Share the product:
Optical
| Light Source | LED |
| Lens | Opal Polycarbonate |
| Layers | 3 |
| Light Color | Red, Amber, Green |
Signaling
| Steady Light | Steady/Solid |
| Flashing Light | 60-80/min |
Electrical
| Input Voltage | 24 VDC |
| Input Current w/out Buzzer | 210mA |
| Connection | Flying Leads: 15.75" [400mm] |
Mechanical
| Weight | ~ 0.95 lbs [0.43 kg] |
| Mounting | 3 x M4 Flange Nuts |
| Construction | ABS Housing, Polycarbonate Lens |
| Dimensions w/out Buzzer | Ø2.36 x 8.90" [Ø60 x 226mm] |
Environmental
| Operating Temperature | -22° ~ 122°F (-30° ~ 50°C) |
| Rating w/out Buzzer | IP65 |
| Certifications | CE/ RoHS/ cULus |

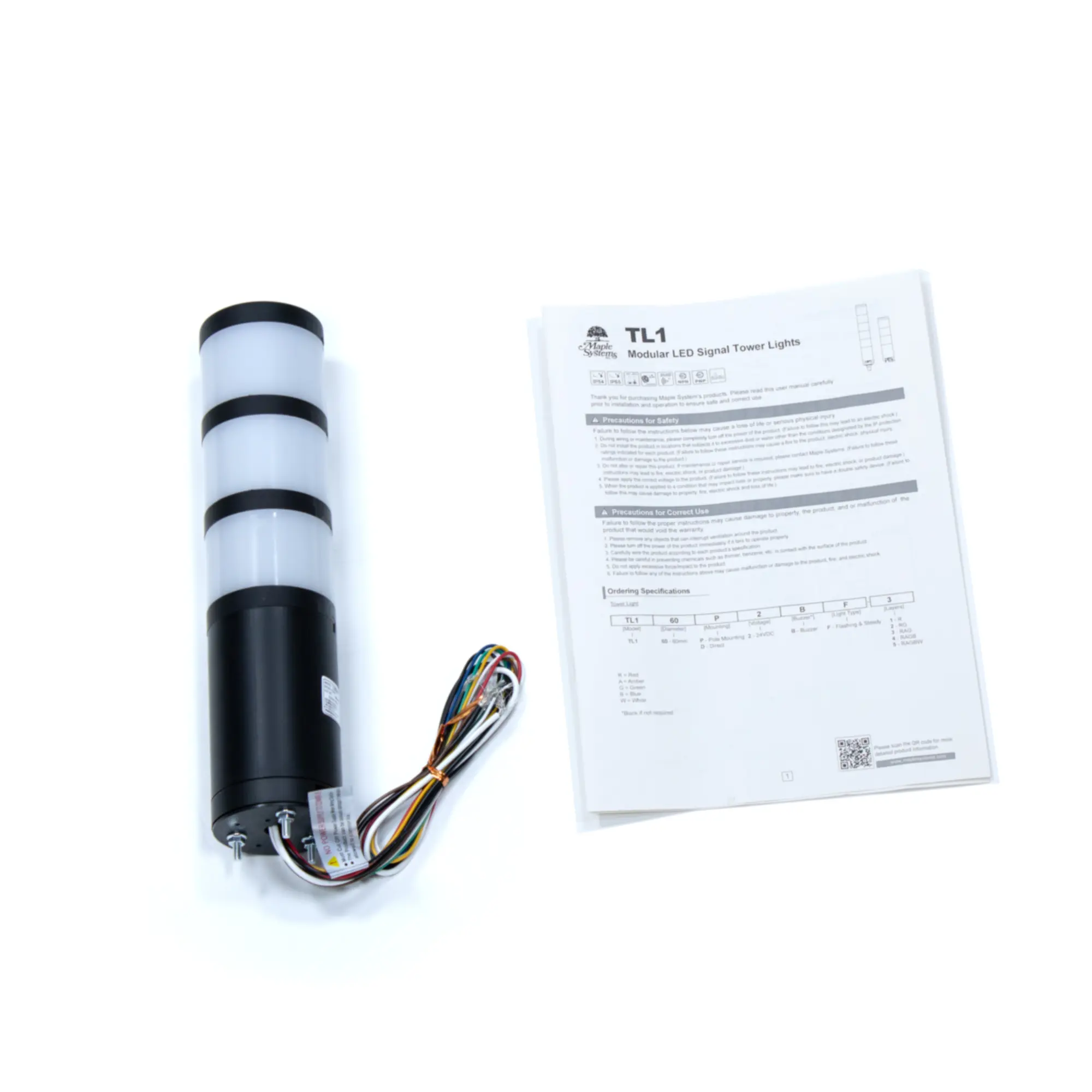

When you order the TL160D2F-3 the following items are included in the box:
1 x 3-Tier Red/Amber/Green Tower Light
3 x M4 Flange Nuts (pre-installed)
1 x Warranty Statement
1 x TL1 Quick Start Guide
