Connection Parameters Needed for HMI/cMT Products to Communicate with XINJE MTX XD/XL Series using EBPro (EasyBuilder Pro)

Introduction

All Maple Systems HMIs programmed with EBPro (EasyBuilder Pro), including every cMT X Series and cMT Series model, are compatible with XINJE MTX XD/XL Series. Configure your Controller and HMI/cMT with the following parameters to establish reliable communication.

Supported Series: XINJE MTX XD/XL Series

Website: http://www.xinje.com

HMI Settings

Parameters	Recommended	Options
PLC type	XINJE MTX XD/XL Series
PLC I/F	RS232	RS232/Ethernet
Baud rate	19200
Data bits	8
Parity	Even
Stop bits	1
Port	502

Device Address

Bit/Word	Device Type	Format	Range
B	M	DDDDDDDD	0 ~ 16777215
B	X	OOOOOOOO	0 ~ 77775615
B	Y	OOOOOOOO	0 ~ 77775615
B	S	DDDDDDDD	0 ~ 16777215
B	SM	DDDDDDDD	0 ~ 16777215
B	T	DDDDDDDD	0 ~ 16777215
B	C	DDDDDDDD	0 ~ 16777215
B	ET	DDDDDDDD	0 ~ 16777215
B	SEM	DDDDDDDD	0 ~ 16777215
B	HM	DDDDDDDD	0 ~ 16777215
B	HS	DDDDDDDD	0 ~ 16777215
B	HT	DDDDDDDD	0 ~ 16777215
B	HC	DDDDDDDD	0 ~ 16777215
B	HSC	DDDDDDDD	0 ~ 16777215
W	D	DDDDDDDD	0 ~ 16777215
W	ID	DDDDDDDD	0 ~ 16777215
W	QD	DDDDDDDD	0 ~ 16777215
W	SD	DDDDDDDD	0 ~ 16777215
W	TD	DDDDDDDD	0 ~ 16777215
W	CD	DDDDDDDD	0 ~ 16777215
W	ETD	DDDDDDDD	0 ~ 16777215
W	HD	DDDDDDDD	0 ~ 16777215
W	HSD	DDDDDDDD	0 ~ 16777215
W	HTD	DDDDDDDD	0 ~ 16777215
W	HSCD	DDDDDDDD	0 ~ 16777215
W	FD	DDDDDDDD	0 ~ 16777215
W	SFD	DDDDDDDD	0 ~ 16777215
W	FS	DDDDDDDD	0 ~ 16777215

Wiring Diagrams

NOTE: The serial port pin assignments may vary between HMI models.

Diagram 1: RS-232

HMI	Direction	PLC
Pin assignments		RS232 8P Mini-DIN Male
Rx	↔ (bidirectional)	5 TX
Tx	↔ (bidirectional)	4 RX
GND	↔ (bidirectional)	8 GND

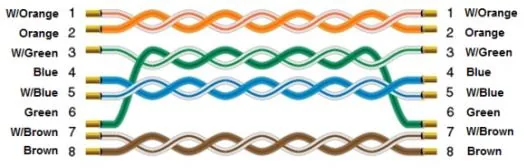

Diagram 2: Ethernet

RJ45 straight-through Ethernet cable wiring diagram showing pin-to-pin color assignments for all 8 conductors.
