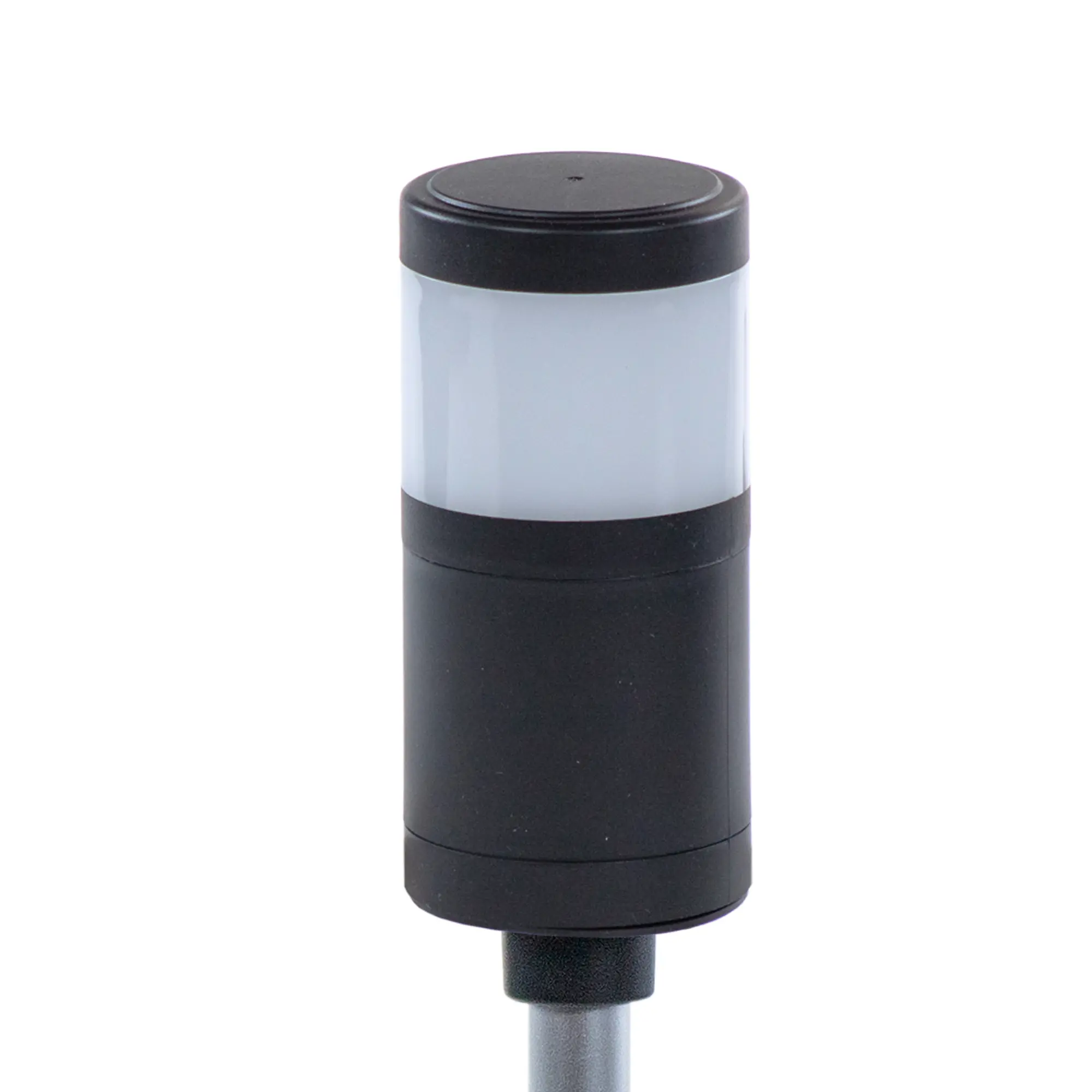

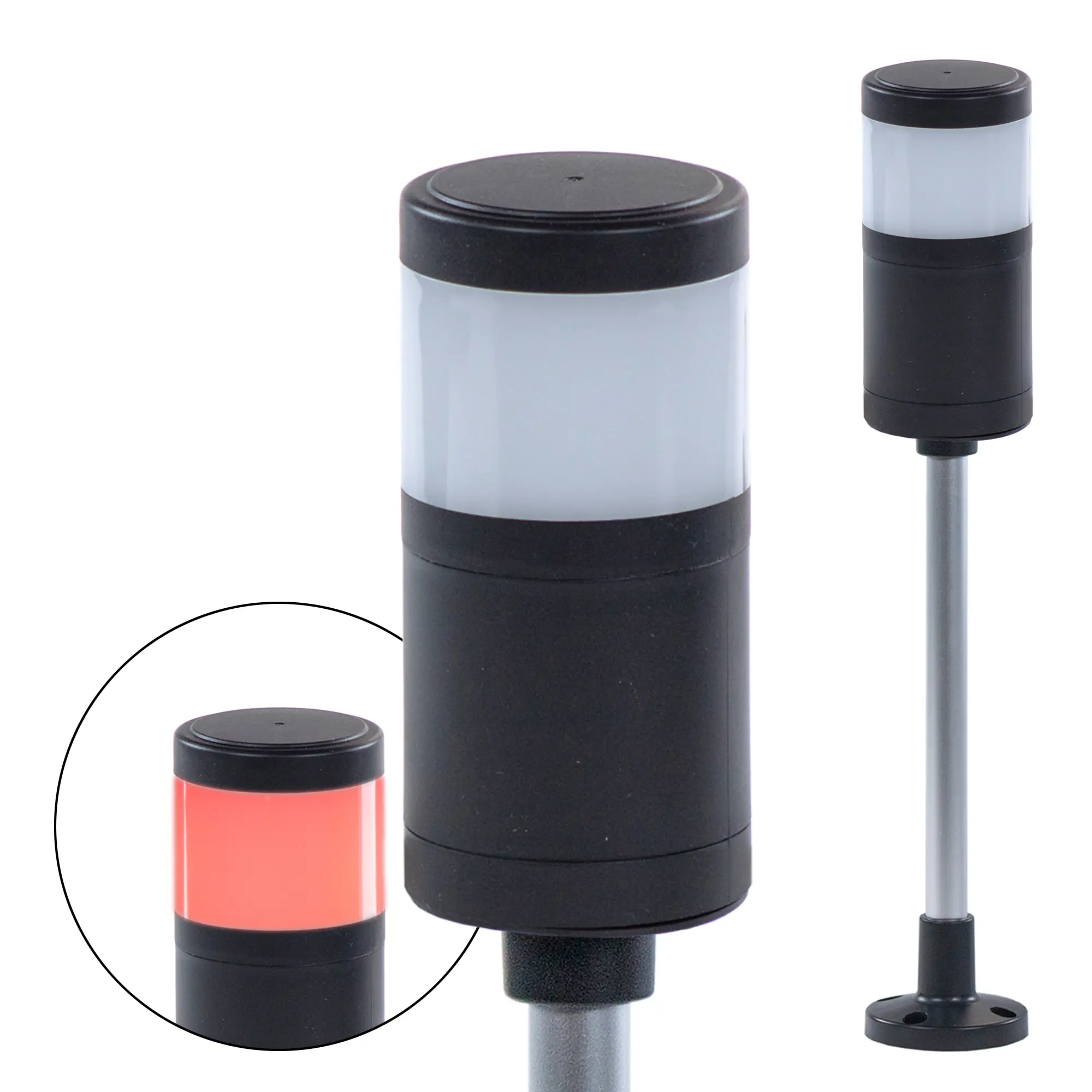

1-Tier LED Tower Signal Light, Pole Mount, Red
$90.00
Designed for reliability and flexibility in demanding industrial environments, this 1-tier, red pole-mounted tower light delivers clear, highly visible signaling in a compact, modular form. Built with durable industrial grade materials, it performs consistently across a wide temperature range, making it ideal for factory floors, automation systems, and even outdoor applications. The modular LED design features a diffused (opal) lens that provides smooth, 360° illumination for a comfortable, glare-free view from any angle.
- US-based technical support.
Share the product:
Optical
| Light Source | LED |
| Lens | Opal Polycarbonate |
| Layers | 1 |
| Light Color | Red |
Signaling
| Steady Light | Steady/Solid |
| Flashing Light | 60-80/min |
Electrical
| Input Voltage | 24 VDC |
| Input Current w/out Buzzer | 70mA |
| Connection | Flying Leads: 15.75" [400mm] |
Mechanical
| Weight | ~ 0.90 lbs [0.41 kg] |
| Mounting | 2 x M18 Hex Nut, 1 x M18 Washer, 1 x M18 Split Lock Washer |
| Construction | ABS Housing, Polycarbonate Lens, Aluminum Pole |
| Pole | Aluminum, Ø0.71” x 9.84” [Ø18 x 250mm] |
| Dimensions w/out Buzzer | Ø60 x 13.54" [352mm] |
Environmental
| Operating Temperature | -22° ~ 122°F (-30° ~ 50°C) |
| Rating w/out Buzzer | IP65 |
| Certifications | CE/ RoHS/ cULus |

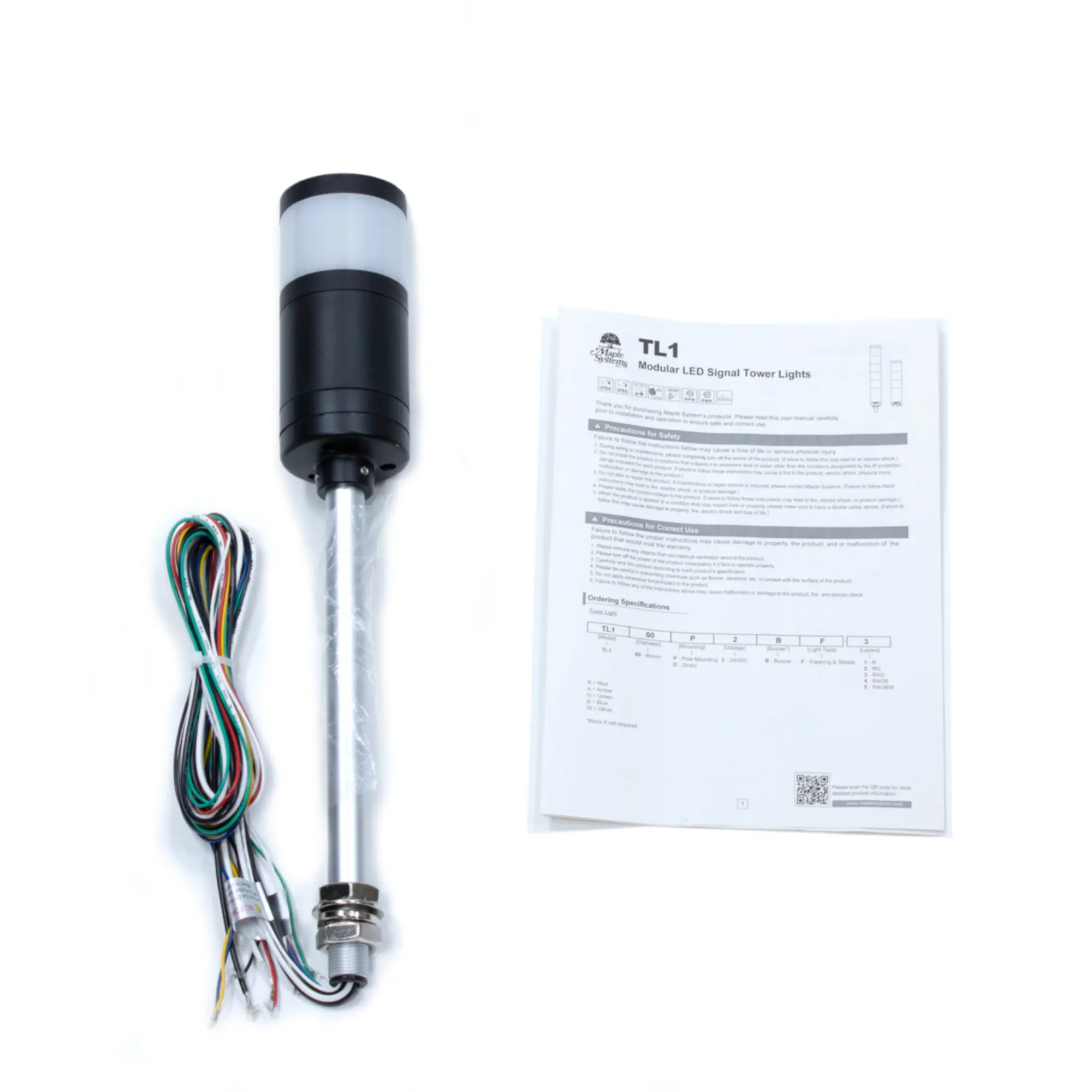

When you order the TL160P2F-1 the following items are included in the box:
1 x 1-Tier Red Tower Light
1 x Ø0.7″ x 9.65″ Pole
2 x M18 Hex Nut
1 x M18 Washer
1 x Split Lock Washer
1 x Warranty Statement
1 x TL1 Quick Start Guide
