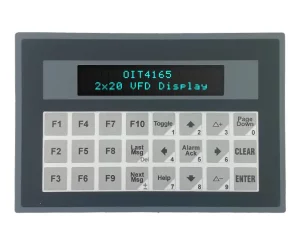

OIT4165-A00
- 2 x 20 Backlit VFD
- 24 Programmable Keys
- Class I, Division 2 Rated
- Support for over 100 protocols
- 2 Year Warranty
- Extended Temperature Range

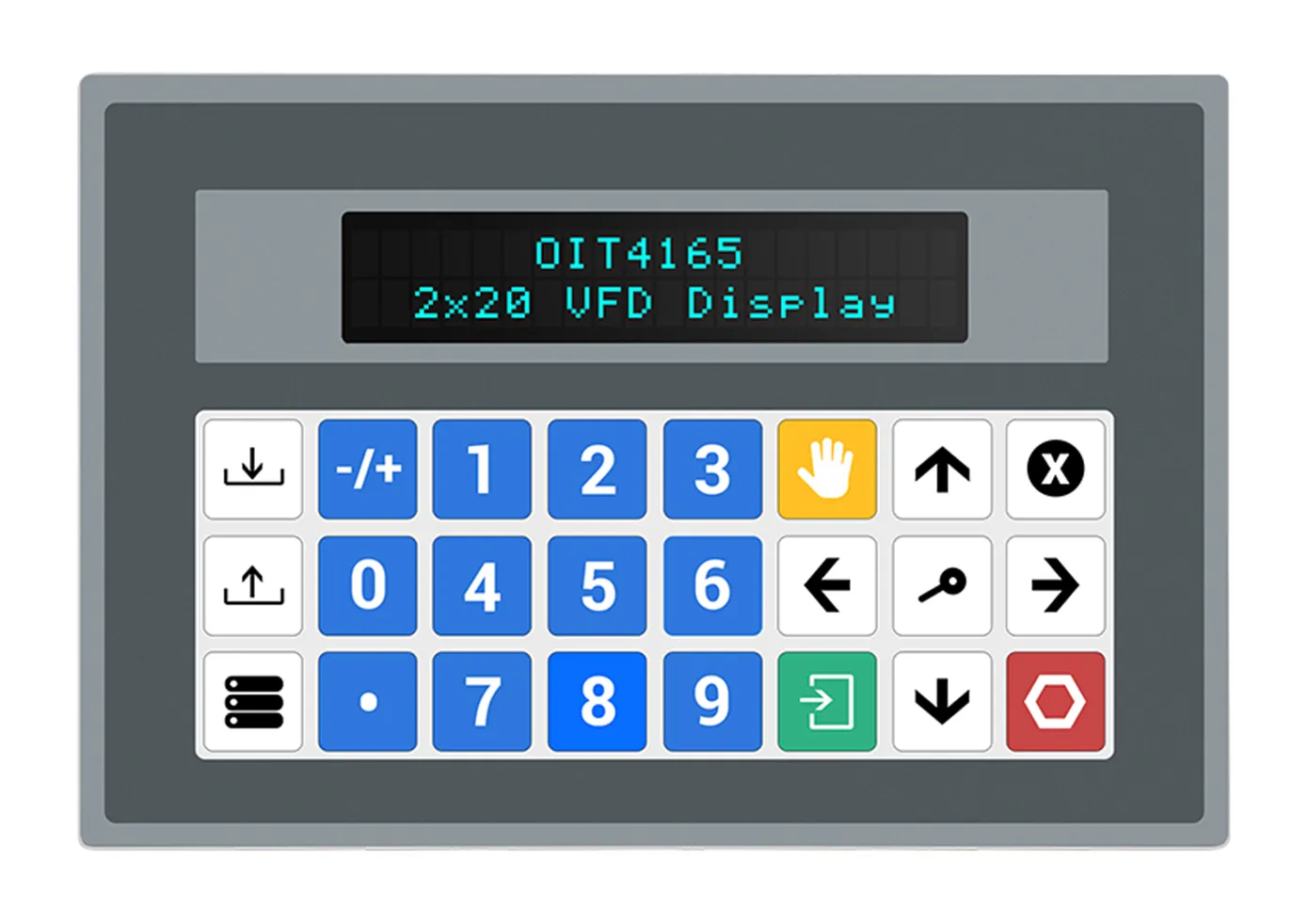

2 x 20 VFD, 24 Programmable Keys
OIT4165-A00
Our Alphanumeric OITs are powerful, affordable operator interface terminals. With the ability to communicate with more than 100 brands of PLCs, motion controllers, temperature controllers, and embedded microcontrollers, you can easily create the perfect operator interface terminal for your application.
Looking to add functionality? Need Class I, Div 2? Our HMI+PLC series offer the next step in your control solutions.
- Compare OIT4165-A00 and other models.
- Volume Discounts available. Contact Sales for more details.
- US Based Technical Support
System
| Input Current | 57mA @ 24VDC |
| Capacity (Screens) | 500 |
| Audio | Internal audio transducer |

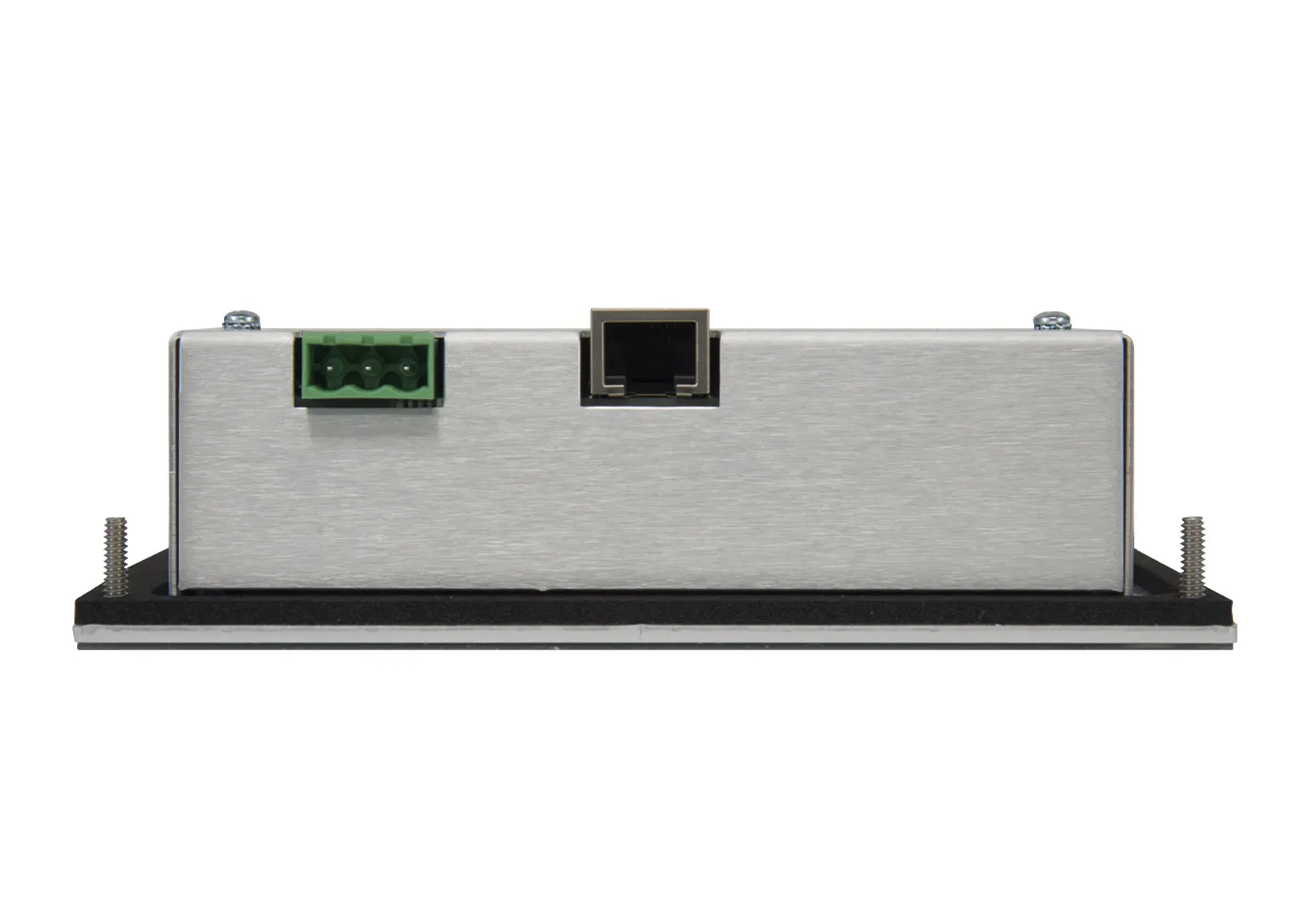

I/O Ports

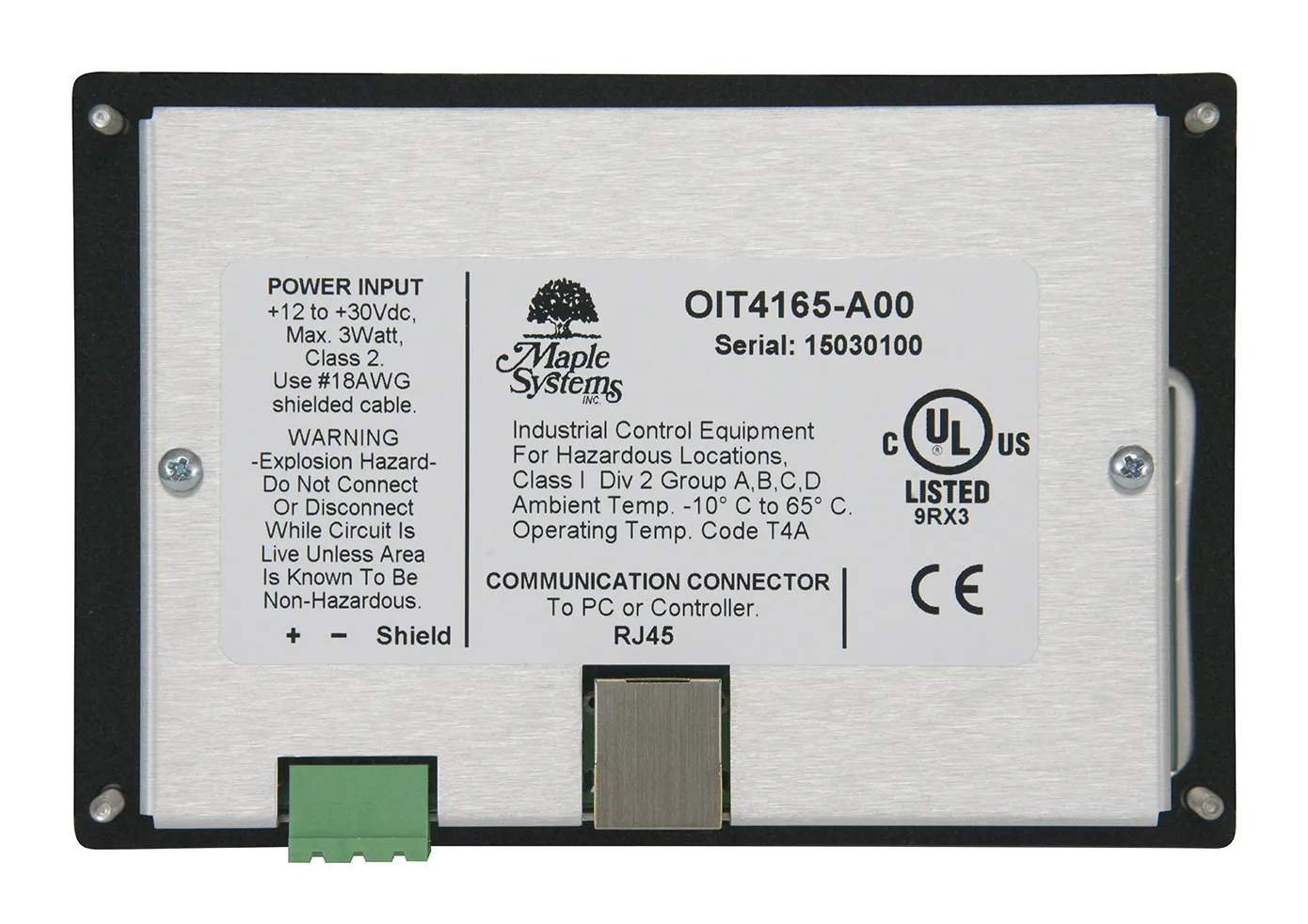

| Power | 3 pins terminal block connector, DC power input |
| Serial | 1 x RJ45 shielded RS-232/422/485 |
Display
| Display Size | 2 line by 20 characters |
| Backlight Lifetime (hrs) | N/A |
| View Angle (H° V°) | Approximately 90 degree |
| Type | VFD; 5 x 7 dot matrix |
| Backlight | N/A |
Keypad
| Type | Flat panel membrane |
| Material | Polyester |
| Lifespan | 3 million operations |
| Programmable Keys | 24 (up to 8 screen-dependent) |
| Customizable Key Legend | Yes |
Electrical
| Input Power | 1.37 W |
| Input Voltage | 12 ~ 30 VDC |
Mechanical
| Enclosure Material | Aluminum |
| Dimensions WxHxD | 6 x 4 x 1.77 inches [152.4 x 101.6 x 45 mm] |
| Weight | 0.75 lbs [0.34 kg] |
| Mounting | Panel mounting |
Environmental
| Storage Temperature | -22 ~ 176°F (-30 ~ 80°C) |
| Operating Temperature | 14 ~ 149°F (-10 ~ 65°C) |
| Relative Humidity | 5% ~ 95% (non-condensing) |
Certification
| NEMA Rating | NEMA4X |
| IP Rating | IP65 |
| CE | Yes |
| UL | Yes |
| Class 1 Div 2 | Yes |
Documents
Manuals
Certifications
Need Additional Support?
Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204
Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com
Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)
When you order the OIT4165-A00 the following items are included in the box:
- 1x OIT4165-A00
- 1x Warranty Statement
- 1x Installation Instruction
- 1x Power Connector
- 4x Locking Washer Nut
