AEx-915APH-
- 1024 x 768 Resolution
- Class I Div 2, Class 2 Div 2, M12 Connectors
- 316 Stainless Steel Chassis
- High Brightness – 1000 nits
- Intel® Skylake Core i5-6300U 2.4 GHz
- -20 ~ 60 C Operating Temperature

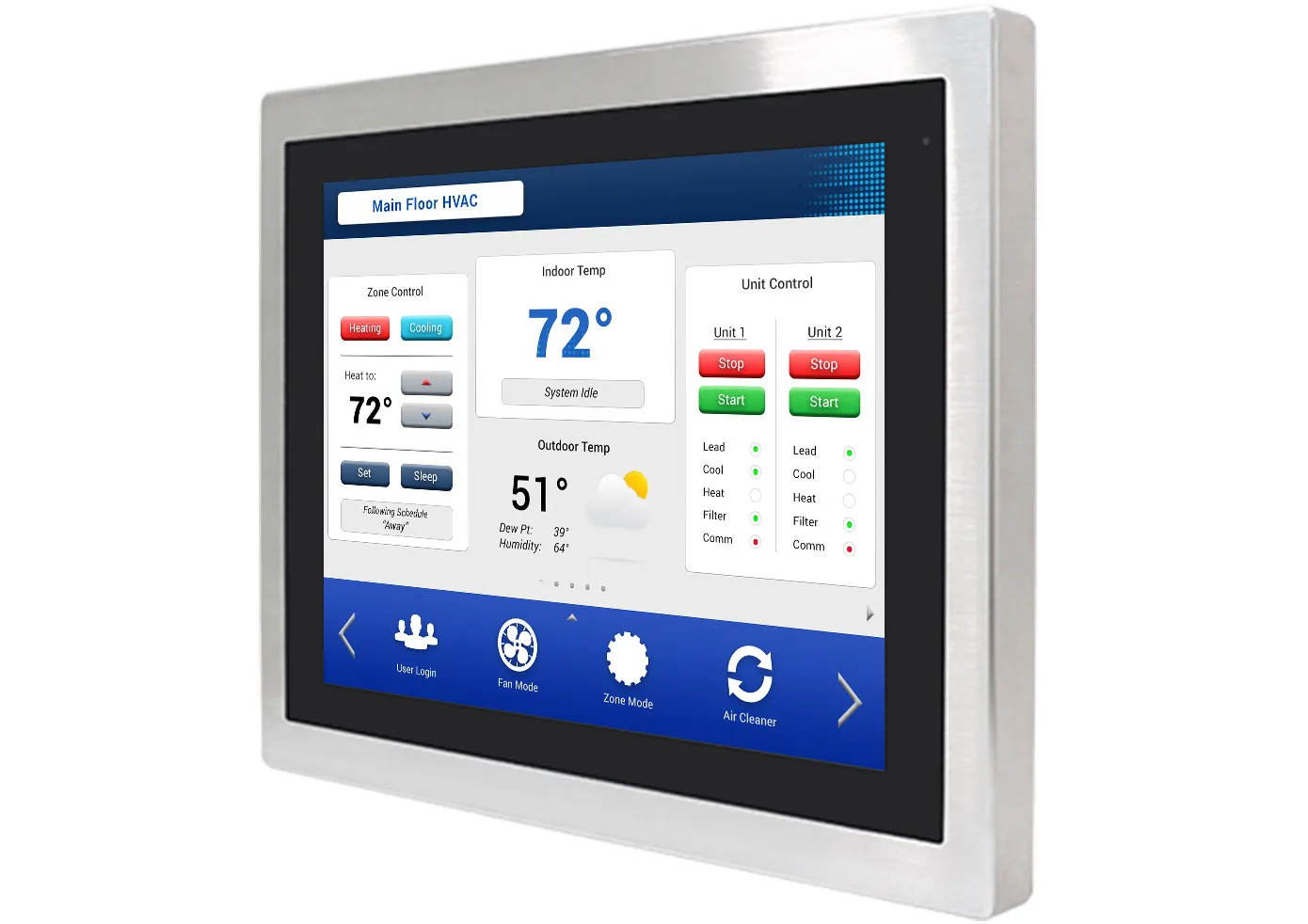

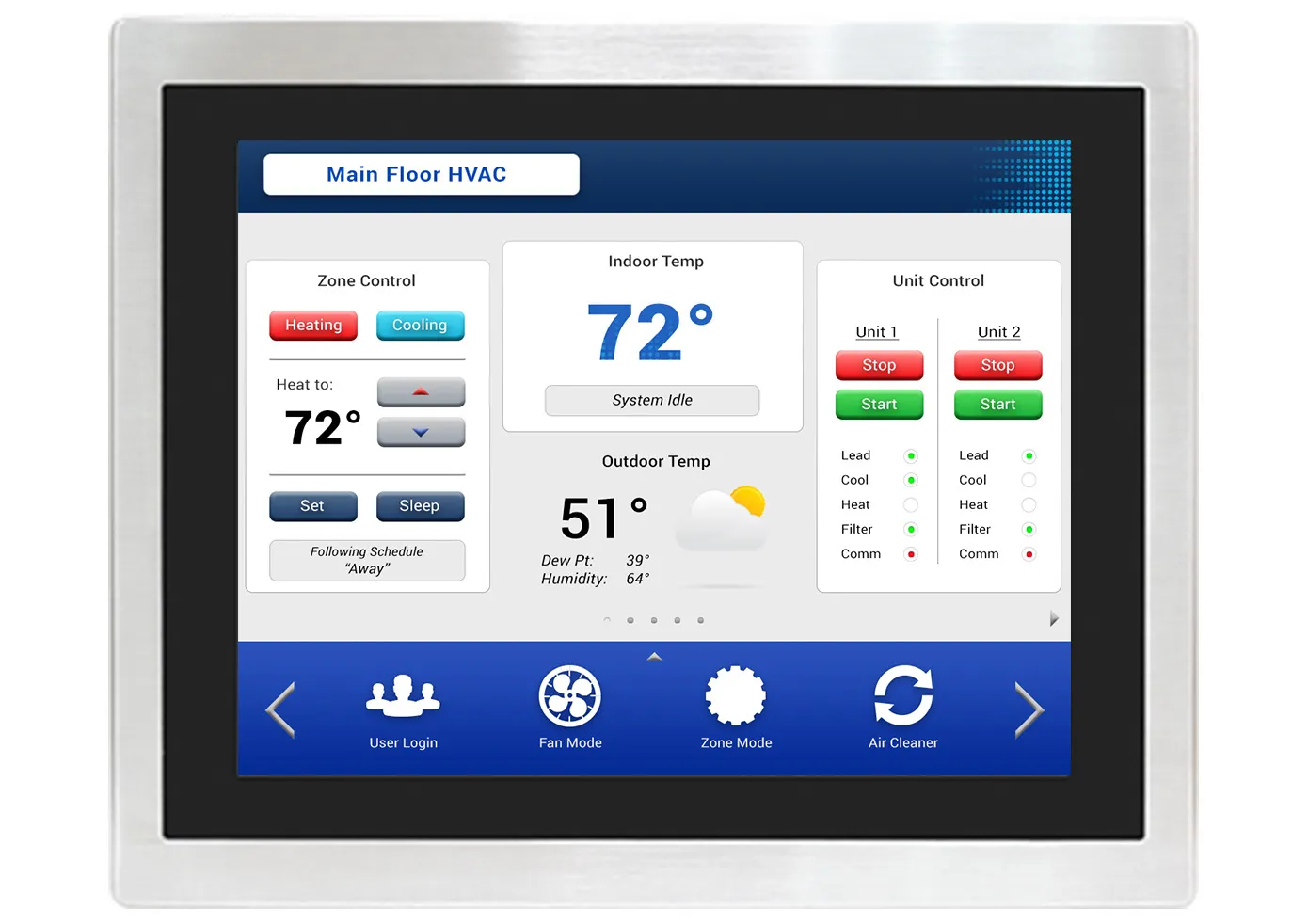

15.0" C1D2, Stainless Steel, Wide-Temp, 1000nit Intel® Core® i5 Industrial Panel PC
AEx-915APH-
The AEx-915APH is designed to keep operators and their environment safe. Ideal for use in industries including oil and gas, mining, painting, chemical processing, pharmaceutical, food processing, and more. This IPC features a 15.0” 1000 nit sunlight readable capacitive touchscreen and supports a wide operating temperature range ( -20 ~ 60 C ). With a Windows® Operating System that supports 3rd party software like FactoryTalk® or Aveva Edge, the CID2 Industrial computer is both powerful and versitile. VESA mount. ATEx/IECEx rated.
System
| Memory (RAM) | 1 x DDR4 260-pin SO-DIMM 16 GB 2133 MHz |
| System Chipset | SoC |
| Input Current | 2.02-8.07 A |
I/O Ports
| Ethernet/LAN | 2 x M12 8-pin for RJ-45 |
| Display Output | 1 x M12 12-pin for VGA |
| Power | 1 x M12 3-pin for DC power input (leads) |
| USB 2.0 Type A | 2 (1 x M12 8-pin for 2 x USB 2.0) |
| Serial Options | 1 x M12 8-pin for RS-232/422/485, DE-9, COM1 (default RS-232) |

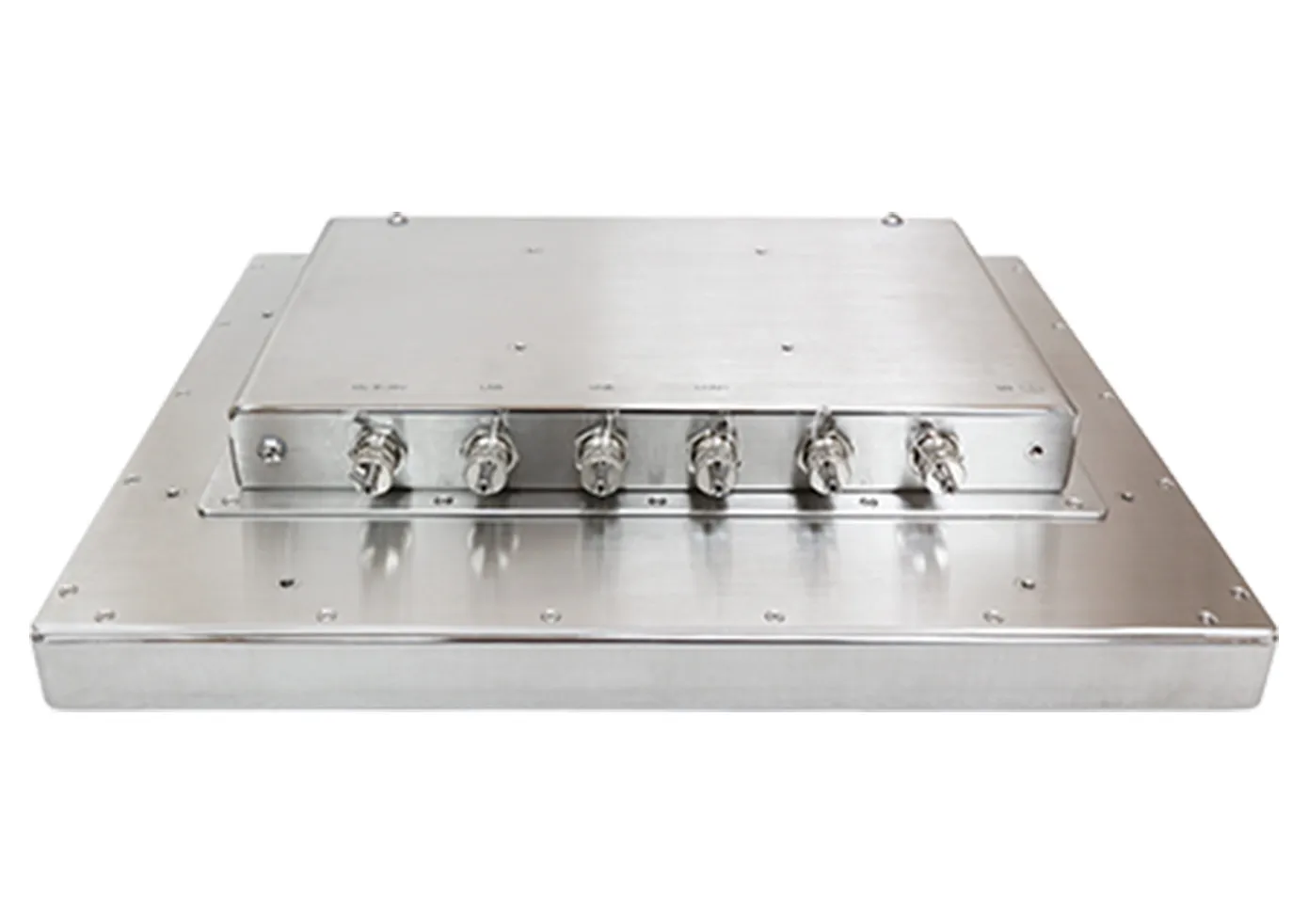

| Connector Type | M12, with waterproof cover and tether chain |
| Display Interface Options | 1 x M12 12-pin for VGA |
Display
| Resolution | 1024 X 768 |
| Luminance (cd/m^2) | 1000 |
| Contrast Ratio | 800:1 |
| Backlight Lifetime (hrs) | 50,000+ |
| Colors | 262 K |
| View Angle (H° V°) | 160/140 |
| Display Type | 15.0” XGA TFT LCD |
Touch Screen
| Touch Interface | USB (Internal) |
| Light Transmission | 90+% |
| Touch Screen Type | Projected Capacitive |
Electrical
| Input Power | 72.6 W |
| Input Voltage | 9-36 VDC |
| Input Current | 2.02-8.07A |
Mechanical
| Enclosure Material | 316 Stainless Steel Chassis |
| Dimensions WxHxD | 15.71 x 12.76 x 2.76 inches [399 x 324 x 70 mm] |
| Weight | ~ 21.61 lbs [9.8 kg] |
| Mounting | VESA 100 x 100 mm |
| Construction | 316 Stainless Steel Chassis |
Environmental
| Storage Temperature | -22~158°F [-30~70°C] |
| Operating Temperature | -4~140°F [-20~60°C] |
| Relative Humidity | 10 to 95% @ 40°C, non-condensing |
Certification
| IP Rating | IP66 |
| CE | Yes |
| Class 1 Div 2 | Yes |
| ATEX | ATEX / IECEx Zone 2 Ex ec ic IIC T4 Gc ATEX / IECEx Zone 22 Ex tc IIIC T135°C Dc |
| RoHS | Yes |
| FCC | FCC Class A |
| UL Class 2 Div 2 | Class II Division 2 Group F, G, T135°C |
| UL Class 3 | Class III |
Documents
Certifications
- CE Certification
- CSA Class I Div 2 / Class II Div 2 / Class III Certificate
- Ex Certificate
- FCC Class A
- Trade Agreement Act
- RoHS Certification
Need Additional Support?
Maple Systems
808 134th St. SW, Suite 120
Everett, WA 98204
Phone: 425.745.3229
Fax: 425.745.3429
Email: sales@maplesystems.com
Business Hours:
Monday – Friday 6:00am – 4:30pm (PST)
When you order the AEx-915APH- the following items are included in the box:
- AEx-915APH Industrial Panel PC
- Warranty Statement
- Installation Instruction
- Product Flyer
- DC Power Cable (M12 to leads)
- USB 2.0 Cable (M12 to 2x USB 2.0 Type A)
- VGA Cable (M12 to VGA)
- 2 x Ethernet Cable (M12 to RJ45 Ethernet)
- Serial Cable (M12 to DE9)
Note: Cables are for testing and/or inside a cabinet installation. Cables and Accessories are not CID2 rated
