HMI5121P

  • 1024 x 768 Resolution
  • 32-Bit RISC 800 MHz CPU
  • Supports CANbus
  • Aluminum Enclosure
  • 2 Year Warranty
  • Support for over 300 protocols

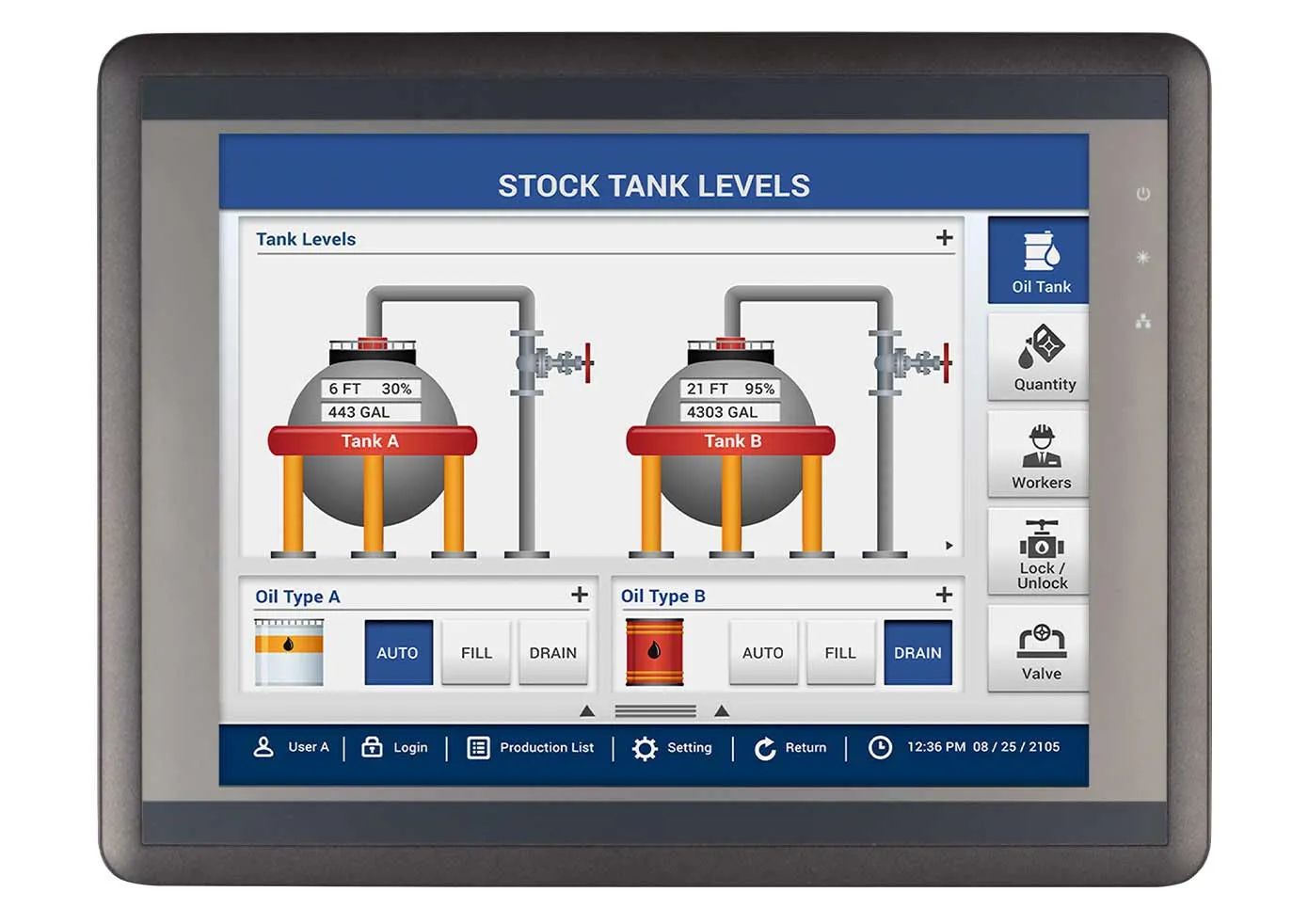

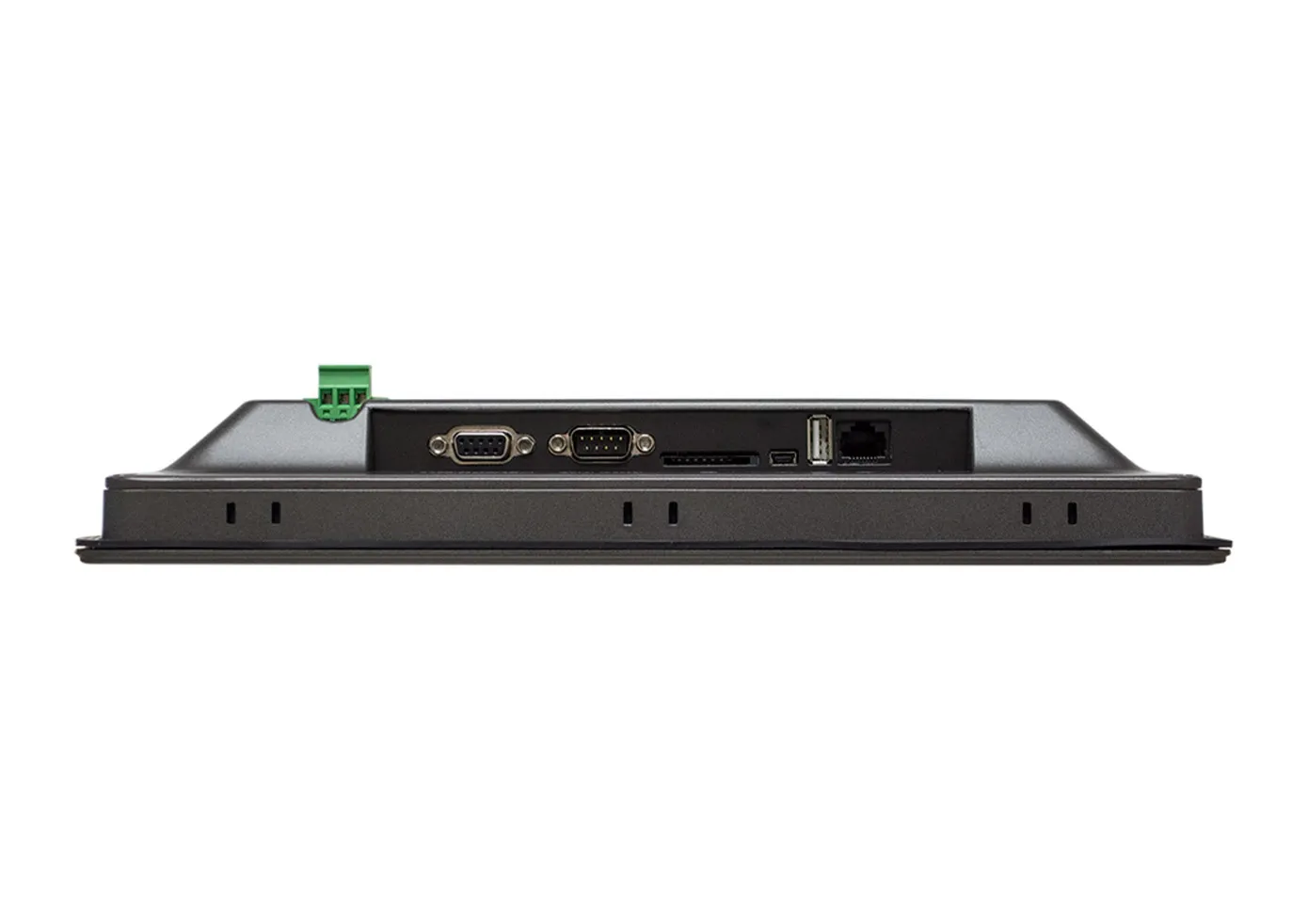

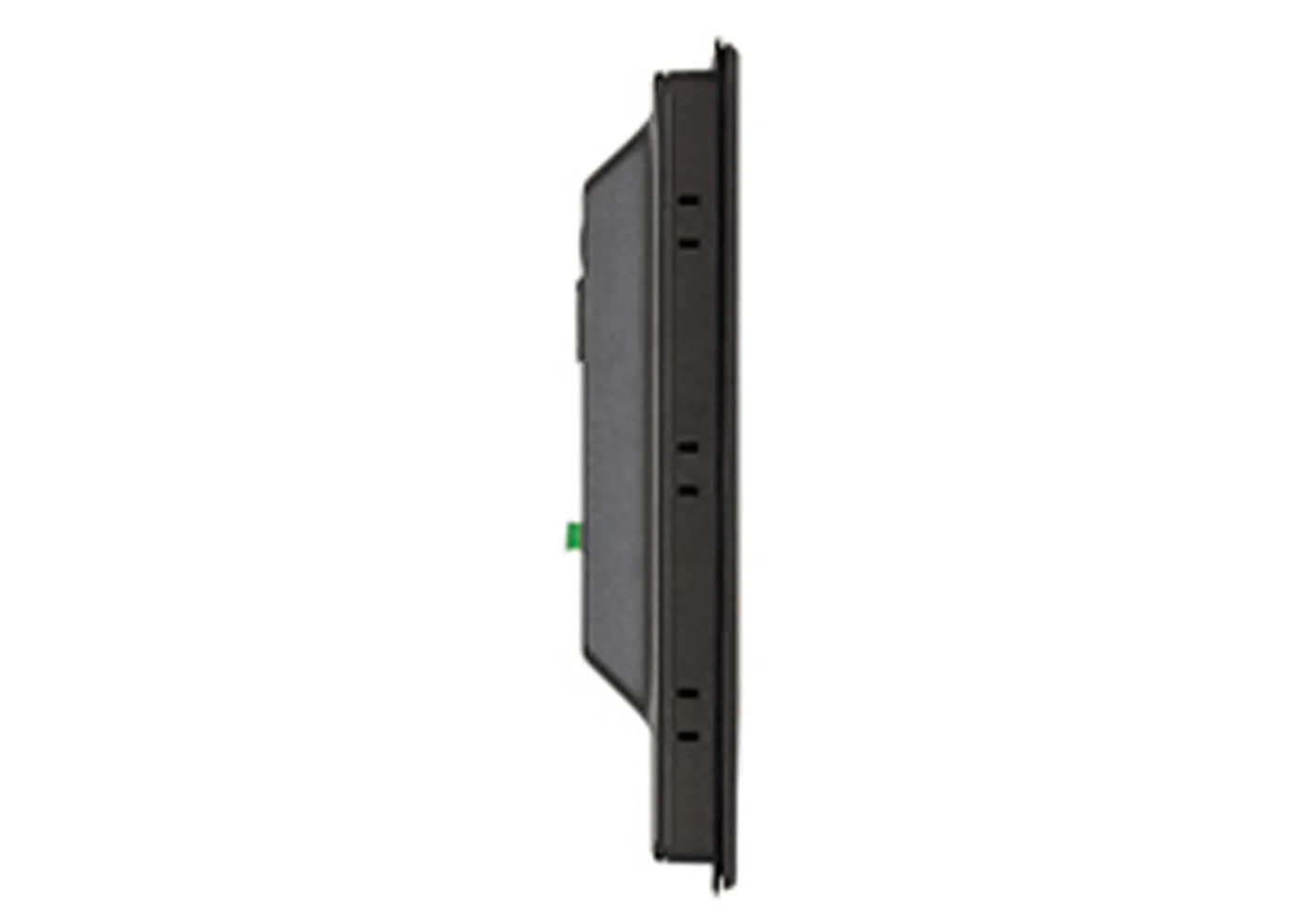

12.1″ Advanced HMI, 1 Ethernet Port, 2 USB Ports, 2 Serial Ports, CANBus, Dark Grey, Aluminium Enclosure

HMI5121P

This is a legacy product and is no longer available for purchase. Please call (425)-745-3229 or email: sales@maplesystems.com for a recommended upgrade path.

cMT2128X replaces the HMI5121P



As part of our Advanced Series, this HIGH-RESOLUTION model features the CANbus protocol and takes advantage of the more progressive features in our free programming software and proves an excellent value for its enhanced capabilities. If you are in need of more specific IIoT features, see our Smart HMI Series.

Specifications

System

Memory (RAM)

256 MB

Memory (Flash)

256 MB

RTC

Built-in

Programming Software

EasyBuilder Pro

I/O Ports

Serial Ports

2

Ethernet/LAN

10/100 Base-T x 1

CANbus

Yes

Audio Output

N/A

SD Card Slot

SD/SDHC (32GB capacity)

USB Host Ports

USB 2.0 x 1

USB Client Ports

USB 2.0 x 1

Wi-Fi

N/A

RS-485 Dual Isolation

Yes

Local bus

N/A

HDMI Port

N/A

Video Input

Yes

Display

Resolution

1024 X 768

Luminance (cd/m^2)

500

400

350

300

Contrast Ratio

700:1

Backlight Type

LED

Backlight Lifetime (hrs)

50,000+

Colors

16.2 M

Display Type

12.1" TFT

Viewing Angle (H°/V°)

160/160

Size (W x H)

9.76 x 7.34 inches [248 x 187 mm]

Touch Screen

Type

4-wire resistive touch

Electrical

Input Power

20.4 W

Power Isolation

Built-in

Power Dissipation

N/A

Current for Internal Bus

N/A

Current Consumption

N/A

Isolation Resistance

Exceed 50 MO - @ 500 VDC

Input Voltage

24 ± 20% VDC

Input Current

850 mA @ 24 VDC

Mechanical

Vibration Endurance

10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Enclosure Material

Aluminum, charcoal grey

PCB Coating

Yes

Dimensions WxHxD

12.48 x 9.61 x 1.81 inches [317 x 244 x 46 mm]

Panel Cutout (inches) [mm]

12.01 x 9.09 [305 x 231]

Weight

Approx. 4.6 lbs. [2.1 kg]

Mounting

Panel mount, VESA 75 x 75 mm

Environmental

Storage Temperature

-4° ~ 158°F (-20° ~ 70°C)

Operating Temperature

32° ~ 122°F (0° ~ 50°C)

Relative Humidity

10% ~ 90% (non-condensing)

Certification

UL Type Rating

N/A

NEMA Rating

NEMA4

IP Rating

IP66 Compliant Front Panel

CE

Yes

UL

cULus Listed

Class 1 Div 2

N/A

ATEX

N/A

RoHS

Yes
