cMT-SVRX-820 Front View

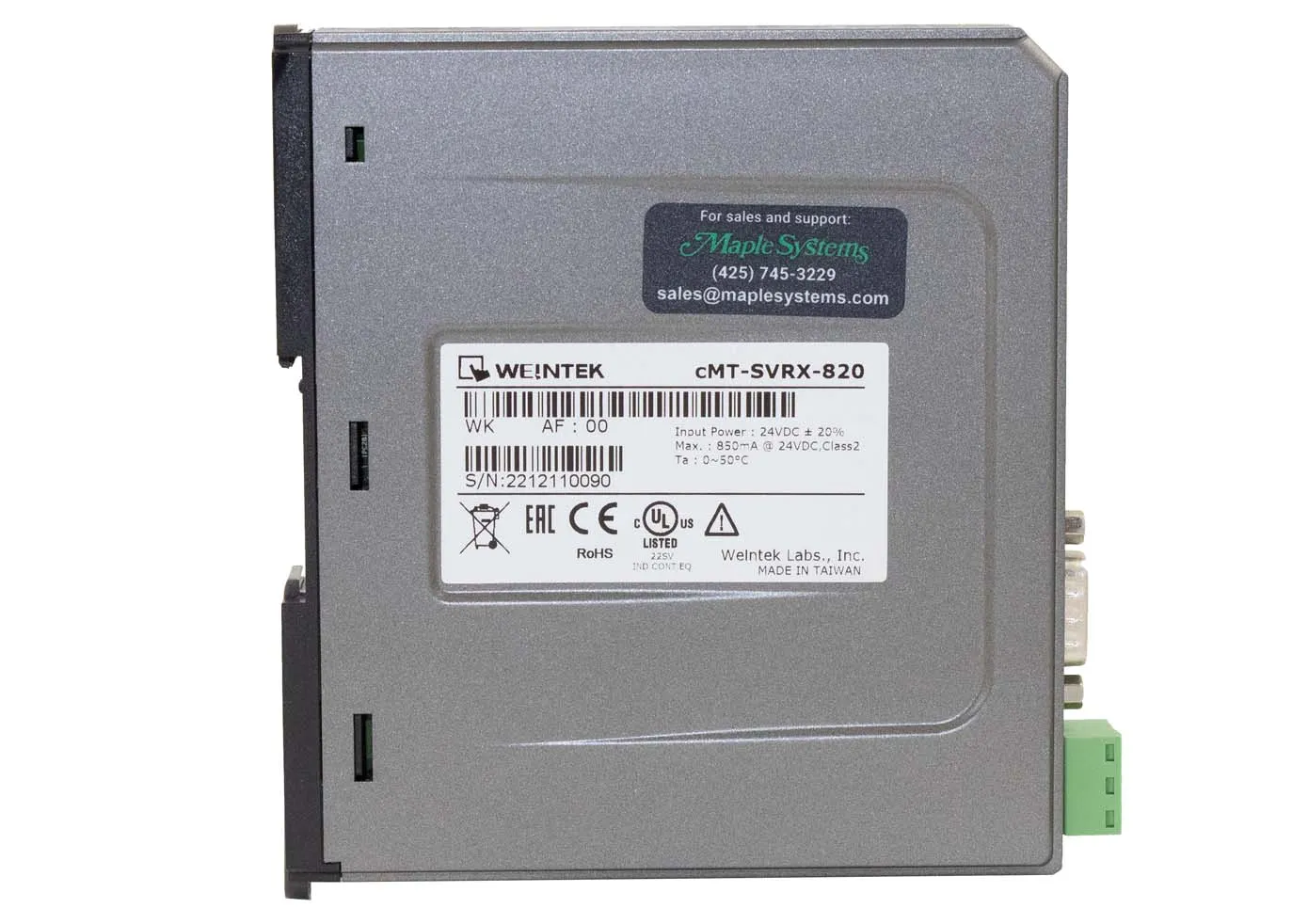

cMT-SVRX-820 Side 1 View

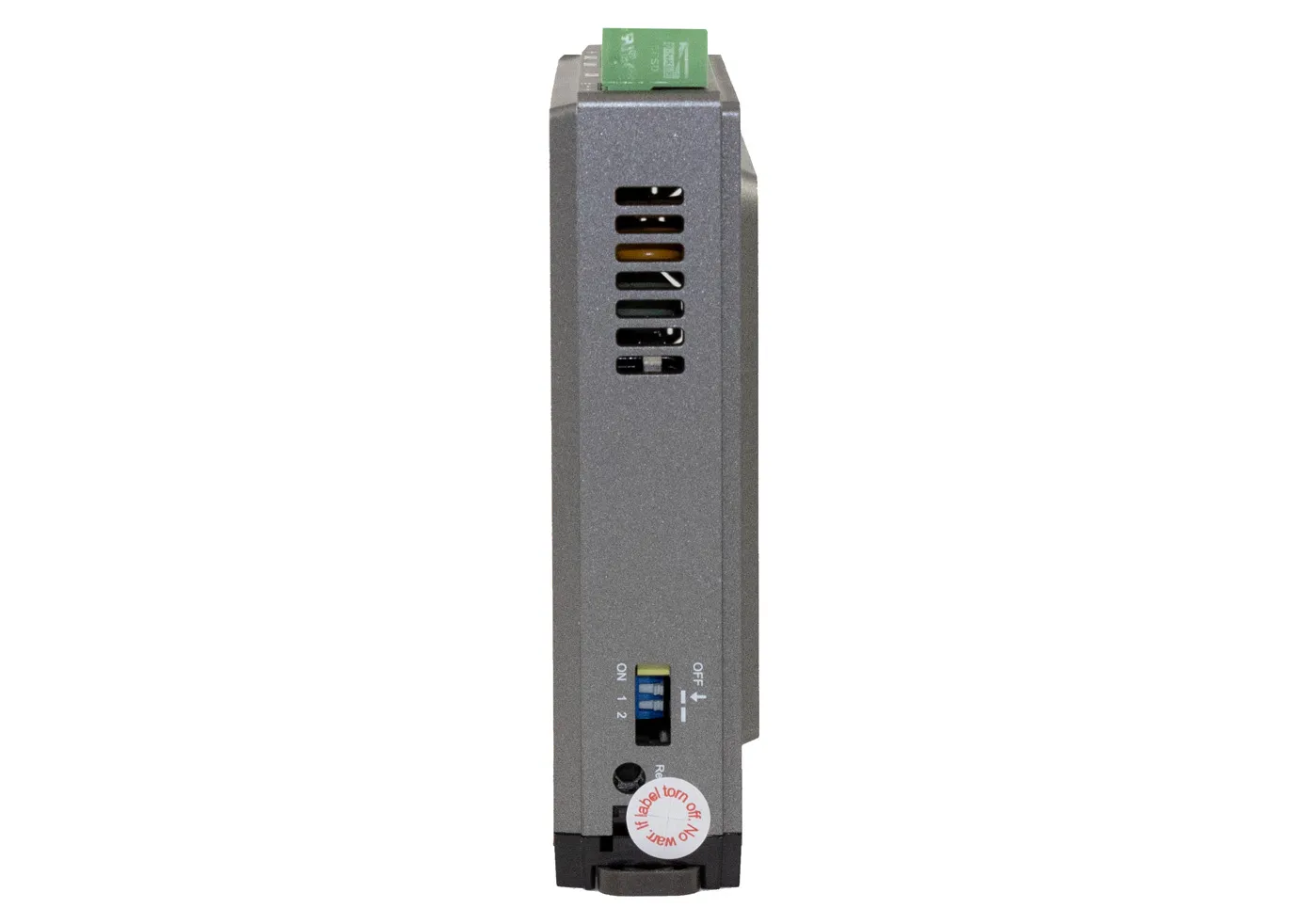

cMT-SVRX-820 Bottom View

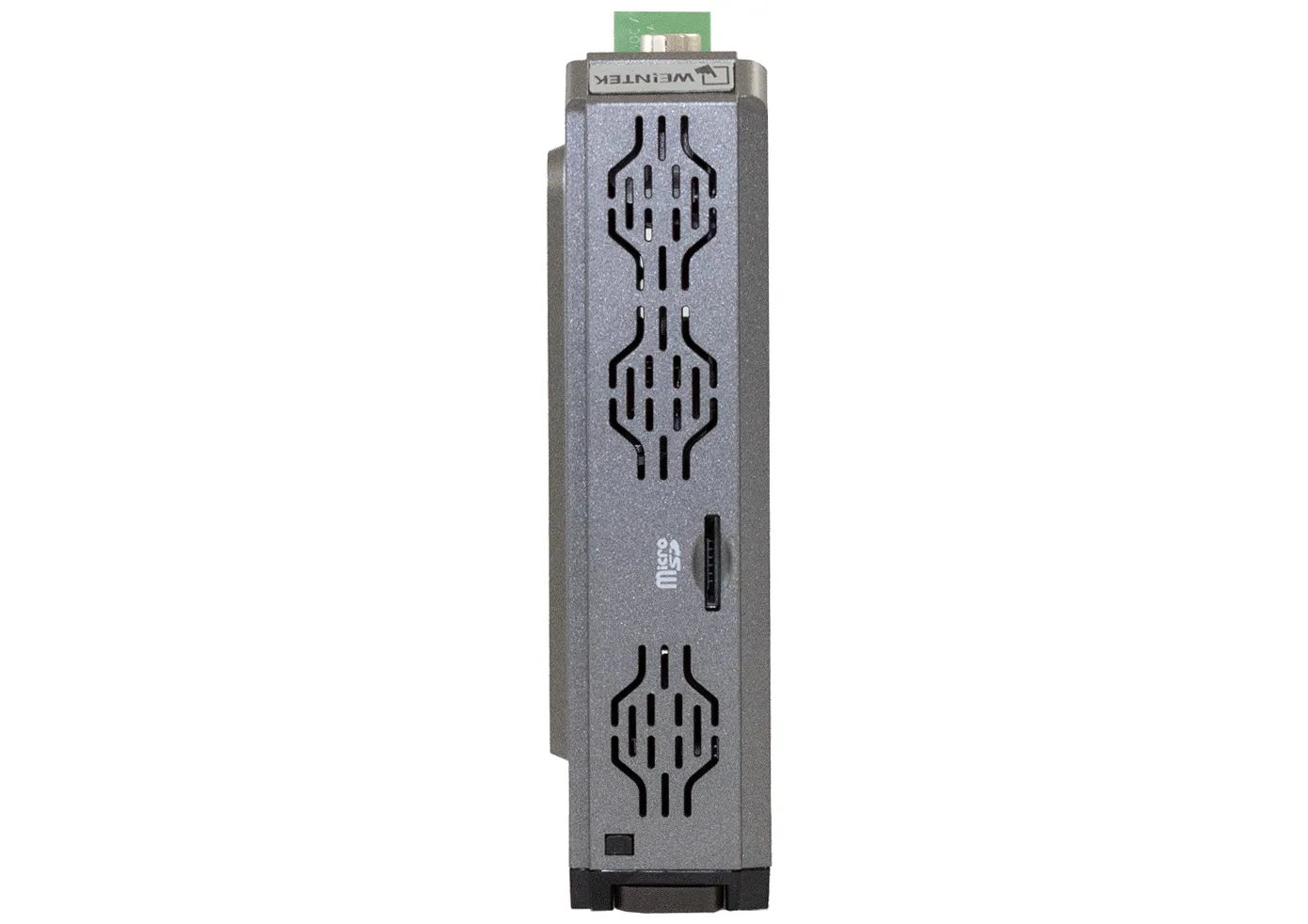

cMT-SVRX-820 Top View

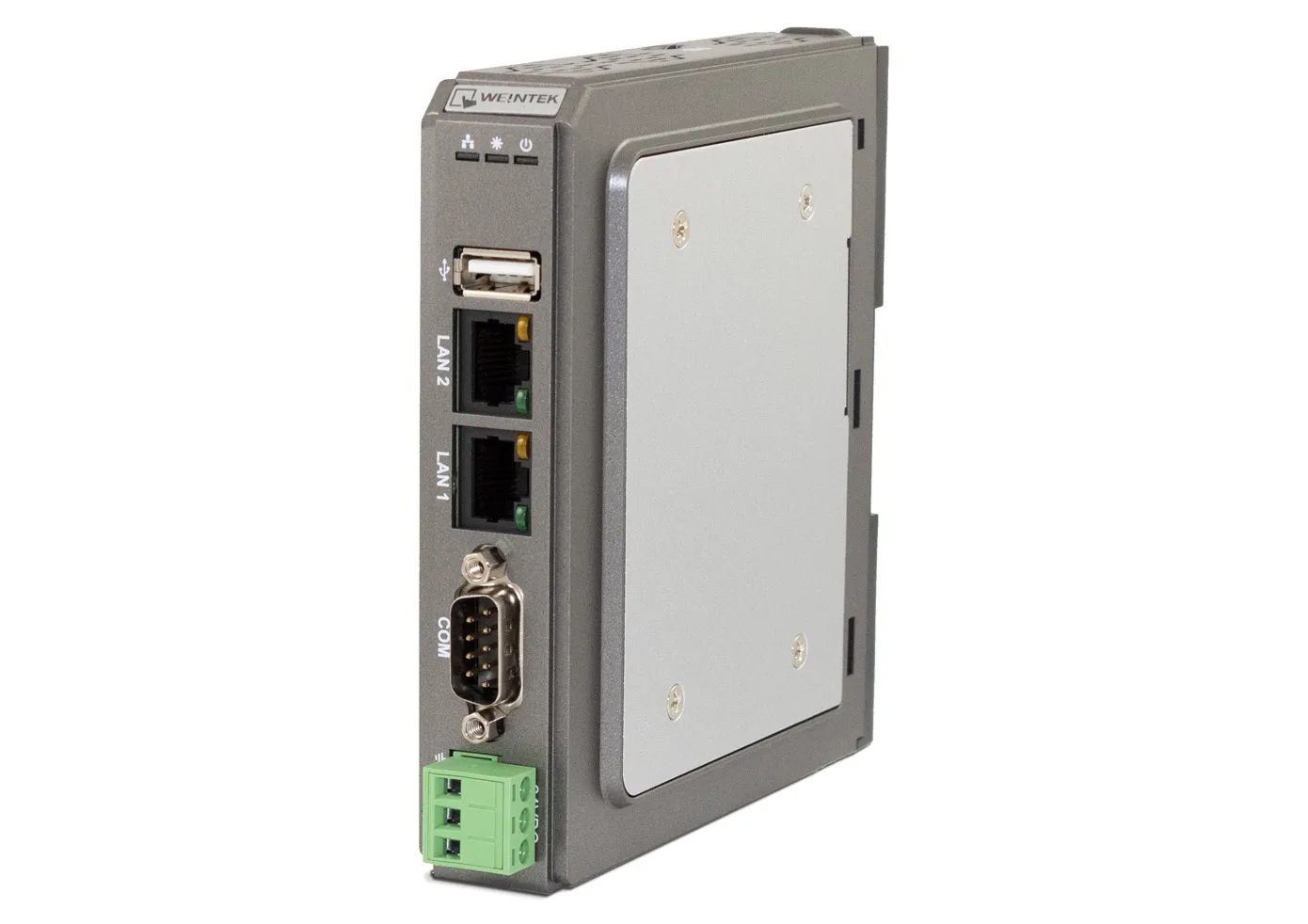

cMT-SVRX-820 Cross View

cMT-SVRX-820-CODESYS

View Datasheet Download Software

Advanced Headless HMI with CODESYS

cMT-SVRX-820-CODESYS

$580.00

The cMT-SVRX-820 with activated CODESYS license has a unique quad-core CPU which allows 2 cores to run a CODESYS application for soft PLC functionality, and the other 2 cores to run your HMI application. Monitor PLC operations, gather data, and remotely access your control system via the cMT Viewer App on your smart phone, tablet, laptop, or PC.  Add an EasyAccess2.0 license for additional remote capabilities. If a display is needed, pair with our HTML5 Web HMIs.

Try Before You Buy:  Follow along to learn how EBPro, our 100% free HMI configuration software, allows you to develop and simulate your HMI program entirely free of charge.

Download 2D CAD file
Download 3D CAD file
Datasheet

System

Memory (RAM)

1 GB

Memory (Flash)

4 GB

RTC

Built-in

Programming Software

EBPro (Latest Version)

I/O Ports

Serial Ports

3

Ethernet/LAN

LAN 1: 10/100 Base-T RJ-45 LAN 2: GbE RJ-45

CANbus

N/A

Audio Output

N/A

SD Card Slot

SD/SDHC (32GB capacity)

USB Host Ports

USB 2.0 x 1

USB Client Ports

N/A

Wi-Fi

N/A

RS-485 Dual Isolation

N/A

HDMI Port

N/A

Video Input

N/A

Display

Display Size

N/A

Resolution

N/A

Luminance (cd/m^2)

N/A

Contrast Ratio

N/A

Backlight Type

N/A

Backlight Lifetime (hrs)

N/A

Colors

N/A

Display Type

N/A

Viewing Angle (H°/V°)

N/A

Touch Screen

Type

N/A

Electrical

Input Power

20.4 W

Power Isolation

Built-in

Power Dissipation

N/A

Current for Internal Bus

N/A

Current Consumption

N/A

Isolation Resistance

Exceed 50 MO - @ 500 VDC

Input Voltage

24 ± 20% VDC

Input Current

850 mA @ 24 VDC

Mechanical

Vibration Endurance

10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Enclosure Material

Plastic, charcoal grey

PCB Coating

Yes

Dimensions WxHxD

1.17 x 5.11 x 4.52 inches [29.8 x 130 x 115 mm]

Panel Cutout (inches) [mm]

N/A

Weight

Approx. 0.53 lbs. [0.24 kg]

Mounting

35 mm DIN rail

Environmental

Storage Temperature

-4 ~ 140°F (-20 ~ 60°C)

Operating Temperature

32 ~ 122°F (0 ~ 50°C)

Relative Humidity

10% ~ 90% (non-condensing)

Certification

UL Type Rating

cULus

NEMA Rating

N/A

IP Rating

IP20

CE

Yes

UL

cULus Listed

Class 1 Div 2

N/A

ATEX

N/A

RoHS

Yes

Customers who bought this product also bought:

  • EASYACCESS2.0
    EASYACCESS2.0
    EasyAccess 2.0 Activation Card. Remote Access
    $99.00
  • 4010-0010
    4010-0010
    Power Supply, Single Output, DIN Rail Mountable. Input: 100-240VAC, 1.1A/Output: 24VDC, 1.7A.
    $40.00
  • 7431-0103
    7431-0103
    Cable, CAT5E Ethernet, 5′
    $15.00
  • 7431-0104
    7431-0104
    Cable, CAT5E Ethernet, Crossover, 5′
    $15.00
  • 2850-0009
    2850-0009
    DIN Mounting Rail, 300mm (11.81″) 5/Set.
    $10.00
  • 2850-0010
    2850-0010
    DIN Mounting Rail, 450mm (17.72″) 5/Set.
    $15.00
  • 2850-0011
    2850-0011
    DIN Mounting Rail, 600mm (23.62″) 5/Set.
    $20.00
  • 2064-0001
    2064-0001
    4 GB SD Card.
    $20.00

FREE User Friendly HMI Software

Download our free, full-featured HMI configuration software to create custom control applications for your industrial process. EBPro supports over 300 PLC & controller protocols, ensuring seamless integration with new or existing systems. No license or key required.

Download EBPro for Free
More About EBPro
Explore our user-friendly HMI Configuration software, EBPro

When you order the cMT-SVRX-820-CODESYS the following items are included in the box:

  • cMT-SVRX-820 Headless HMI with activated CODESYS license
  • Warranty Statement
  • Installation Instruction
  • Product Flyer
  • Power Connector
